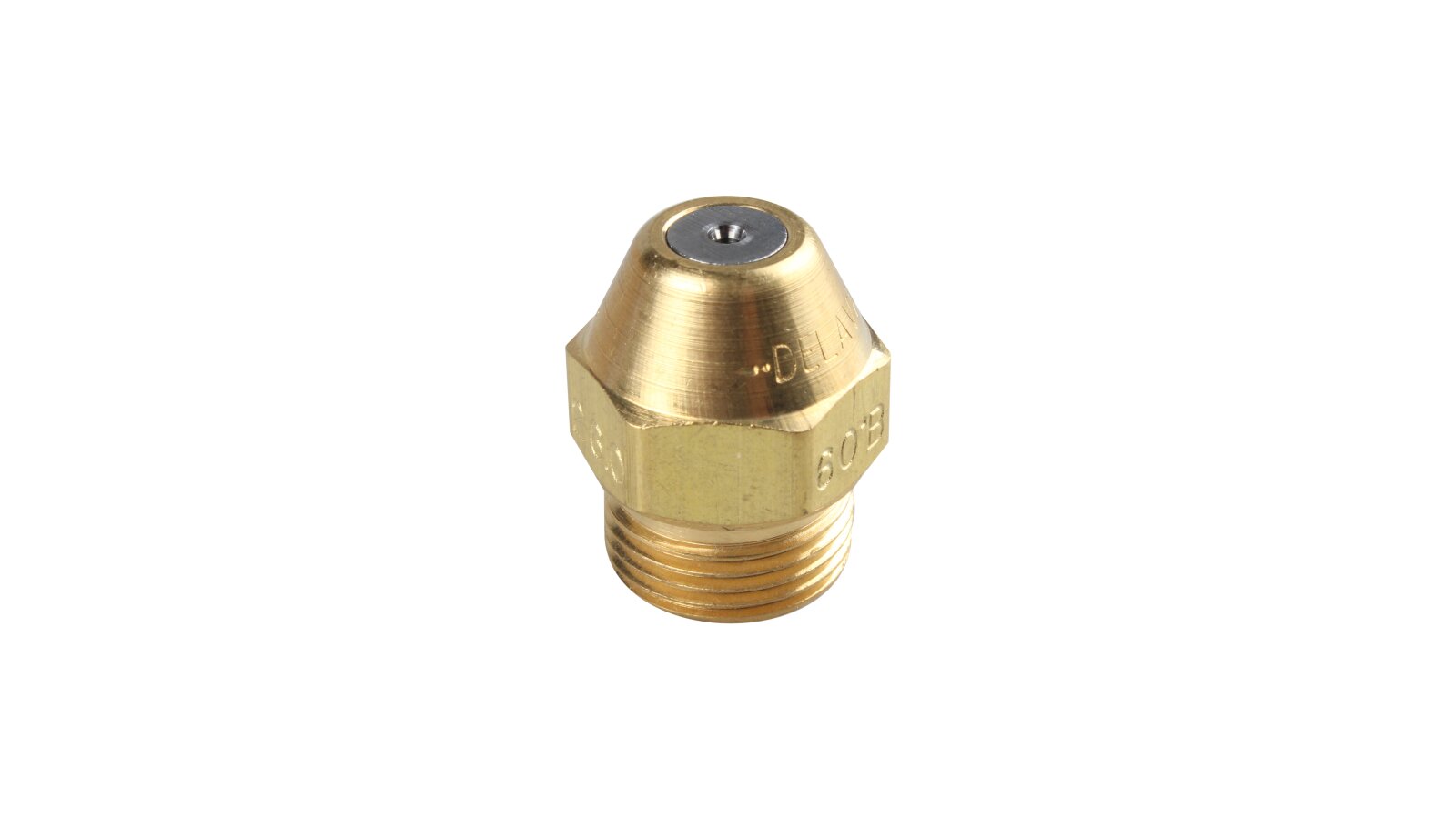

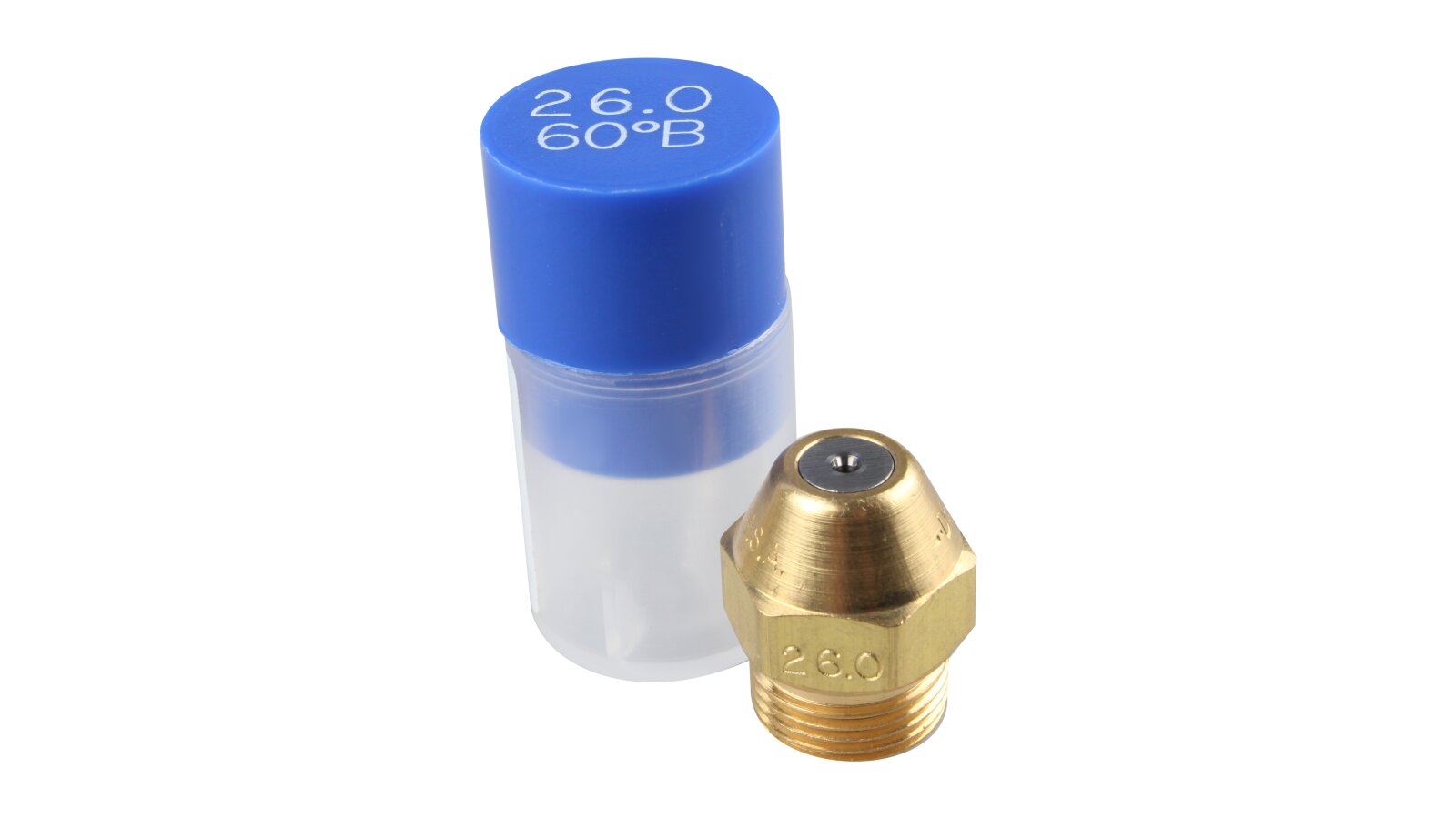

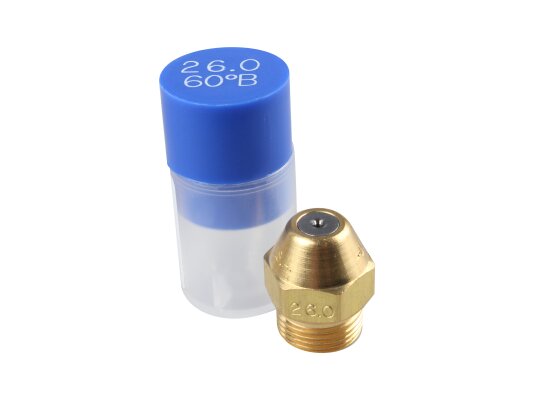

Oil nozzle Riello 26.00/60° B

The Riello 26.00/60° B nozzle, art.: 3042482, is suitable for spraying fuel oil, diesel fuel, and oil when using industrial and domestic burners. It guarantees an efficient, stable supply of fuel in a fine, continuous stream with a nominal spray angle of 60° (at a pressure of 10 bar).

Main parameters and features:

• Flow rate – 26 gph;

• use in burners burning fuel oil, diesel fuel, and other liquid fuels;

• uniform spraying to create a homogeneous composition of the fuel-air mixture;

• continuous spray pattern, cone angle of 60°;

• stable, uniform spraying of any fuel;

• model without a filter in the kit;

• corrosion-resistant brass body, stainless steel dosing elements;

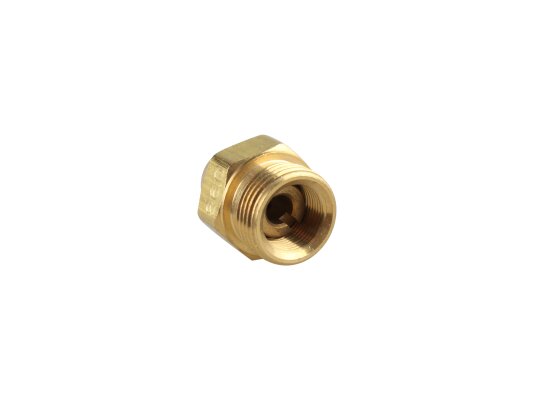

• threaded connection to the burner;

• special protrusion on the body for gripping with a key and easy screwing;

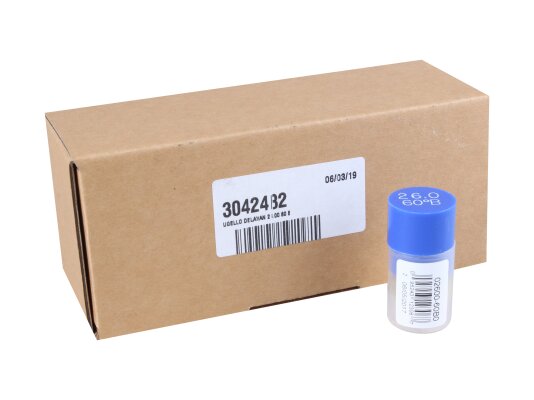

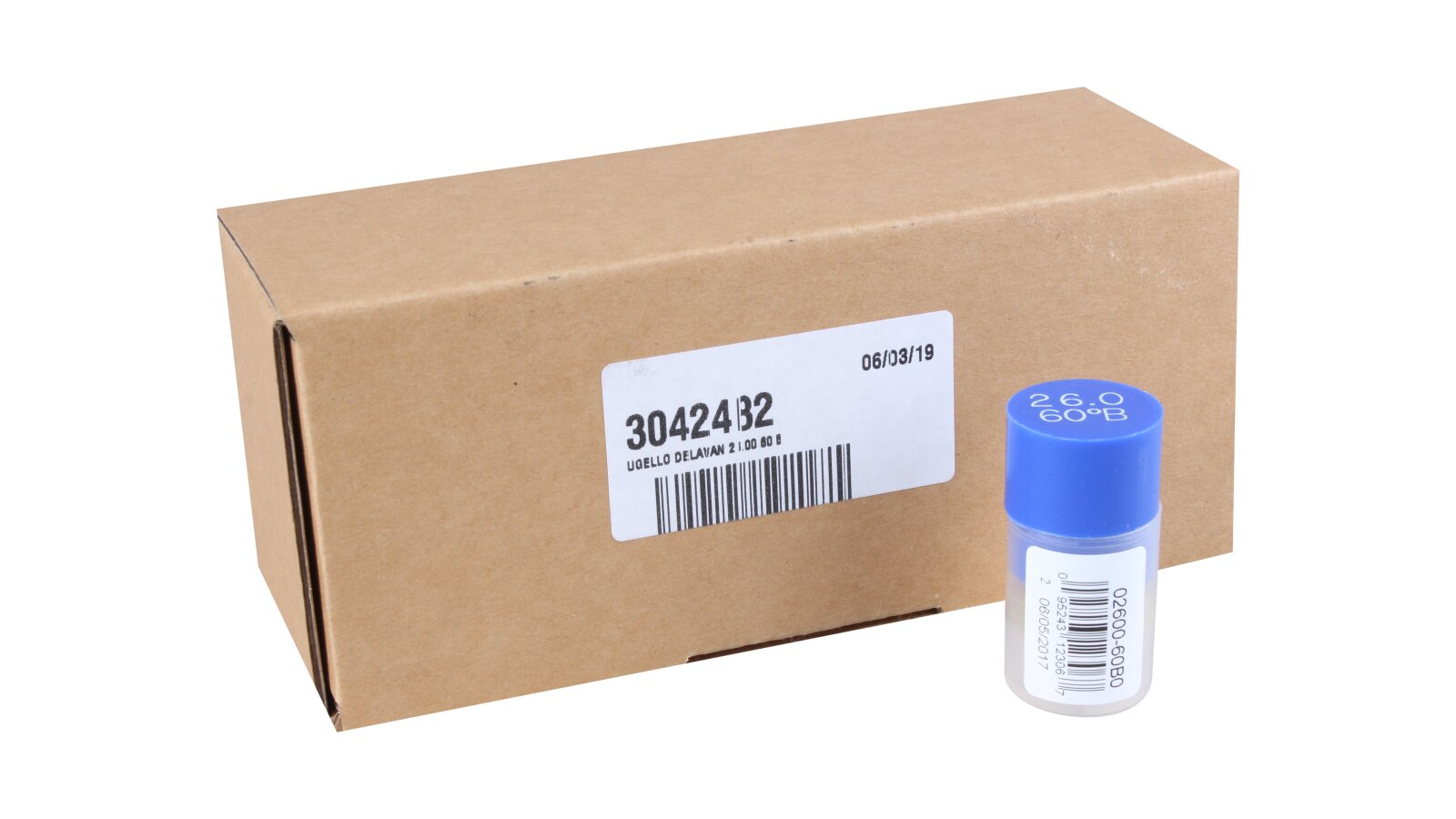

• individual plastic tube for protection during transportation.

Spray parameters

The Riello 26.00/60° B nozzle creates a fine cone-shaped spray of fuel, in which the droplets are distributed evenly. The spray pattern changes depending on the viscosity of the fuel and the flow rate. At high pressure, it becomes more hollow. The spray angle of 60° is ideal for installations with long and narrow combustion chambers.

Advantages:

• universal application;

• increased resistance to wear and corrosion;

• constant spray characteristics during operation;

• simple and reliable installation using threads.

The nozzle must be replaced regularly to maintain environmentally friendly and efficient operation of the combustion system. A wide range of fuel nozzles allows you to select and buy a nozzle for burners of any purpose, performance and design.
