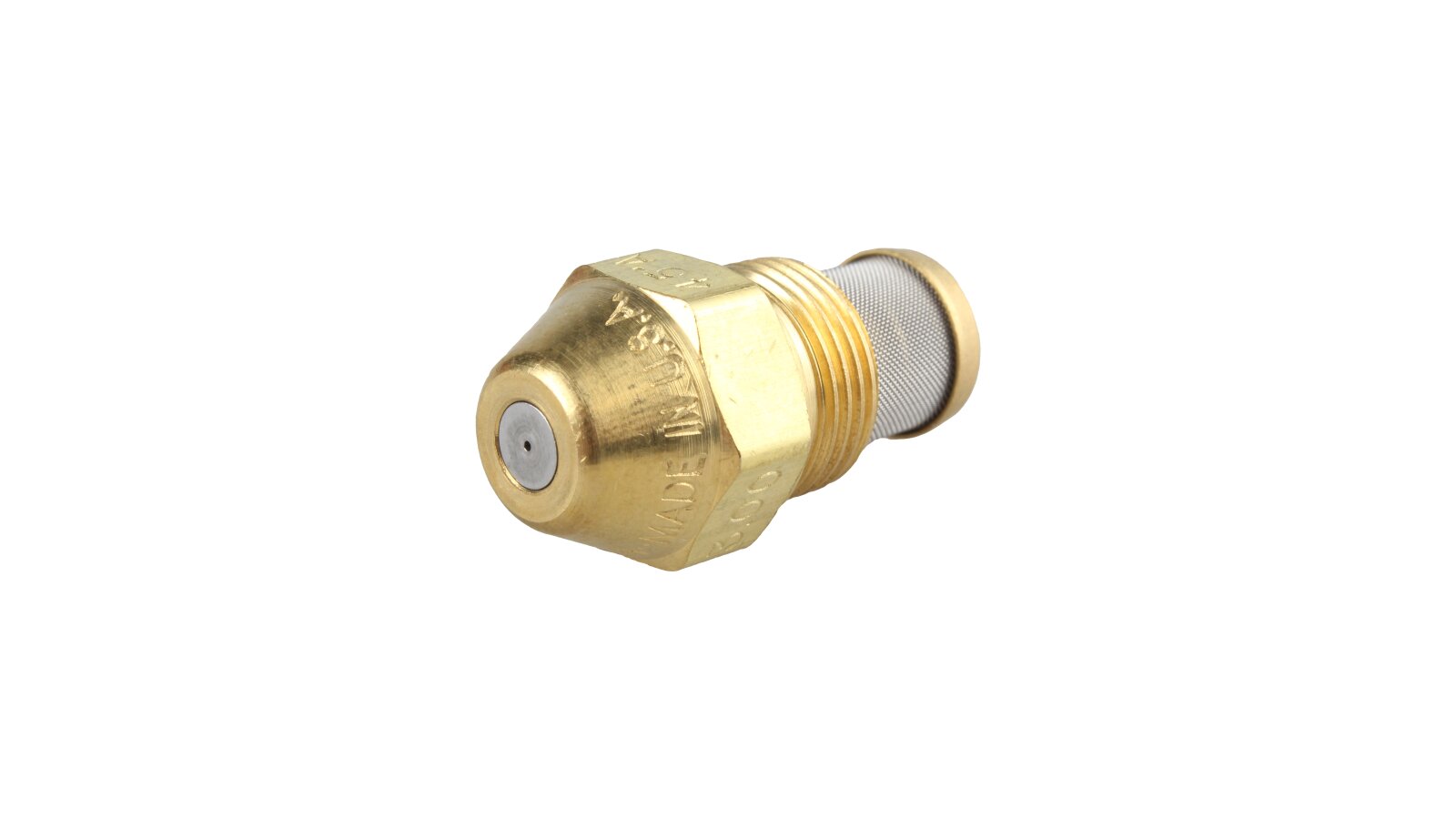

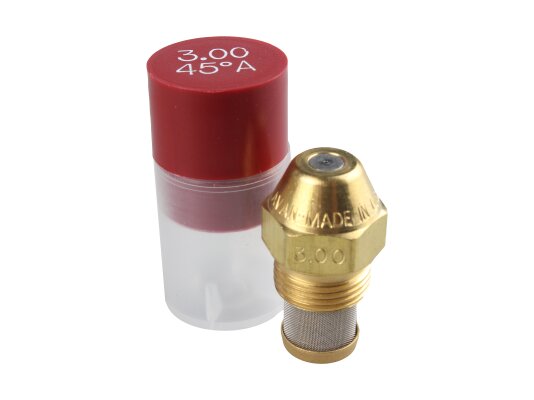

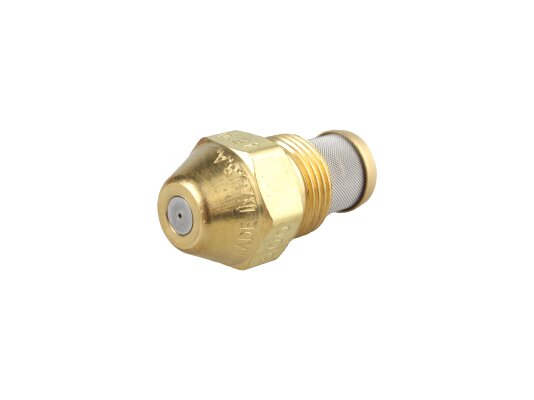

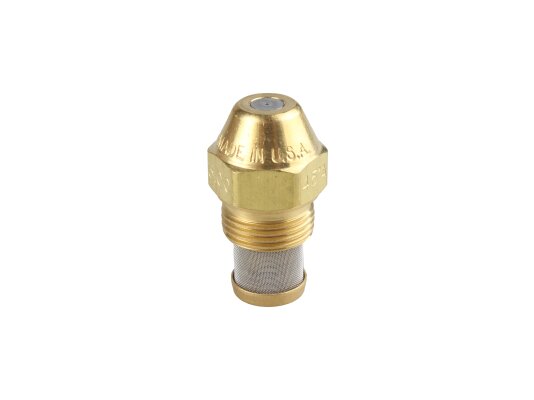

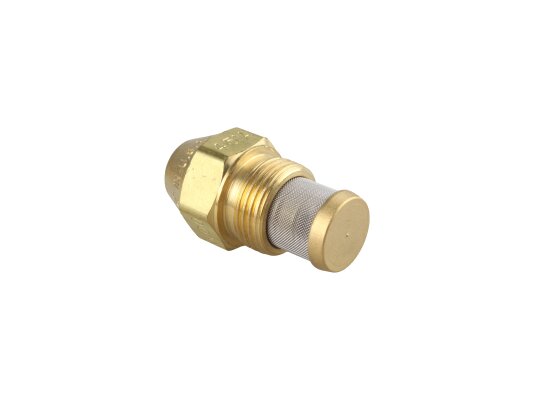

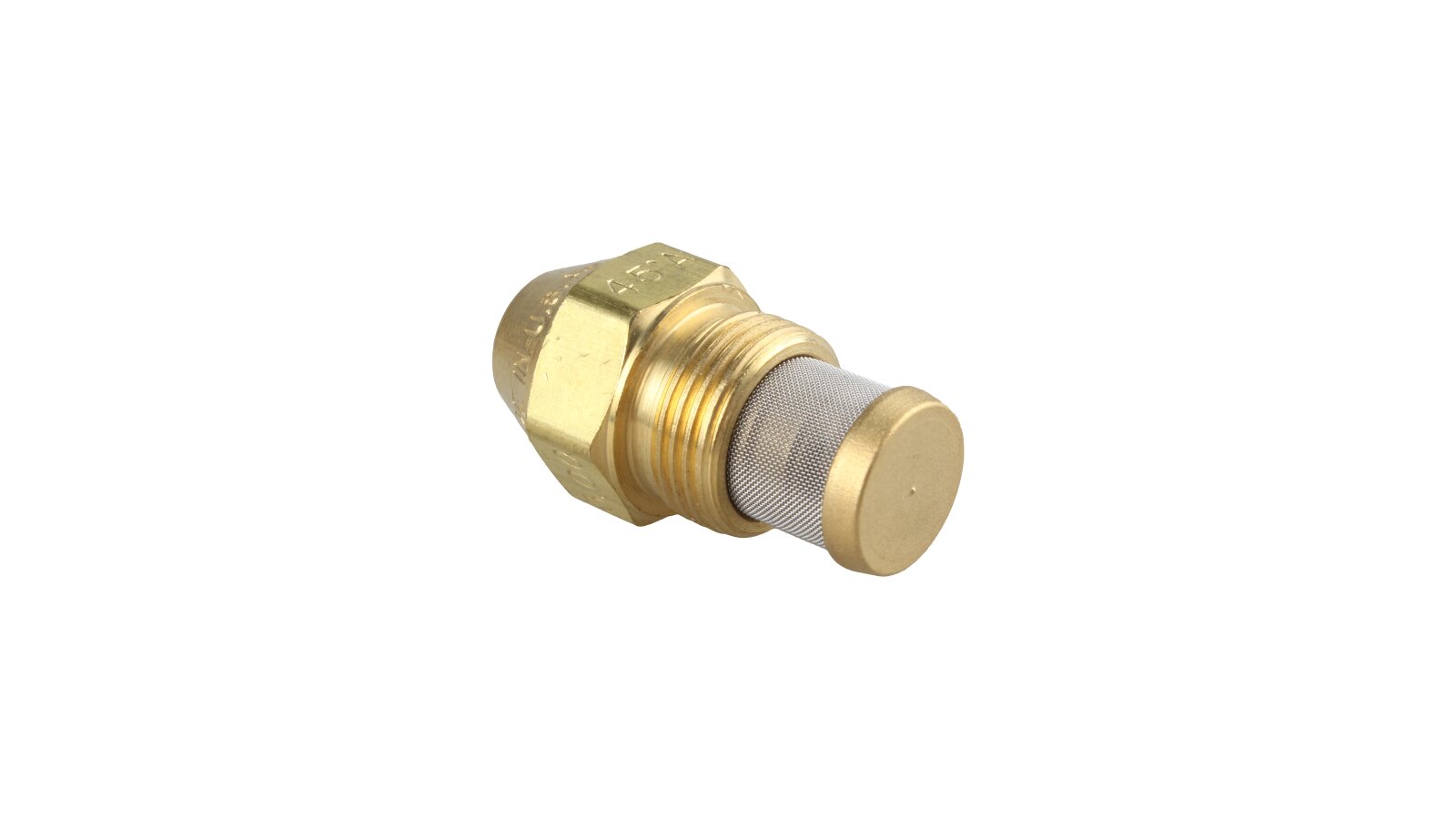

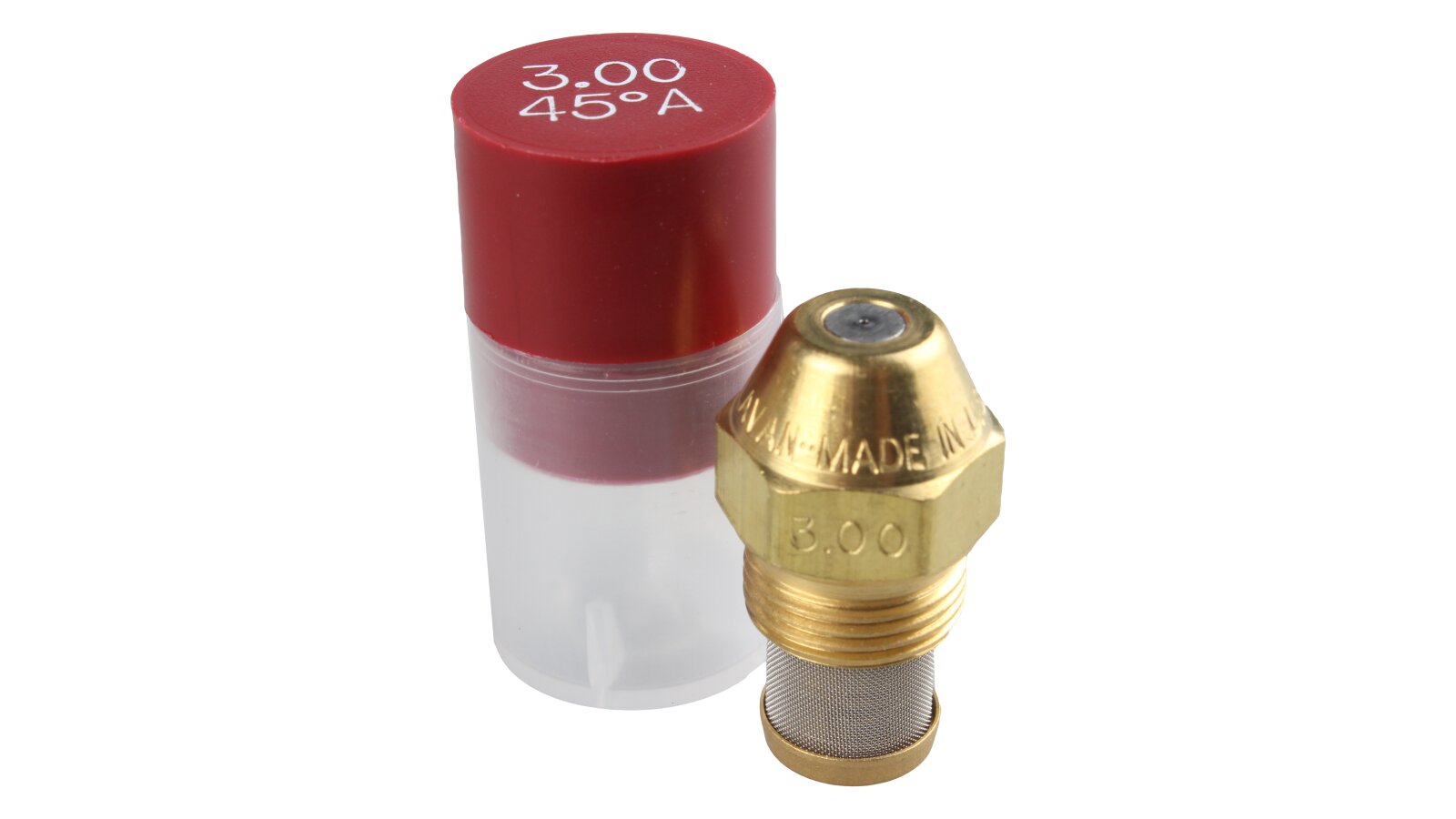

Oil nozzle Riello 3.00/45° A

The Riello 3.00/45° A nozzle, art.: 20011669, is designed to transform fuel injected under pressure into a fine aerosol and obtain a homogeneous fuel-air mixture. The prepared fuel burns efficiently with maximum thermal effect and low levels of harmful emissions. The "A" series features a hollow cone spray, which ensures rapid ignition and quiet combustion. The new process of processing parts used in the manufacture of the nozzle contributes to precise and stable atomization of all types of liquid fuel.

Features and main parameters:

• hollow spray stream, distribution of droplets along the circumference of the cone;

• for any fuel, including fuel oil, diesel fuel, oil;

• throughput - up to 3 gal/h ± 4%;

• aerodynamic configuration of the nozzle;

• equipped with a mesh metal filter, protection of the nozzle from clogging;

• main construction materials: wear-resistant brass and stainless steel;

• compact body with a conical head;

• shorter tangential grooves for improved cross-country ability;

• fixation on the burner using a rolled thread, a protrusion for gripping with a key;

• individual plastic tube for protection against impacts and dirt during transportation.

Application

The Riello 3.00/45° A nozzle with a 45° cone spray is ideal for use in burners with long and narrow combustion chambers. Suitable for fuel of any viscosity. When working with dense types of fuel, the spray stream narrows, which can be adjusted by increasing the pressure. The nozzle is used in domestic and industrial low-capacity combustion systems.

Advantages:

• uniform, stable atomization of any liquid fuel;

• resistance to wear, corrosion and temperature changes;

• built-in mesh filter, optimal hole sizes;

• precise processing of parts, micro tolerances;

• easy installation and maintenance.

Riello nozzles are tested for flow rate, angle and spray quality, and meet the stated parameters and standards. You can choose and buy a nozzle for a combustion system of any purpose and performance from us.
