Oil nozzle Riello 3.50/45° A,

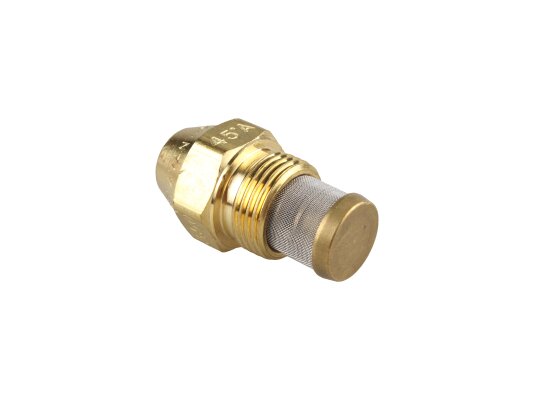

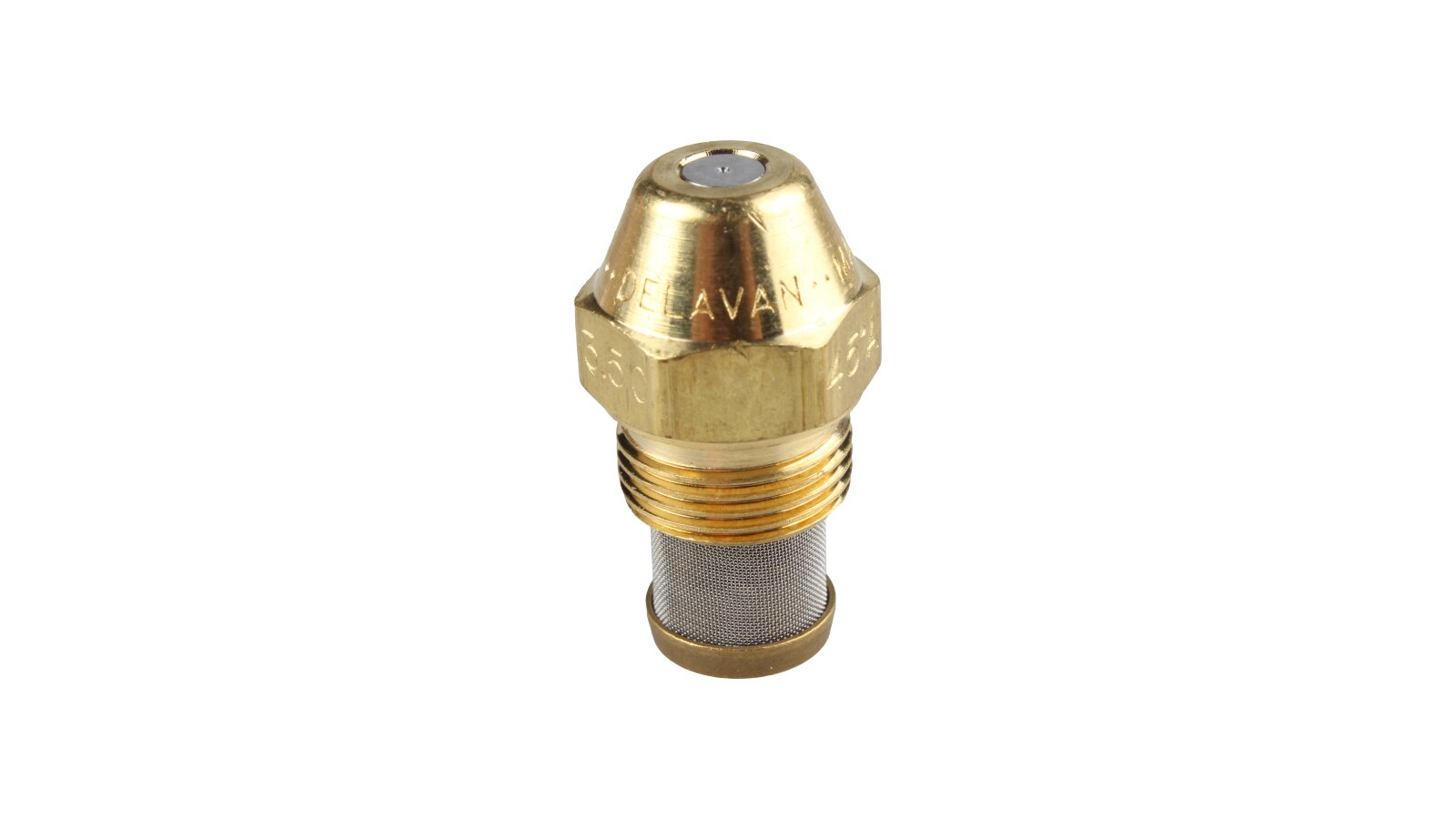

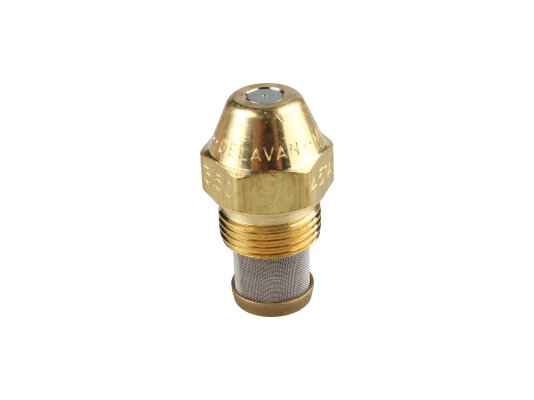

The Riello 3.50/45° A nozzle, art.: 20011672, is used to prepare fuel before combustion. It transforms fuel supplied under high pressure into an aerosol, creating conditions for homogeneous mixing with air and stable combustion. A new method of processing parts, a reduced nozzle size with shorter tangential grooves eliminates channel clogging and guarantees a precise spray angle.

Features and main parameters of the nozzle:

• a hollow spray cone, fuel droplets are concentrated near the walls of the cone;

• for all types of liquid fuel, including fuel oil, diesel fuel, oil;

• brass body with a conical head;

• wear-resistant metering parts;

• aerodynamic configuration of the atomizer;

• throughput - up to 3.5 gal/h, permissible deviation ± 4%;

• fuel cleaning from contaminants thanks to a metal mesh filter;

• easy installation and maintenance, screw-in thread;

• rolled thread, eliminating the presence of chips and burrs on the surface;

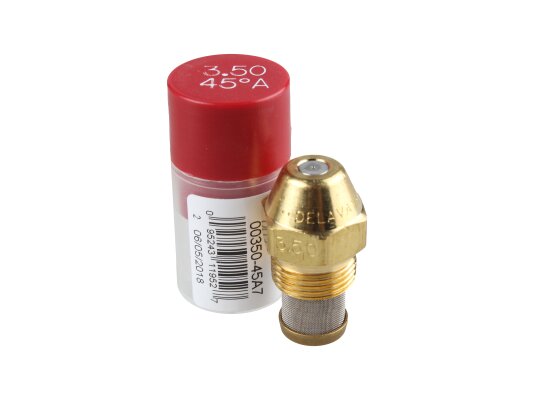

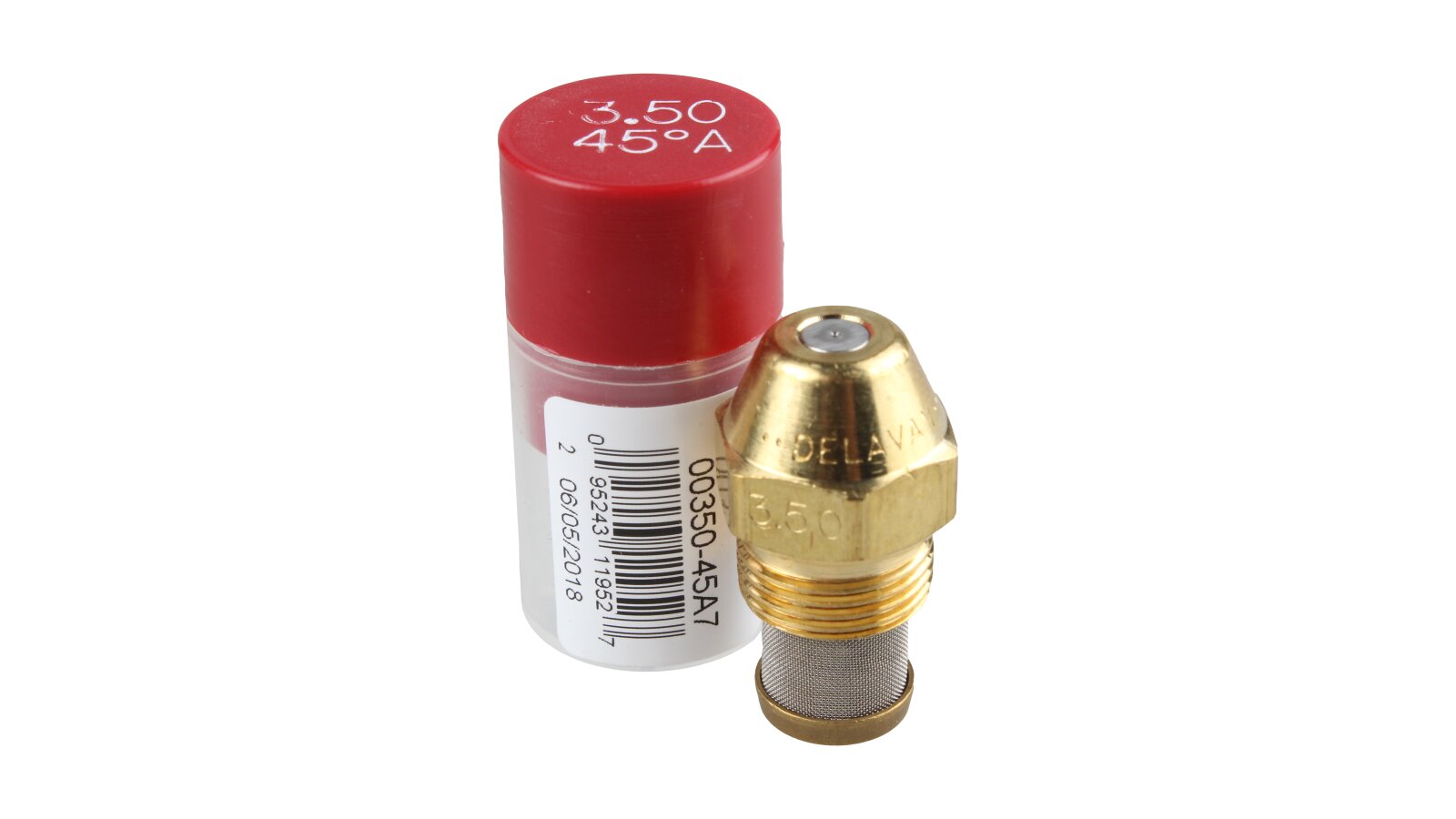

• individual plastic case with a lid for safety during transportation.

Application

The Riello 3.50/45° A nozzle creates a spray cone of 45°, which is optimal for burning fuel in burners with long and narrow combustion chambers. It is used in domestic and industrial boilers, furnaces with a fuel consumption of up to 3.5 gal/h.

Advantages:

• for all types of liquid fuel;

• uniform, stable spraying;

• increased corrosion and heat resistance;

• filter for additional protection against clogging;

• easy installation and maintenance.

The nozzle is tested for flow rate, angle and spray quality using precision equipment, regularly calibrated pressure gauges and flow meters. On our website you can select and buy a nozzle for a burner of any power and modification.
