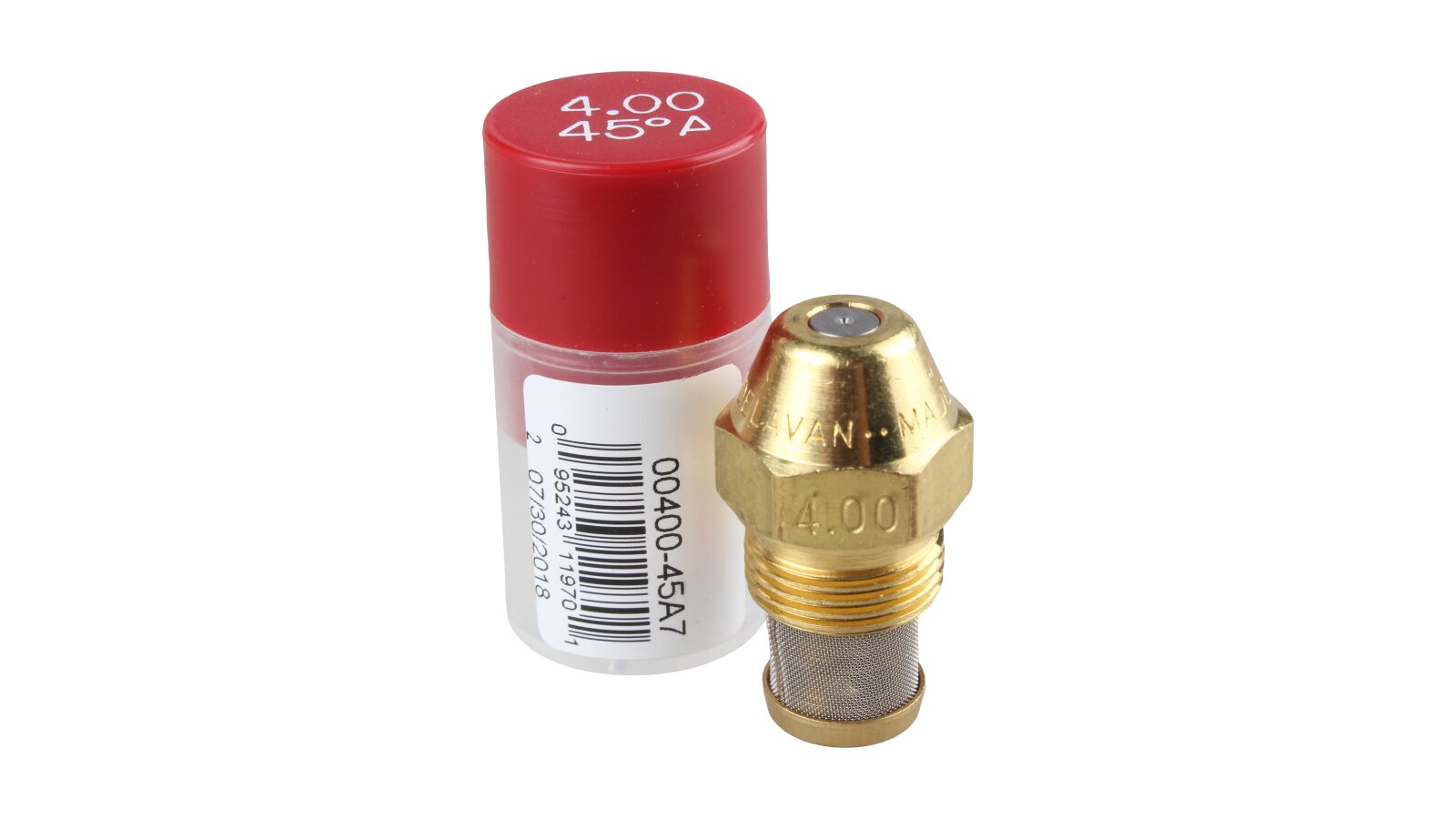

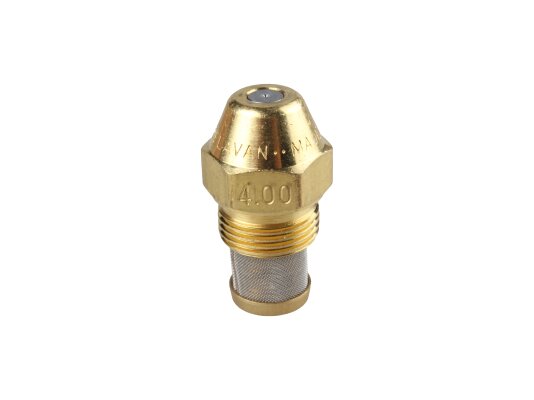

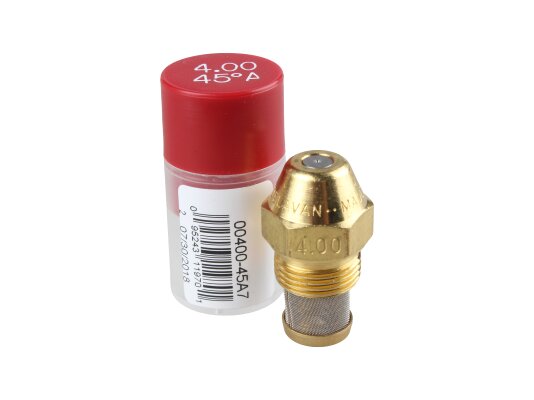

Oil nozzle Riello 4.00/45° A

The Riello 4.00/45° A nozzle, art.: 20011674, creates a directed, finely dispersed stream with a hollow cone when operating high-pressure burners. Uniformly atomizes any liquid fuel. The distribution of droplets on the outer side of the cone leads to rapid ignition and low-noise combustion. To maintain the spray parameters, the nozzle is equipped with a mesh metal filter.

Features and parameters:

• for working with diesel, fuel oil, oil, etc.;

• spray cone angle - 45°;

• small brass body with a conical head;

• hollow spray stream, droplet concentration near the cone walls;

• impact-resistant, heat-resistant brass and stainless steel construction;

• aerodynamic configuration of the atomizer;

• high precision of parts processing for precise and stable spraying;

• shortened tangential grooves to minimize the likelihood of clogging;

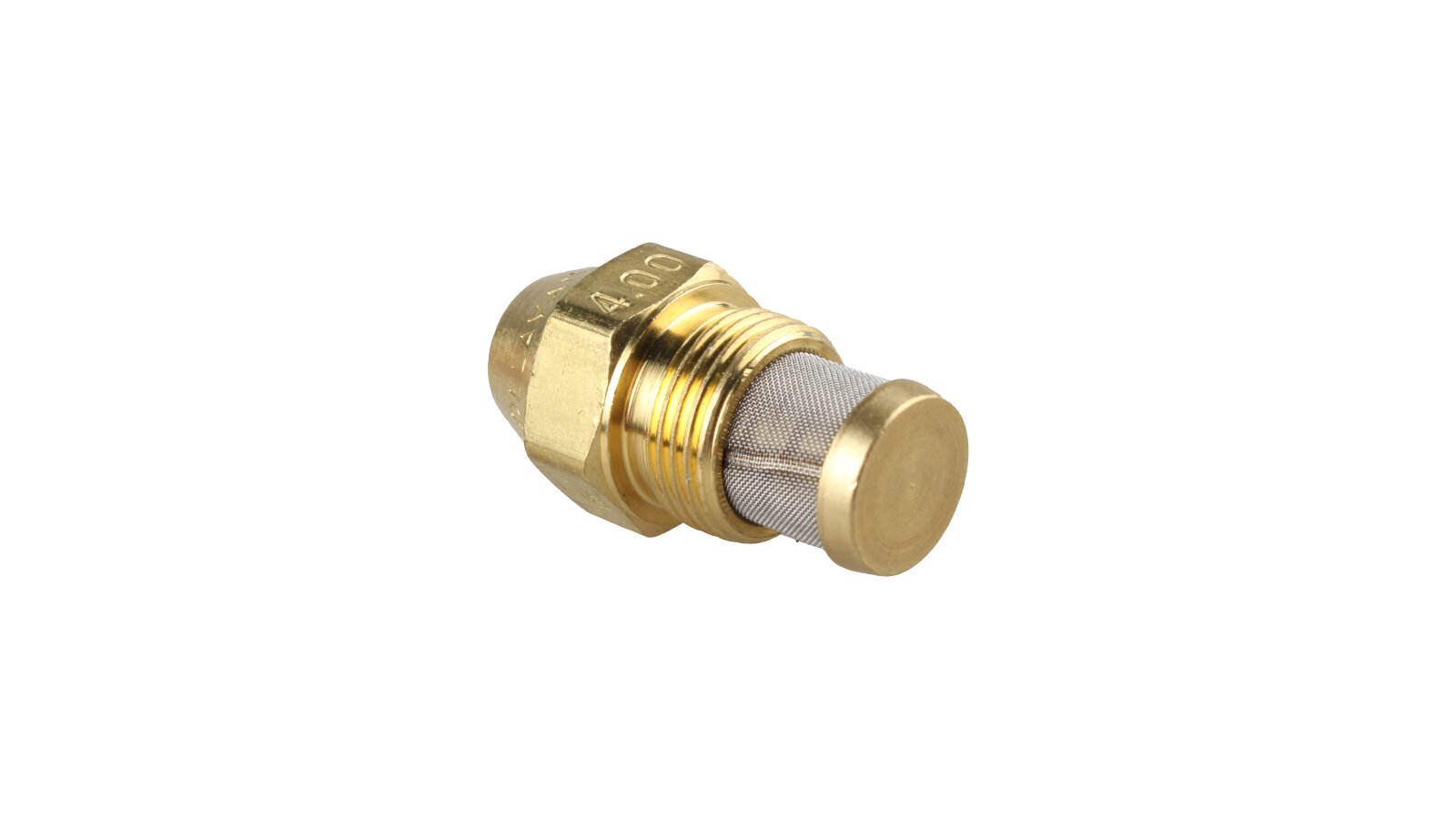

• stainless steel mesh filter to protect the atomization unit;

• easy to attach to the burner;

• rolled thread, smooth, burr- and chip-free connection surfaces;

• permissible consumption error ± 4%;

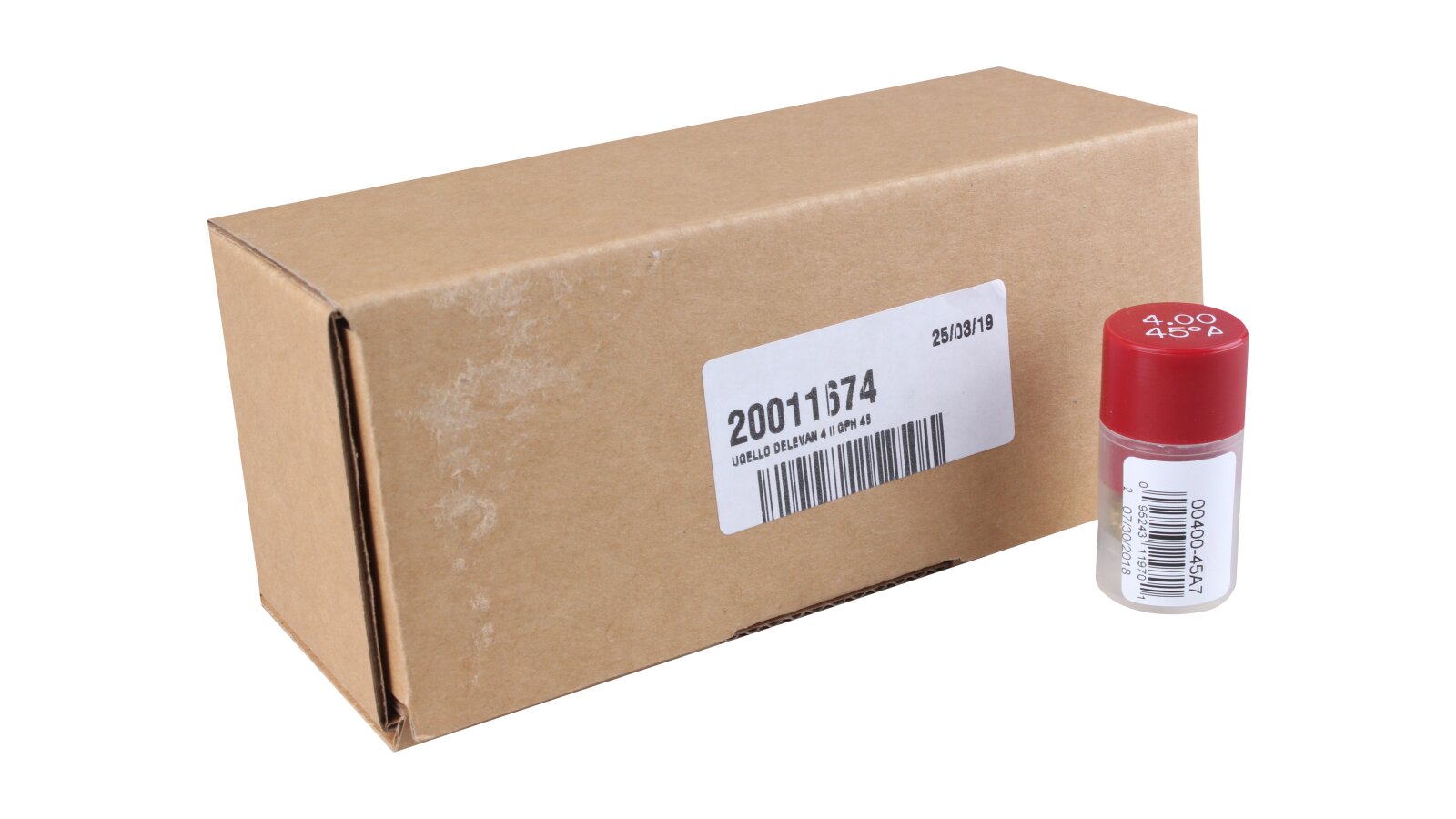

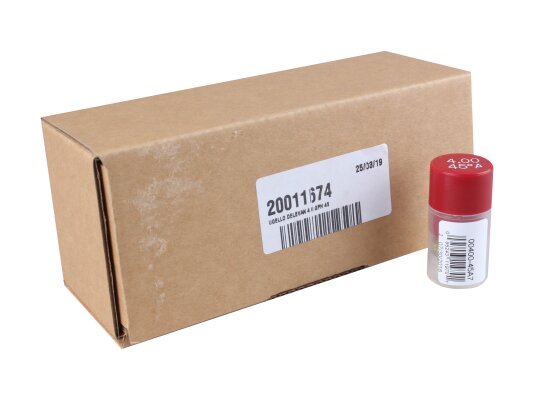

• supplied in a protective plastic box.

Application

The Riello 4.00/45° A nozzle creates a 45° spray cone, which is ideal for burning fuel in long and narrow combustion chambers. When working with any high-viscosity fuel, the jet cone tends to narrow. The nozzle is suitable for use in domestic and industrial heating systems with low fuel consumption.

Advantages:

• for all types of liquid fuel;

• increased resistance to corrosion and temperatures;

• protection against clogging of channels and holes;

• precise processing and assembly;

• fast and reliable connection to the thread.

Riello nozzles are checked and tested at the factory. The throughput, angle and quality of spraying correspond to the standards and declared characteristics. A wide range of fuel nozzles allows you to select and buy a nozzle for a burner with any spray pattern and flow rate.
