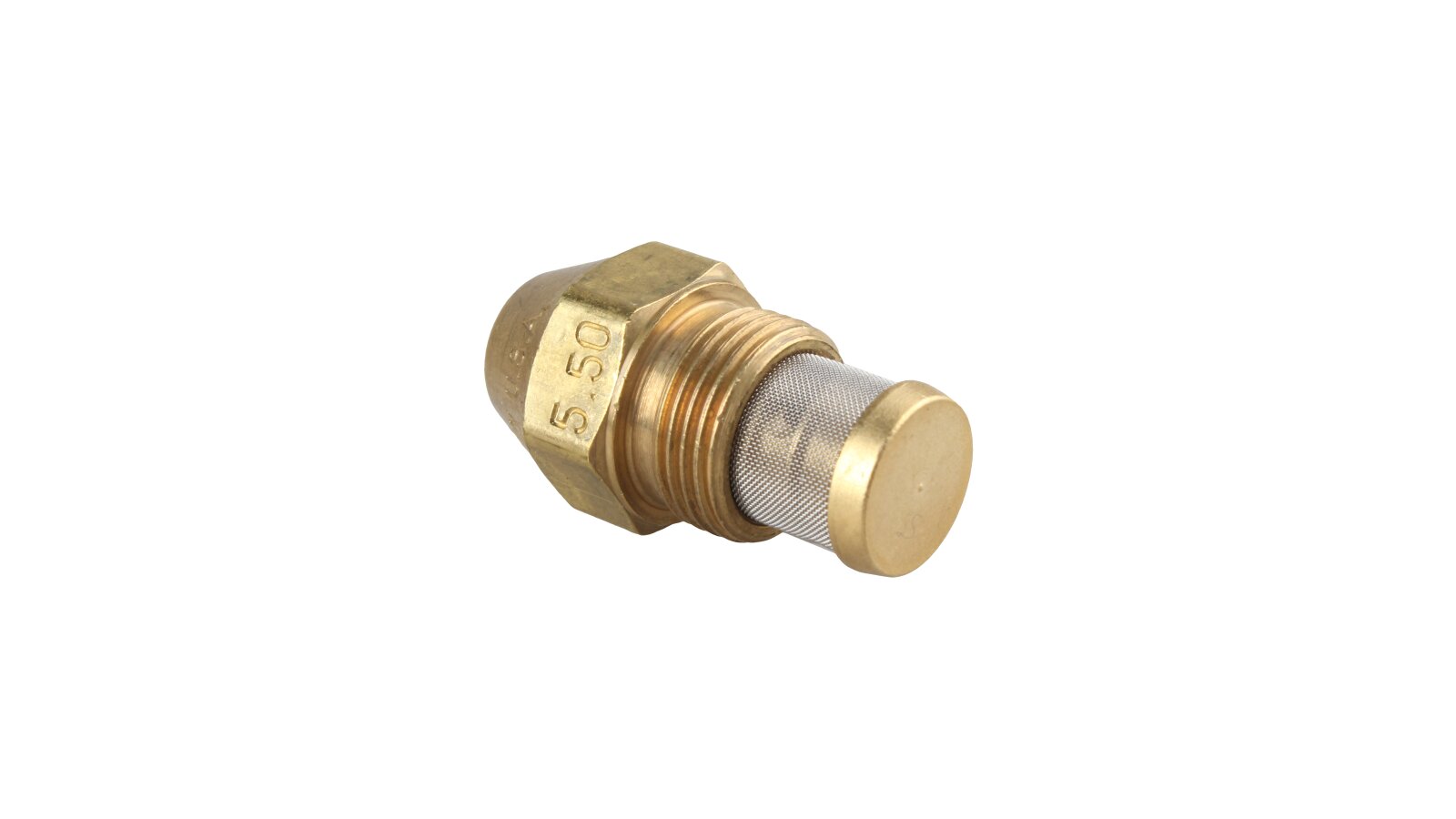

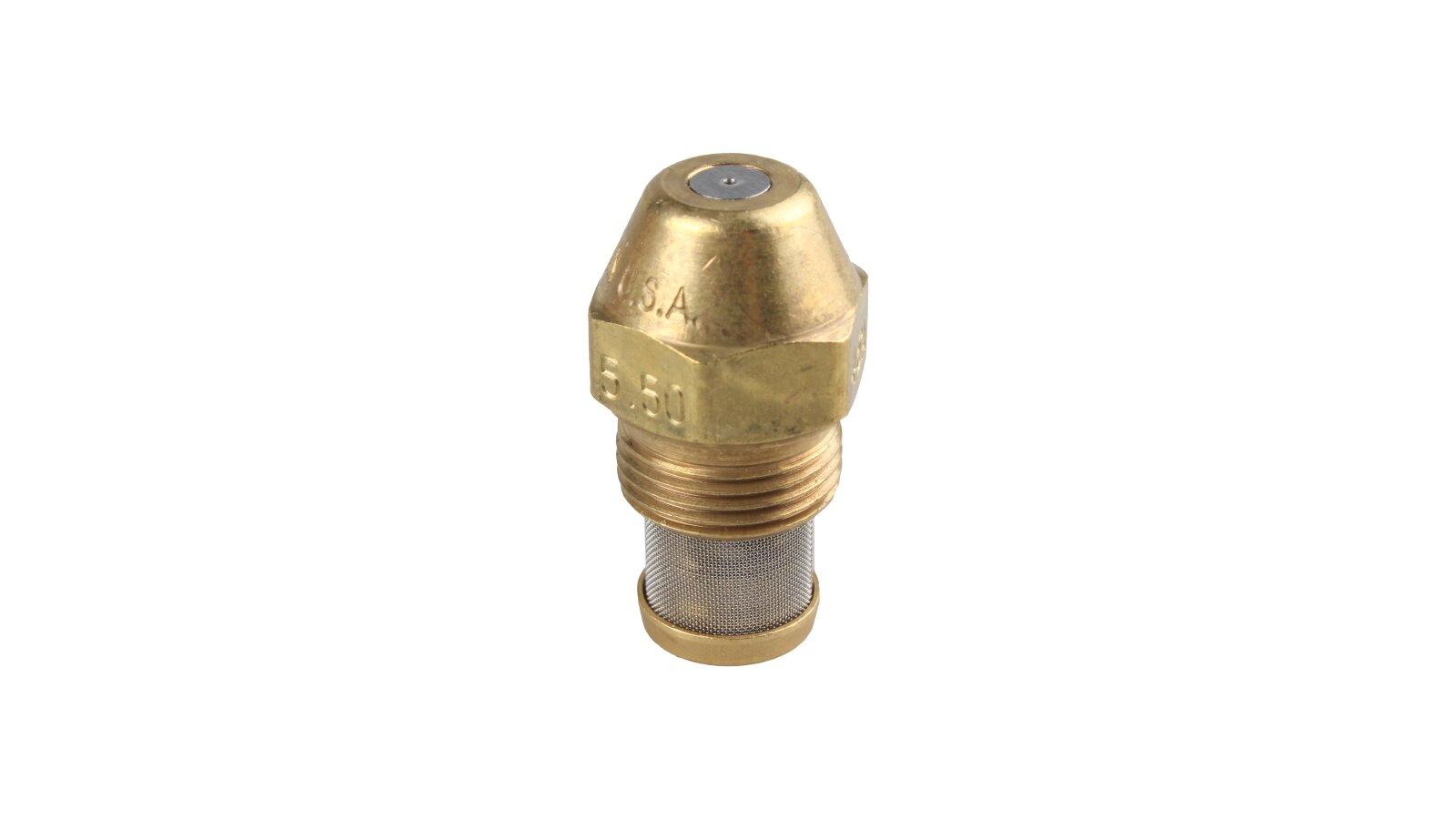

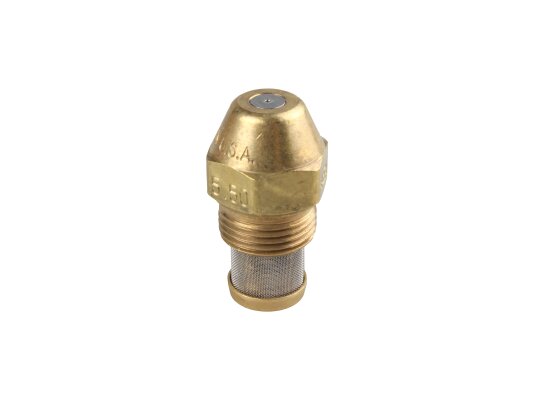

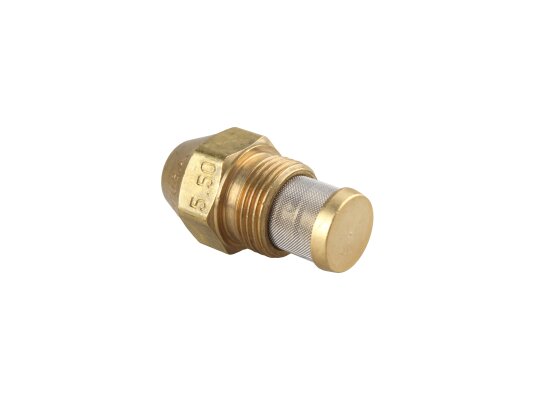

Oil nozzle Riello 5.50/45° A

The Riello 5.50/45° A nozzle, art.: 20011678, is developed based on advanced combustion technologies. Provides efficient, uniform atomization of any liquid fuel to obtain a homogeneous mixture with air and subsequent complete combustion. The hollow cone of the jet promotes rapid ignition and low-noise combustion.

Features and parameters:

• Atomized fuel – fuel oil, diesel fuel, oil, etc.;

• hollow spray jet, droplet concentration closer to the cone walls;

• aerodynamic configuration of the nozzle;

• short tangential grooves to prevent channel clogging;

• precise processing and assembly of metering parts;

• stable atomization characteristics regardless of fuel viscosity;

• compact body with a conical head;

• brass and stainless steel construction;

• built-in metal mesh filter;

• rolled thread to avoid loose connections;

• easy installation and maintenance;

• special rim on the body for gripping and tightening with a key;

• possible deviation from the nominal flow rate of ± 4%;

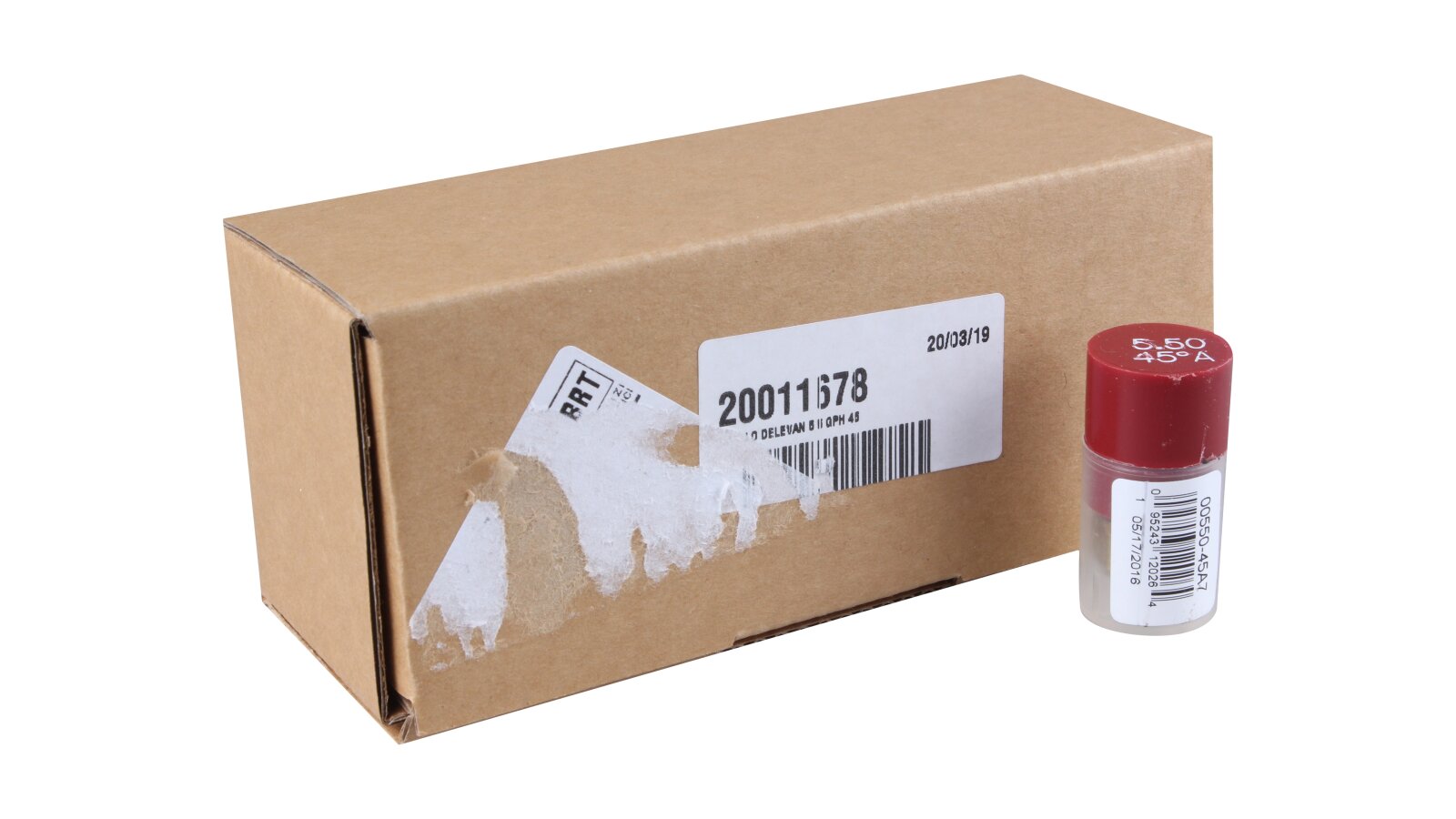

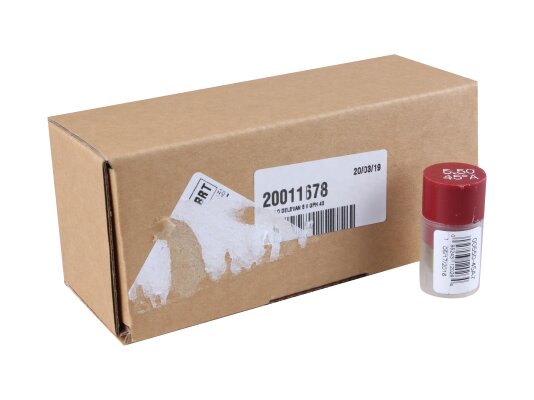

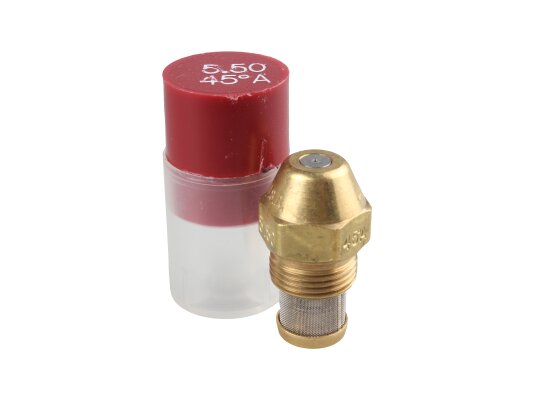

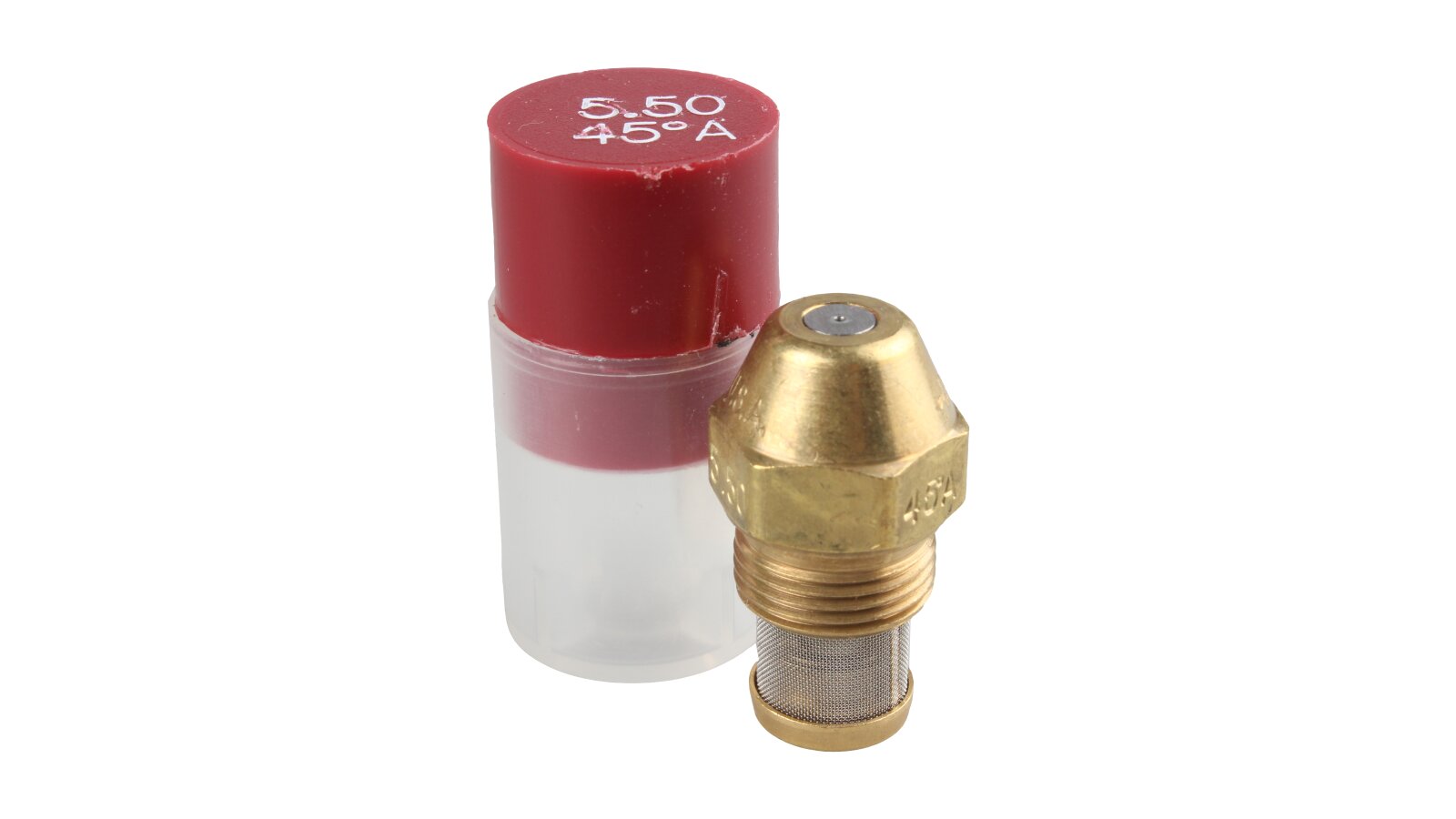

• plastic individual case with a lid.

Application

The Riello 5.50/45° A nozzle creates a hollow cone spray of 45°. This jet angle is more suitable for burning fuel in narrow and long combustion chambers. Viscous fuels are supplied with a narrower cone, which can be corrected by increasing the pressure. The nozzle characteristics allow it to be used for domestic and industrial combustion systems with a flow rate of up to 5.5 gph.

Advantages:

• stable atomization of all types of liquid fuel;

• high reliability and durability;

• increased resistance to corrosion and wear;

• filter to maintain spray characteristics;

• threaded connection method.

The nozzle has been tested for flow rate, angle and spray quality. On the ANKAS website you can select and buy a nozzle for a burner of any purpose and power.
