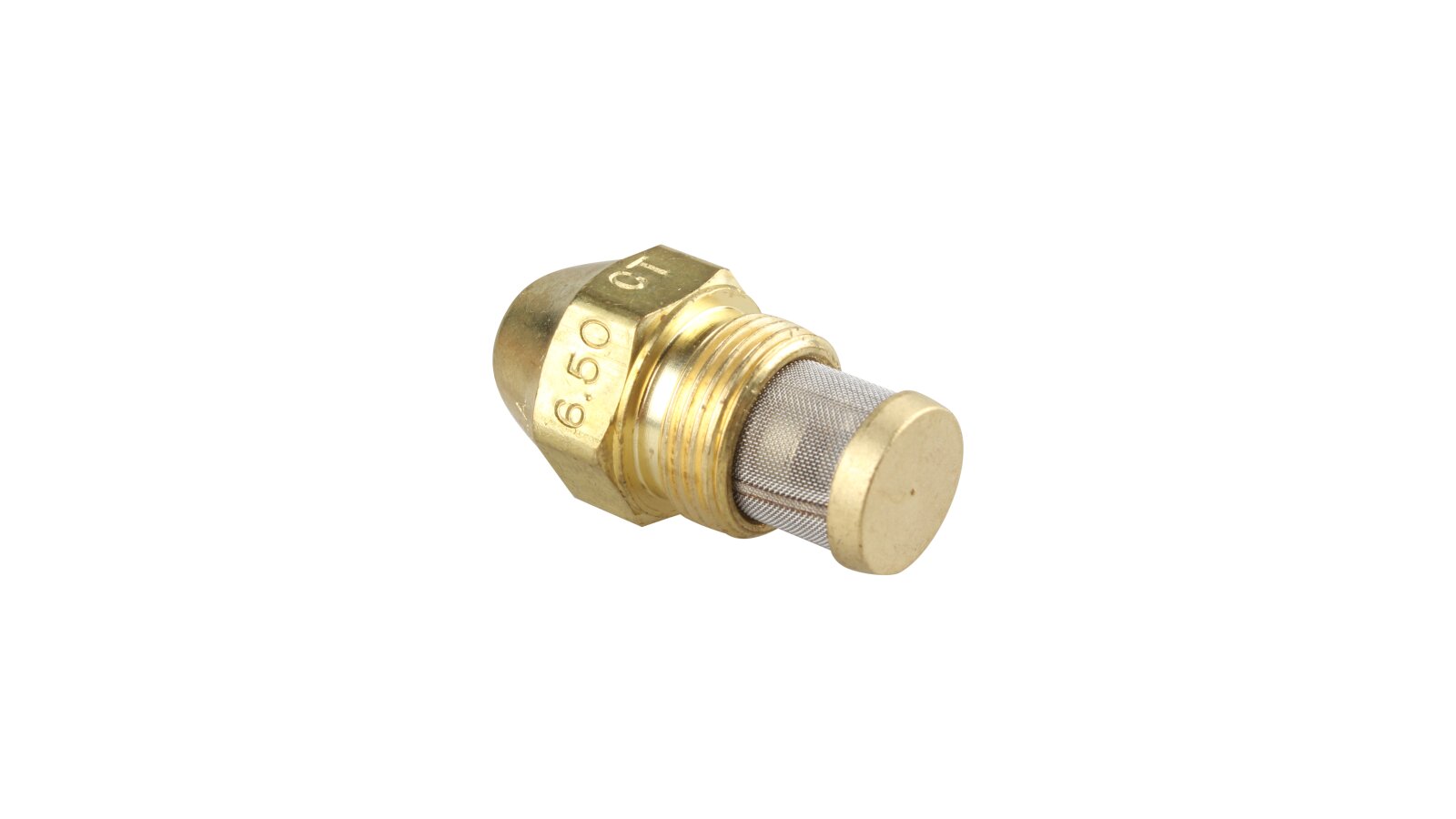

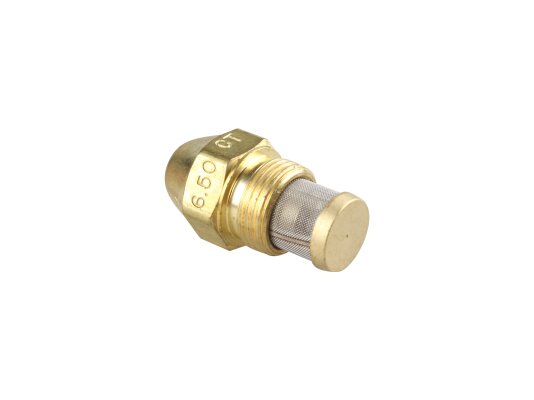

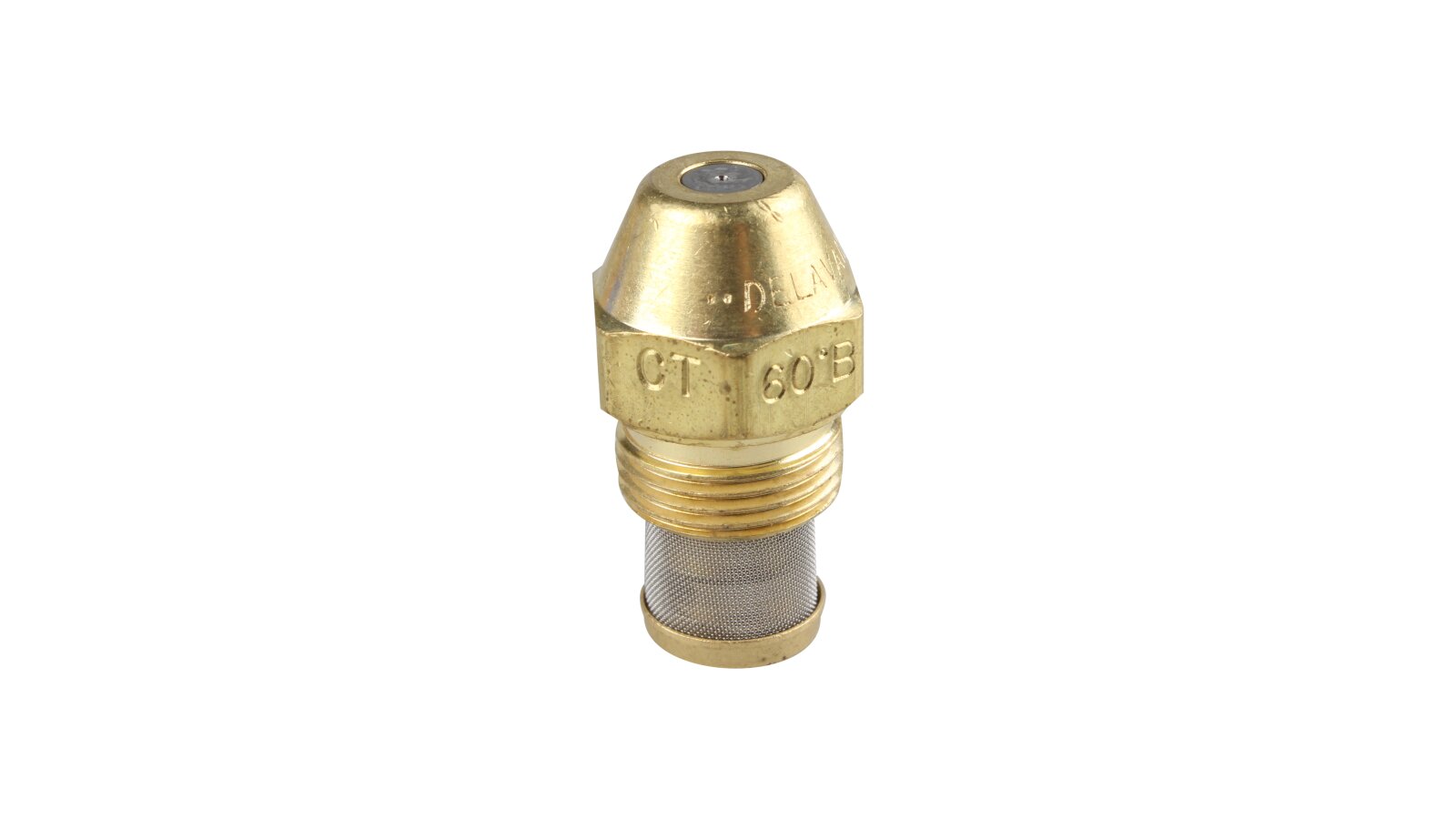

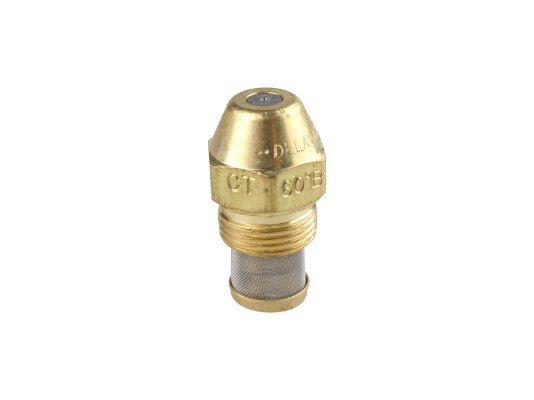

Oil nozzle Riello 6.50/60° B

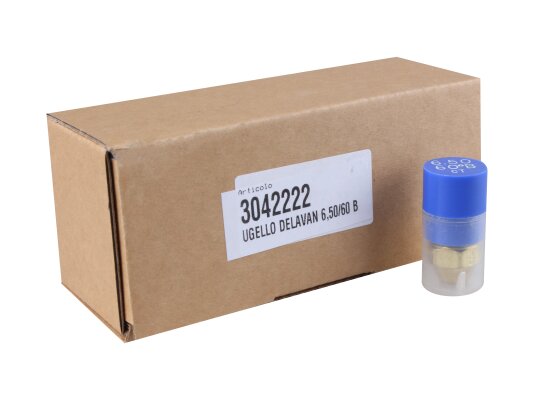

The Riello 6.50/60° B nozzle, art.: 3042222, creates a uniform spray pattern with a solid pattern when working with fuel of any viscosity. Participates in the preparation of the fuel mixture before combustion. Developed based on advanced fuel atomizer production technologies.

Nozzle design

The main elements of the nozzle are a brass body with a conical head, a disk, a swirl, and a clamping screw. The use of stainless steel in the manufacture of metering parts ensures durability due to the wear-resistant properties of the metal. The design includes a mesh filter that protects the spray unit from clogging and damage. Thanks to the use of a new process for processing parts, a more accurate feed angle and an even more uniform distribution of fuel droplets throughout the entire volume of the jet have been achieved.

Parameters and features:

• spray angle 60º (at a pressure of 10 bar), solid pattern;

• throughput - 6.5 gal / h;

• for all types of burners burning fuel oil, diesel fuel, oil;

• highly stable feed, precise angle and uniform droplet dispersion;

• reinforced design, wide passage opening;

• protection of the spray unit from clogging;

• quick and reliable connection using threads.

Spray characteristics

Series B nozzles feature a full-cone jet feed. The flow forced by the pump is broken down into tiny particles, which are distributed fairly evenly over the cone of the jet. Increasing the flow leads to a hollower pattern. High-viscosity fuel is characterized by a narrower cone. A nozzle with a spray angle of 60° is more suitable for long, narrow combustion chambers.

Advantages:

• versatility, works with fuel of any viscosity;

• stable spray, precise jet angle;

• wear-resistant brass and stainless steel design;

• filter to protect the device from clogging;

• ease of installation.

For efficient and environmentally friendly operation of the liquid fuel combustion system, it is important to choose the right nozzle model. You can buy nozzles for burners and boilers of various configurations, purposes and capacities from us. Before confirming the order, we recommend that you clarify the nozzle characteristics in the documentation for your equipment.
