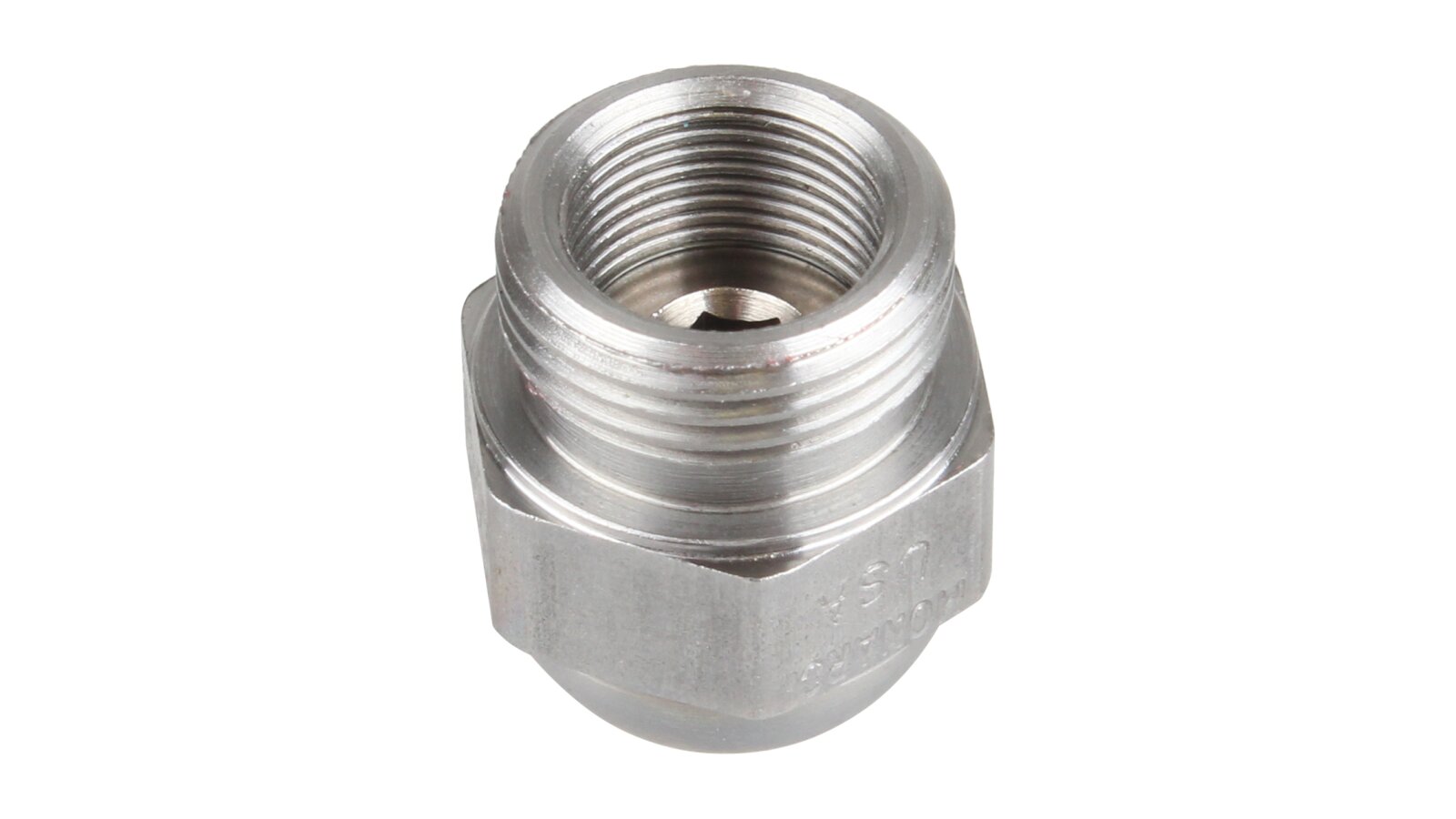

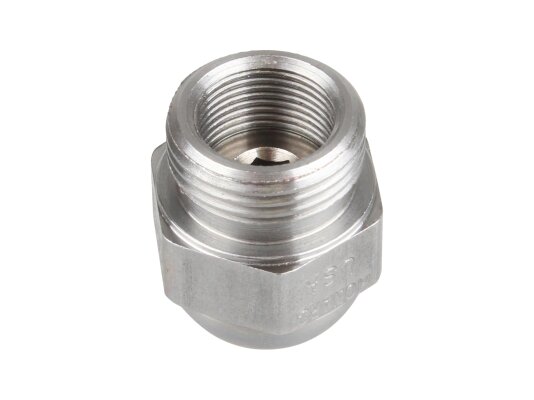

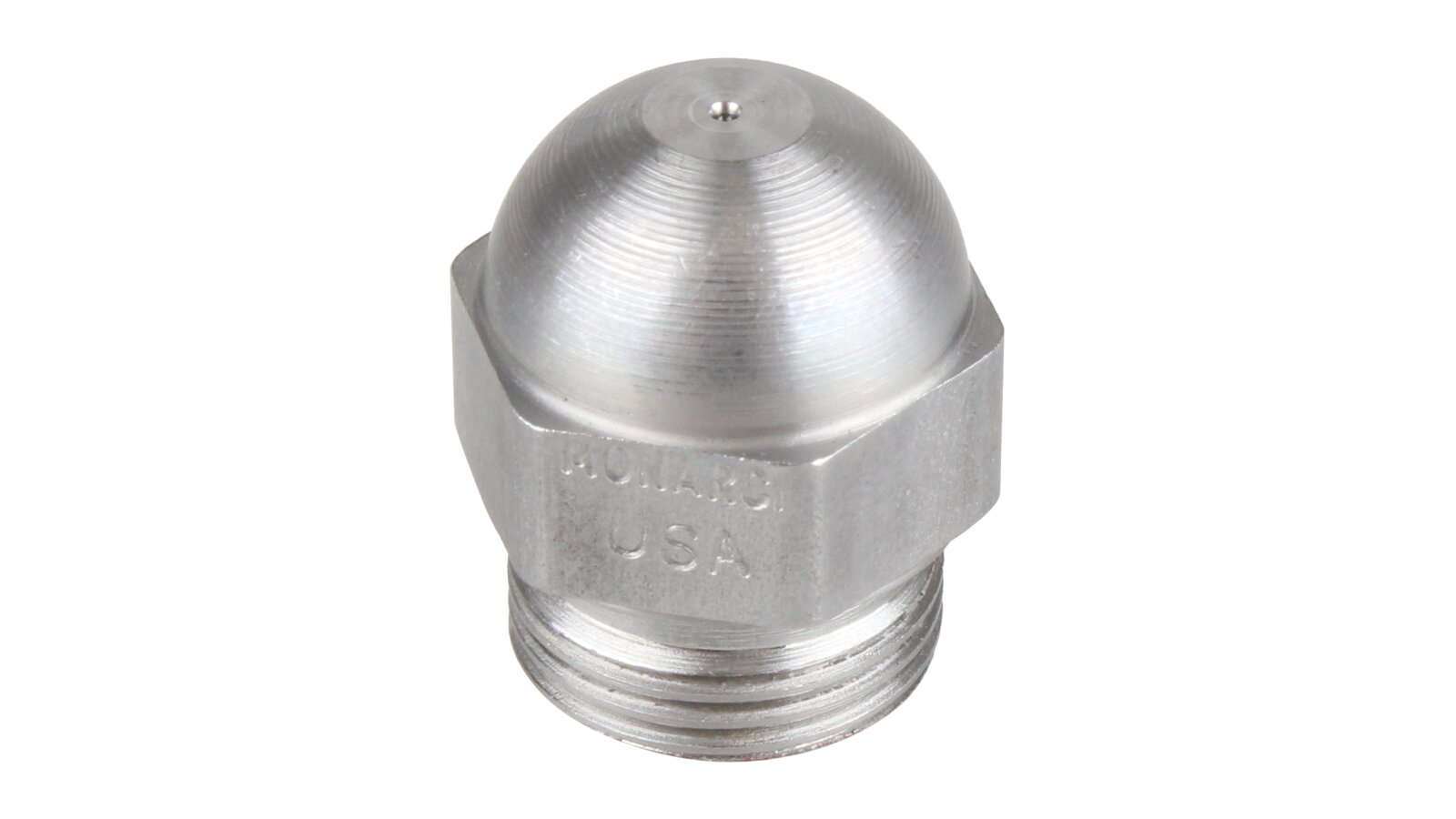

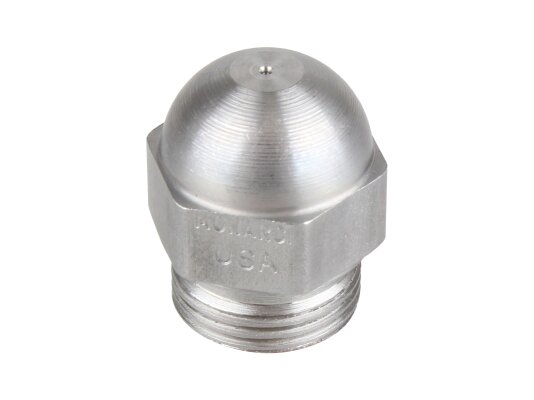

Oil nozzle Riello 6.50/60° PL

The Riello 6.50/60° PL nozzle, art.: 3043222, is universal and sprays any liquid fuel with a hollow stream. The droplet distribution on the outer side of the cone results in rapid ignition and low-noise combustion. The filter is not included.

Features and main parameters:

• For any liquid fuel, including fuel oil, diesel fuel, oil;

• Hollow spray stream, droplet distribution around the circumference of the cone;

• Flow rate – up to 6.5 gal/h;

• No filter limiting the flow rate;

• Body and parts made of wear-resistant stainless steel;

• Compact body with a round head;

• Optimal hole and channel sizes to prevent clogging;

• Fixation on the burner using a thread, a protrusion for gripping with a key;

• Plastic individual tube for protection from external influences during transportation.

Application

The Riello 6.50/60° PL nozzle with a 60° spray cone is ideal for use in burners with long and narrow combustion chambers. Suitable for spraying fuel of any viscosity. When working with dense types of flammable liquid, the spray stream narrows, which can be adjusted by increasing the pressure. The nozzle is used in domestic and industrial combustion systems with a small flow rate.

Advantages:

• uniform, stable spraying of any liquid fuel;

• precise processing of metering parts, micro-tolerances;

• resistance to wear, corrosion and temperature changes;

• optimal hole sizes;

• easy installation and maintenance.

Riello nozzles are tested for flow rate, angle and spray quality, 100% comply with the declared parameters and European quality and environmental standards. You can choose and buy a nozzle for a combustion system of any purpose and performance from us.
