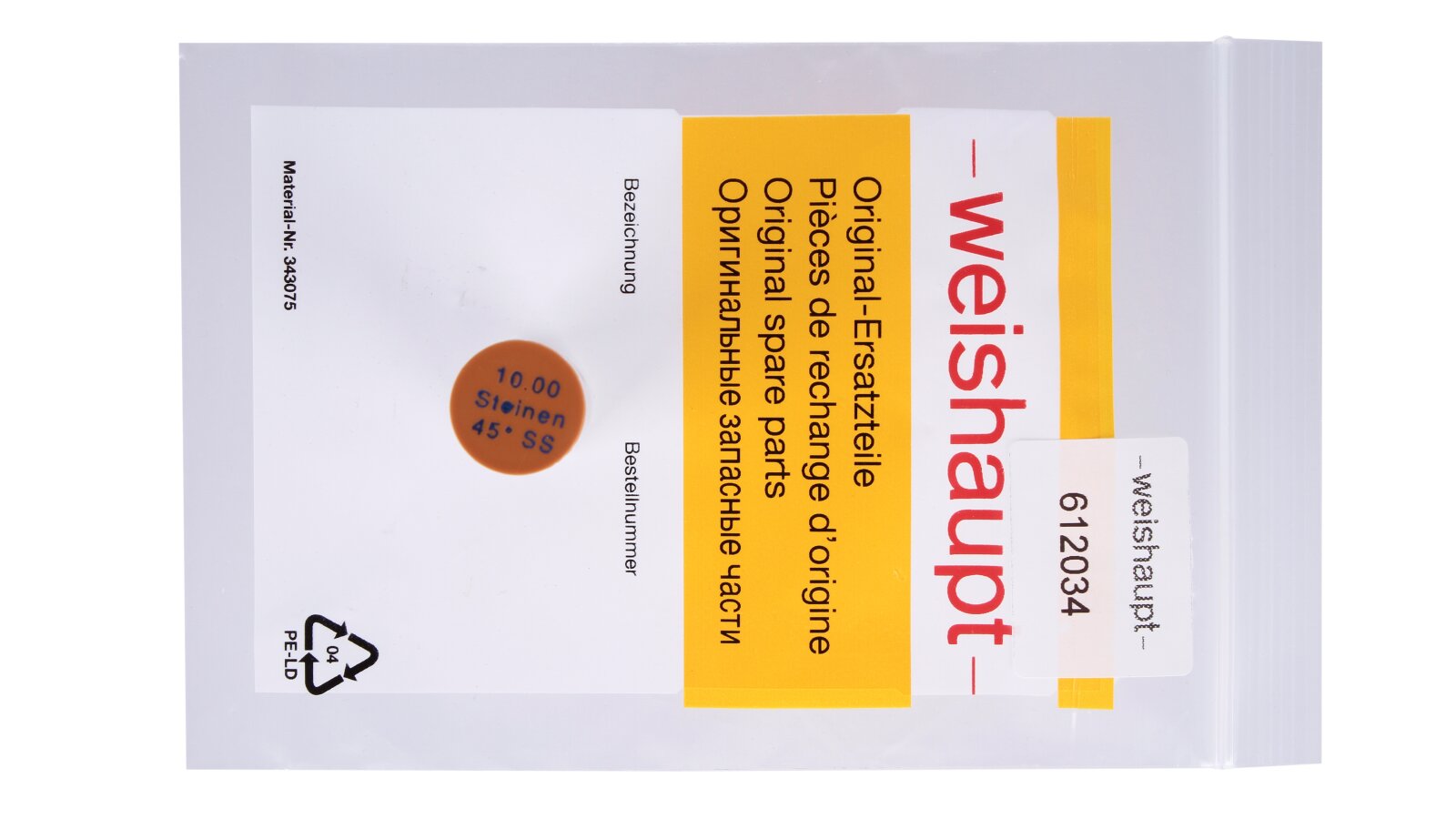

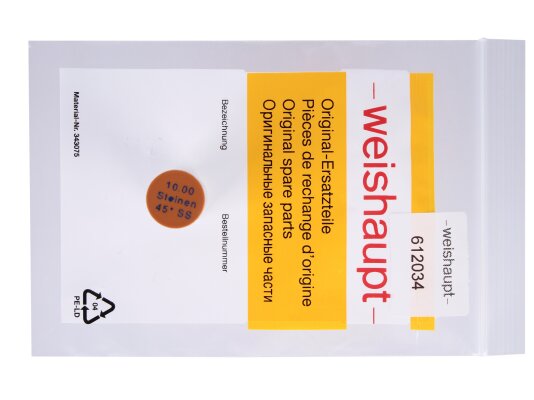

Oil nozzle Weishaupt 10.00/45° SS

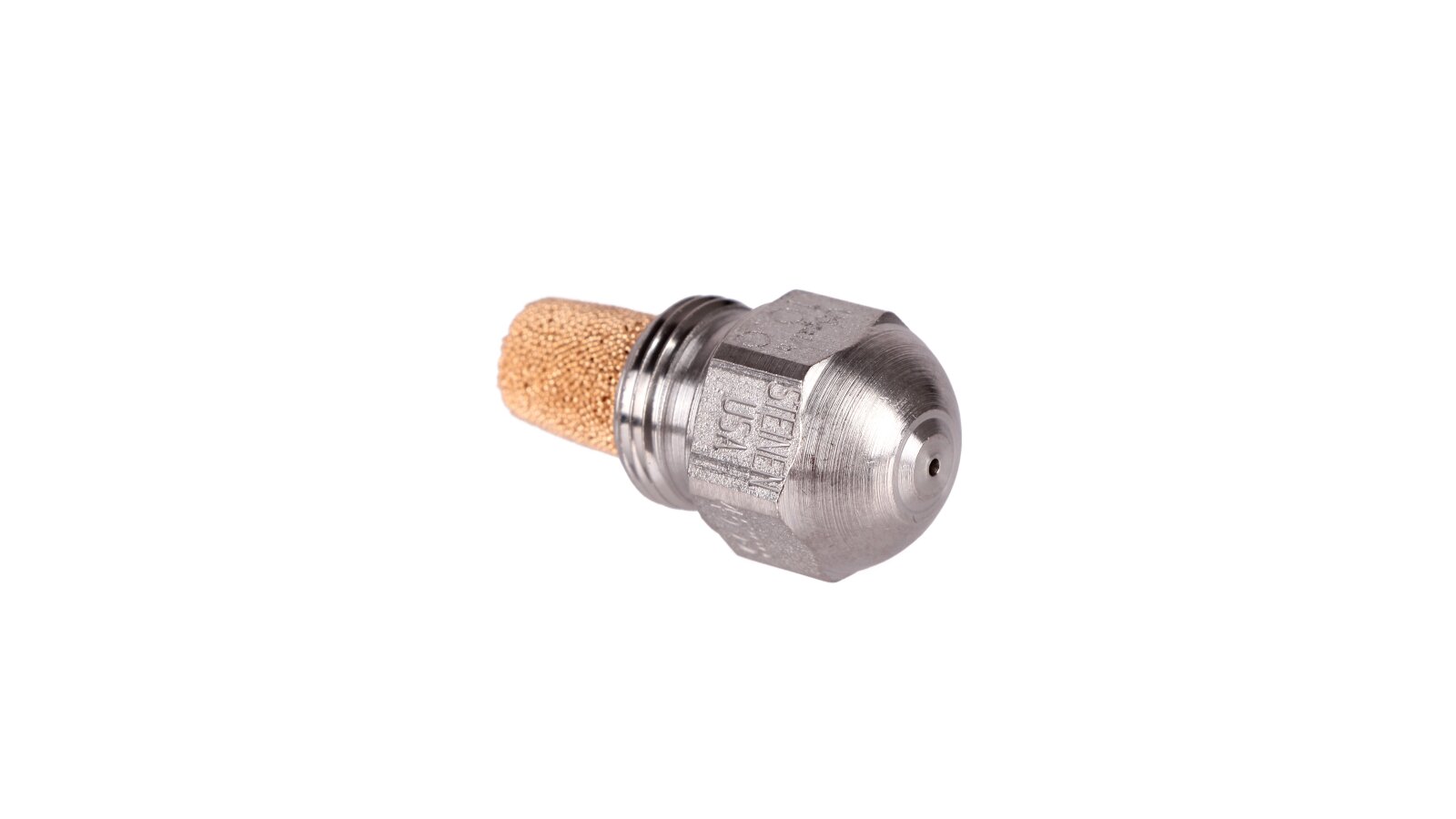

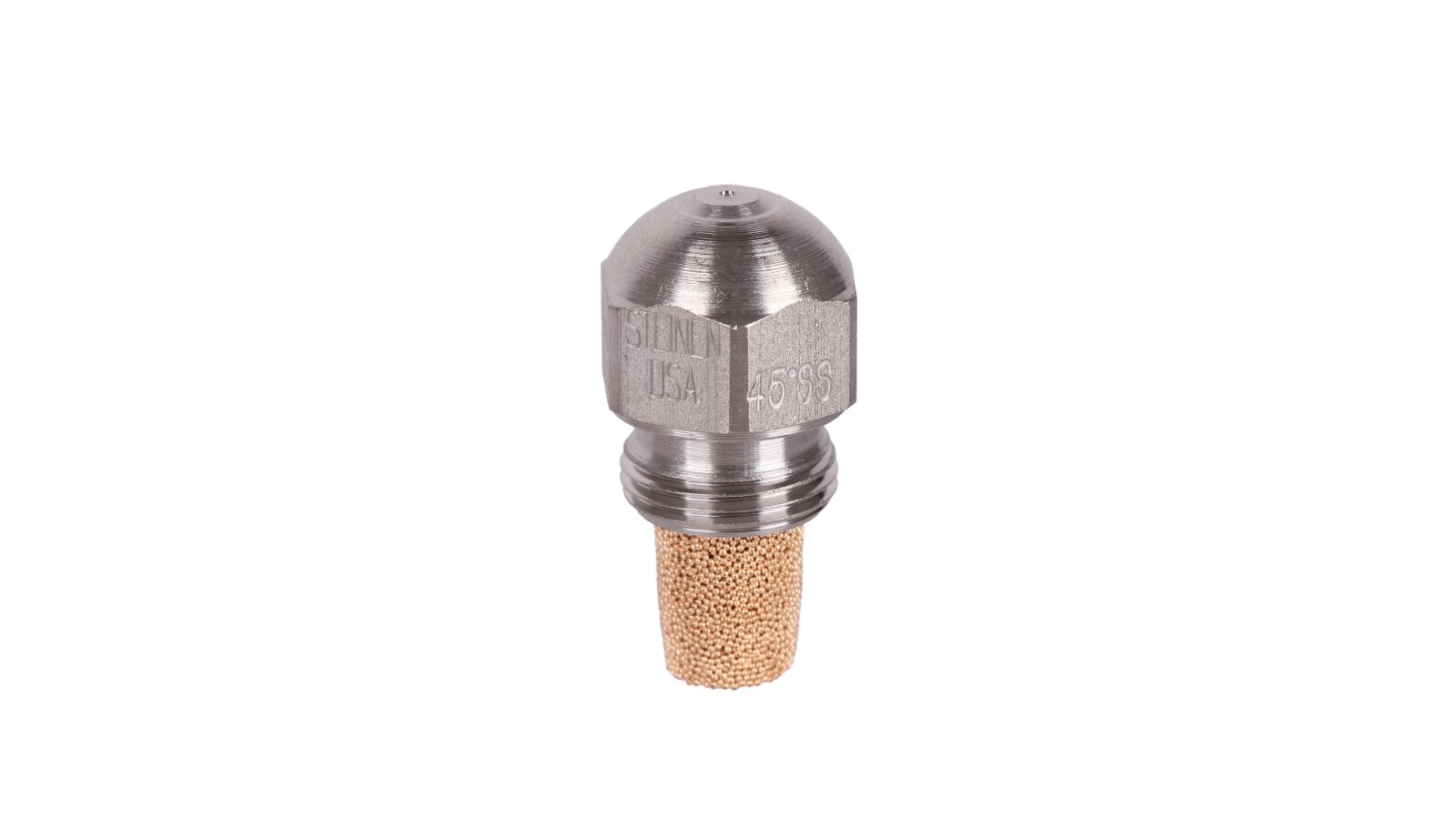

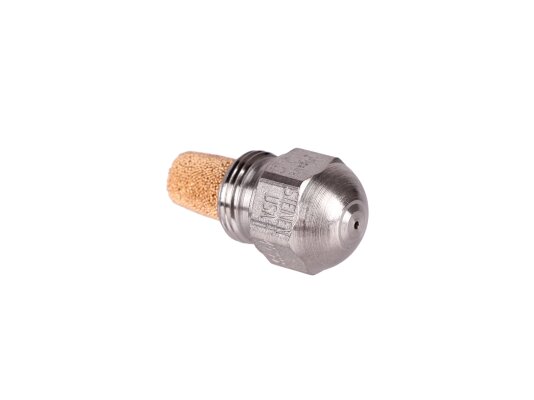

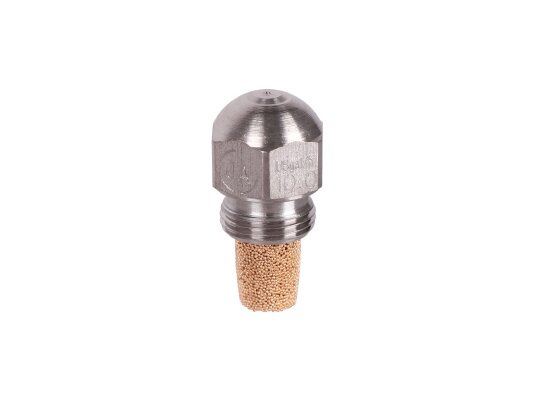

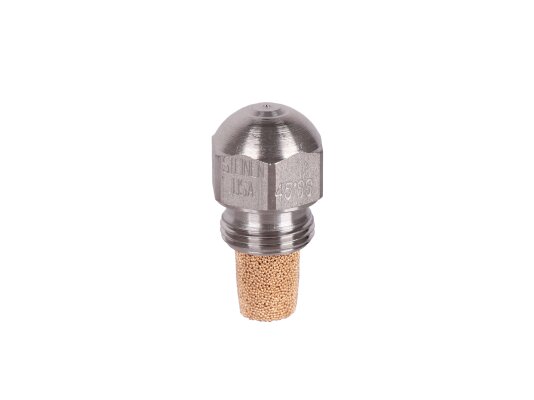

The Weishaupt 10.00/45° SS nozzle, art.: 612034 prepares liquid fuel for easy ignition, efficient, clean and quiet combustion. Thanks to aerosol spraying, it creates conditions for homogeneous mixing of the components of the fuel-air mixture. It is part of the line of standard nozzles with a semi-solid jet pattern. Fuel droplets are concentrated on the outer side of the cone.

Features and main parameters:

• Semi-solid pattern with a concentrated spray area along the circumference;

• Universal application: for fuel oil, diesel, oil burners and boilers;

• Design with a head and internal parts made of stainless steel;

• High-precision processing on automated equipment, micro tolerances;

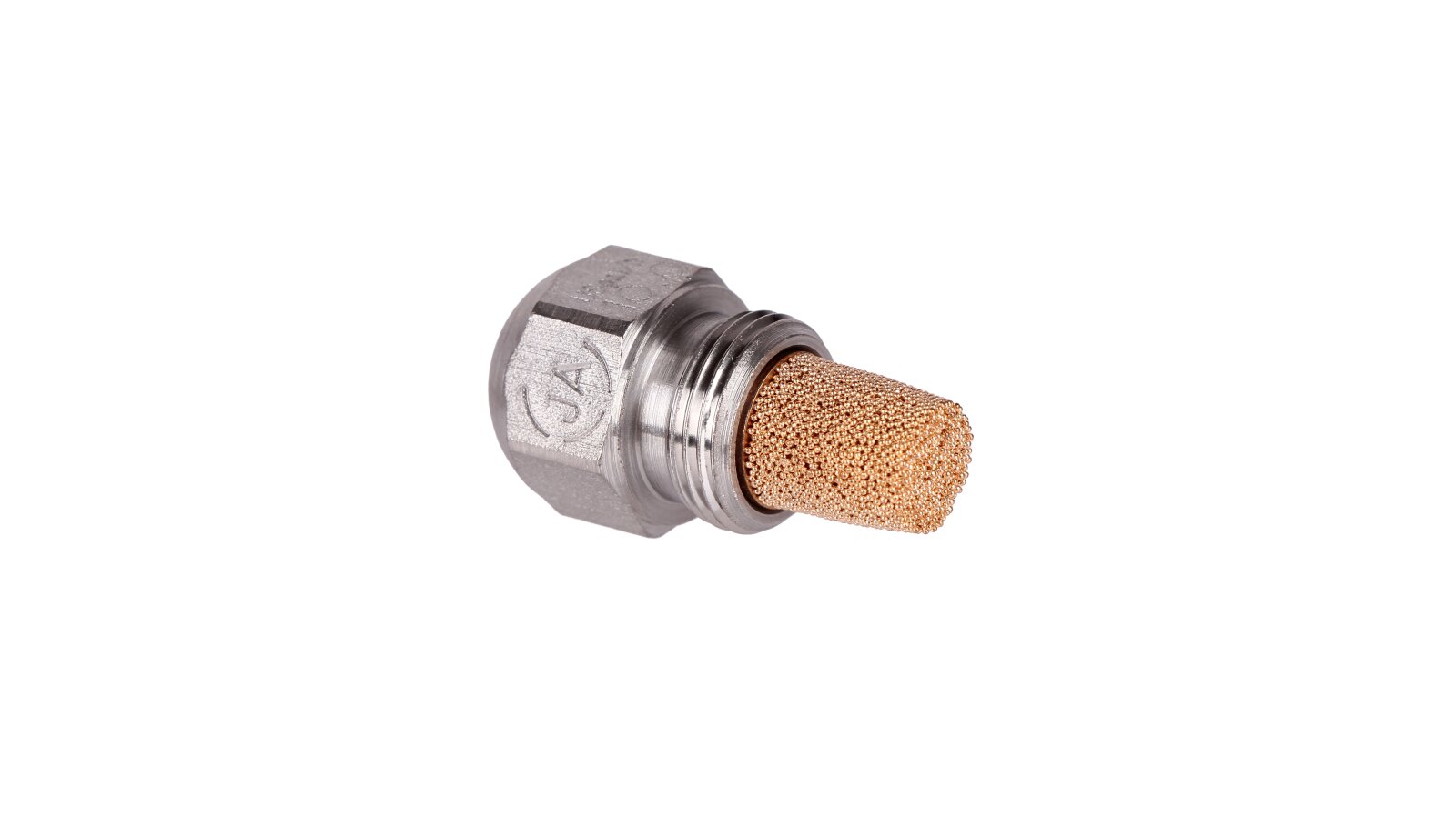

• Filter with a filler made of pressed balls, providing a wide cleaning area;

• Fixation on the burner by screwing onto the thread;

• Maximum throughput - 10 gph;

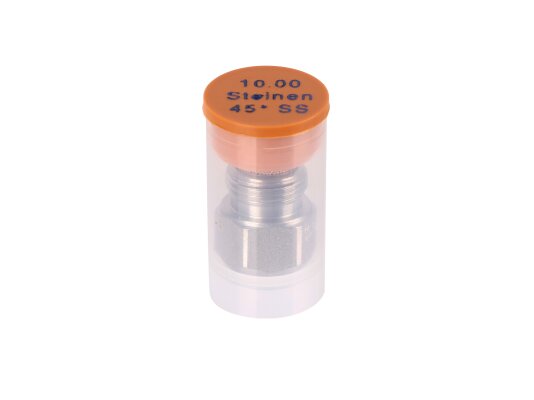

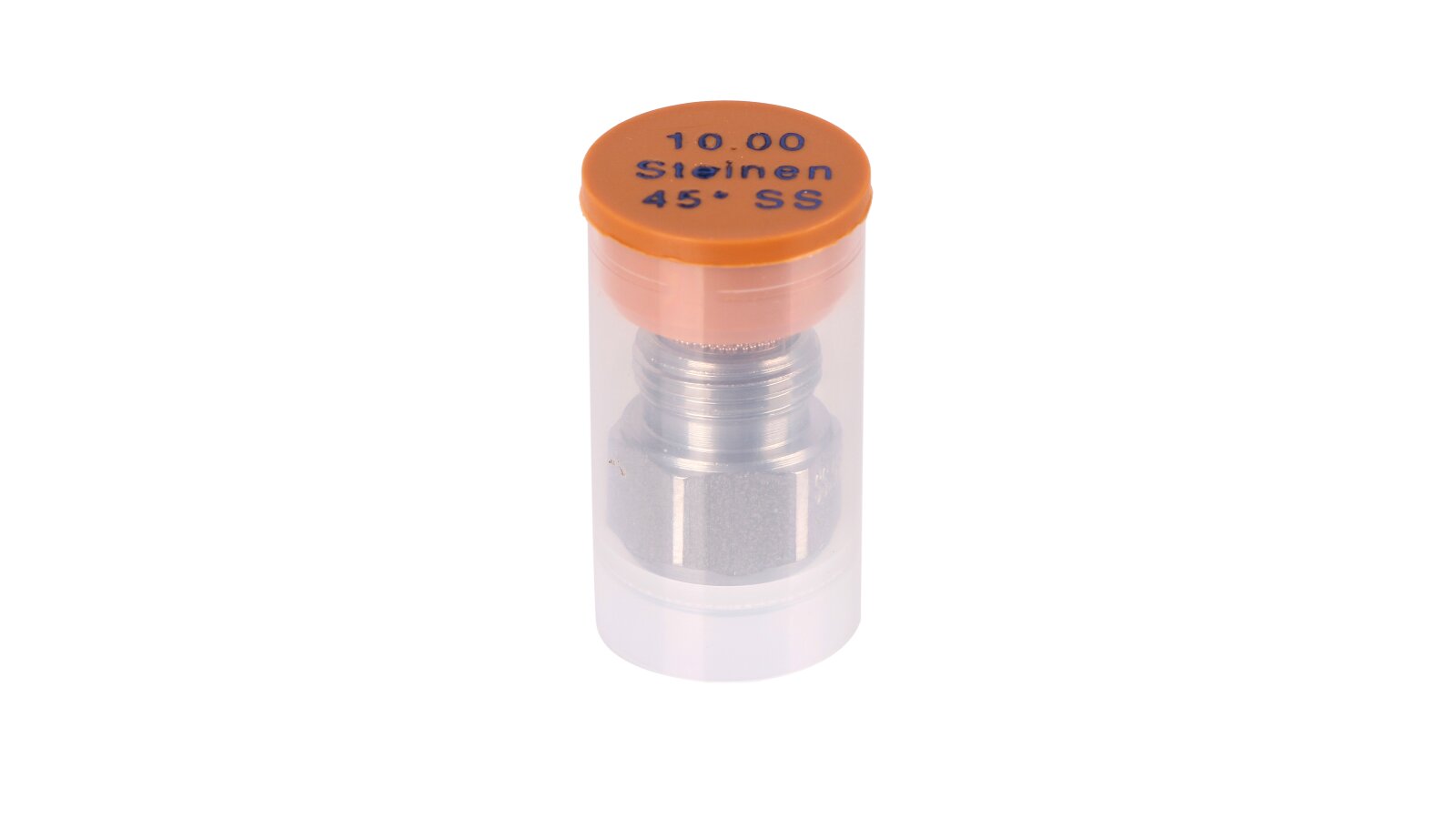

• protective case to prevent damage and clogging.

Spray pattern and application

The Weishaupt 10.00/45° SS nozzle sprays fuel with a 45° cone. Fuel droplets are distributed near the walls. The pattern can vary from full-cone to half-cone depending on the flow rate. The operating and performance characteristics allow the nozzle to be used for household and industrial burners operating on any liquid fuel.

Advantages:

• versatility, works with fuel of any viscosity;

• stable spraying throughout the entire service life;

• body and main parts made of stainless steel;

• built-in filter with granular filler;

• threaded connection.

The characteristics of the Weishaupt nozzle have been tested and remain unchanged during operation. A wide range of fuel nozzles allows you to select and buy a nozzle for burners of any capacity and purpose.
