Oil nozzle Weishaupt 4.00/60° S

The Weishaupt 4.00/60° S nozzle, art.: 612221, prepares liquid fuel for easy ignition, efficient, clean combustion. Thanks to fine atomization, it creates conditions for uniform mixing of the components of the fuel-air mixture. It is part of a series of standard universal atomizers with a solid pattern. Fuel droplets are concentrated evenly throughout the entire volume of the cone.

The S series nozzle is distinguished by:

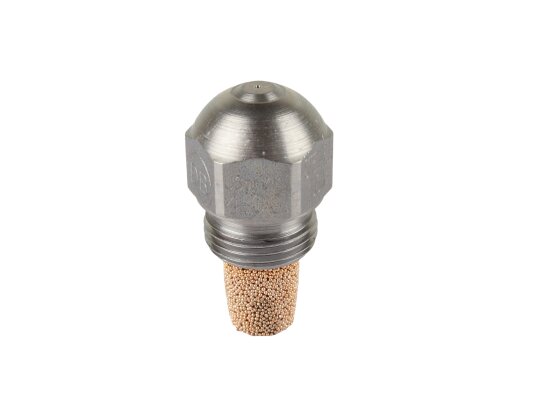

• a round head made of stainless steel, high-precision processing and assembly;

• a solid spray pattern;

• an accurate spray angle, stable throughout the entire service life;

• optimal sizes of holes and channels, eliminating clogging;

• uniform atomization regardless of fuel viscosity and pressure;

• universal application, the possibility of use in diesel, fuel oil, oil burners;

• standard threaded connection.

Spray pattern

The Weishaupt nozzle atomizes fuel injected under pressure into fine droplets with a 45° cone and a solid pattern. The result is a homogeneous fuel-air mixture that is easy to ignite, burns cleanly, provides flame stability and a high thermal effect. The nozzle characteristics allow it to be used in household and industrial equipment.

Nozzle features and parameters:

• Nominal flow rate - 4 gph;

• Flow cleaning before spraying with a built-in filter;

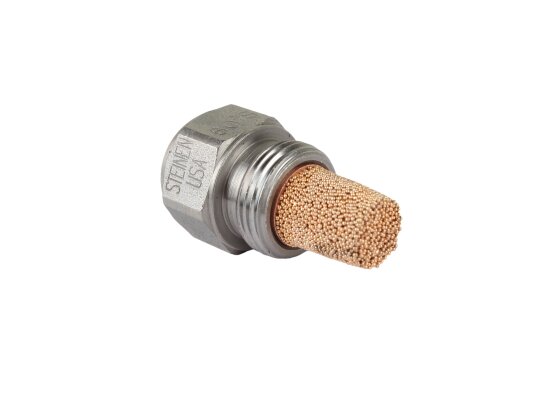

• Increased filtration area due to granular filler;

• Easy installation by screwing onto the thread.

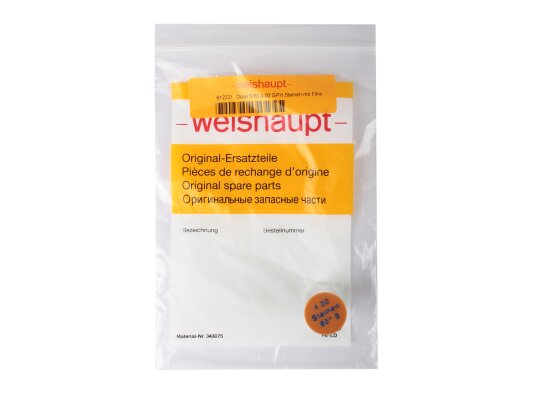

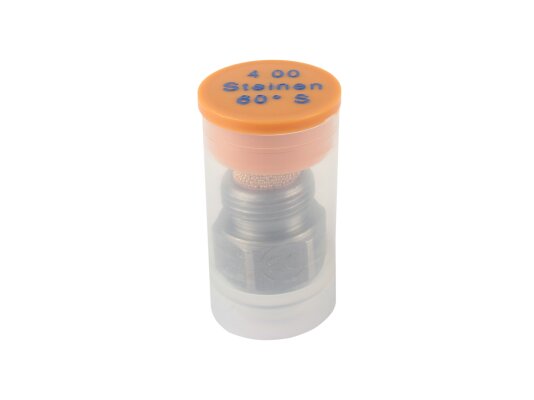

The nozzles are carefully placed in an individual plastic case to prevent dust and damage during transportation. A wide range of fuel nozzles allows you to select and buy a nozzle for any spray pattern and flow rate.
