Oil nozzle Weishaupt 5.00/60° SS

Weishaupt 5.00/60° SS nozzle, art.: 612223 – standard fuel nozzle for universal use. Capable of spraying diesel, boiler fuel, fuel oil, oil. To maintain constant operating parameters and prevent clogging of channels, the nozzle includes a filter with an increased cleaning area.

Features and main parameters:

• universal use, for burners on diesel, fuel oil, oil;

• throughput – 5 gal/h;

• atomization with a semi-solid pattern, concentrated area along the circumference;

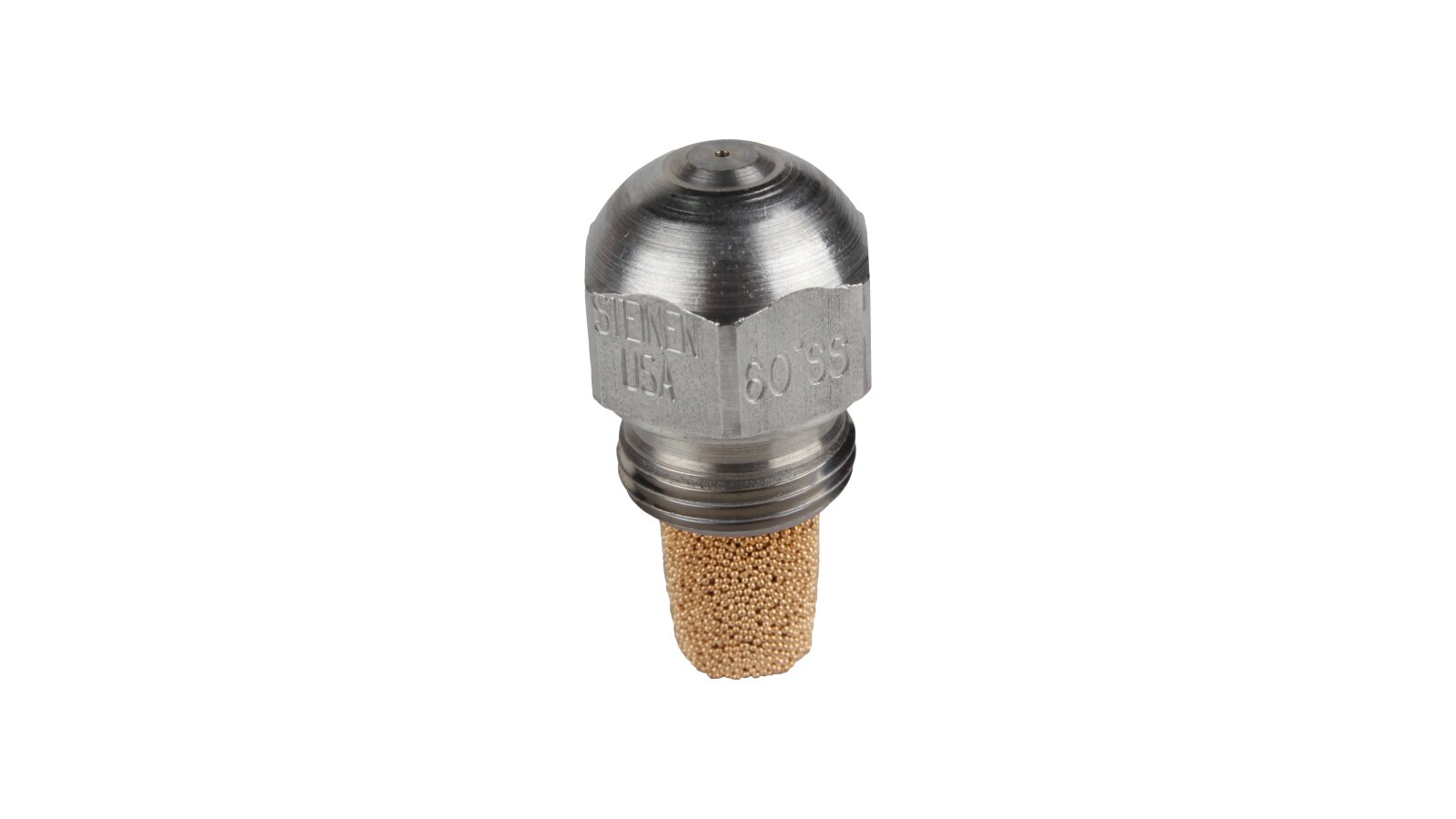

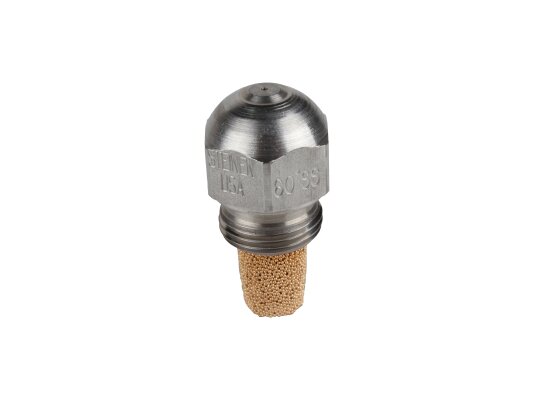

• increased wear resistance, stainless steel nozzle;

• precision processing and assembly of parts, micro tolerances;

• protection of channels and holes from clogging;

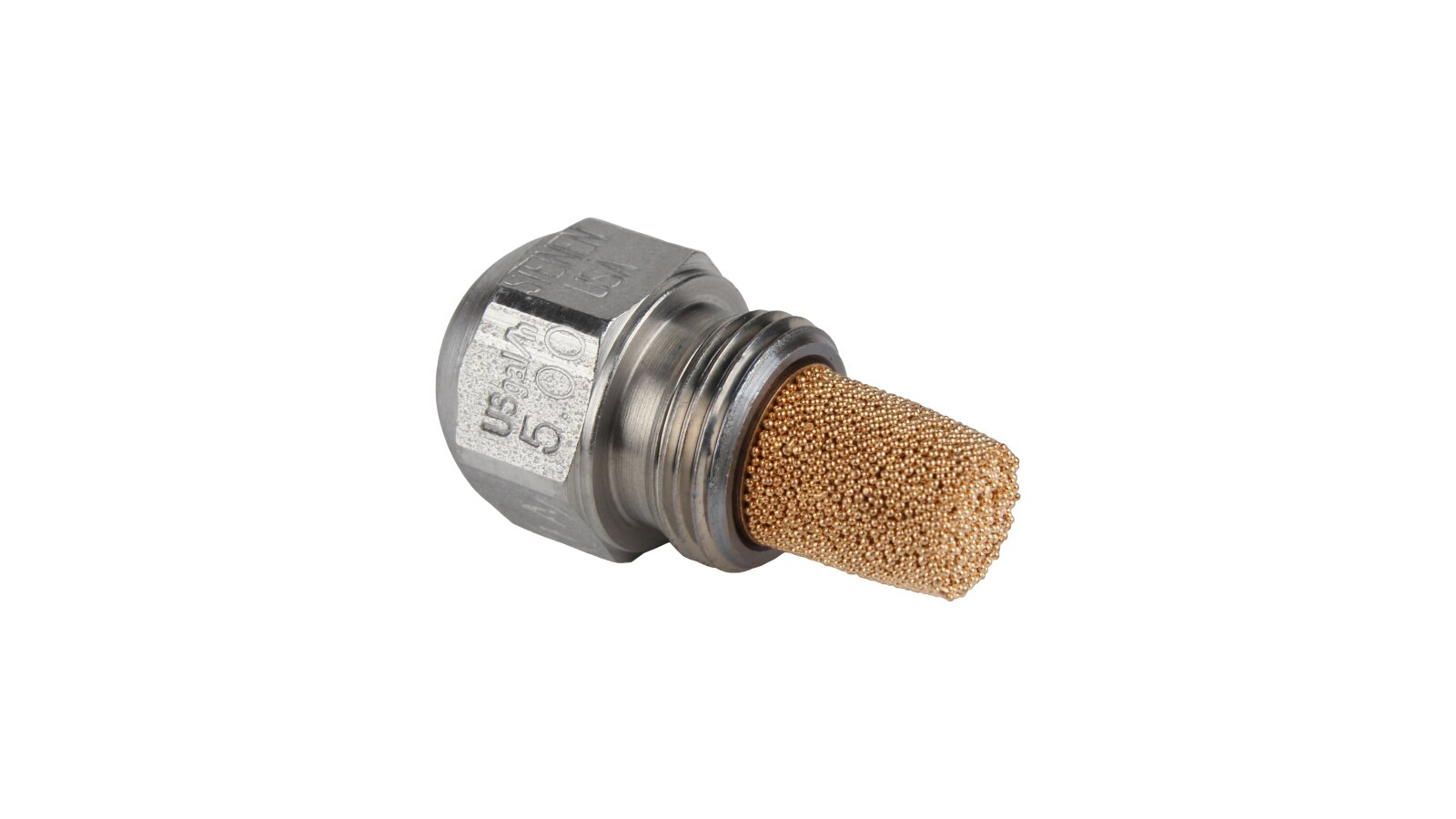

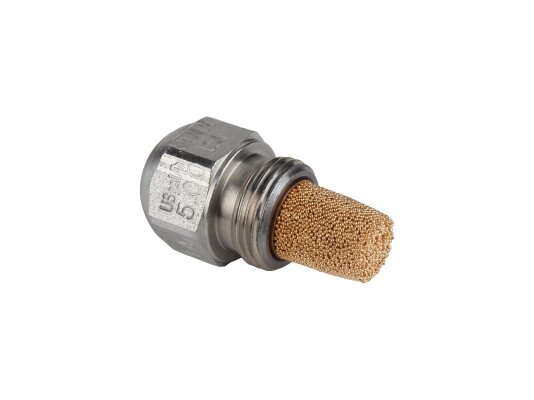

• filter with pressed balls for removing coarse mechanical particles;

• standard threaded connection;

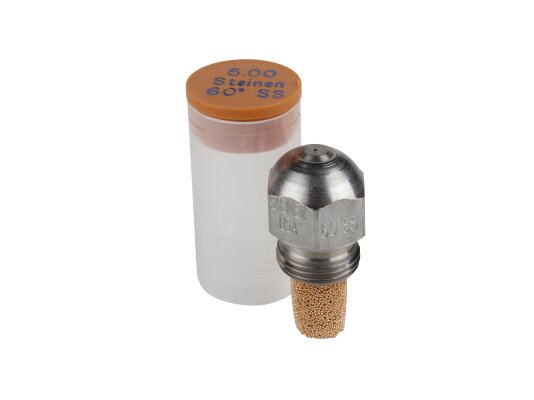

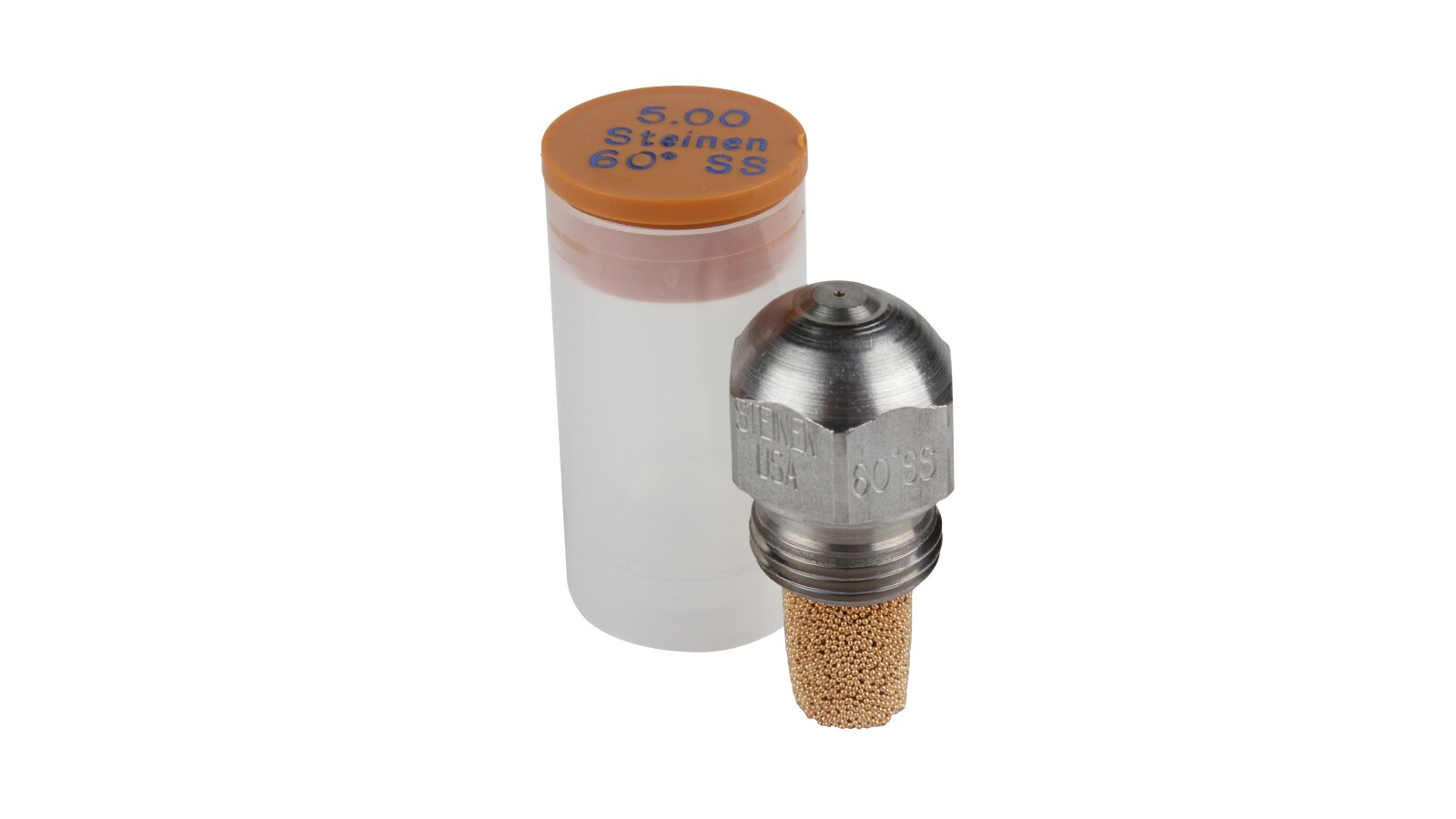

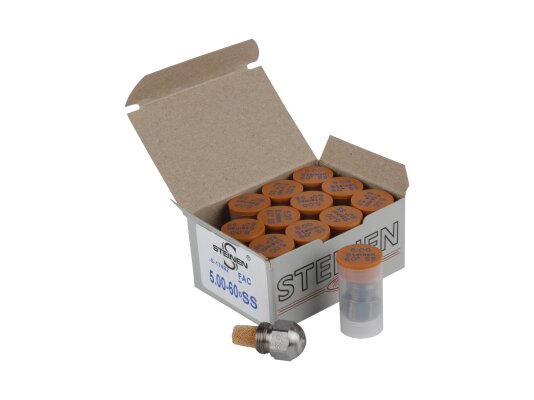

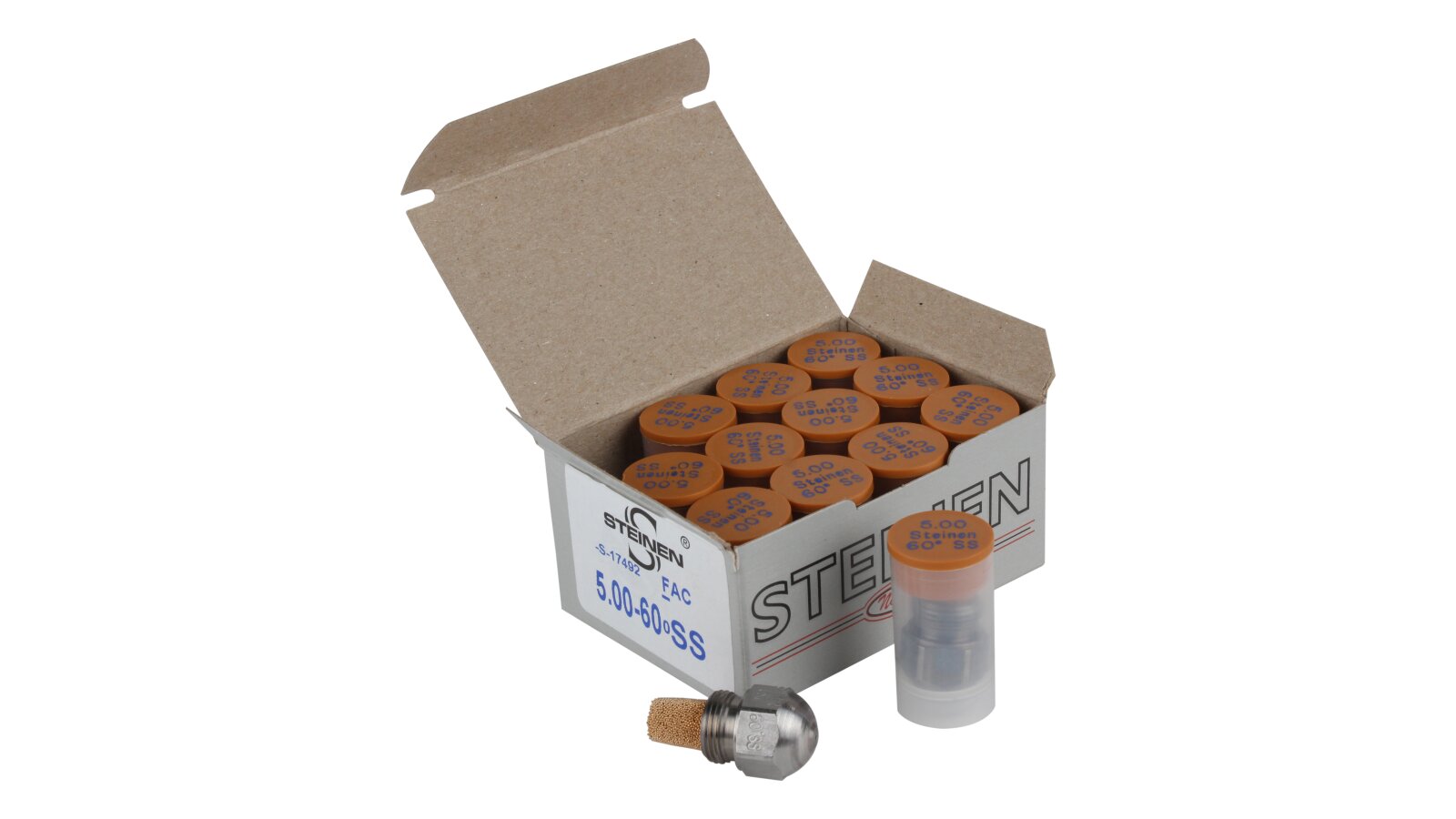

• individual box for safety during transportation.

Spray pattern and application

The Weishaupt 5.00/60° SS nozzle ensures uniform distribution of fuel droplets to obtain a homogeneous mixture with air. The semi-solid jet pattern creates conditions for rapid ignition of the combustible mixture and silent combustion. As the flow rate increases, the fuel droplets concentrate closer to the walls of the cone. The nozzle is suitable for equipping high-pressure burners of any purpose that consume fuel oil, diesel fuel, boiler fuel, and oil.

Advantages:

• universal application;

• high stability of the spray angle;

• stainless steel construction;

• filter to protect the spray unit from clogging;

• reliability and durability;

• easy installation and maintenance.

The nozzle size, flow rate, and spray pattern are checked and tested at the factory and correspond to the declared characteristics. A wide range of fuel nozzles allows you to choose and buy a nozzle for a burner with any spray pattern and performance.
