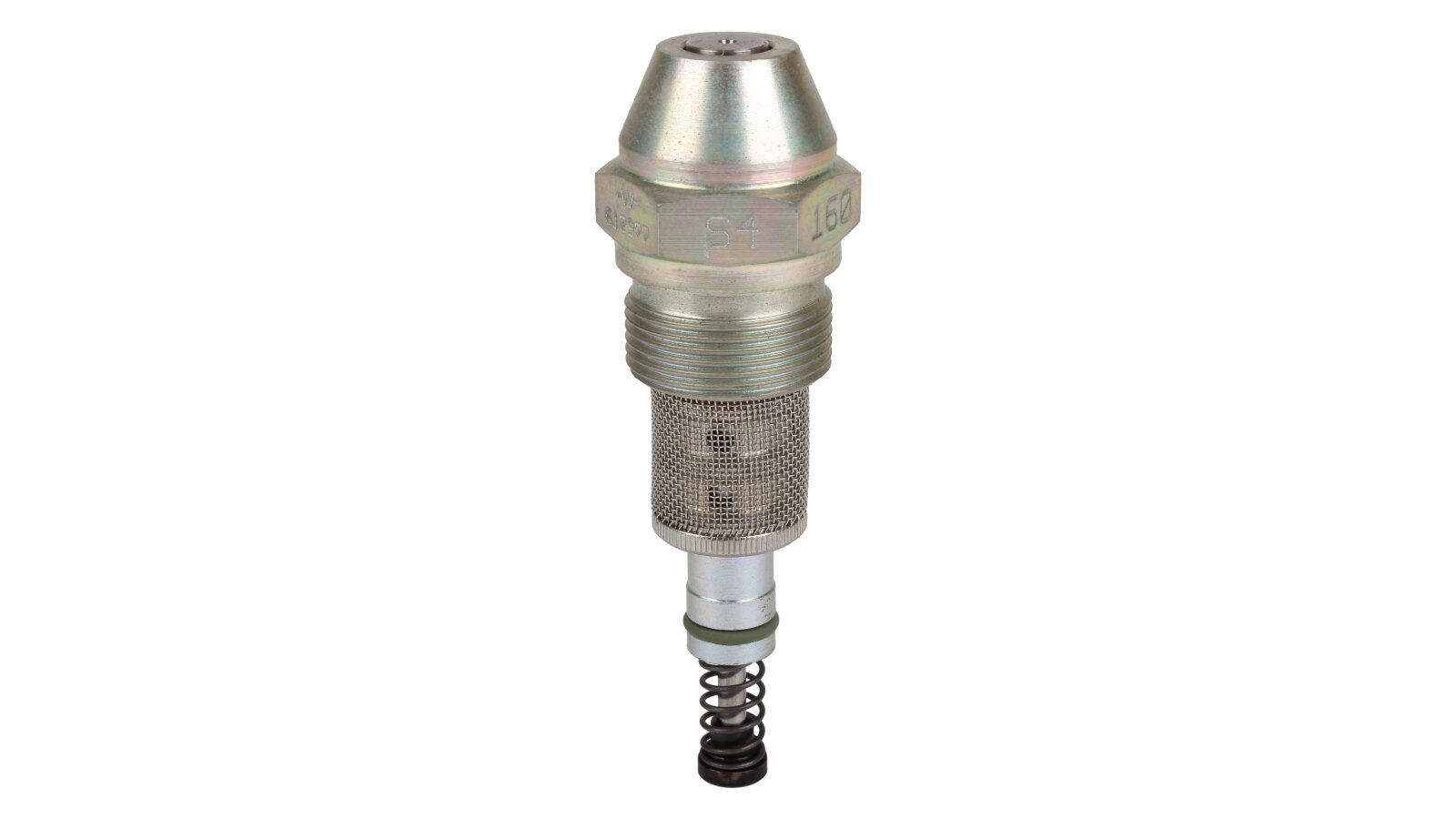

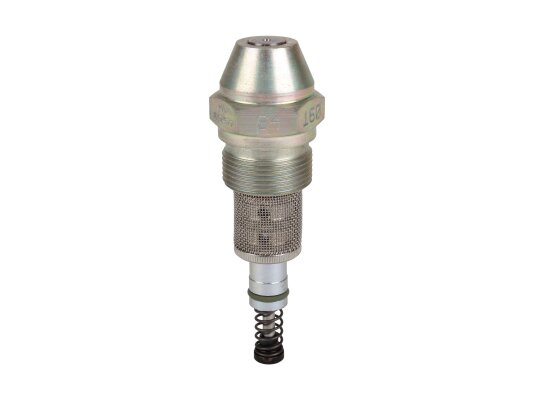

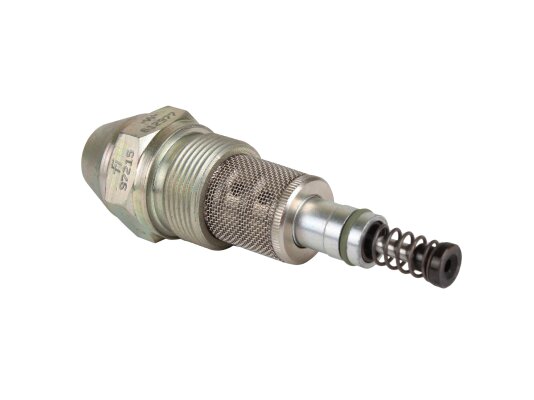

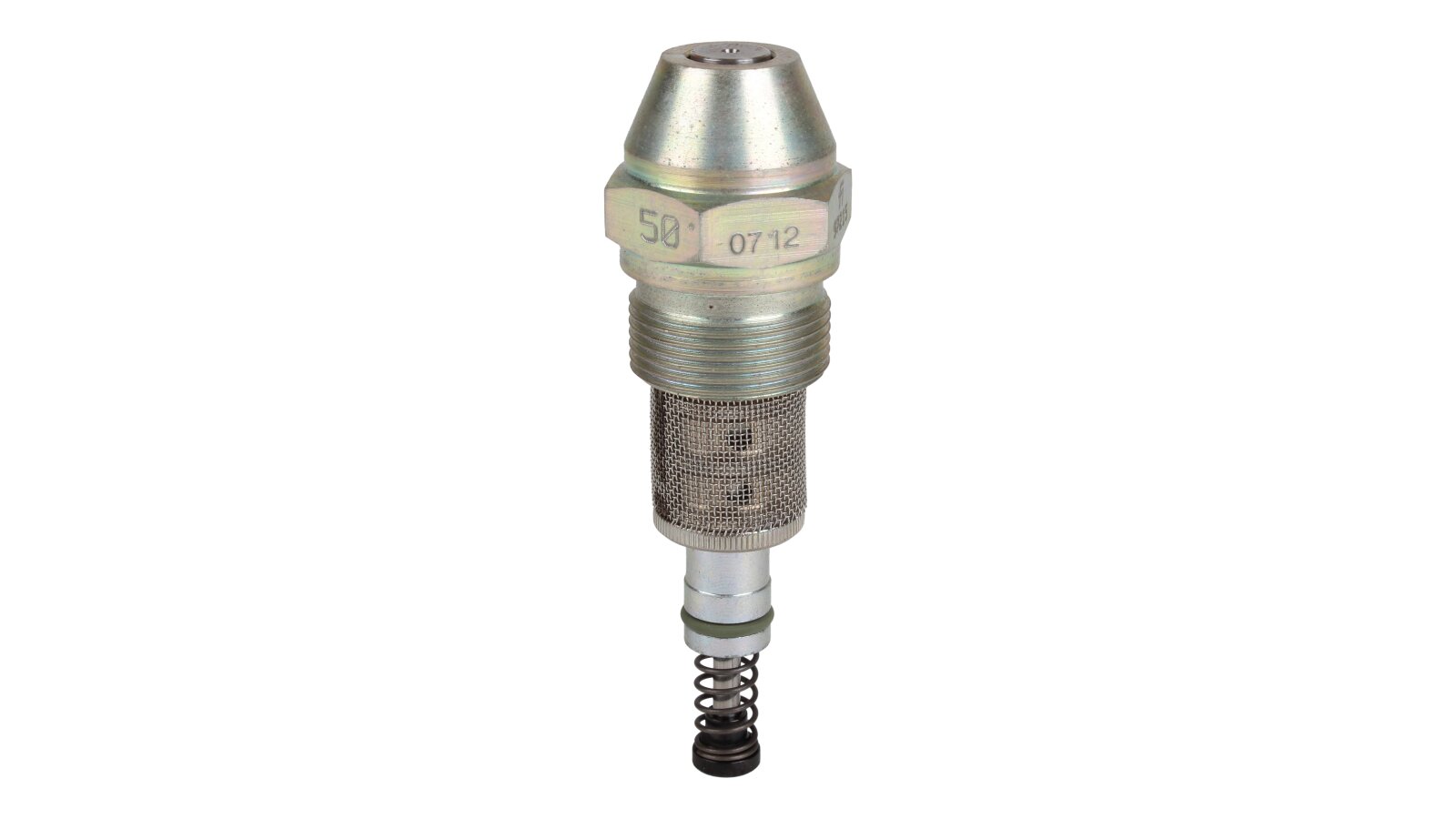

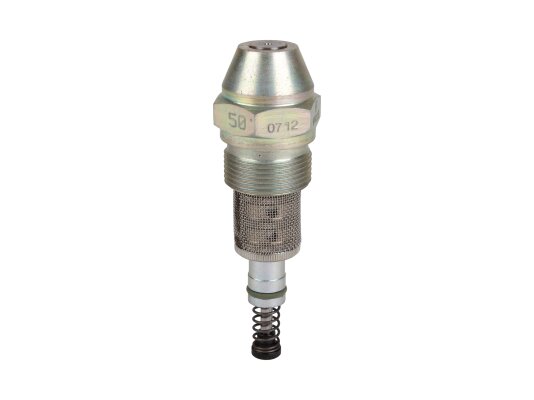

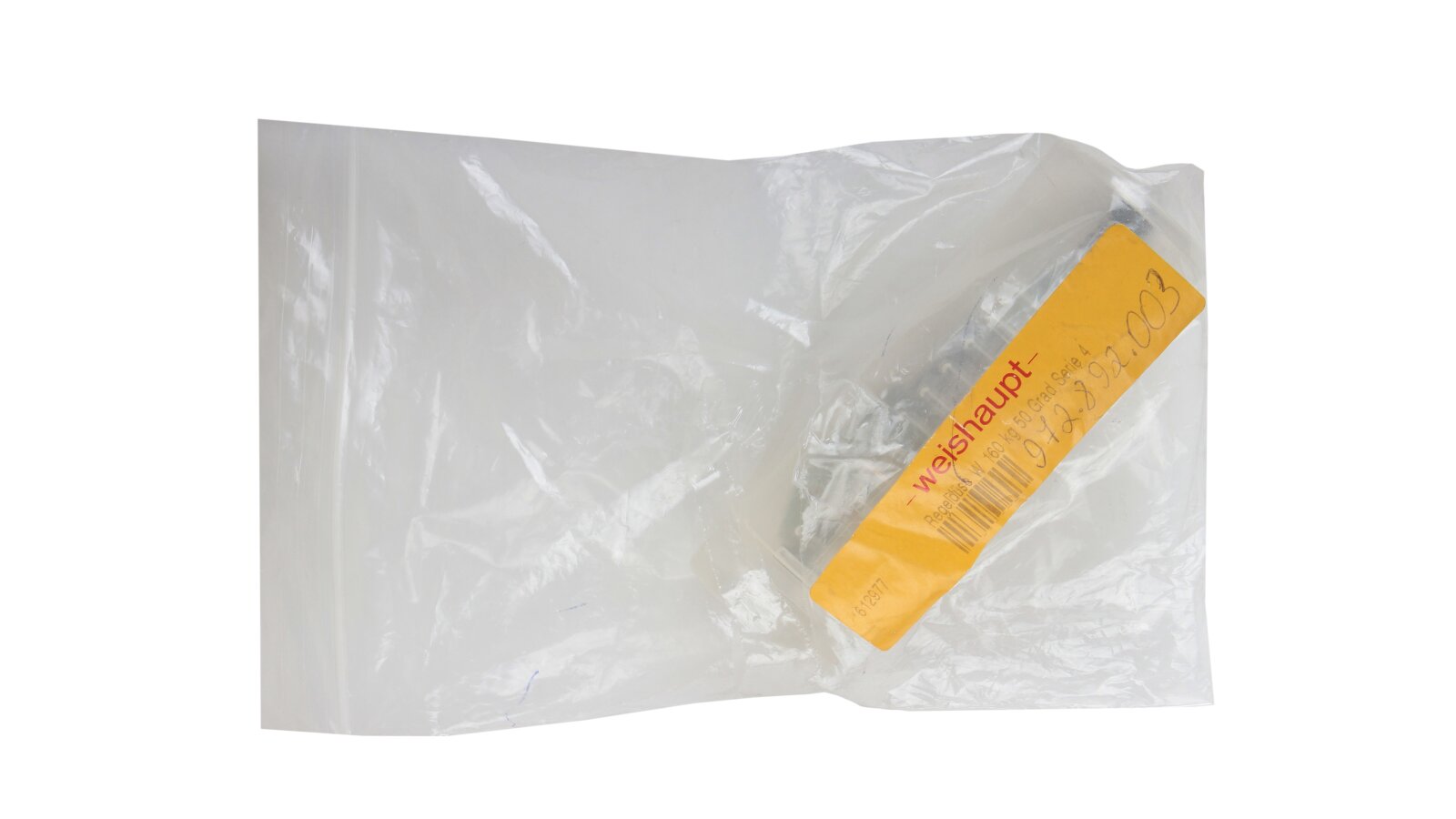

Oil nozzle Weishaupt W4-160/50°

The Weishaupt W4-160/50° nozzle, art.: 612977, is used in liquid fuel atomization systems for uniform droplet distribution over the jet volume, mixture preparation before combustion. It is made of wear-resistant materials, which ensures its durability and reliability.

Main nozzle parameters:

• atomization of fuel oil, diesel fuel, oil;

• spraying with a 50° cone jet;

• use in combustion systems with a flow rate of up to 160 kg/h;

• needle valve for smooth flow rate adjustment;

• precise assembly, minimal tolerances when machining parts;

• spray stability regardless of fuel viscosity;

• mesh filter for cleaning the flow from dirt;

• stainless steel body and metering parts;

• built-in needle valve for smooth fuel flow rate adjustment;

• threaded fixation method.

Application

Weishaupt W4-160/50° nozzle is used in modulating burners of industrial boilers, furnaces, heat generators. Effective for all types of liquid fuel.

Reliability and durability of the nozzle are achieved due to:

• use of advanced technologies for manufacturing sprayers;

• parts with increased resistance to wear and corrosion;

• high precision processing, minimal tolerances;

• optimal diameter of channels and passage holes;

• flow cleaning before entering the spray unit.

Weishaupt nozzles are checked and tested, comply with environmental standards.
