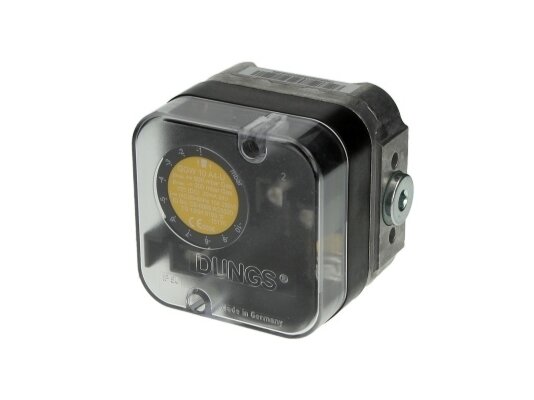

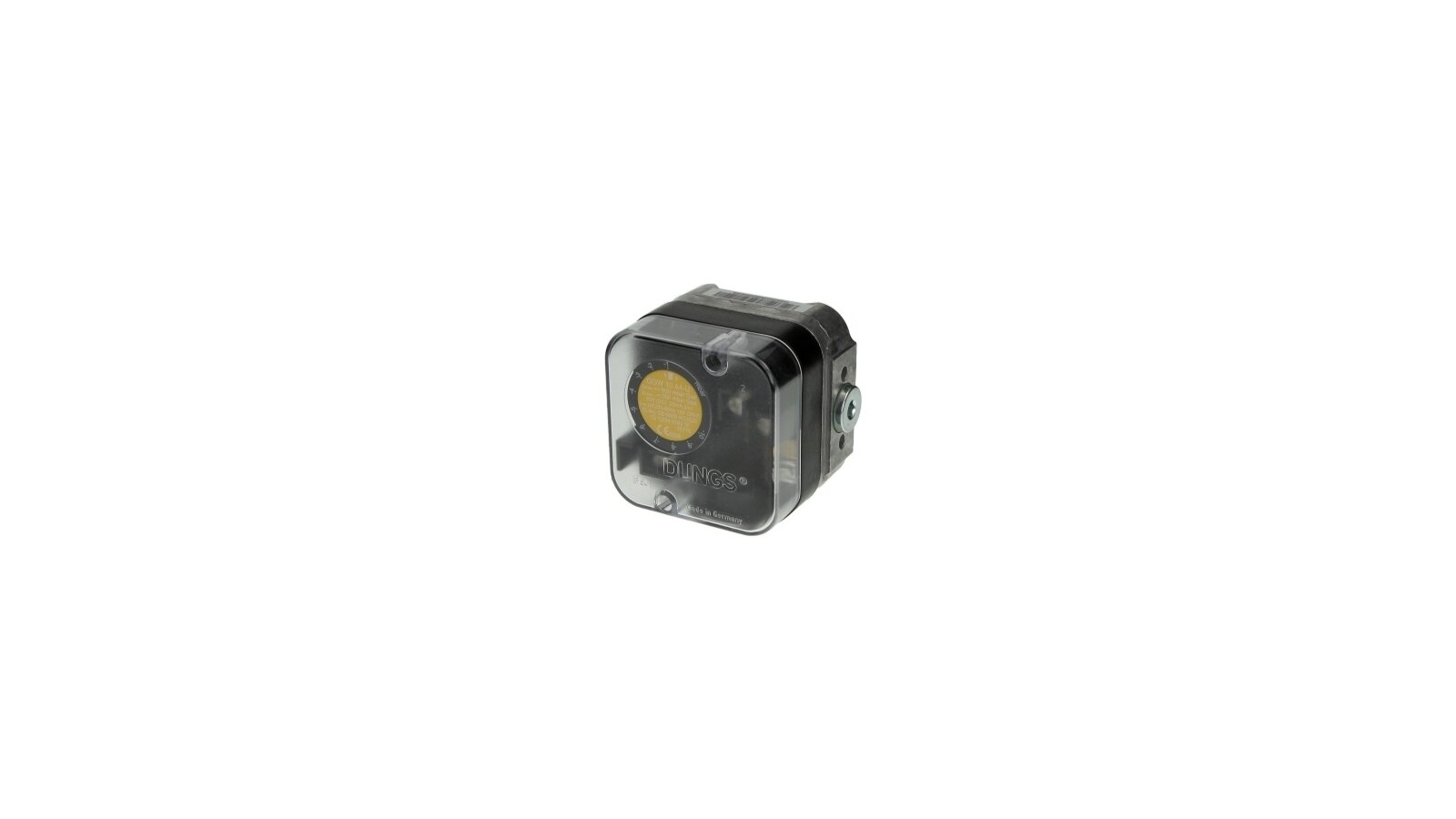

Pressure switch Dungs GGW 10 A4-U

Pressure switch Dungs GGW 10 A4-U article 240358 is a compact device for effective control of differential gas and air pressure in combustion units. The sensor is made taking into account the European standard EN 1854. The model is designed for vacuum.

Key features

• Permissible pressure in the system: -500 mbar.

• Adjustment within: from -1 to -10 mbar.

• Response interval: 0-0.5 mbar.

• Environment: gas of 1-3 families, flue, exhaust, neutral gases, air.

• Permissible operating temperature: -15°C to +70°C.

• Connection: threaded G1/4 and G1/8 inch.

Features and equipment

The sensor is used when the lower pressure is lower than atmospheric. The relay switch reacts to the differential pressure between the chambers, closing, opening or switching the contacts of the electrical circuit when the pressure increases/falls below the set trigger limit.

The marked scale and the wheel are used to set the required values ​​of the switching point.

The reliable design is made of high-quality materials, which ensures long service life. The lower part of the housing is die-cast from aluminum. The casing and switch are made of polycarbonate, the sensitive membrane is made of NBC.

Stable signal transmission is ensured by gold-plated contacts. Electrical components are protected from external influences (IP 54 standard).

The sensor is screwed onto a branch pipe with an R 1/4 external thread. The standard orientation is vertical. In another position, the switching point shifts (see installation instructions).

Advantages:

• precise, stable response;

• reliable design;

• convenient manual adjustment;

• wide range of operating temperatures;

• dust and moisture protection (IP 54);

• compactness, easy installation;

• long-term factory warranty.

The Dungs GGW 10 A4-U pressure switch is a device that will not let you down. You can buy the switch at the price of a direct supplier by submitting an application on our website. You can find out more about the model from an ANKAS consultant.
