Pressure switch Dungs GW 10 A4
Alternative Part Number
Q106/1
400010118700
About product
Go to description- Discontinued
Description
The Dungs GW 10 A4 pressure switch is characterized by its small dimensions, precise response and convenient connection. The device monitors maximum pressure and vacuum pressure.
Main characteristics
System pressure (maximum): 500 mbar.
Setting range: 1-10 mbar.
Response limits: 0-0.5 mbar.
Medium: gas family 1-3, neutral.
Ambient air temperature: -15…+70 °C.
Features
When the pressure changes above/below a certain threshold, the relay is triggered, the contact closes and a signal is sent to the control device.

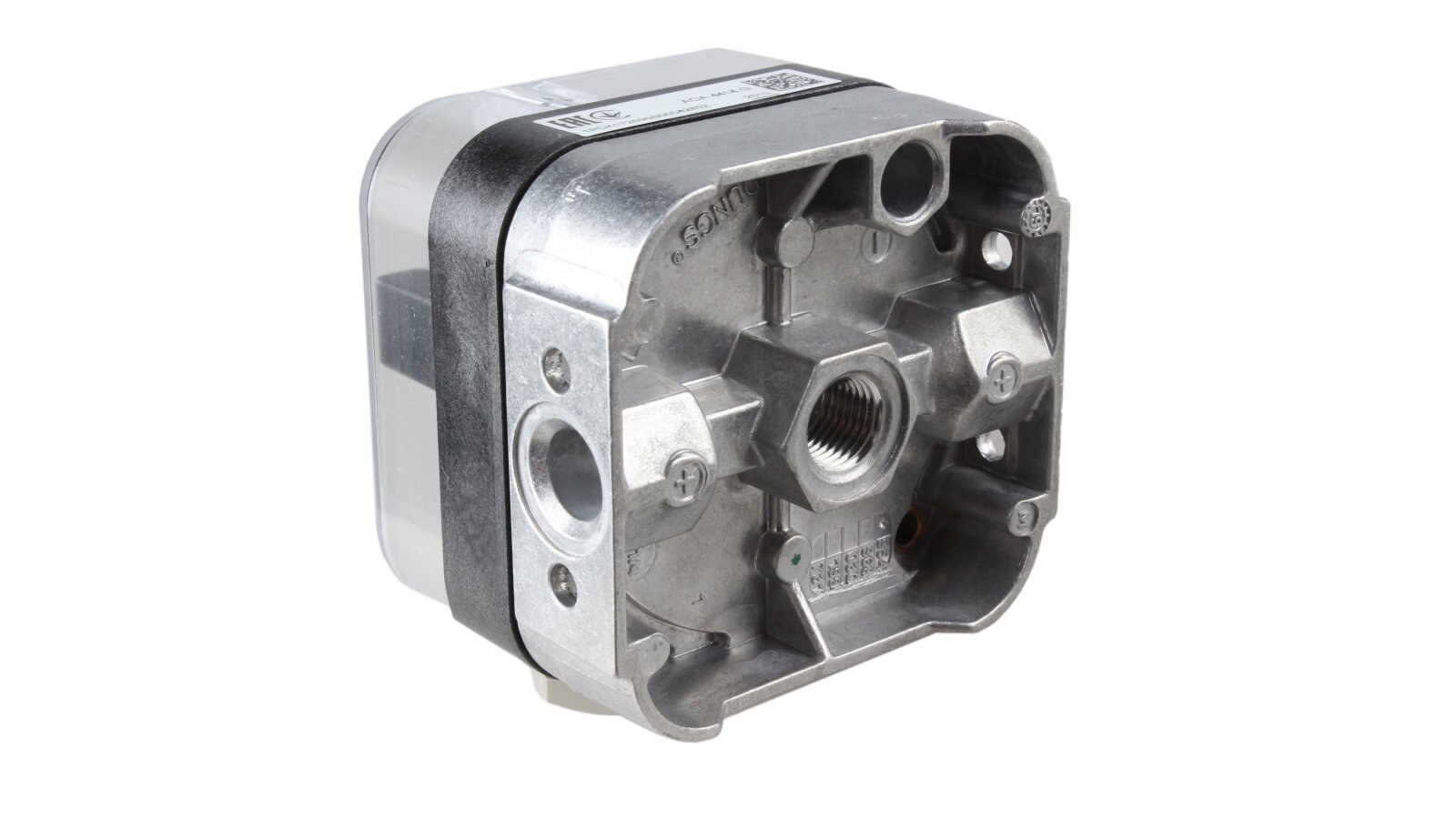

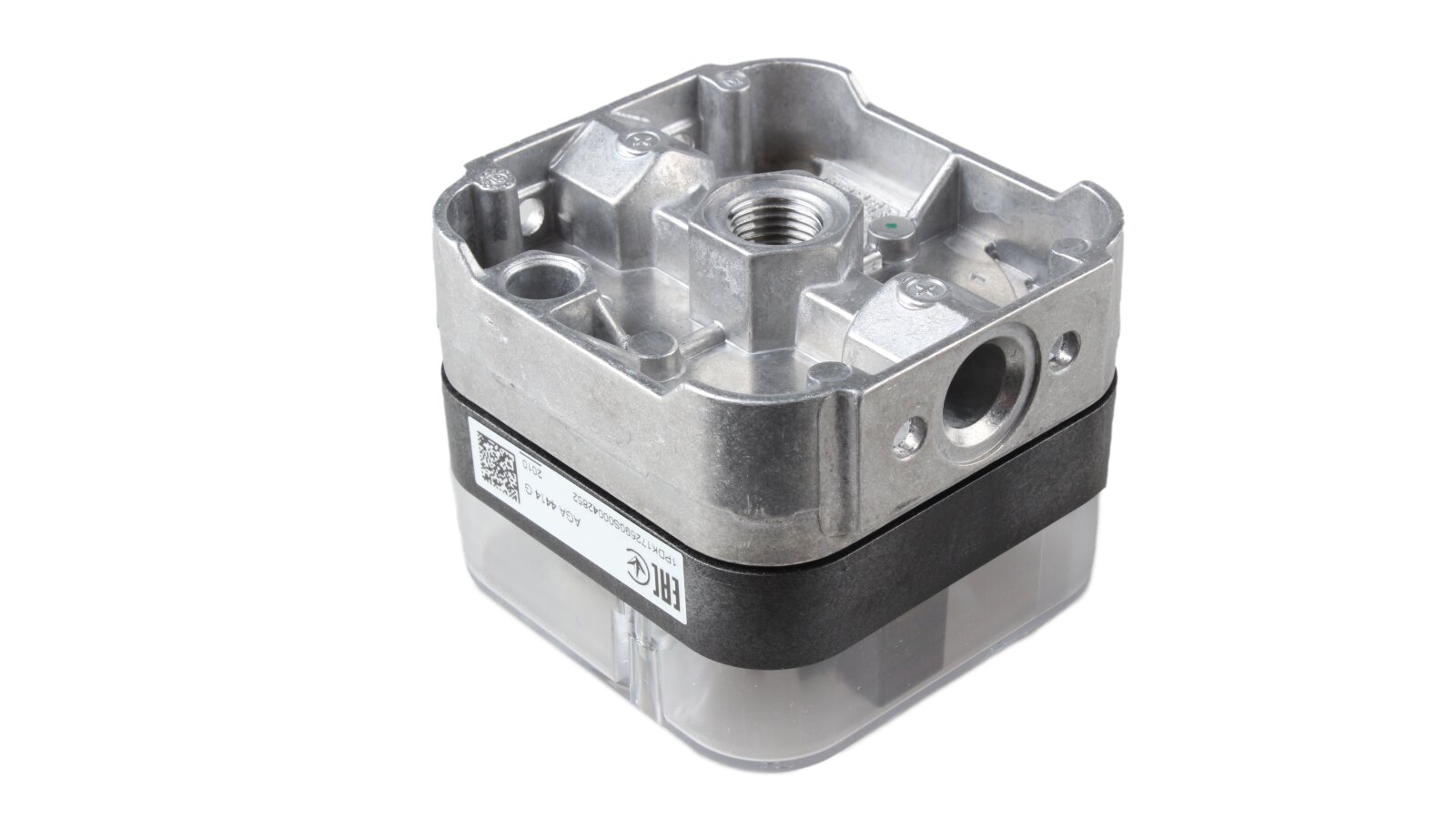

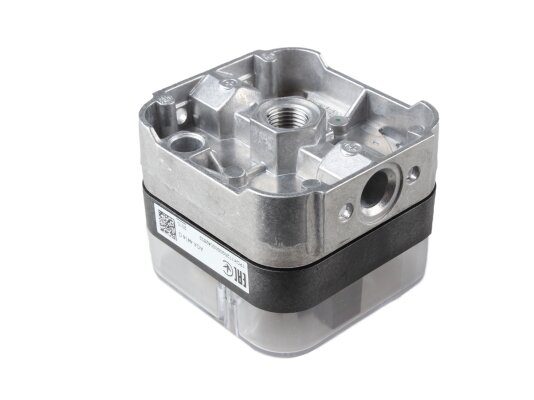

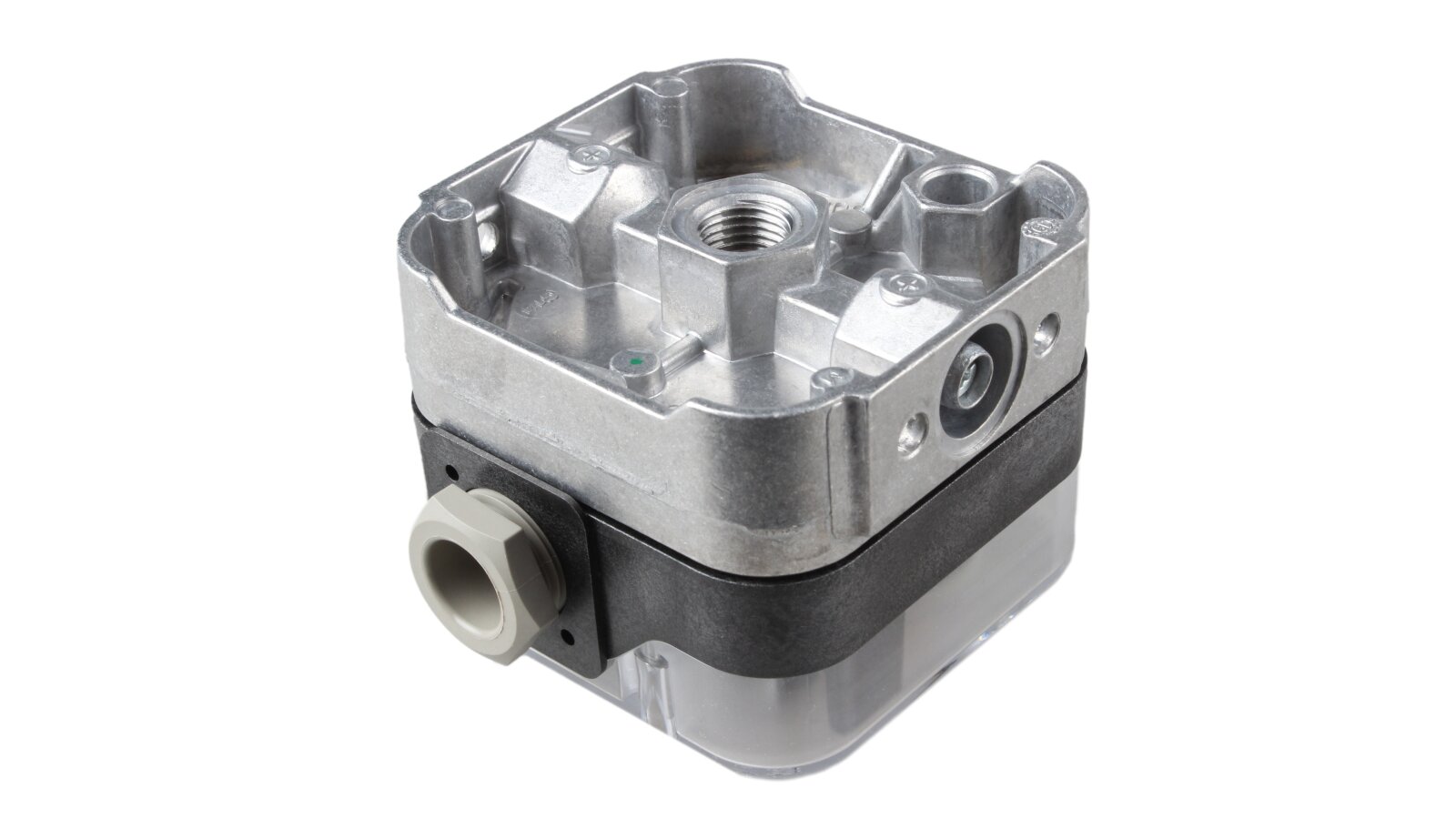

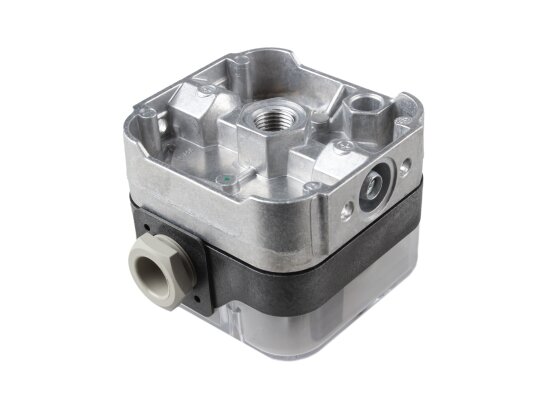

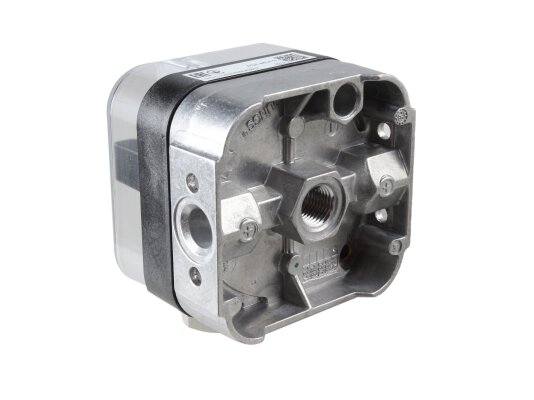

The sensor has a convenient connection - it is screwed directly onto the branch pipe with an external thread G 1/4.
The design is made according to the IP 54 electrical protection standard, equipped with a plastic housing resistant to external influences (the base is made of aluminum).

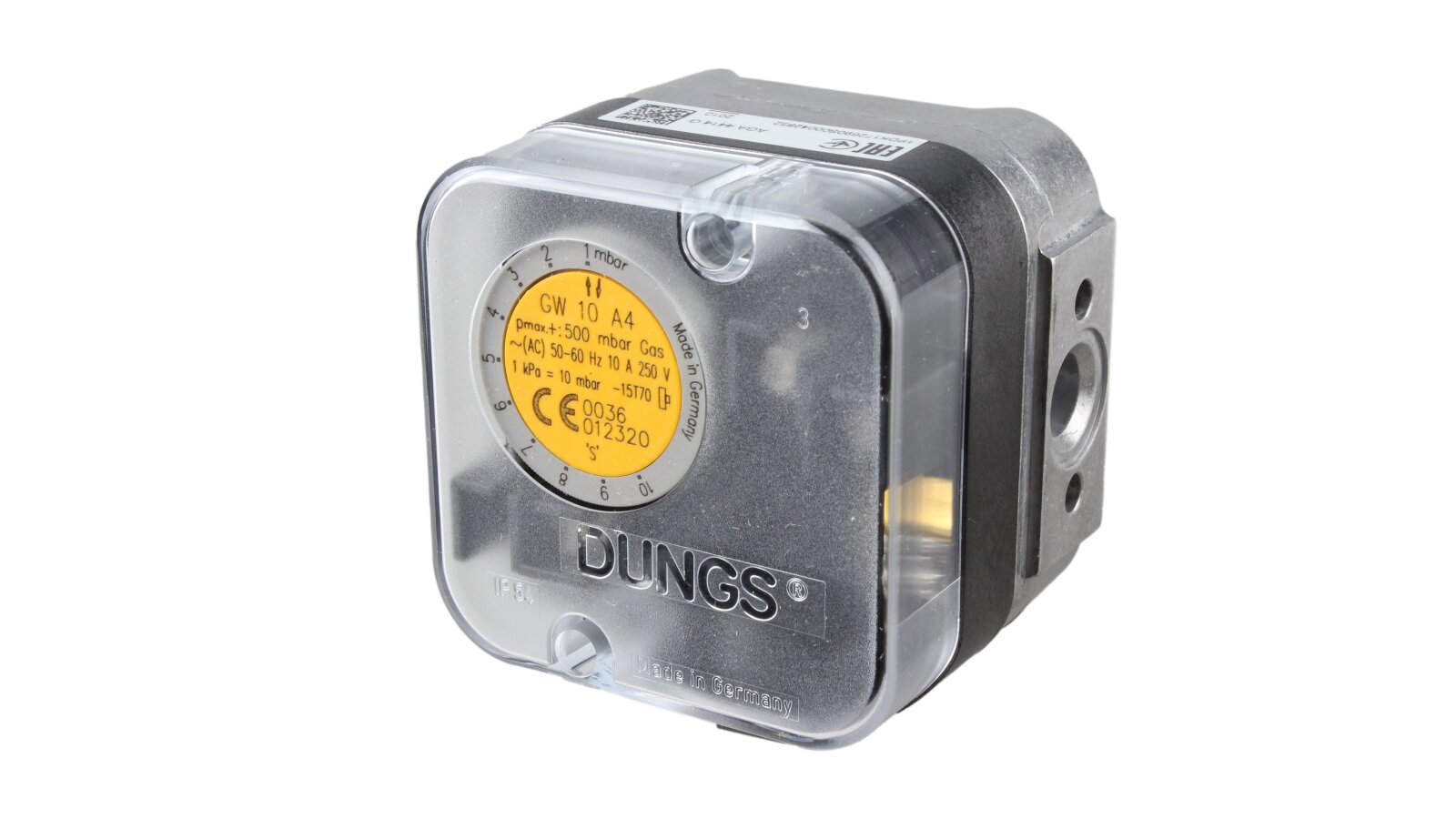

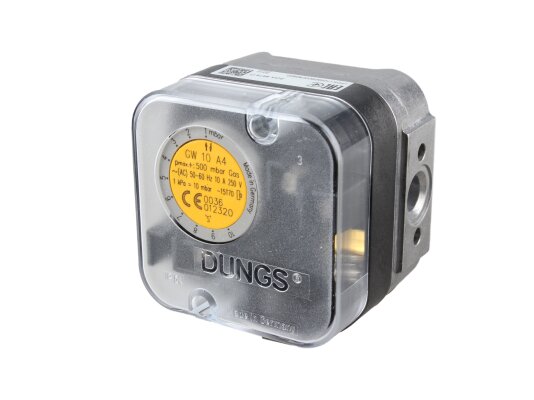

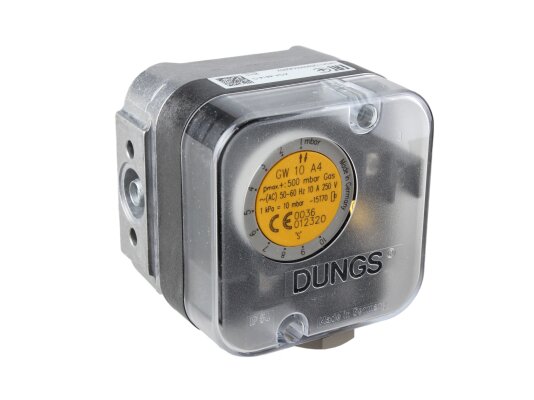

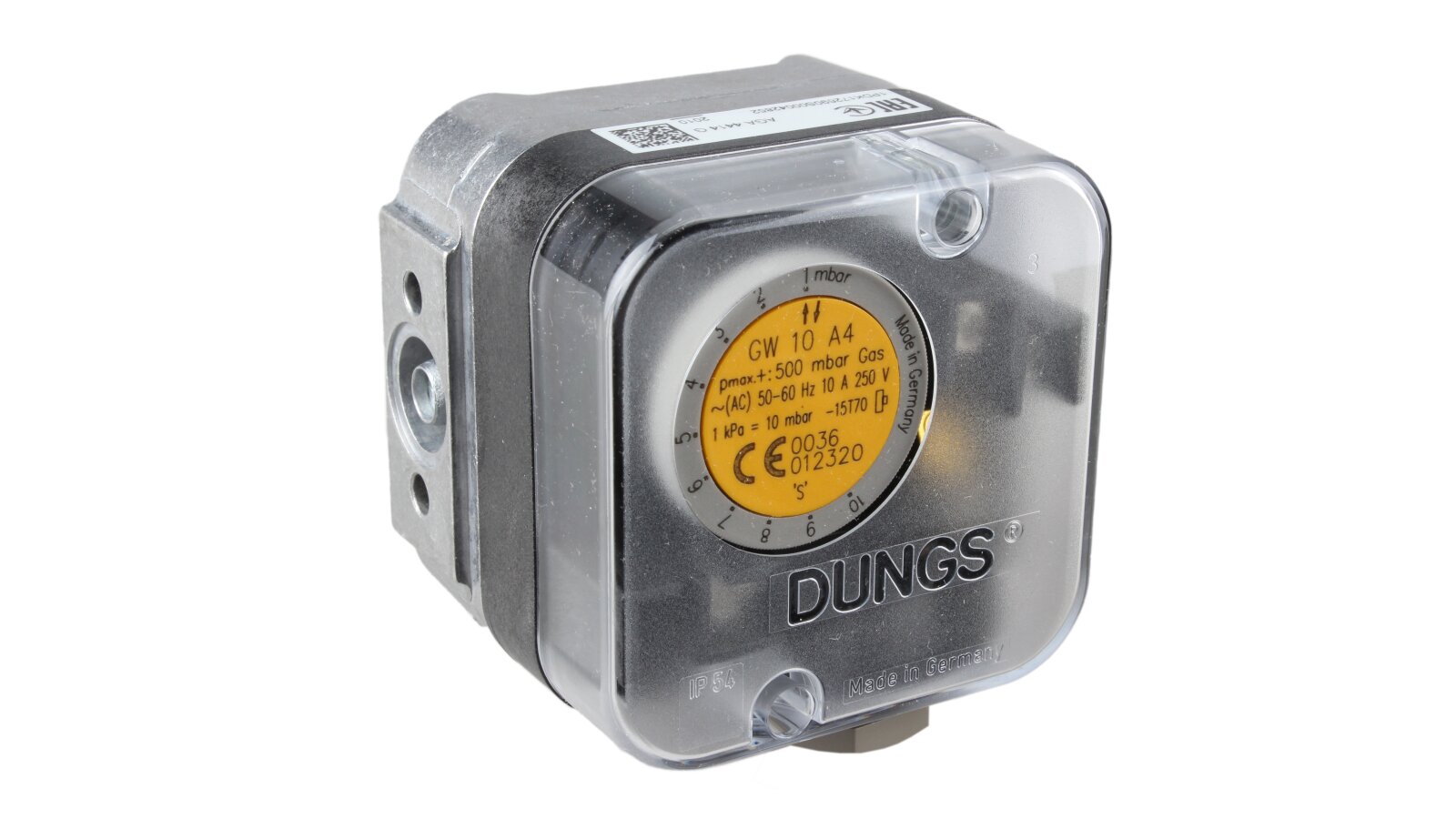

To adjust the switching parameters, a rotary disk with a digital scale is provided at the top of the device.
The relay can be installed in any position. It should be noted that in the case of non-vertical placement, the sensor will respond to pressure below/above the specified mark.
Advantages:
simple manual adjustment of parameters;
reliable design;
high level of electrical protection (IP 54);
threaded connection.
Before buying the Dungs GW 10 A4 pressure relay, we recommend that you study the information on installation and operation in the attached specification.
