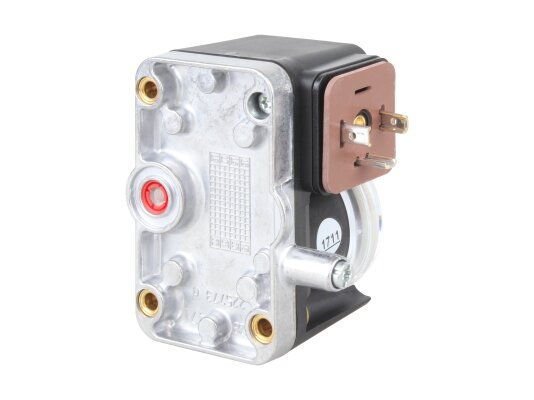

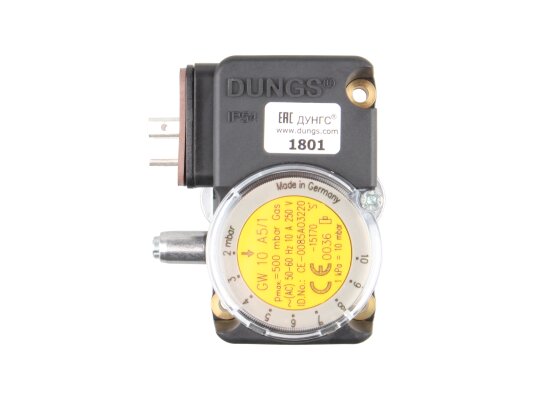

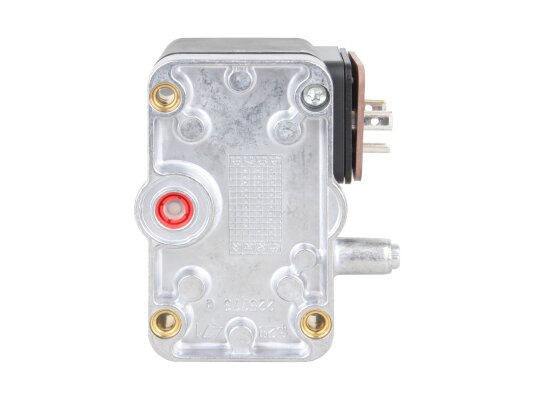

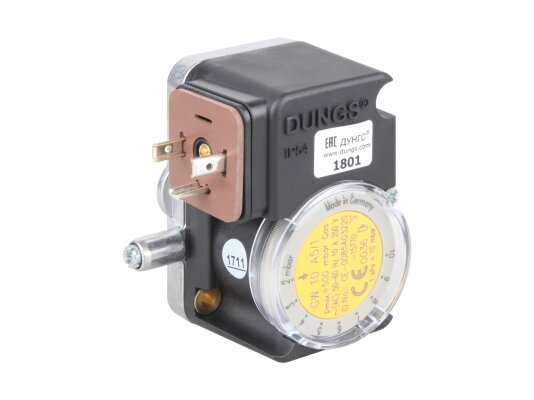

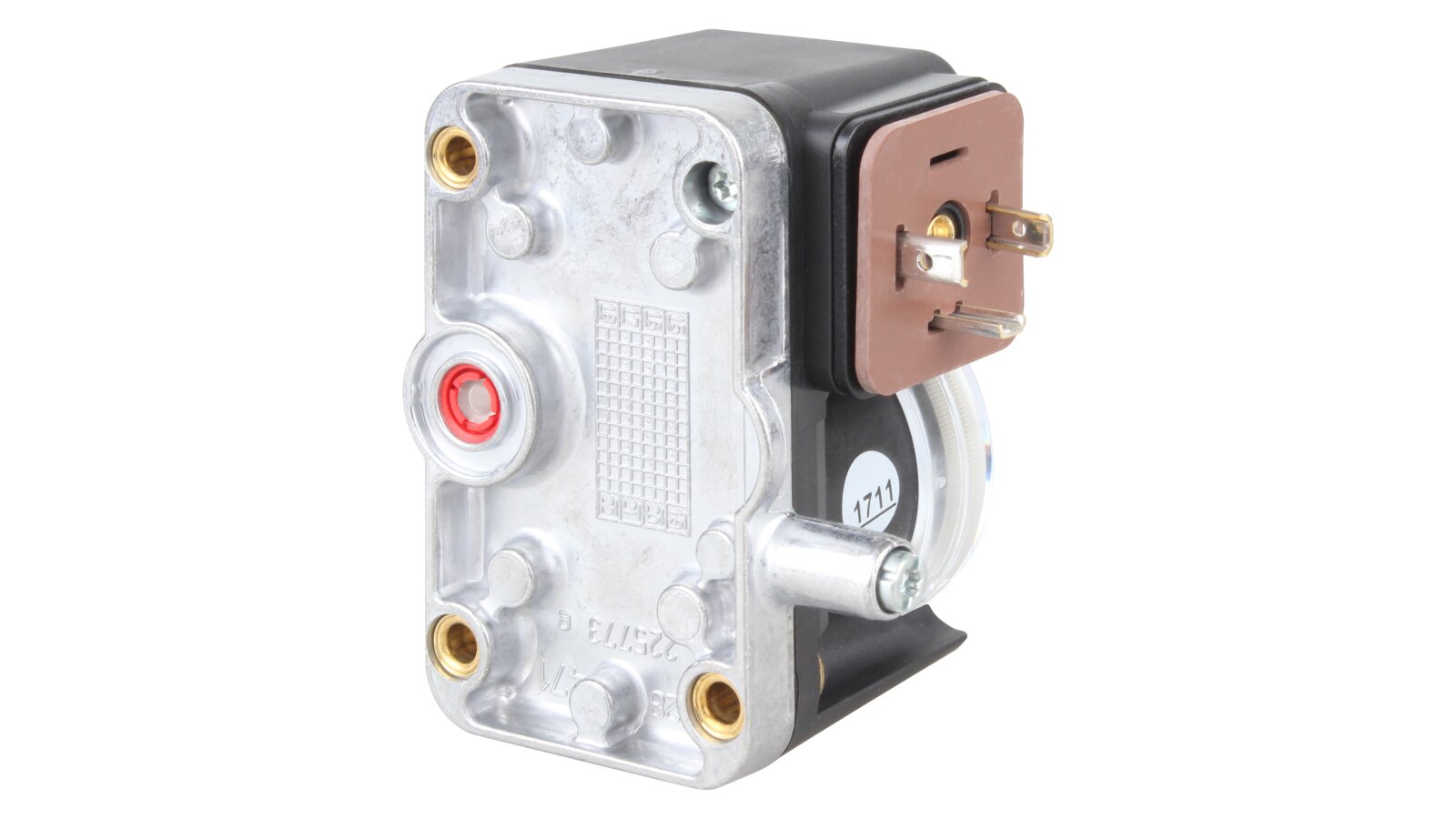

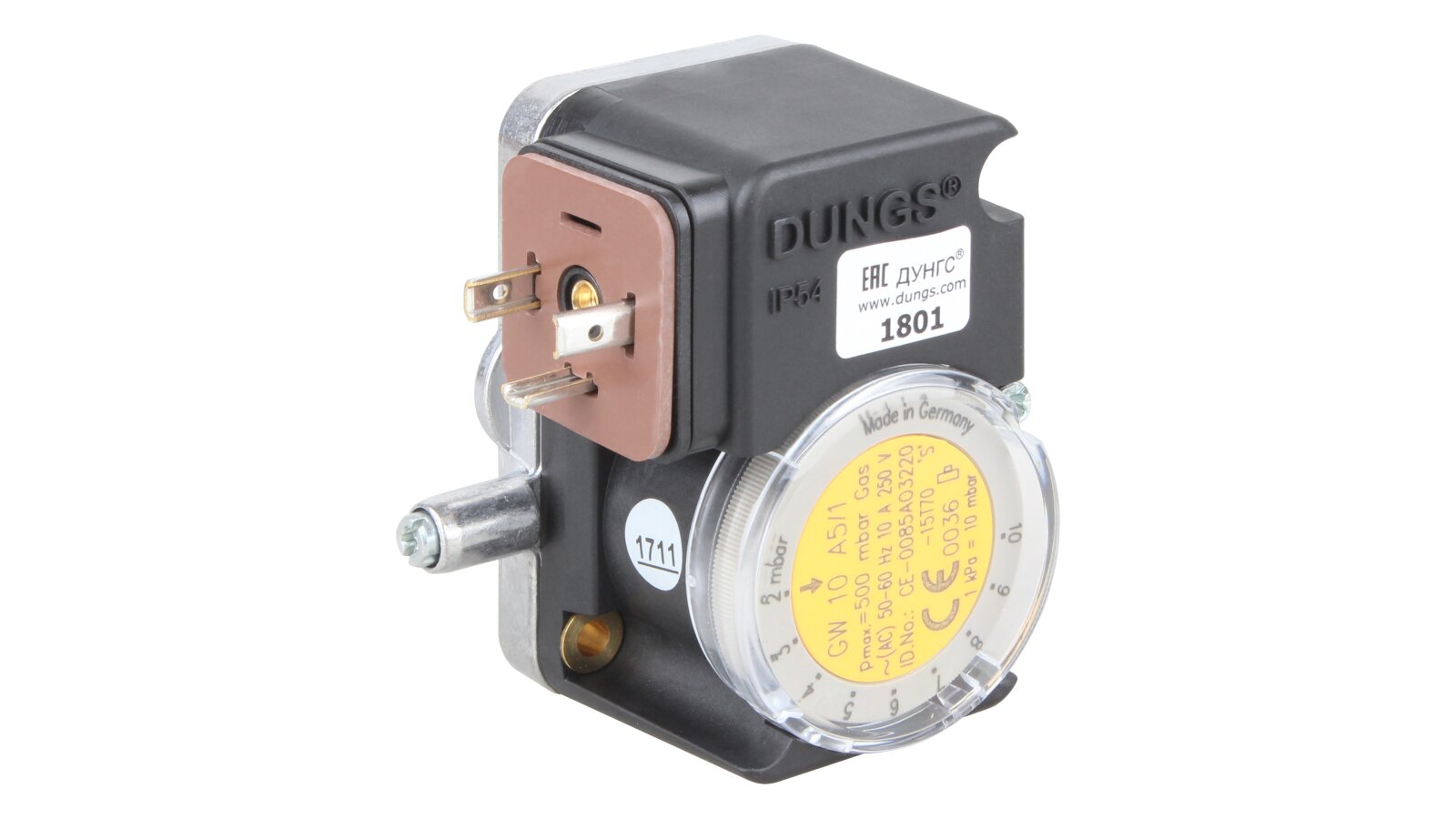

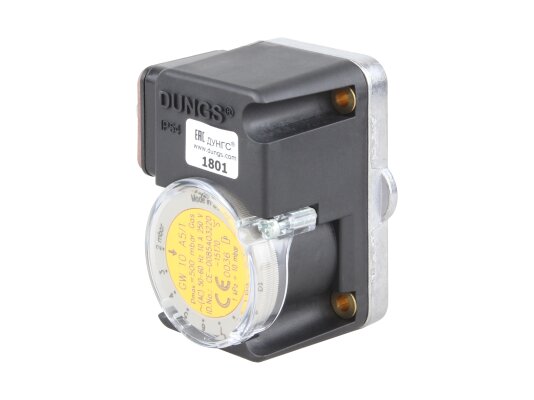

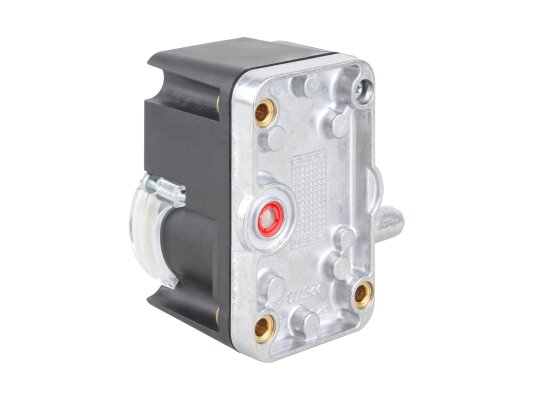

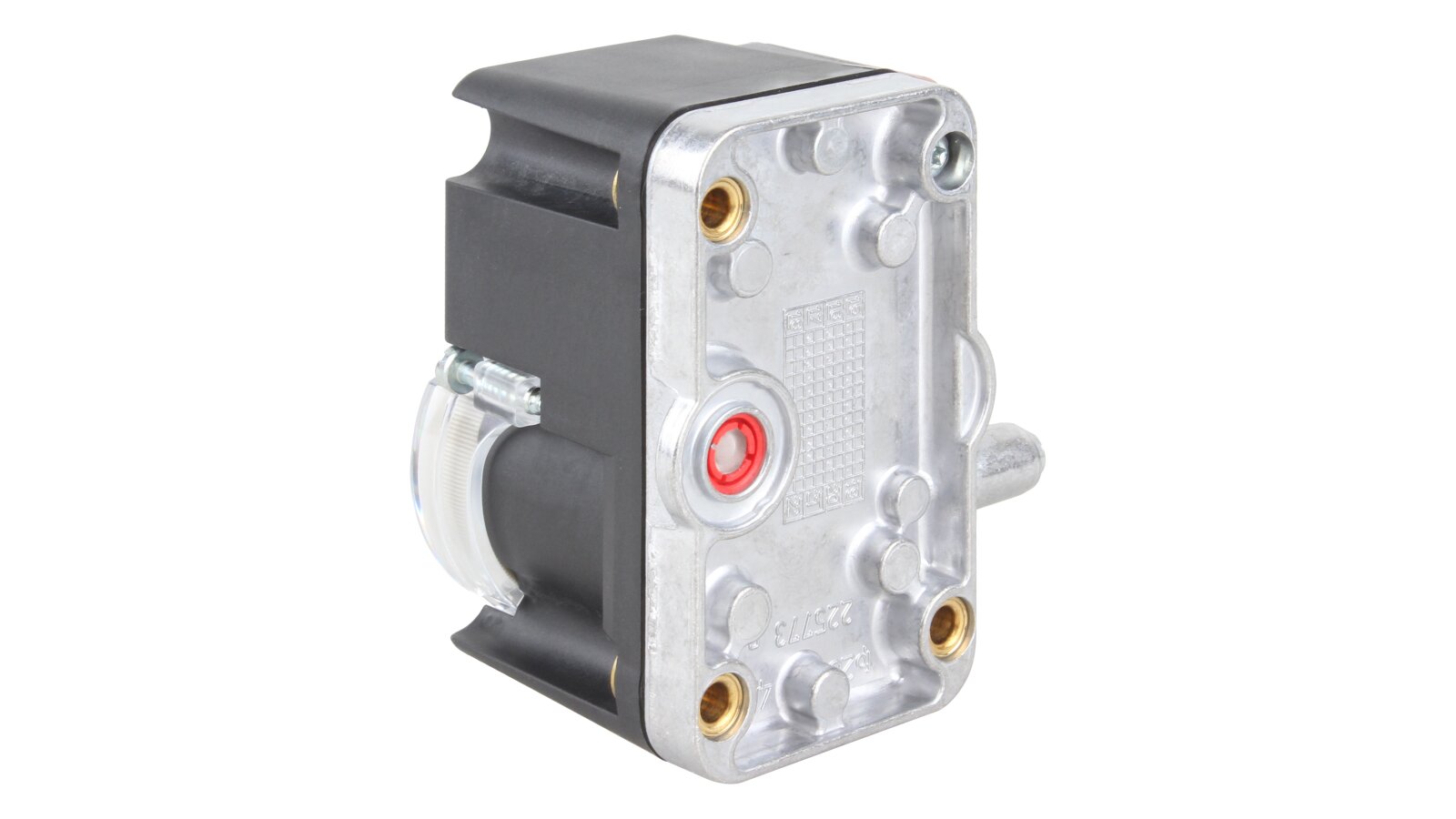

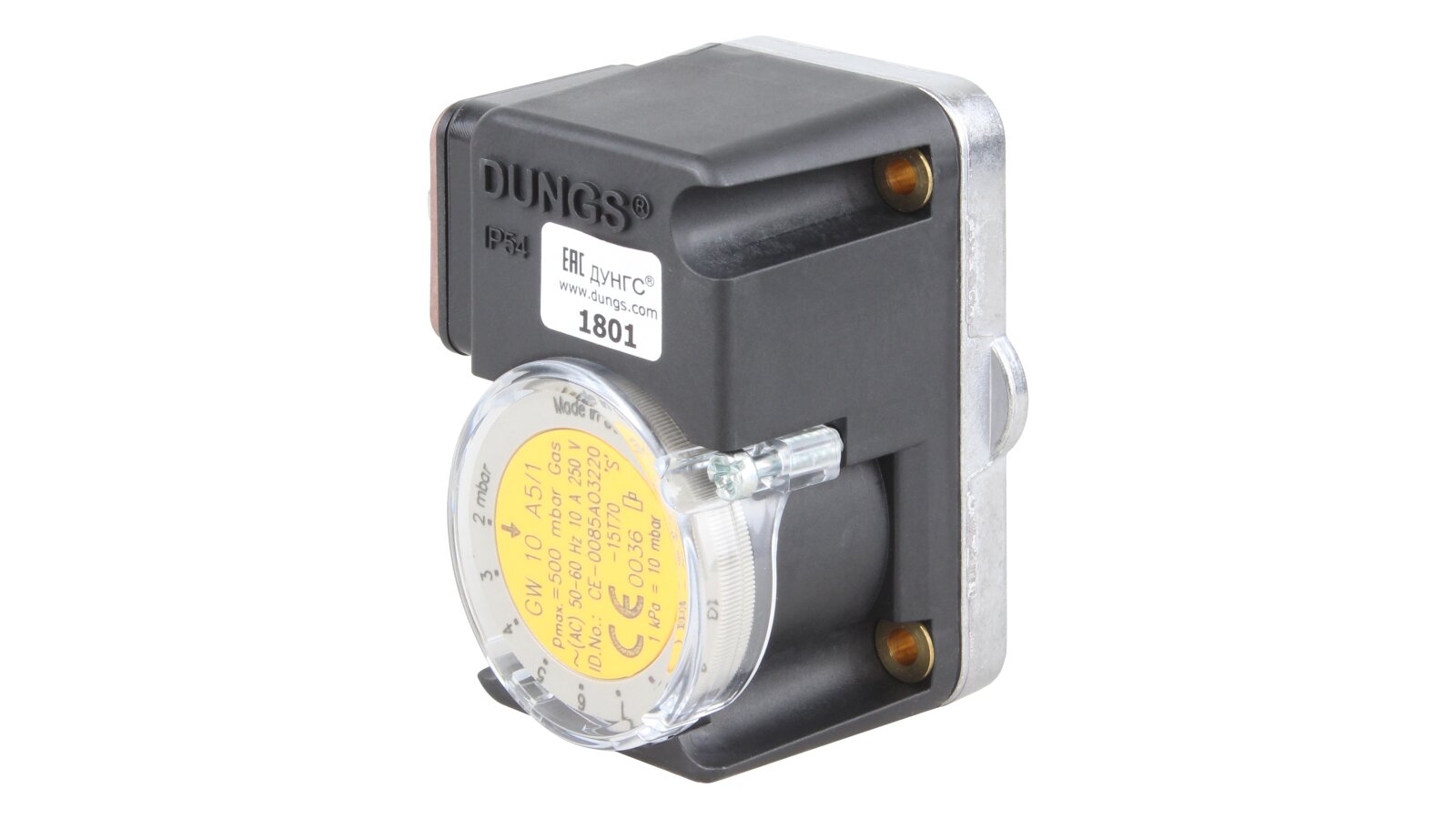

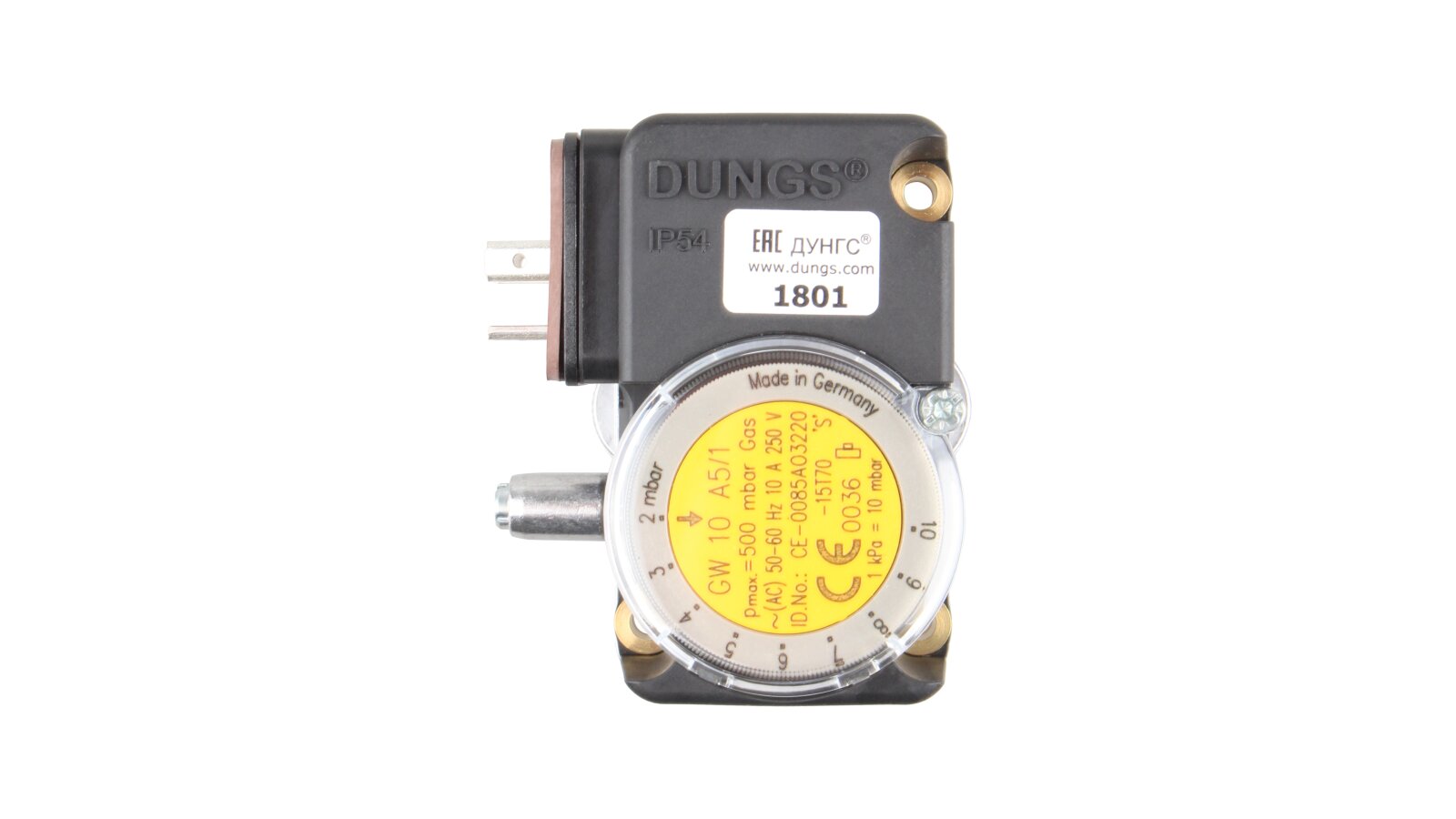

Pressure switch Dungs GW 10 A5/1

The Dungs GW 10 A5/1 pressure switch, art: 241245, is designed for systems operating on air, non-flammable and non-aggressive gases. The device is designed for a pressure of 0.5 bar. It is built into boiler equipment, heat-generating, ventilation devices. It is responsible for monitoring the pressure of the working environment. It is characterized by compact dimensions, precise response, a wide range of operating temperatures, and ease of installation.

Features:

• for working with gases of the I-III family and other neutral gaseous media;

• response to excess gas/air pressure;

• shutdown when the pressure drops;

• easy pressure adjustment by rotating the setting wheel with markings;

• class "S" according to EN 1854;

• adjustment range 2 ... 10 mbar;

• response in the range from 0 to 1.5 mbar;

• level of protection of electrical contacts from dust and moisture of the IP 54 standard;

• die-cast aluminum housing;

• polyamide microswitch;

• sensitive membrane made of NBR rubber;

• switch contact material – Ag;

• ambient and working environment temperature from -15 to +70 °C;

• electrical connection – DIN plug.

When installing the Dungs GW pressure switch, please note that the response point will shift when placed in a position other than the recommended one (vertically).
