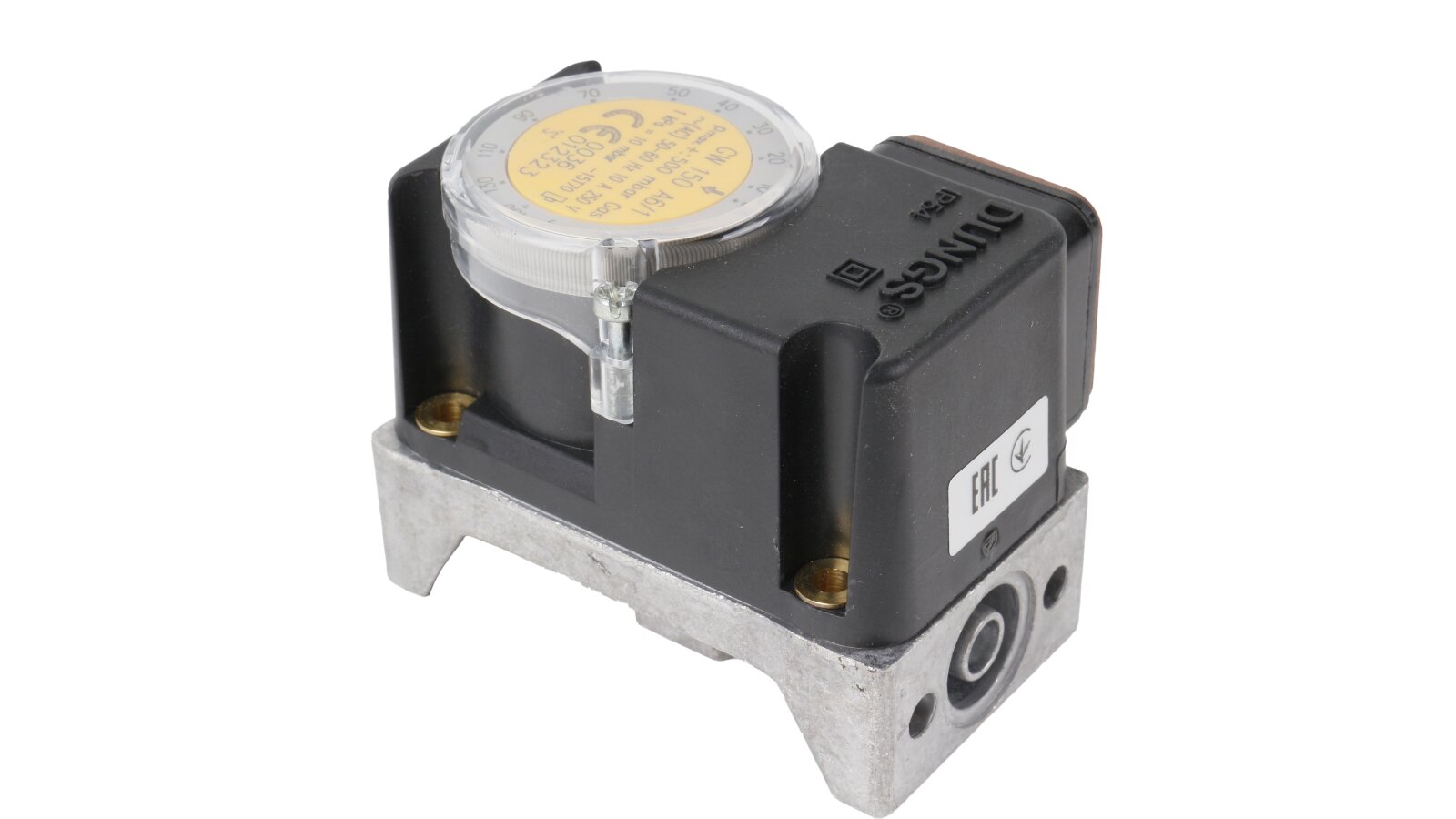

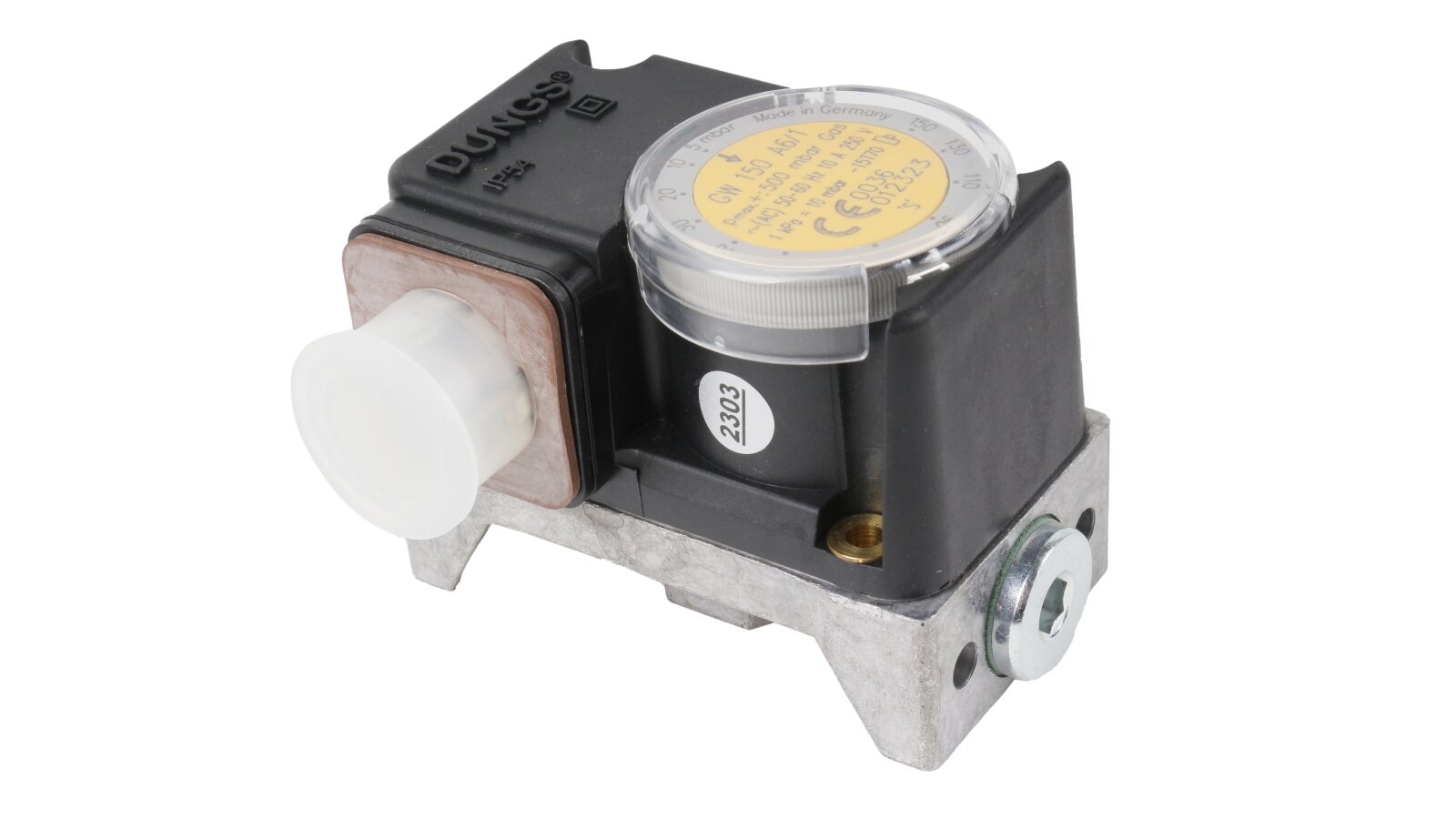

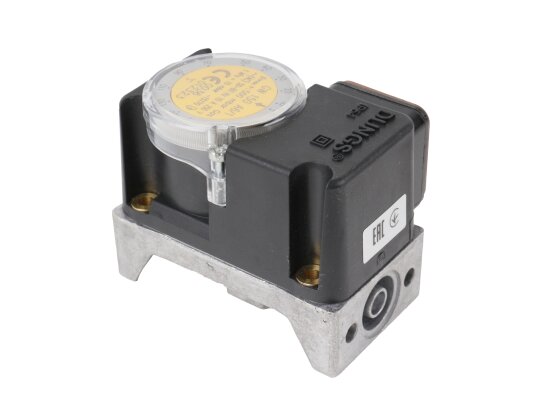

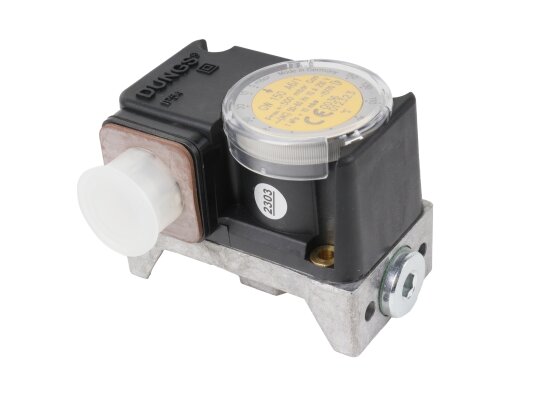

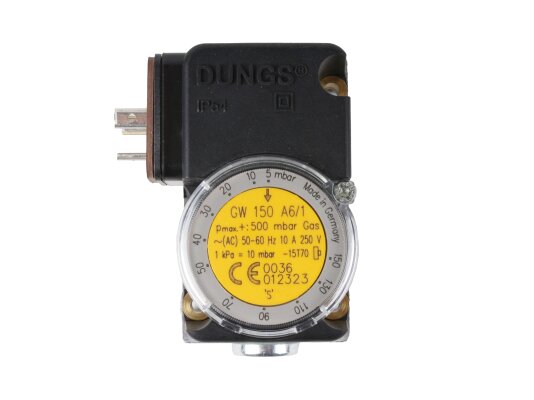

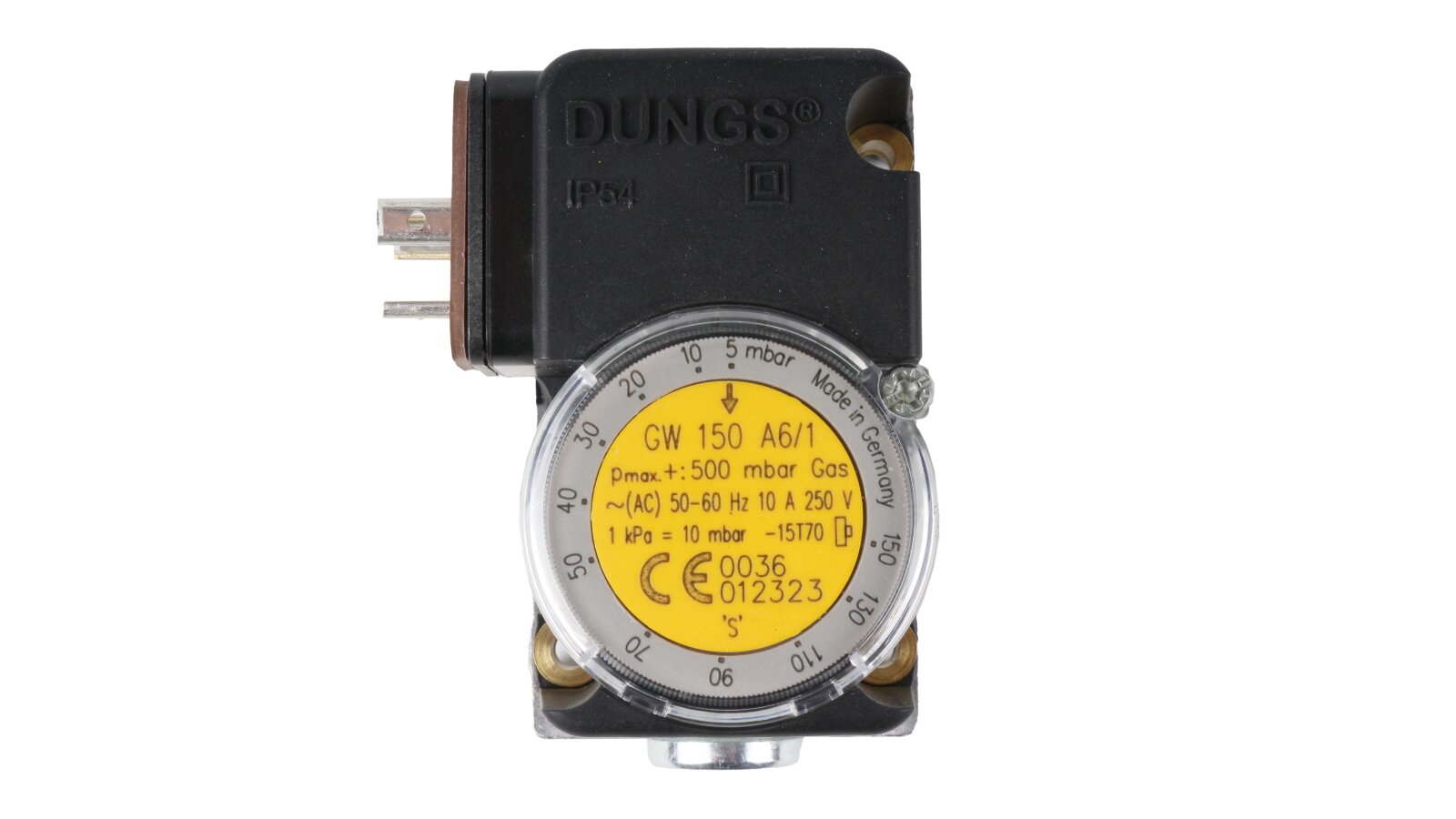

Pressure switch Dungs GW 150 A6/1

The Dungs GW 150 A6/1 pressure switch is a compact, adjustable pressure monitoring sensor. It complies with class "S" according to EN 1854. It is used to equip boilers, heat generators, air conditioning and ventilation systems. The working medium is gas of family I..III and other neutral gaseous media. The device is tested and certified according to EU standards.

Features:

• It is used to monitor excess pressure and vacuum pressure;

• Suitable for systems with gas/air pressure up to 500 mbar;

• Pressure adjustment range: from 5 to 150 mbar;

• Switching in the range from 0 to 10 mbar;

• Measuring nipple built into the housing;

• Stable response over a wide temperature range, from -15 °C to +70 °C;

• Setting of response parameters using a wheel with a digital scale;

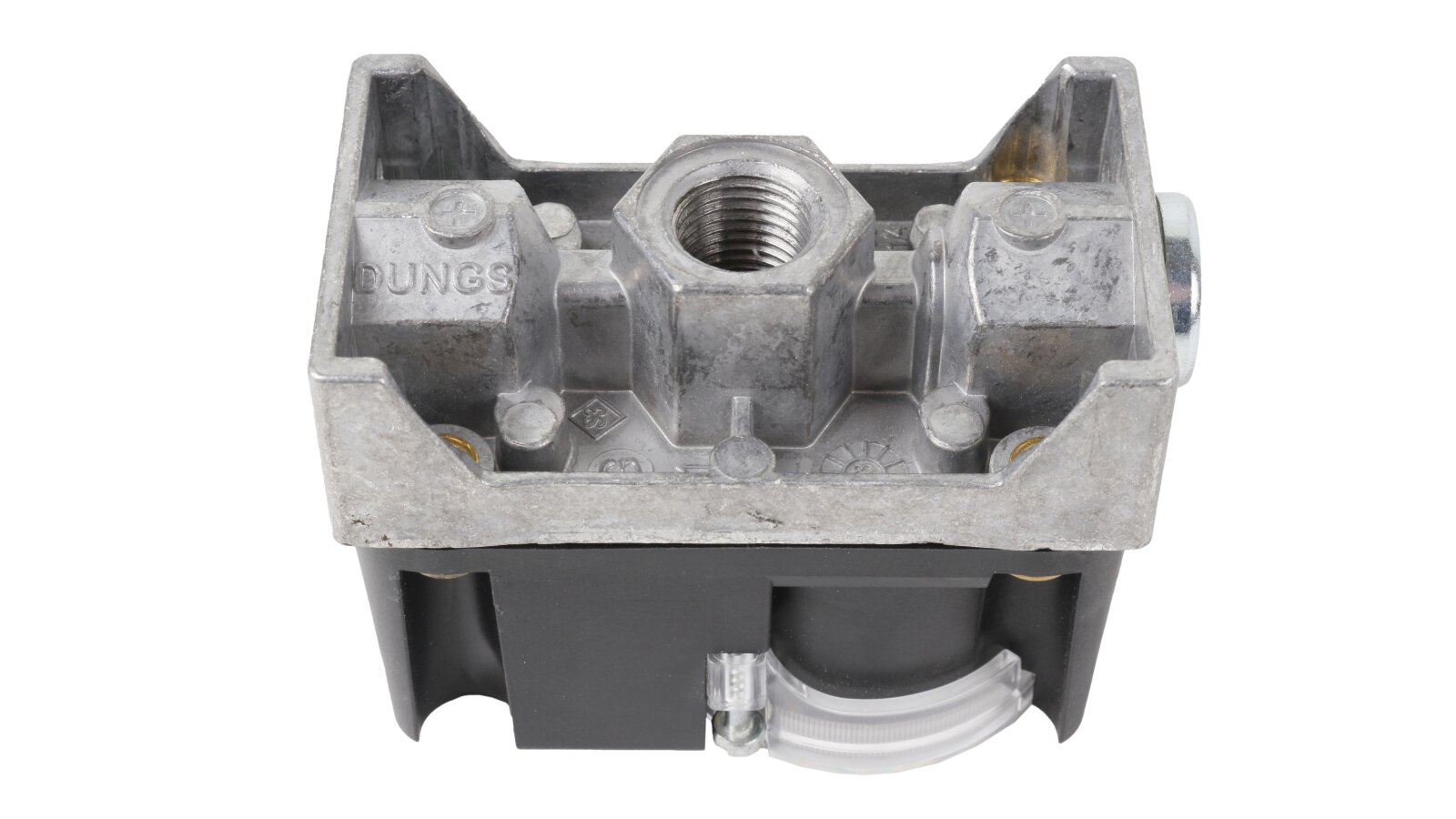

• Aluminum housing base obtained by die-casting;

• switch housing made of polyamide;

• transparent cover for easy visual control of settings;

• sensitive membrane made of NBR rubber;

• switch contact material – Ag;

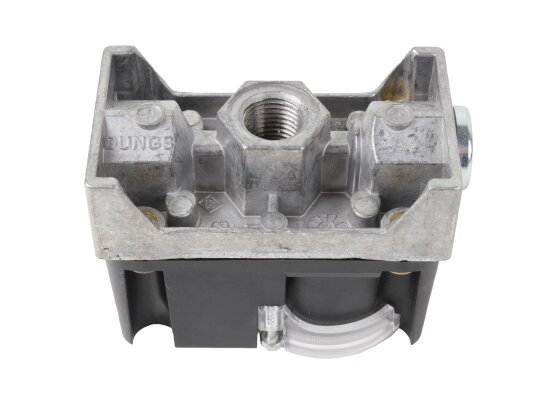

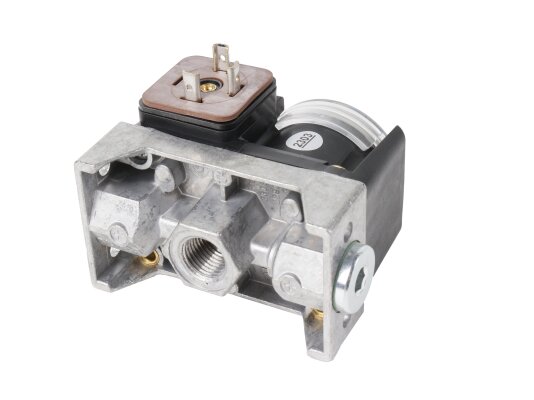

• connection via G 1/4" thread;

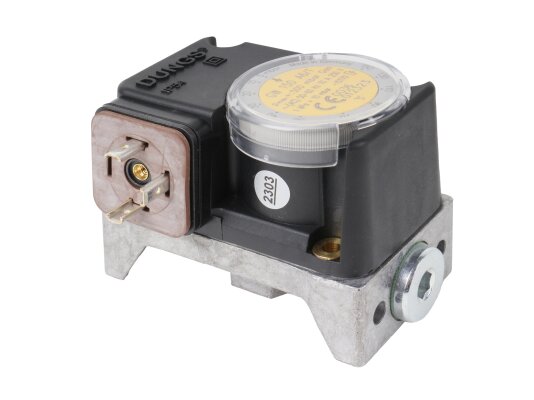

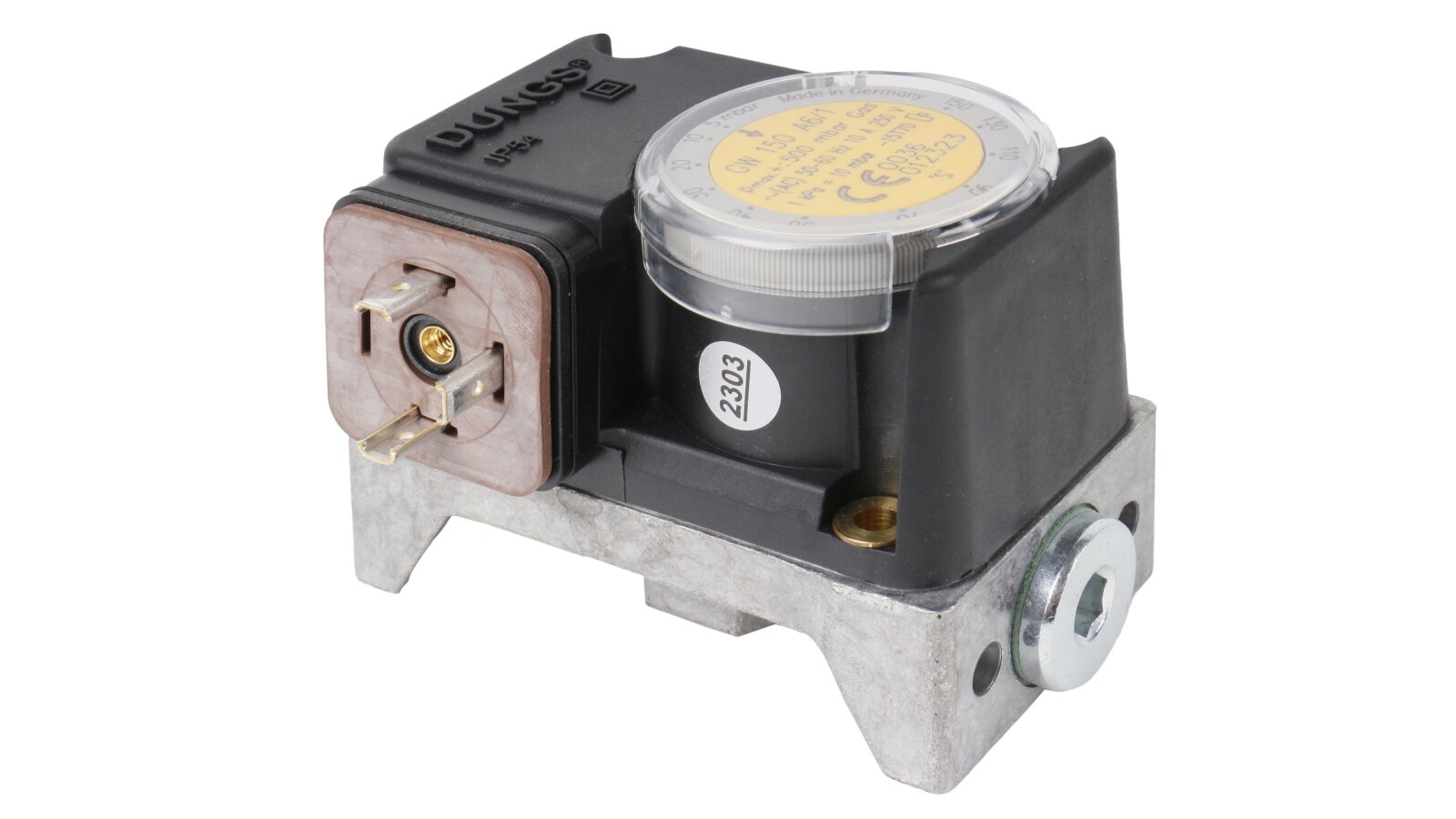

• connection via insulated electrical connector for plug socket according to DIN EN 175 301-803.

Detailed information about the Dungs GW pressure switch can be found in the enclosed instructions.
