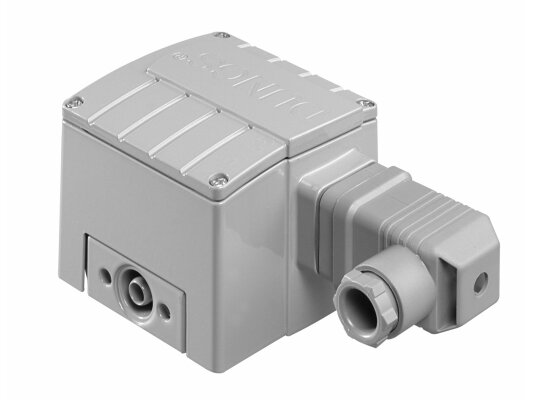

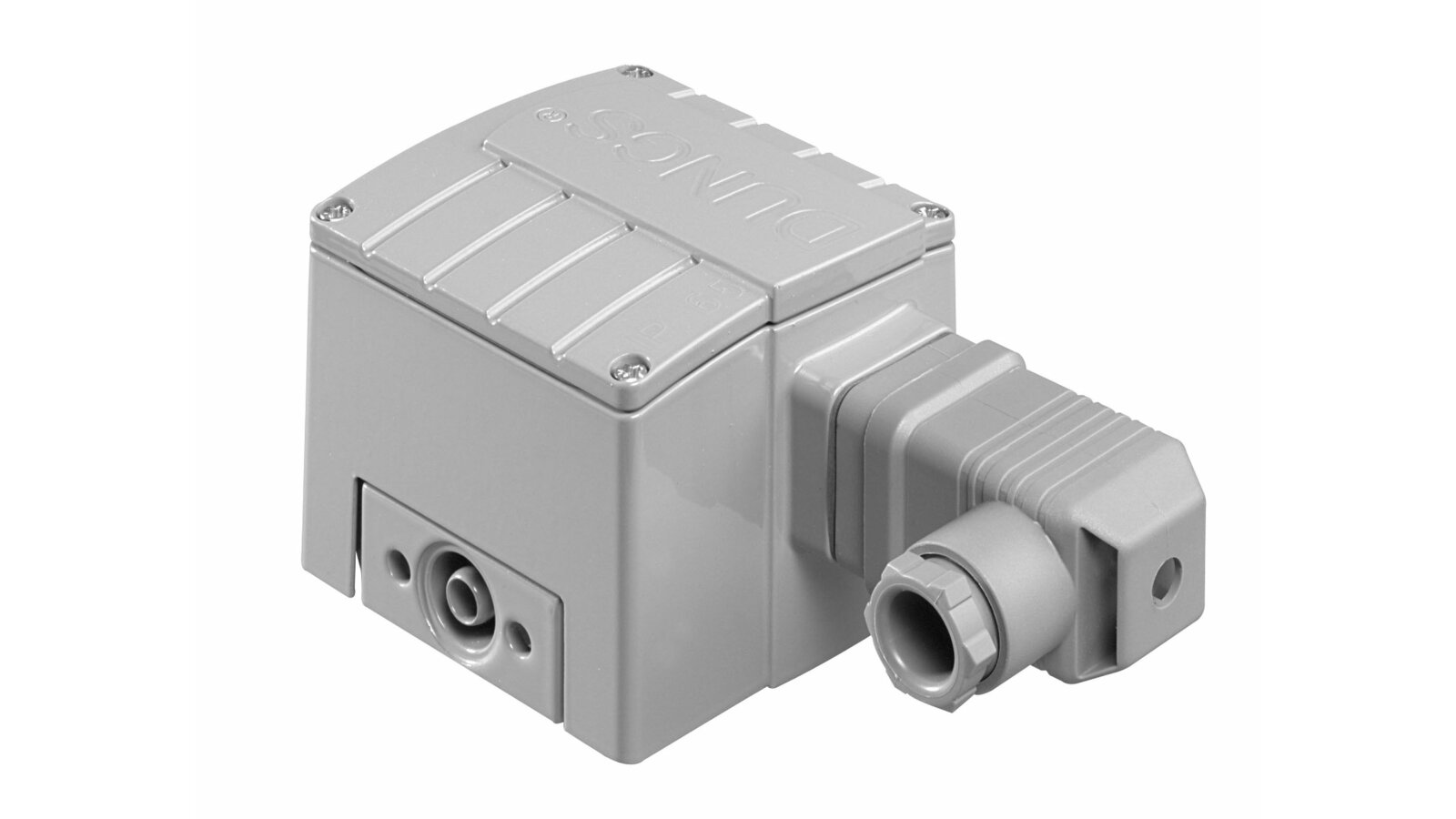

Pressure switch Dungs GW 2000 A4/2 HP G3
About product
Go to description
Description
Pressure switch Dungs GW 2000 A4/2 HP G3, article 254283 – reliable high pressure switch with adjustable trip point. The device is used in automatic safety systems and gas supply control in industrial combustion units. The sensor has an uninterruptible switching system, compact design and impermeable outer shell. Meets the European standard EN 1854.
Main parameters
Maximum pressure in the system: 5000 mbar.
Working environment: gas, including neutral, smoke, air, liquids.
Adjustment in the range: 400-2000 mbar.
Response range: 0-100 mbar.
Operating temperature: -15°C to +70°C.
Connection: threaded Rp ¼ inch.
Design and features
The relay has a metal case - an aluminum cast base and a zinc cover with anti-corrosion powder coating. Electrical protection class IP 65.
The device turns on / off / switches the electrical circuit when the actual pressure changes relative to the set limit. A special wheel and scale are provided to select the response parameters.
The Dungs GW 2000 A4 / 2 HP G3 pressure relay is equipped with gold-plated contacts, which improves the quality of signal transmission and ensures uninterrupted switching. The delivery set includes a cable socket.
Connection to the pipe is carried out using a threaded hole with a diameter of ¼ inch. Installation - in any position. It should be taken into account that if the device is not vertically positioned, the response point changes. For more details, see the manufacturer's instructions.
Advantages:
impermeable metal case (IP 65 standard);
precise response;
manual adjustment of parameters;
wide adjustment range;
installation in the equipment of many brands.
In "ANKAS" you can buy pressure relays and other gas automation devices at affordable prices. For a quick selection of equipment, use the advice of our specialist.
