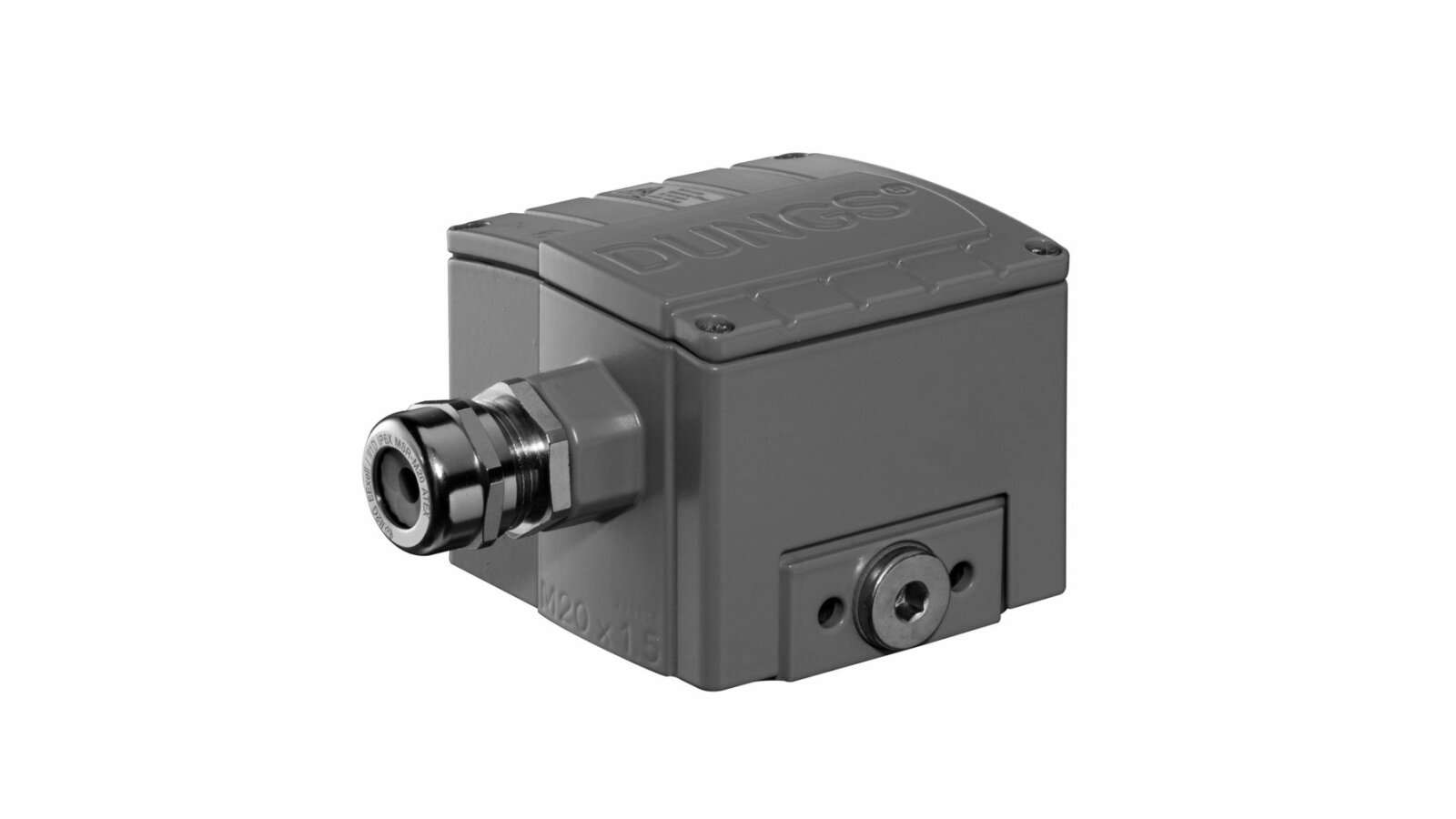

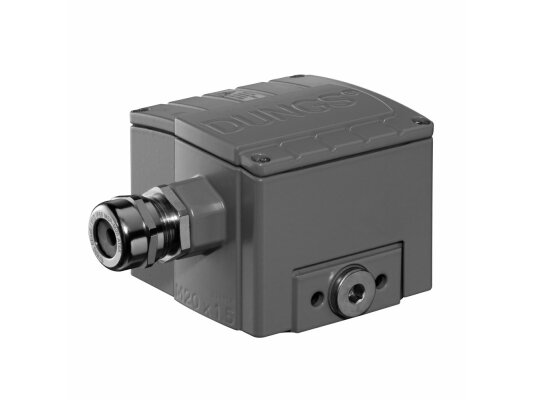

Pressure switch Dungs GW 2000 A4/2 HP M
About product
Go to description- Discontinued
Description
To monitor the maximum gas pressure in industrial-scale combustion units, we offer to buy the Dungs GW 2000 A4/2 HP M pressure switch, article 247903. The sensor is equipped with a reliable switching system, has a compact design and is easy to install. Manufactured according to EN 1854.
Key characteristics
Maximum pressure: 5000 mbar.
Working environment: gas 1-3 families, neutral, flue gas, air, combustion products.
Adjustment in the range: 400-2000 mbar.
Response interval: 0-100 mbar.
Operating temperature: -15°C to +70°C.
Connection: threaded Rp ¼ inch.
Design and features
The main difference of the GW...A4/2 HP series relay is a moisture-proof, dust-proof metal housing of class IP 65, which ensures reliable operation in difficult operating conditions.
The device turns on/off/switches the electrical circuit when the actual pressure changes to the set one. A wheel and a scale are used to set the response parameters.
The Dungs GW 2000 A4/2 HP M pressure relay is equipped with gold-plated contacts, which improves signal conductivity and ensures uninterrupted switching.
The device has an internal threaded hole of size Rp ¼ inch for connection to the pipe. The mounting position can be any. It should be noted that placement in a non-standard position (horizontal/diagonal/base up) entails a change in the response point. Detailed information is reflected in the installation instructions.
Advantages:
high level of protection, IP 65;
precise, uninterrupted switching;
manual adjustment;
wide adjustment range;
compactness;
versatility – can be installed on equipment of many brands.
The ANKAS catalogue presents various components at affordable prices for heating systems. To select products, use the advice of our specialist.
