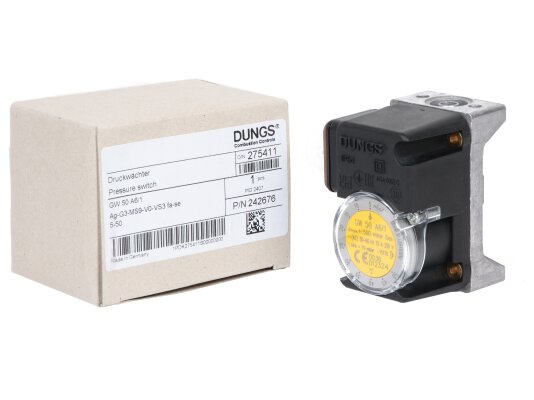

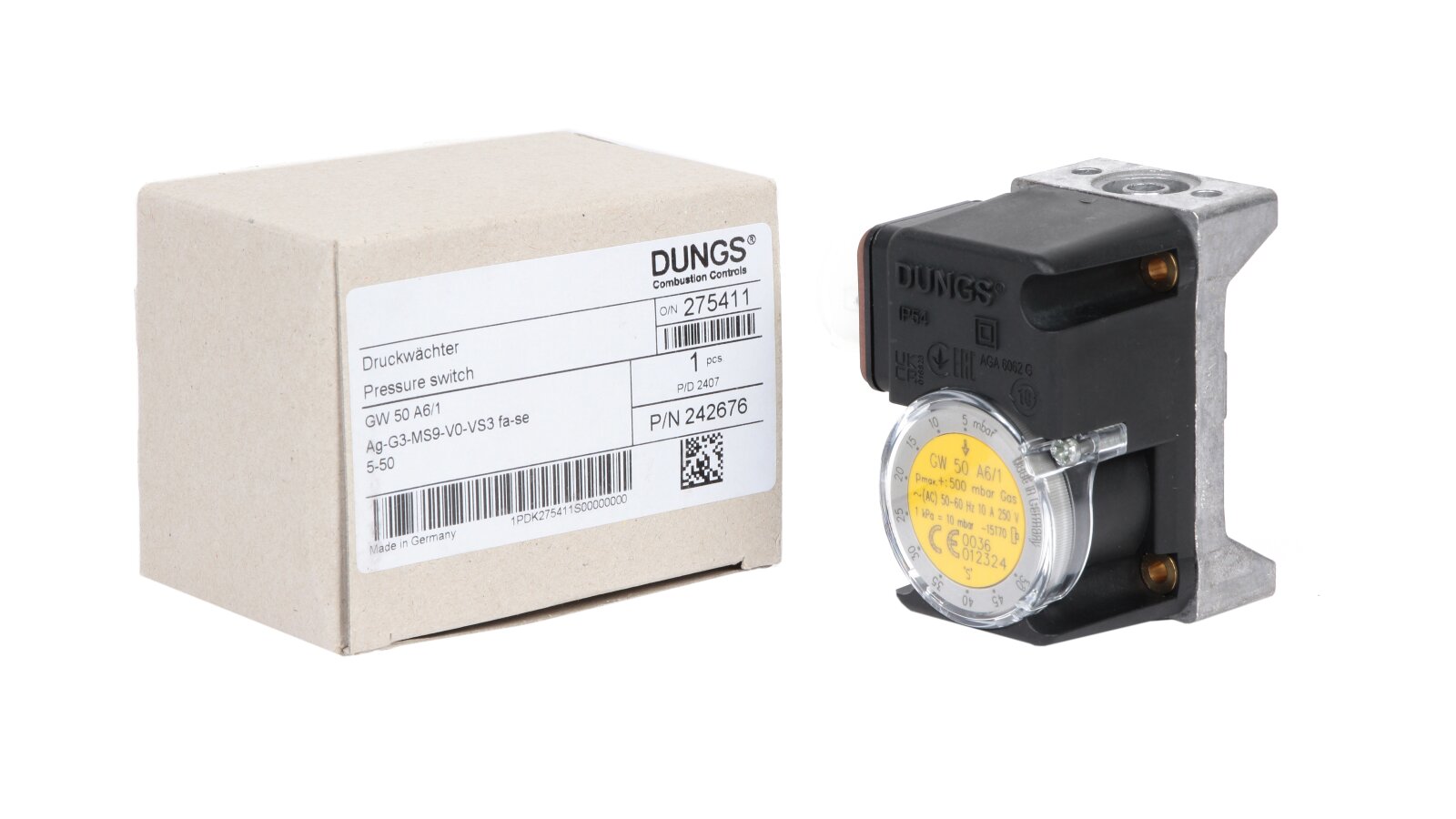

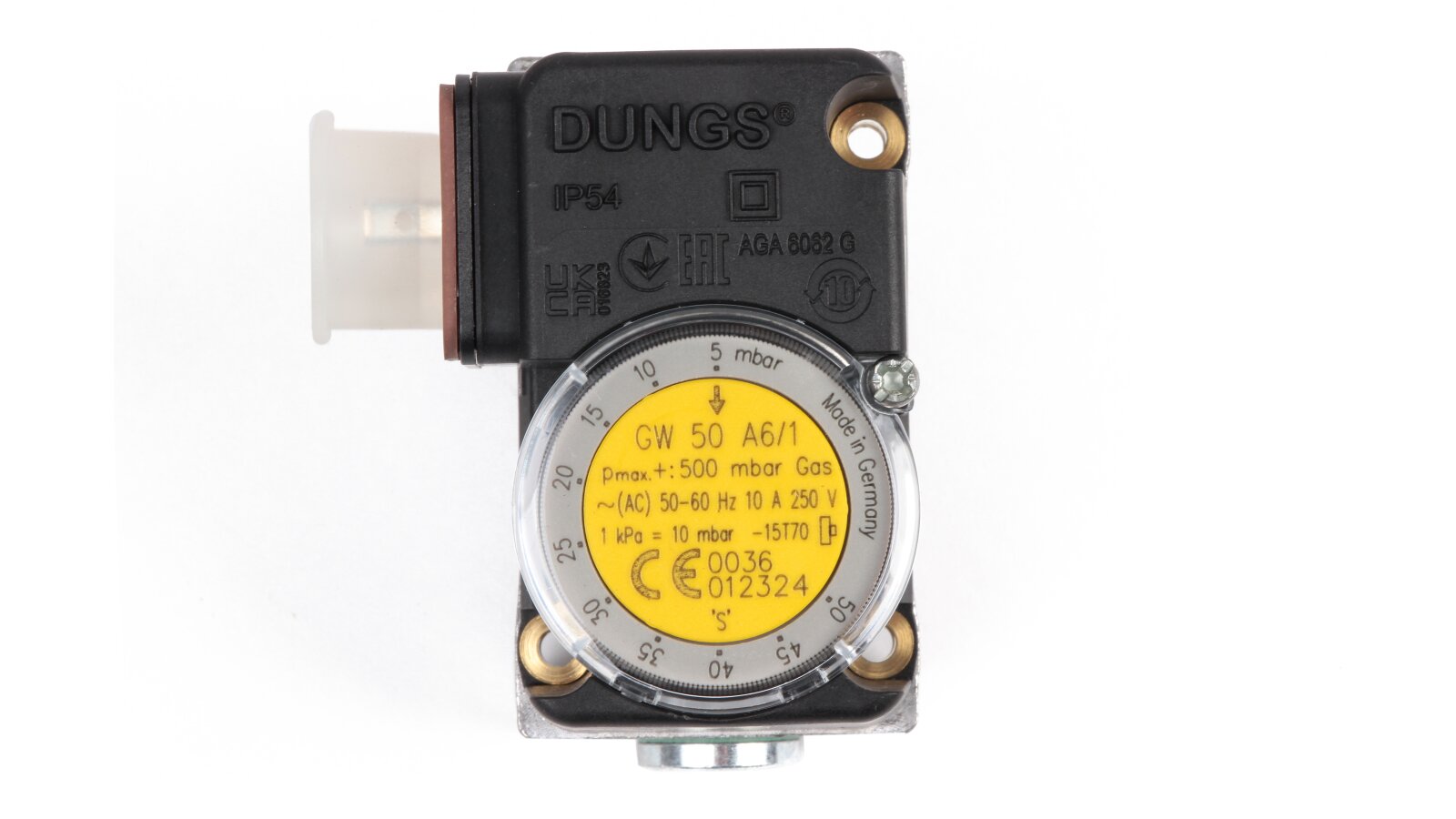

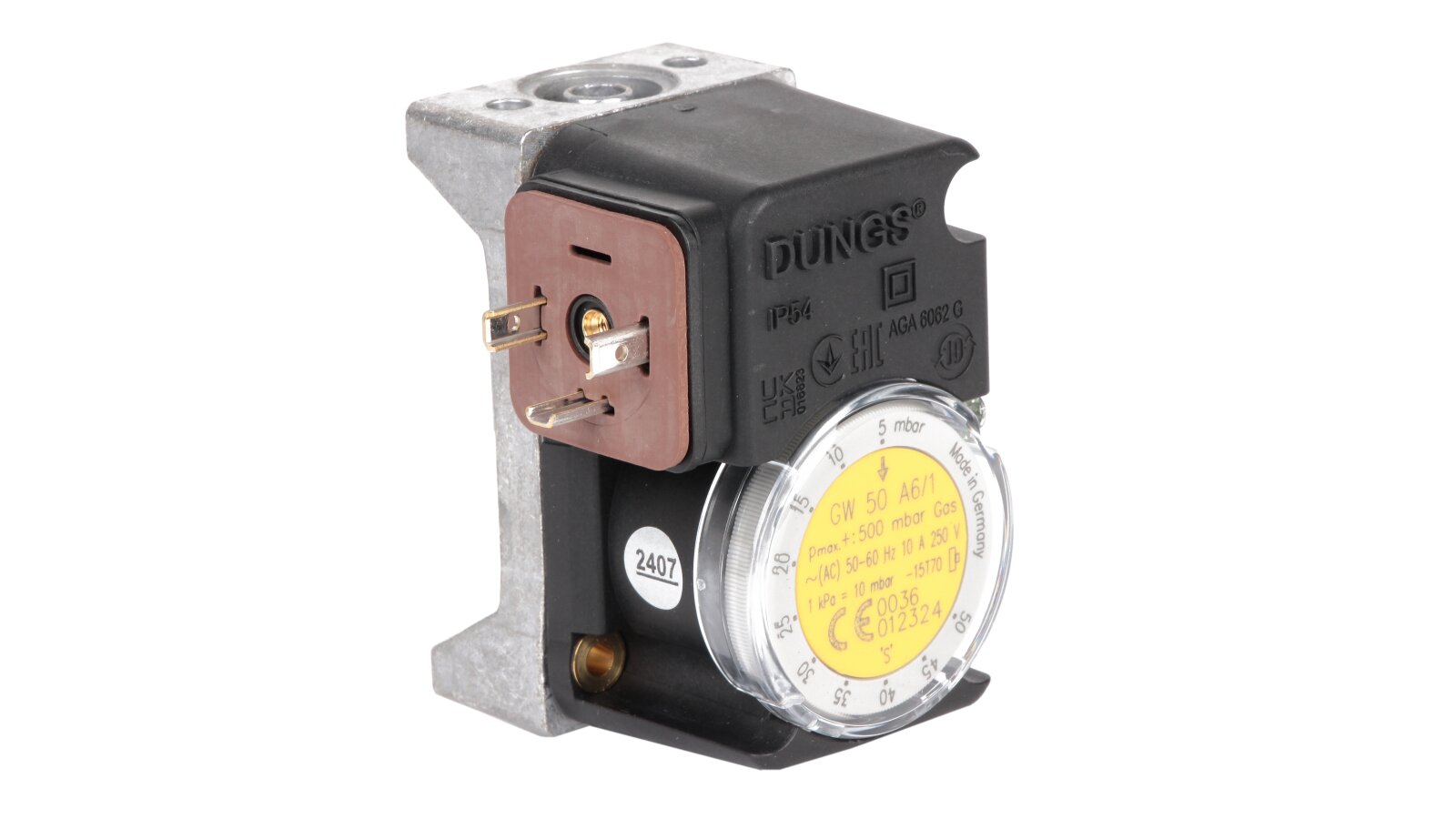

Pressure switch Dungs GW 50 A6/1

The Dungs GW 50 A6/1 pressure switch is built into gas/air supply control systems when operating various industrial installations. It is responsible for monitoring excess pressure and vacuum pressure. The advantages are an adjustable response point, compact dimensions, a wide range of applications, and reliable design. The sensor is tested and certified according to EU standards. It corresponds to class "S" according to EN 1854.

Features:

• working medium - gas of family I..III and other neutral gaseous medium;

• for systems with gas/air pressure up to 500 mbar;

• pressure adjustment range: from 5 to 50 mbar;

• switching in the range from 0 to 3 mbar;

• wide range of operating temperatures (external and working environment), from -15 °C to +70 °C;

• adjustment of response parameters by rotating a disk with a digital scale;

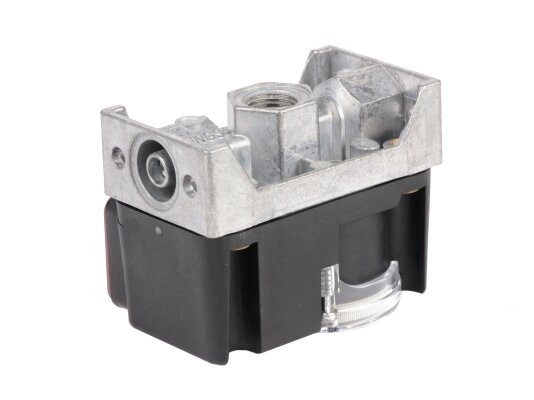

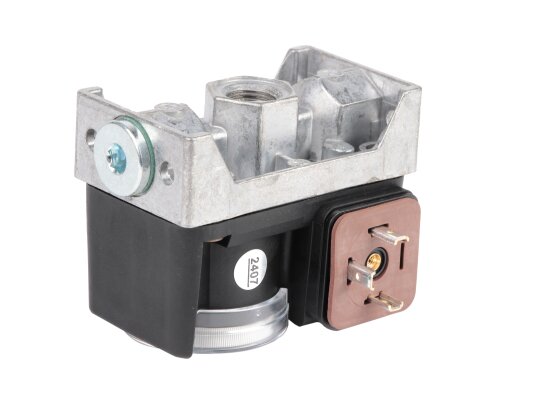

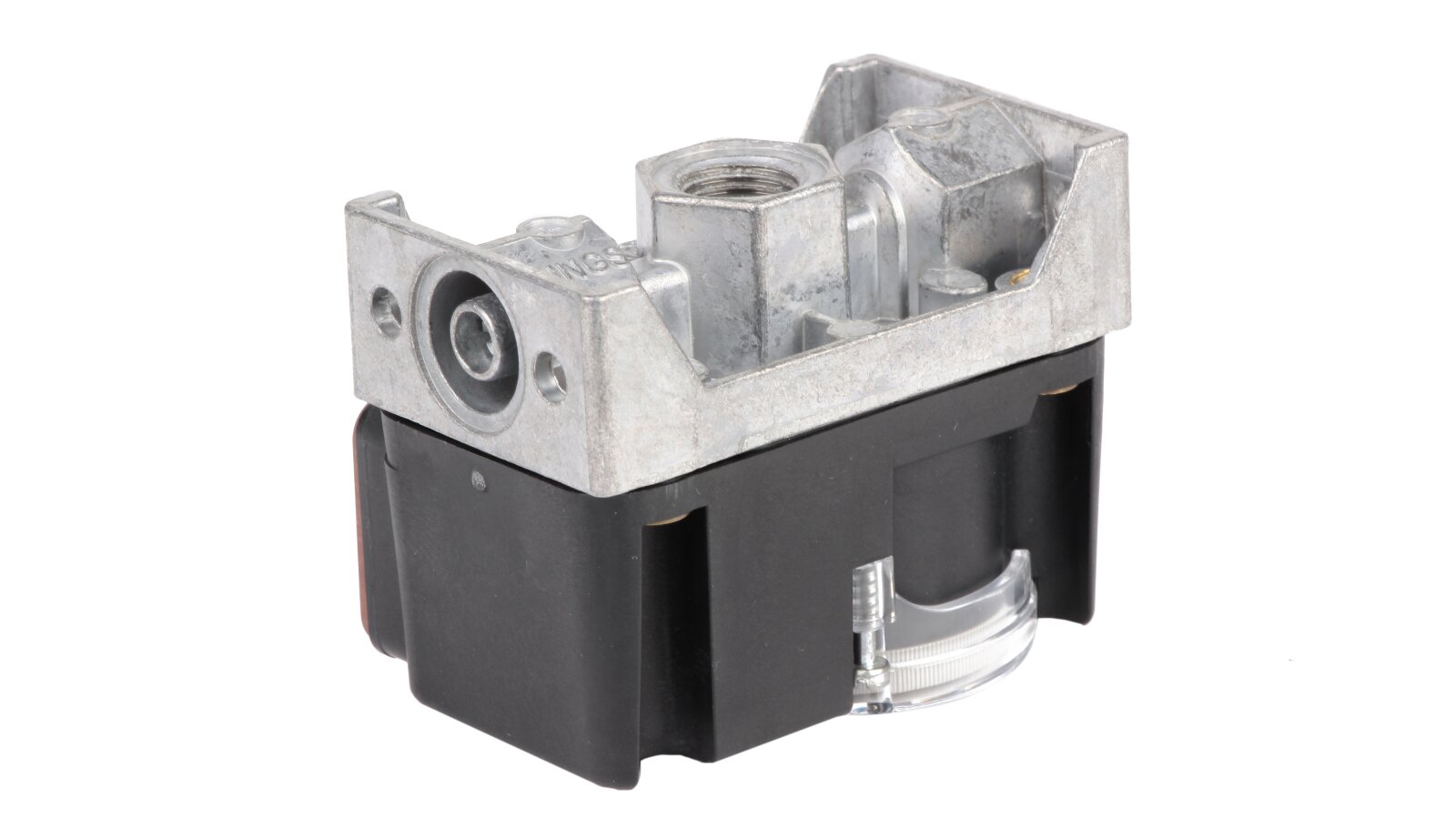

• cast aluminum base of the device;

• switch housing made of impact-resistant polyamide;

• measuring nipple built into the housing;

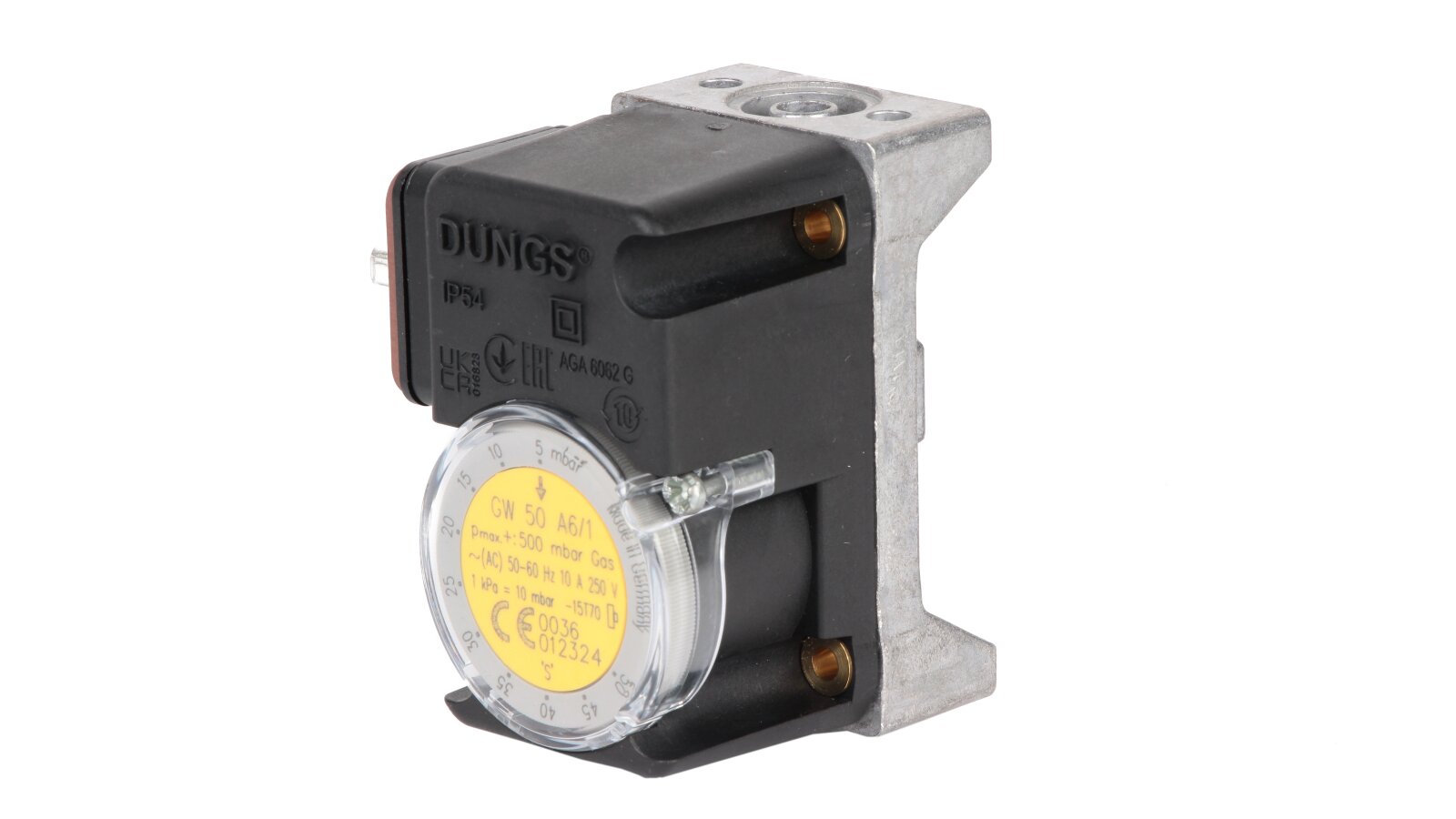

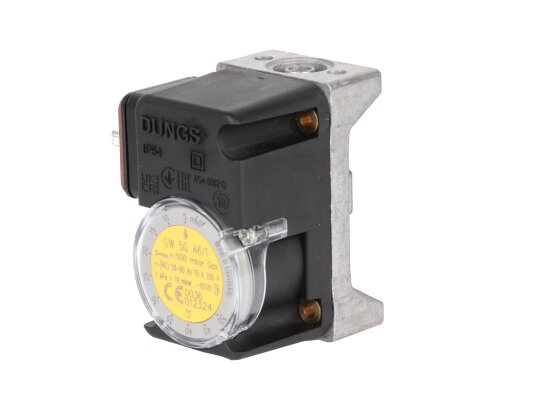

• transparent cover for easy viewing of the set parameters;

• sensitive membrane made of NBR rubber;

• switch contact material – Ag;

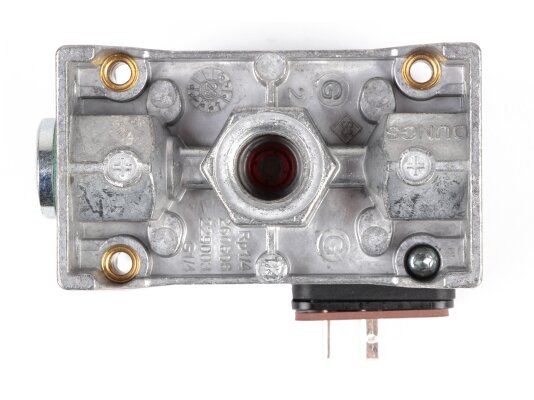

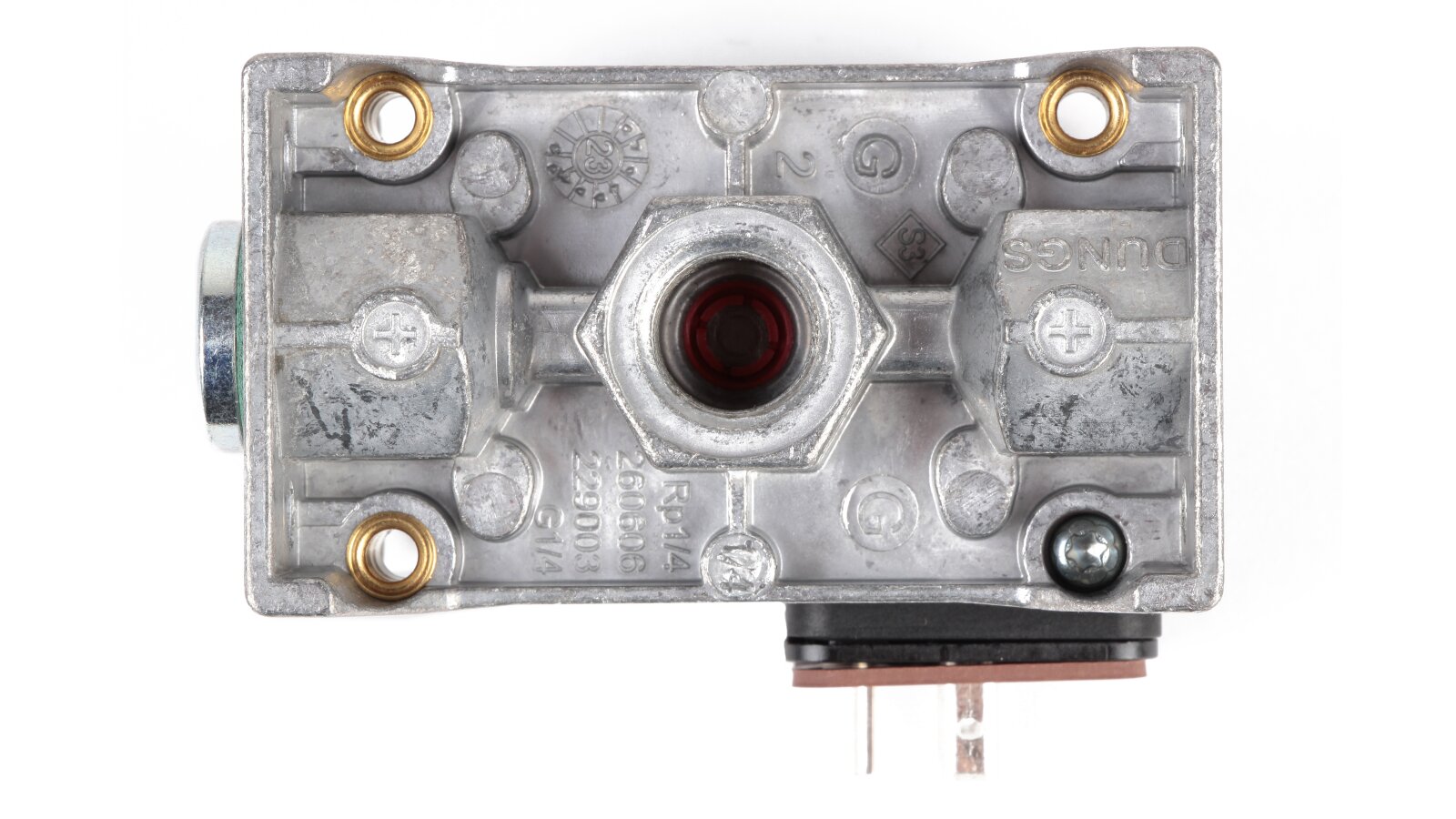

• connection at the center of the base – thread G 1/4" according to ISO 228;

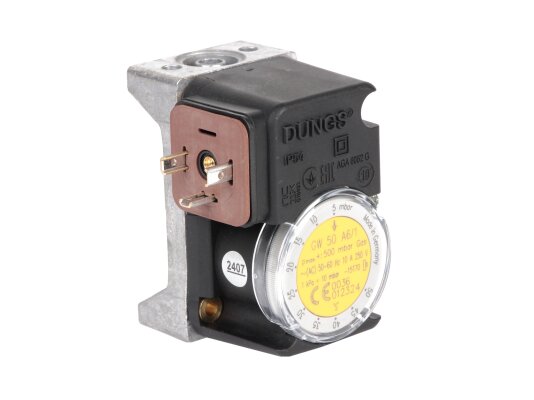

• connection – insulated electrical connector for a plug socket according to DIN EN 175 301-803.

Application

The Dungs GW 50 A6/1 pressure switch is used to equip boilers, heat generators, air conditioning and ventilation units.
