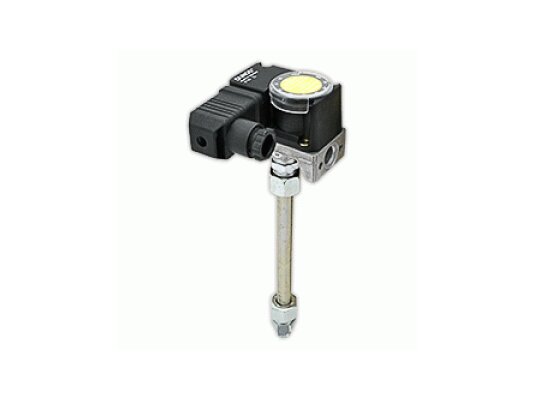

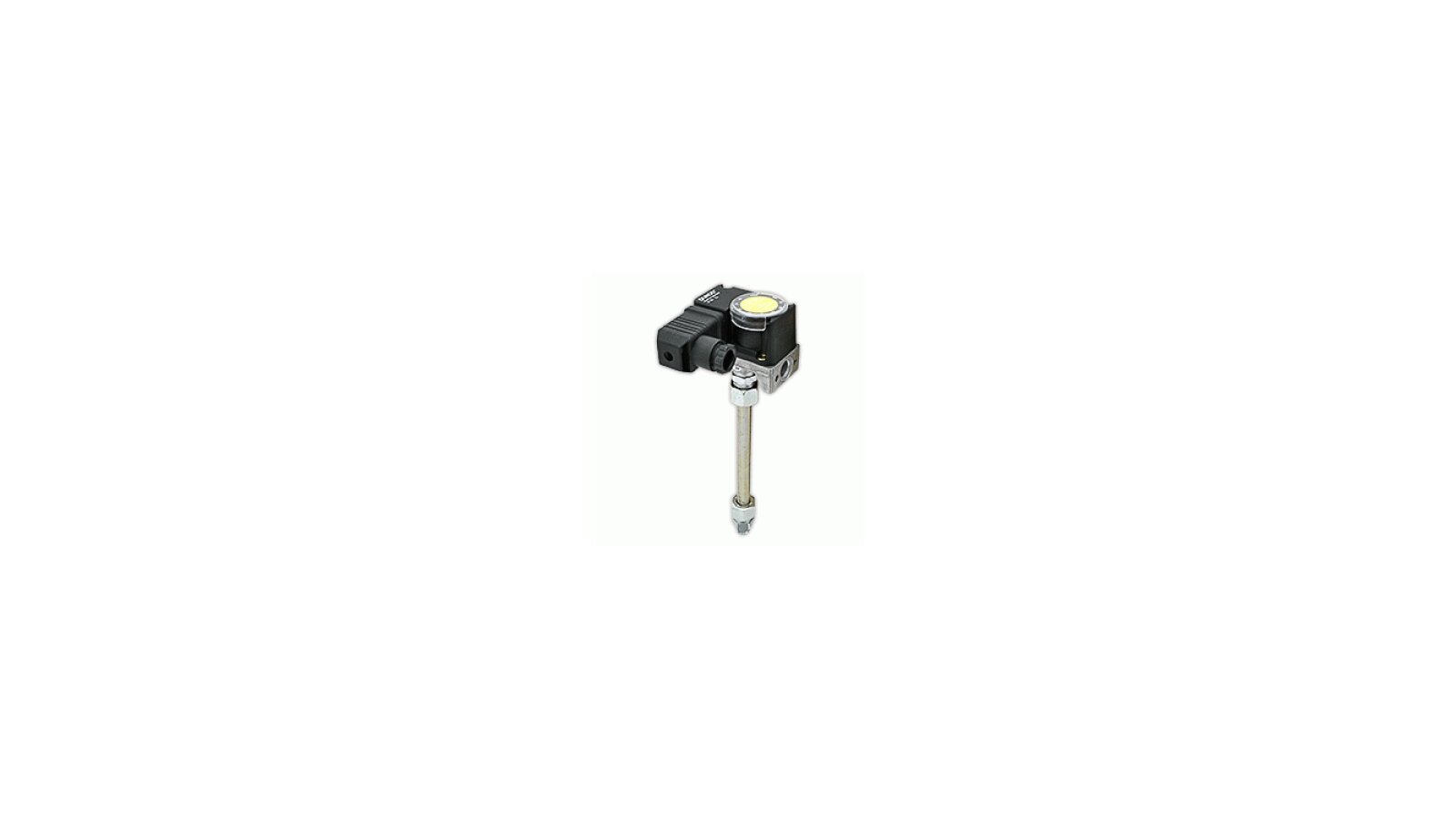

Pressure switch Dungs GW 50 A6, complete with connection

Pressure switch Dungs GW 50 A6, tested and certified according to EU standards in the set. Conforms to class "S" according to EN 1854. Designed to monitor vacuum pressure, excess pressure. The adjustable device closes the electrical circuit when the switching point is reached. It is characterized by compact dimensions, easy installation, reliable service.

Features:

• for gas of family I..III and other neutral gaseous medium;

• short response time when the pressure value deviates;

• maximum pressure of the working medium - 600 mbar;

• pressure adjustment range: from 5 to 50 mbar;

• response in the range from 0 to 3 mbar;

• easy adjustment of settings by rotating the disk with a digital scale;

• base made of cast aluminum;

• switch housing made of impact-resistant polyamide;

• transparent regulator cover for viewing settings;

• measuring nipple built into the housing;

• sensitive diaphragm made of butadiene-nitrile rubber;

• switch contact material – Ag;

• stable response at temperatures from -15 to +70°C (external and controlled environment);

• connection at the center of the base – thread G 1/4" according to ISO 228;

• electrical connection – socket for plug according to DIN EN 175 301-803.

Application

The Dungs GW 50 A6 relay is used to complete heating boilers, heat generators, air conditioning and ventilation devices.
