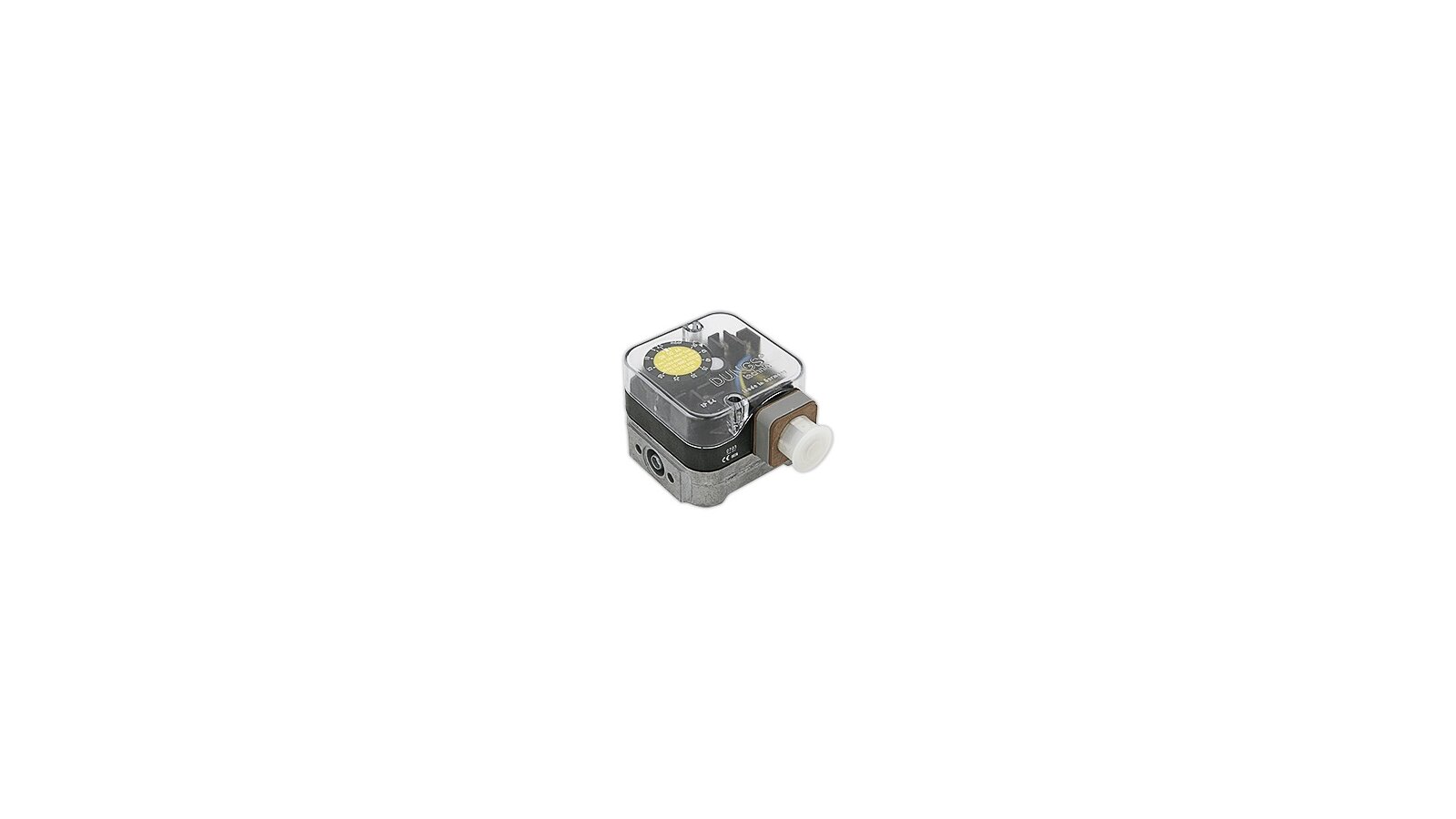

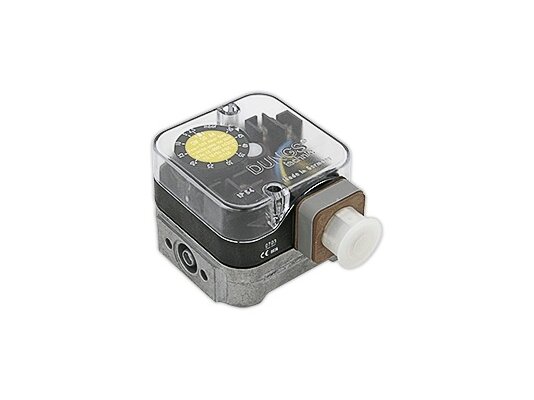

Pressure switch Dungs GW 500 A4 G3

Dungs218270

AED 1,300

Pressure Switches
Products code: 6932

Description

The Dungs GW 500 A4 G3 pressure switch is designed to equip gas systems with a maximum pressure of no more than 600 mbar. This device functions reliably, ensuring stable operation of the combustion unit.

Features

The device at the actuation point, preset in advance using the regulator, ensures switching on, off or switching the electrical circuit, and transmitting a signal to the control. The actuation limit is set within the range from 100 to 500 mbar. Range - 15 mbar.

The body is made of metal and plastic (cover), the switch is made of polycarbonate, the membrane is made of NBC, the switching contact is Ag. The degree of protection against external influences is IP 54. The device operates reliably at temperatures from -15 ° C to +70 ° C (working environment and ambient air).

When choosing the installation orientation, it is important to take into account that the actuation point changes depending on the position of the device (the nuances are reflected in the manufacturer's instructions).

Pressure switch Dungs GW 500 A4 G3 article 218270 corresponds to class "S" according to EN 1854.

Characteristics

Manufacturer Part Number: 218270Working environment: air, neutral gasesOperating ambient temperature: from -15 to 70 °CMaximum working pressure: 600 mbarResponse range: from 0 to 15 mbarAdjustment range: from 100 to 500 mbarType of connection: DIN plugConnection type: Rp 1/4"Degree of protection: IP54For controlling: differential pressure
