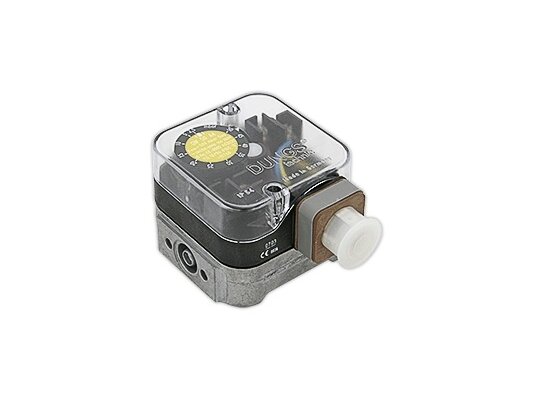

Pressure switch Dungs GW 500 A4 HP G3

The Dungs GW 500 A4 HP G3 pressure switch, article 254285, is supplied complete with a cable socket. The sensor is designed to monitor excess gas pressure in industrial heating systems. It is characterized by reliable operation, ease of setup and connection.

Operating parameters

• Maximum gas pressure: 2000 mbar.

• Environment: gas 1-3 families, neutral, flue gas, air, combustion products.

• Adjustment within: 100-500 mbar.

• Response range: 0-30 mbar.

• Operating temperature: from -15 ° C to + 70 ° C.

• Connection: threaded Rp 1/4.

Design and features

The sensor has a simple, reliable design. The body is made of high-quality plastic, the base is made of cast aluminum. The protective design complies with the IP 54 standard.

When the pressure changes relative to the set value, the switch closes the contact, the signal is sent to the control unit. The device is adjusted using a wheel and a digital scale.

Gold-plated contacts are used to improve the quality of signal transmission.

The relay is fixed to the pipe using an Rp ¼ thread. The installation position can be any, preferably vertical. If you select a different orientation, the switch will operate at a lower/higher pressure (installation details are in the instructions).

Advantages:

• reliable design;

• gold-plated contacts;

• easy adjustment;

• dust and moisture resistance according to the IP 54 standard;

• extended package;

• easy installation;

• universal use.

The Dungs GW 500 A4 HP G3 pressure switch is a highly reliable device with an optimal quality/price balance. You can learn more about the model from an ANKAS consultant.
