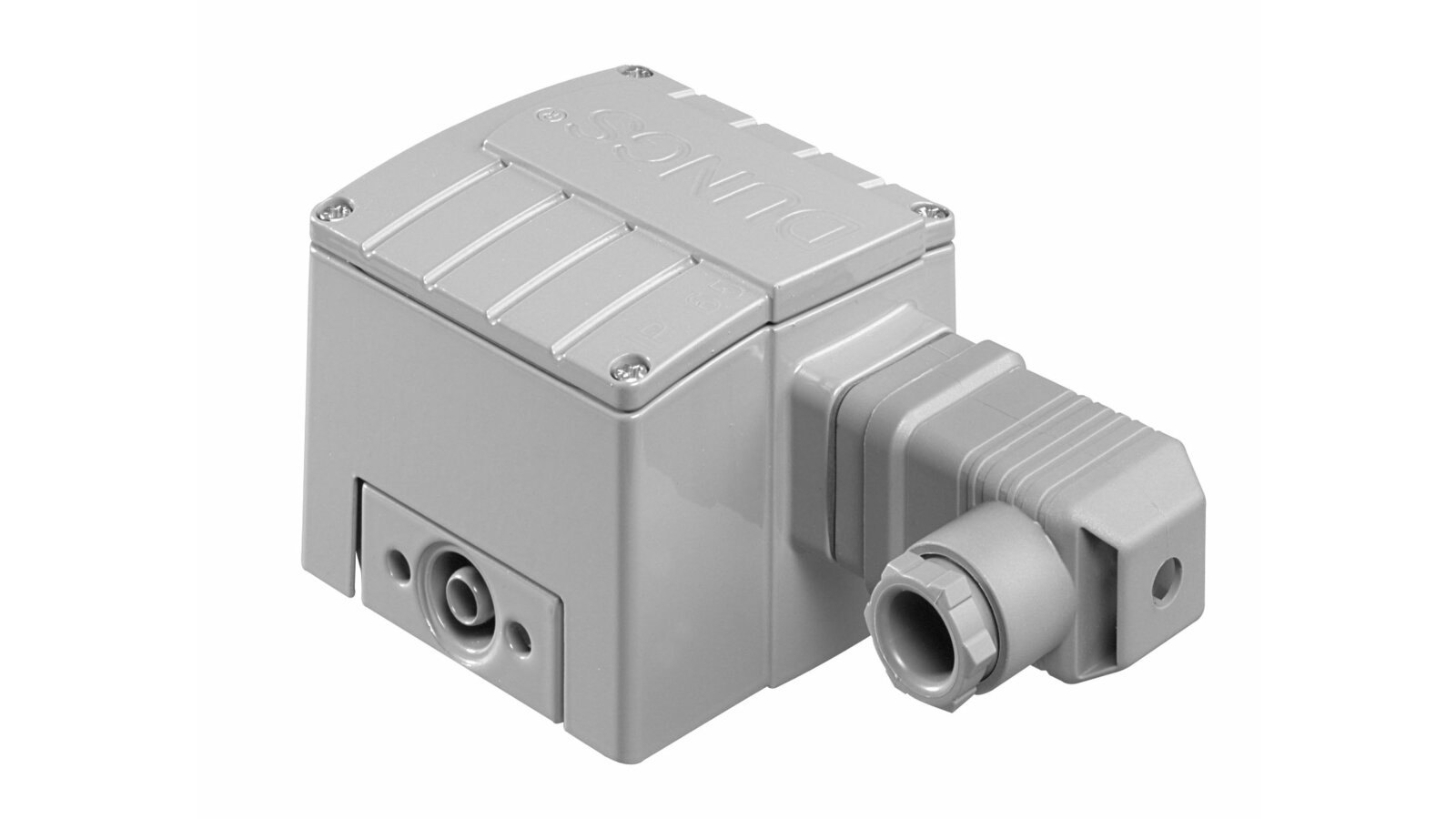

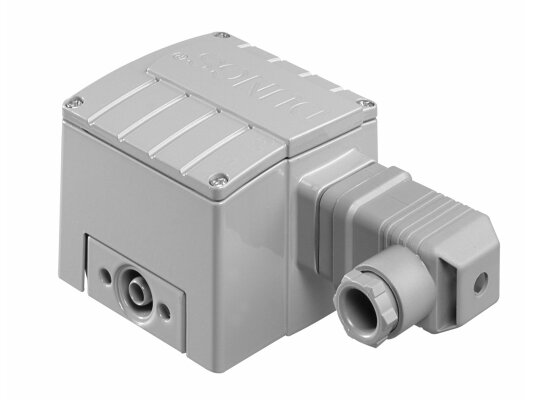

Pressure switch Dungs GW 6000 A4/2 HP G3

The Dungs GW 6000 A4/2 HP G3 pressure switch (article 254284) is a reliable device for monitoring the maximum pressure in industrial furnace units. The sensor is manufactured in accordance with strict European quality and safety standards, has a sealed housing, has compact dimensions, and is easy to install and configure. A cable socket is included in the basic package.

Key parameters

• Permissible operating pressure in the system: no more than 8000 mbar.

• Environment: gas of 1-3 families, neutral, flue gas, liquids, air.

• Adjustment within: 1000-6000 mbar.

• Response range: 0-300 mbar.

• Ambient air temperature: -15°C to +70°C.

• Connection parameters: to a pipe thread Rp ¼ inch.

Design and features

The relay is equipped with a robust metal housing consisting of an aluminum cast base and a zinc die-cast cover with anti-corrosion treatment. The electrical protection class complies with IP 65.

When the actual pressure changes to the set pressure, the electrical network contacts are switched on/off/switched and a signal is sent to the control unit.

The device is adjusted using a wheel and an adjustment scale. Gold-plated contacts are provided, which improve signal conductivity and facilitate uninterrupted switching of the mechanism.

The design is screwed onto the pipe using an Rp ¼ threaded hole. The installation position is arbitrary, the standard orientation is vertical. When mounted in a horizontal/inverted/intermediate position, the relay will operate at a higher/lower pressure relative to the set limit (for more details, see the operating instructions).

Advantages:

• reliable metal housing;

• resistance to external influences (IP 65 standard);

• applicability for systems with pressure up to 8 bar;

• uninterrupted service;

• simple adjustment of parameters using a disk and scale;

• complete with a cable socket;

• wide adjustment range;

• simple threaded connection;

• universal purpose.

The company "ANKAS" is an official dealer of Dungs products, so we have fair prices and a wide range of models. In order to buy a Dungs GW 6000 A4/2 HP G3 pressure switch or another product on the website, fill out an online application. Full information about the product is reflected in the manufacturer's specification.
