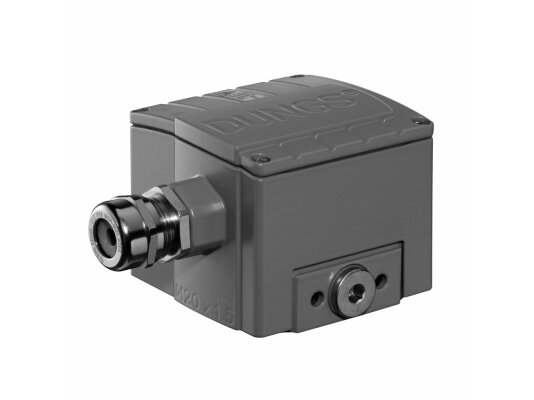

Pressure switch Dungs GW 6000 A4/2 HP M
About product
Go to description- Discontinued
Description
Adjustable pressure switch Dungs GW 6000 A4/2 HP M, article 248678 is designed for use in systems with a maximum pressure of 8000 mbar. It is used to monitor excess gas pressure in industrial combustion units. The sensor is reliable in operation, protected from dust and moisture, easy to install and configure. Made in accordance with European standards.
Main parameters
Maximum pressure: 8000 mbar.
Working environment: gas 1-3 families, neutral, flue gas, air, liquids, combustion products.
Adjustment in the range: 1000-6000 mbar.
Response interval: 0-300 mbar.
Operating temperature: -15°C to +70°C.
Connection: threaded Rp ¼ inch.
Design and features
The main feature of the GW...A4/2 HP series sensor is a moisture-proof, dust-proof metal housing of class IP 65. The cast base is made of aluminum, and the cover is made of zinc with powder coating.
The relay turns on/off/switches the electrical circuit when the actual pressure changes by a set value. To select the response limit, the design provides a wheel and an adjustment scale.
The Dungs GW 6000 A4/2 HP M pressure switch has gold-plated contacts that improve electrical conductivity, which guarantees stable switching.
Installation on the pipe is carried out using an Rp ¼ inch thread. Mounting orientation is arbitrary. It should be taken into account that fixing in a non-standard position (horizontal/intermediate/inverted placement) will change the response point. The nuances of installation can be clarified in the operating instructions.
Advantages:
impermeable housing, class IP 65;
accurate, stable switching;
easy adjustment;
wide range of parameter settings;
compact design;
universal purpose.
In the ANKAS store you can buy the Dungs GW 6000 A4/2 HP M pressure relay and other devices at reasonable prices for gas burner automation systems. Call or write to us if you need advice.
