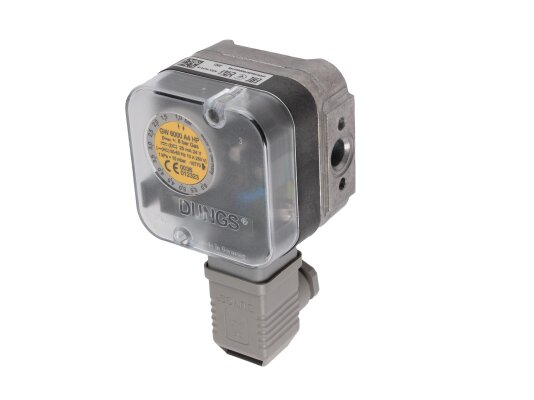

Pressure switch Dungs GW 6000 A4 HP G3

The Dungs GW 6000 A4 HP G3 pressure switch (article 254287) is used to equip industrial burners. The device ensures control of the maximum gas pressure. It is characterized by stable operation, reliable performance, easy installation and adjustment. The set includes a cable socket.

Main parameters

• Maximum working pressure: 8000 mbar.

• Environment: gas 1-3 families, neutral, flue gas, air, combustion products.

• Adjustment in the range: 1000-6000 mbar.

• Response interval: 0-300 mbar.

• Operating temperature: -15 ° C to + 70 ° C.

• Connection: to pipe thread Rp 1/4.

Design and features

The adjustable relay is equipped with a plastic housing with a transparent cover and a cast base made of aluminum alloy. The impermeability of the outer shell complies with the IP 54 standard.

When the pressure deviates from the set limit, the switch closes the contact and the signal is sent to the control device. The device can be adjusted using a wheel and a special scale. Gold-plated contacts are used for higher-quality signal transmission and stable operation of the sensor.

The relay is fixed to the pipe using an Rp ¼ thread. The mounting orientation is arbitrary, the standard position is vertical. Other placement (horizontal / inverted / intermediate) entails a change in the response point (the relay will switch at a lower / higher pressure compared to the set limit).

Advantages:

• suitable for powerful systems with a pressure of up to 8 bar;

• uninterrupted, accurate response;

• easy adjustment using a disk;

• complete with a cable socket;

• standard protection of electrical parts (IP 54);

• wide range for selecting response parameters;

• easy installation on a branch pipe with an external thread;

• universal purpose.

The company "ANKAS" is the official representative of Dungs equipment, so we have reasonable prices and a wide selection of models. In order to buy a Dungs GW 6000 A4 HP G3 pressure switch or another product on the website, fill out an application. Detailed information about the product is reflected in the specification and manufacturer's instructions.
