Pressure switch Dungs GW 6000 A4 HP M

The Dungs GW 6000 A4 HP M pressure switch (article 246159) is a simple and reliable device for monitoring excess gas pressure. Suitable for gas burners of most leading brands. Characterized by a stable switching system, compact dimensions and easy connection.

Main parameters

• Maximum pressure: 8000 mbar.

• Working environment: gas of 1-3 families, neutral, flue gas, air, combustion products.

• Setting in the range: 1000-6000 mbar.

• Response interval: 0-300 mbar.

• Operating temperature: -15 ° C to + 70 ° C.

• Connection: threaded Rp 1/4.

Design and features

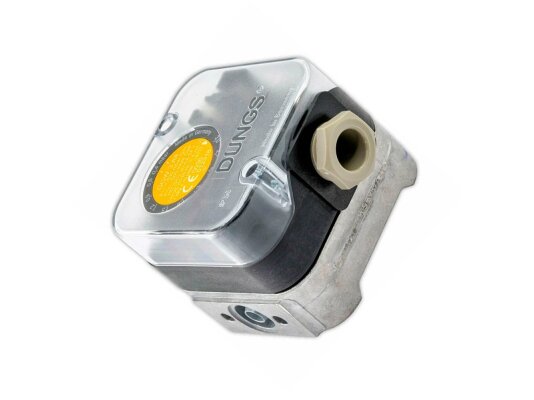

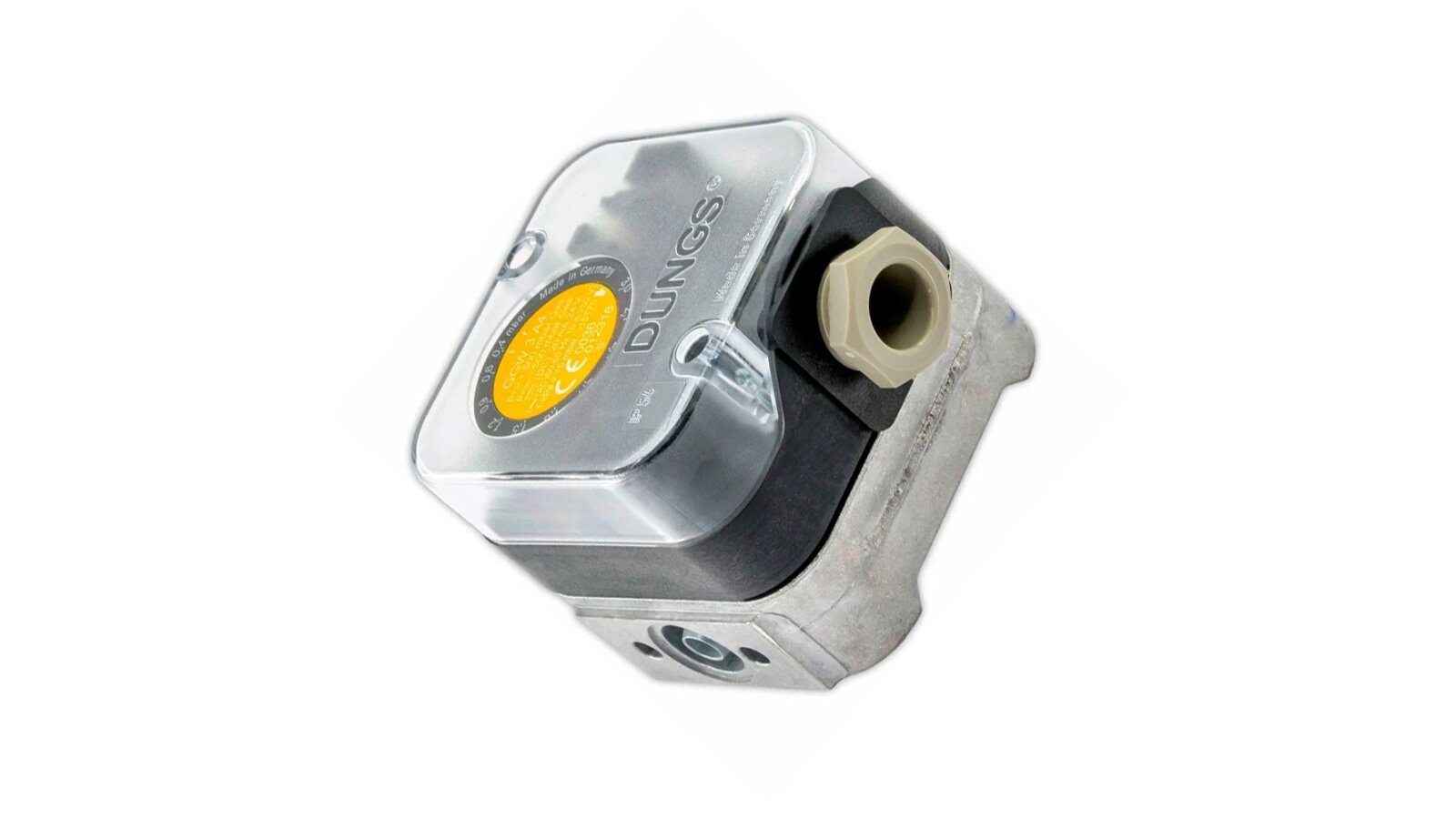

The compact device is equipped with a plastic housing with a transparent cover and an aluminum cast base. Protection against dust and moisture complies with the European standard IP 54.

When the pressure value deviates from the set value, the switching mechanism closes the contact and sends a signal to the control device. For easy adjustment of the relay, a wheel and scale are provided.

The contacts are made of silver and gold-plated to improve the signal quality.

The relay is easy to install by screwing onto the Rp ¼ thread. The recommended orientation is vertical. Any other position (horizontal/inverted/diagonal) changes the response point relative to the set limit. Before buying the Dungs GW 6000 A4 HP M pressure relay, we recommend that you read the manufacturer's instructions.

Advantages:

• suitable for systems with pressure up to 8 bar;

• uninterrupted switching;

• manual adjustment using a scale and disk;

• dust and moisture resistance according to the IP 54 standard;

• wide range of parameter settings;

• easy connection to a branch pipe with an external thread;

• universal application.
