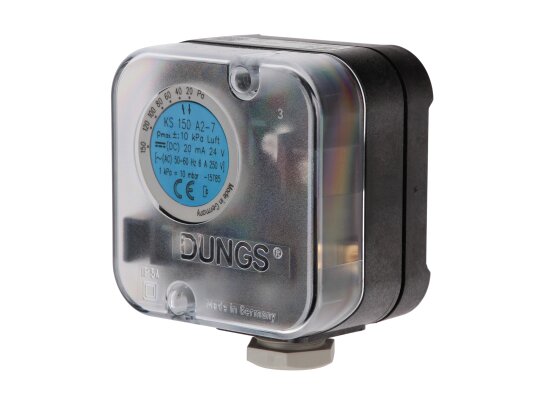

Pressure switch Dungs KS 150 A2-7
About product
Go to descriptionAED 600
Description
The Dungs KS 150 A2-7 pressure switch, article 257842, is specially designed for equipping air conditioning and ventilation systems. It is used to monitor vacuum pressure, pressure difference, excess pressure in pipelines, blowers, air filters, fans. The kit includes mounting accessories.
Main characteristics
Maximum pressure: 100 mbar.
Monitored environment: flue gas, air.
Adjustment range: 0.2-1.5 mbar.
Response interval: 0-0.18 mbar.
Ambient temperature: -15°C to +85°C.
Connection: using a 4.6 mm hose nipple.
Equipment
The basic kit includes a relay, a mounting support, a connecting hose, screws for fixing the sensor, 2 hose nozzles, 2 extension pipes, and manufacturer's instructions.
Design and features
The differential sensor is equipped with a plastic housing with a transparent cover. Dust and moisture protection complies with the IP54 standard. The sensitive membrane is made of NBR.
When the pressure drop increases or decreases beyond the permissible value, the contact in the electrical network closes/opens/switches and a signal is sent to the control unit.
The adjustment scale with digital marking is used to adjust the relay.
Advantages:
precise response;
high membrane sensitivity;
gold-plated contacts;
mounting kit;
easy installation;
high protection class (IP 54);
small dimensions.
The ANKAS store offers a wide range of sensors and other devices at reasonable prices for systems of various purposes. To buy the Dungs KS 150 A2-7 pressure switch, fill out an online application. Full information about the product is provided in the manufacturer's specification.
Characteristics
