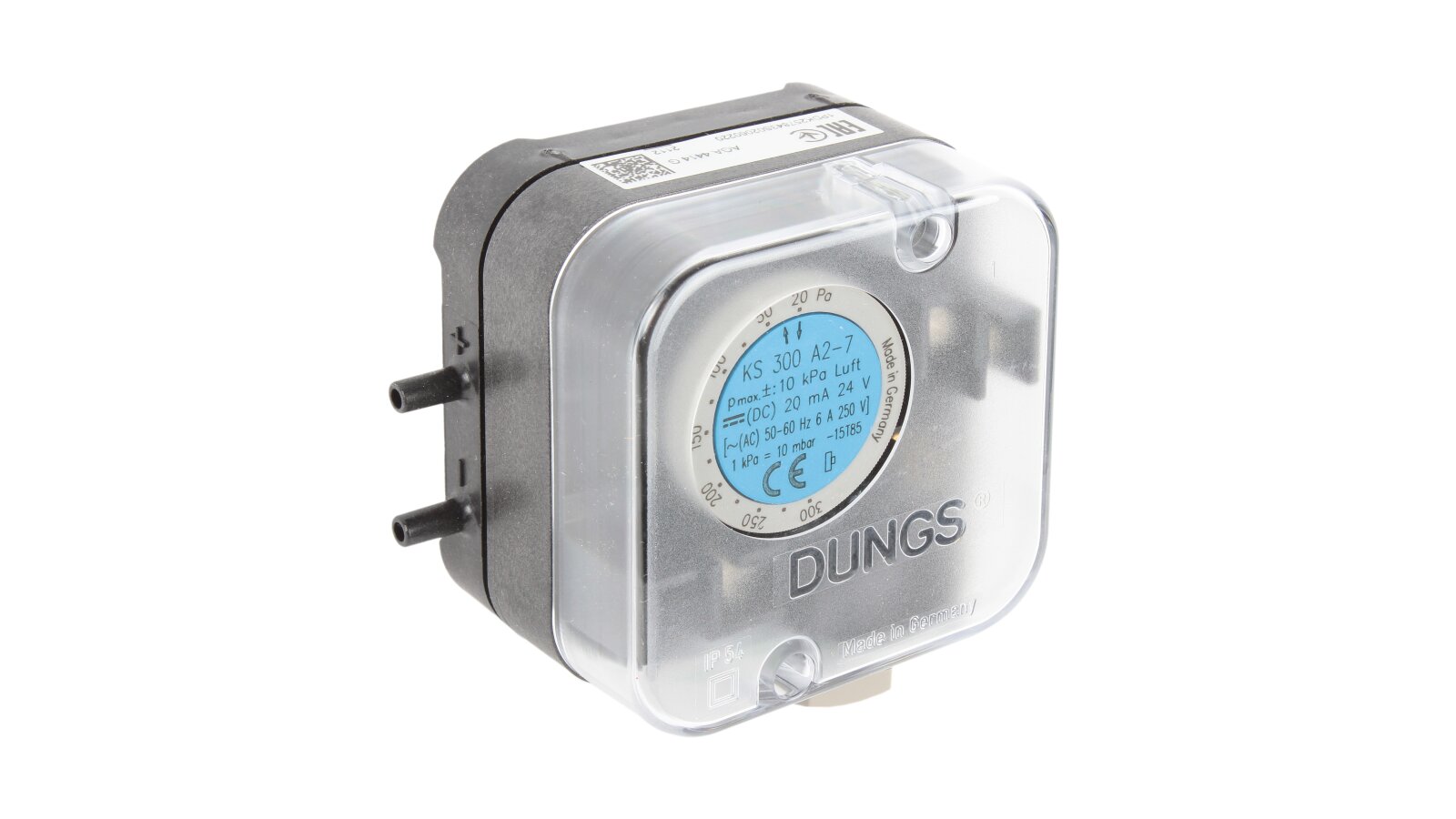

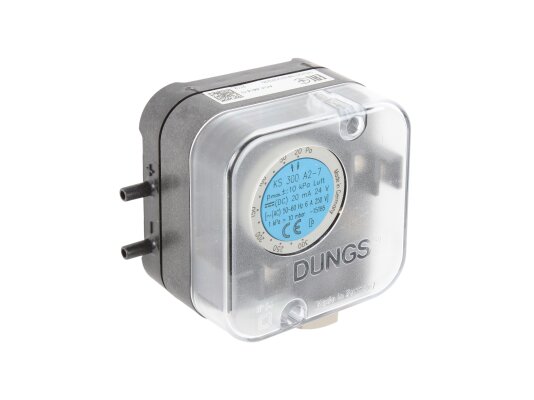

Pressure switch Dungs KS 300 A2-7

The Dungs KS 300 A2-7 pressure switch, article 257843, is supplied complete with mounting accessories. It is used in pipelines, blowers, air filters, fans of air conditioning and ventilation systems to monitor the vacuum pressure, pressure difference, maximum pressure. It is characterized by high-precision response, reliable service, and compact dimensions.

Main parameters

• Maximum pressure: 100 mbar.

• Controlled environment: flue gas, air.

• Adjustment in the range: 0.2-3 mbar.

• Response interval: 0-0.2 mbar.

• Ambient temperature: -15°C to +85°C.

• Connection: using a 4.6 mm hose nipple.

Equipment

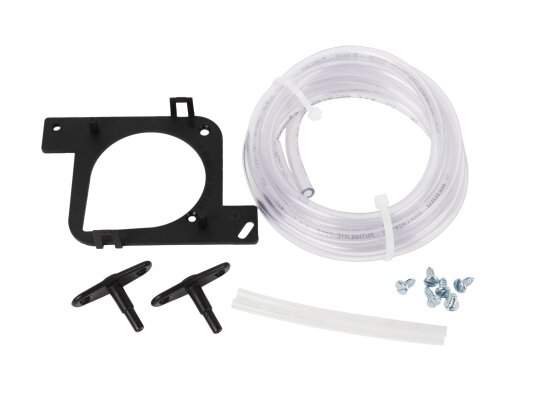

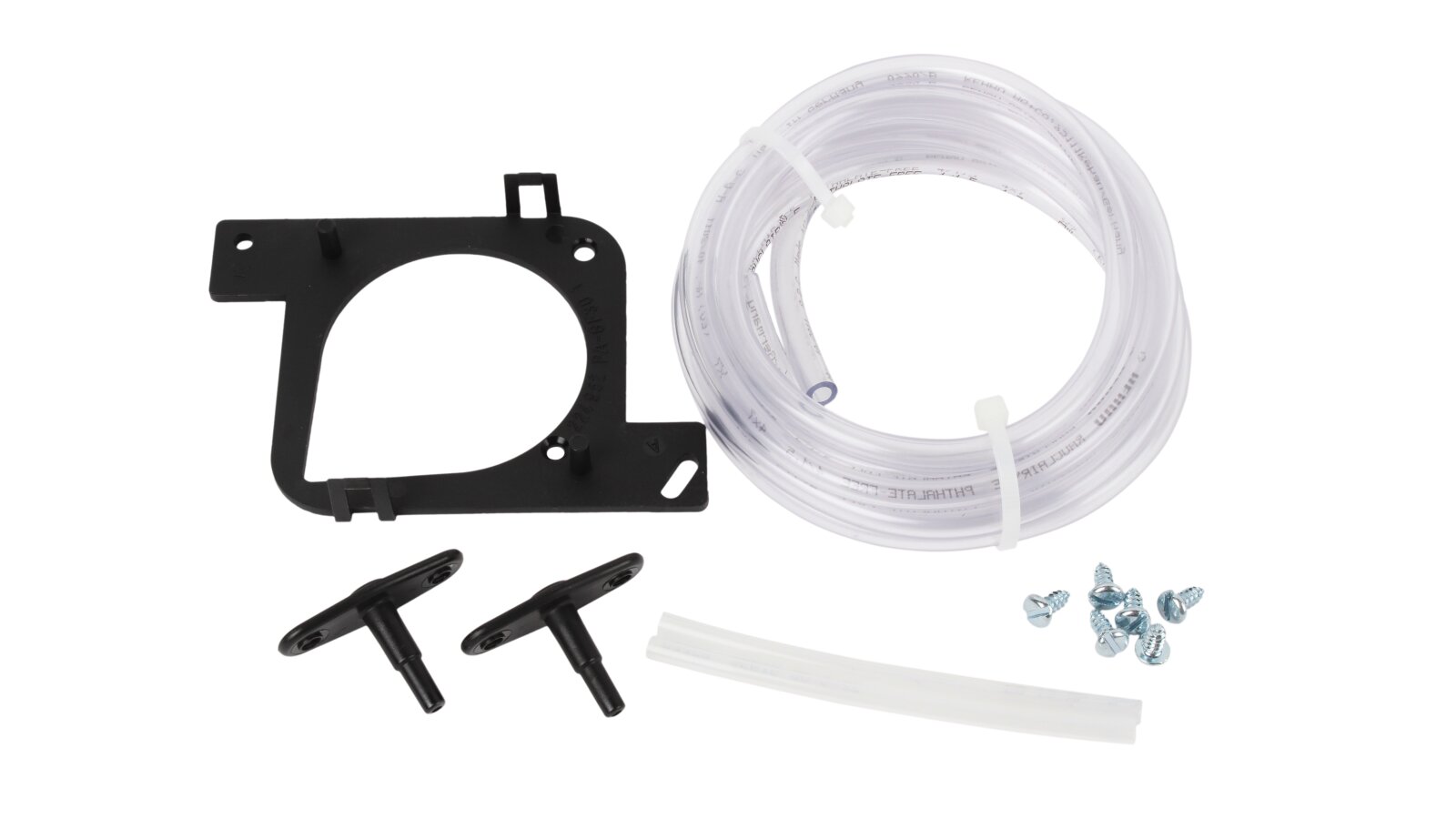

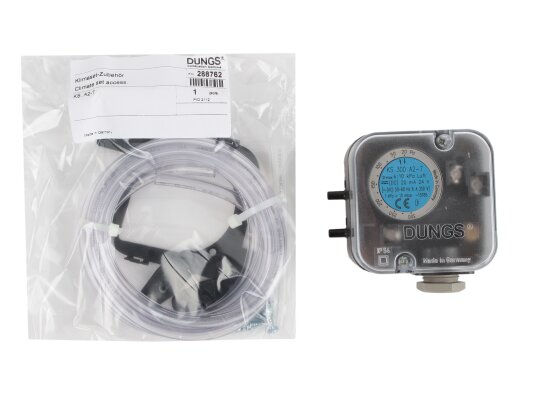

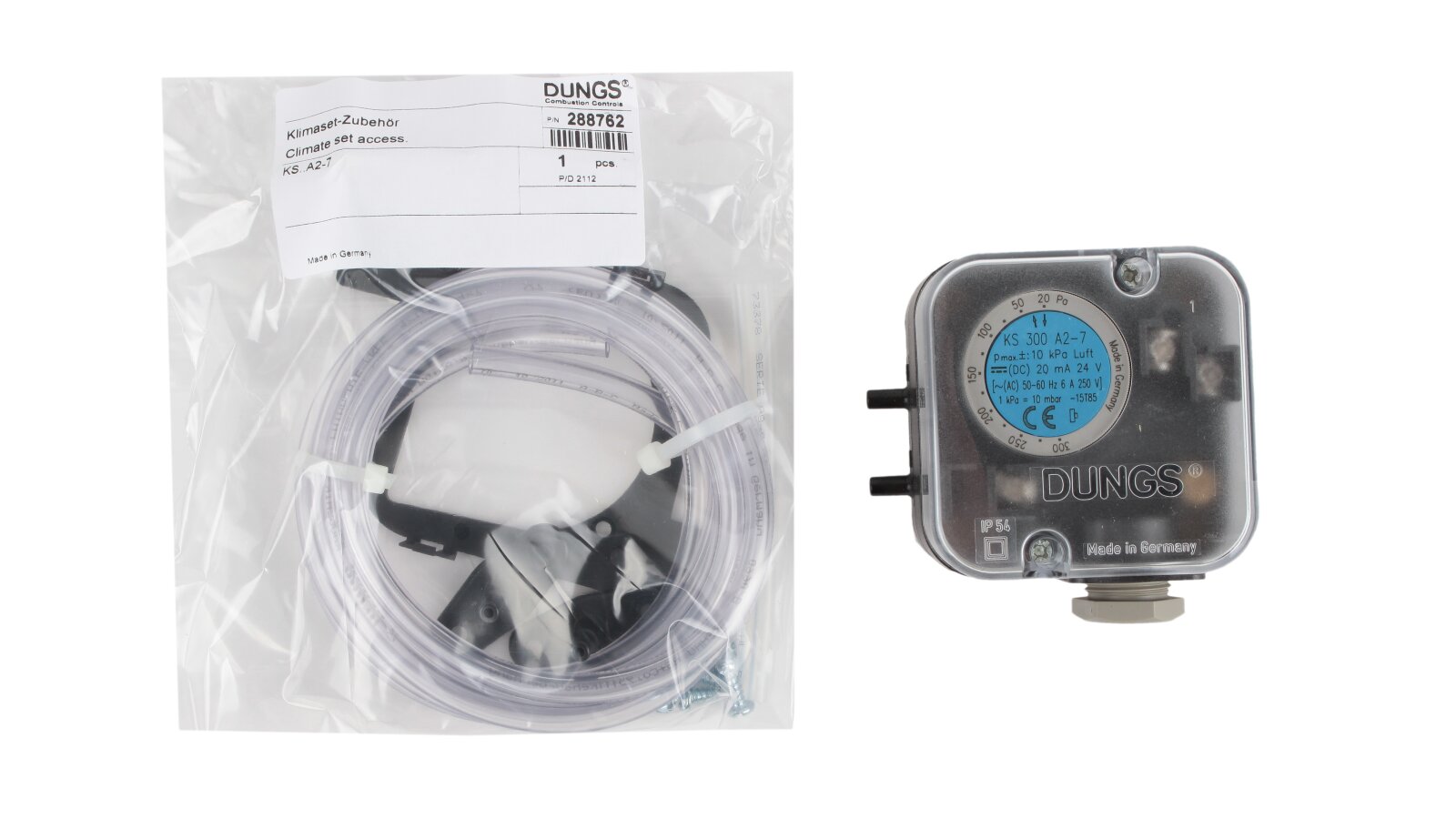

The supplied kit includes a relay, a support for fixing, a connecting hose, screws for fixing the sensor, 2 hose nozzles, 2 extension pipes, and manufacturer's instructions.

Design and features

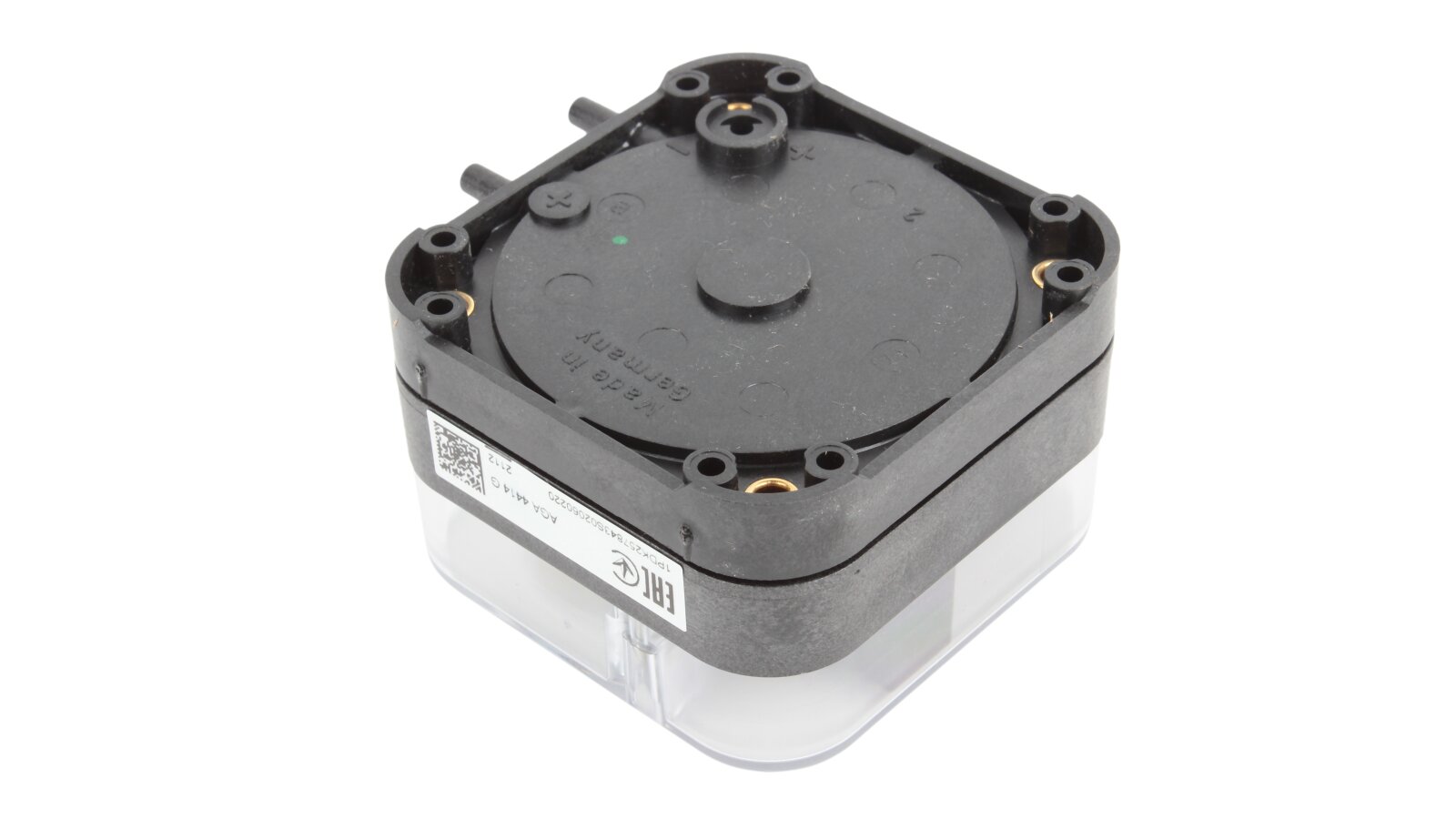

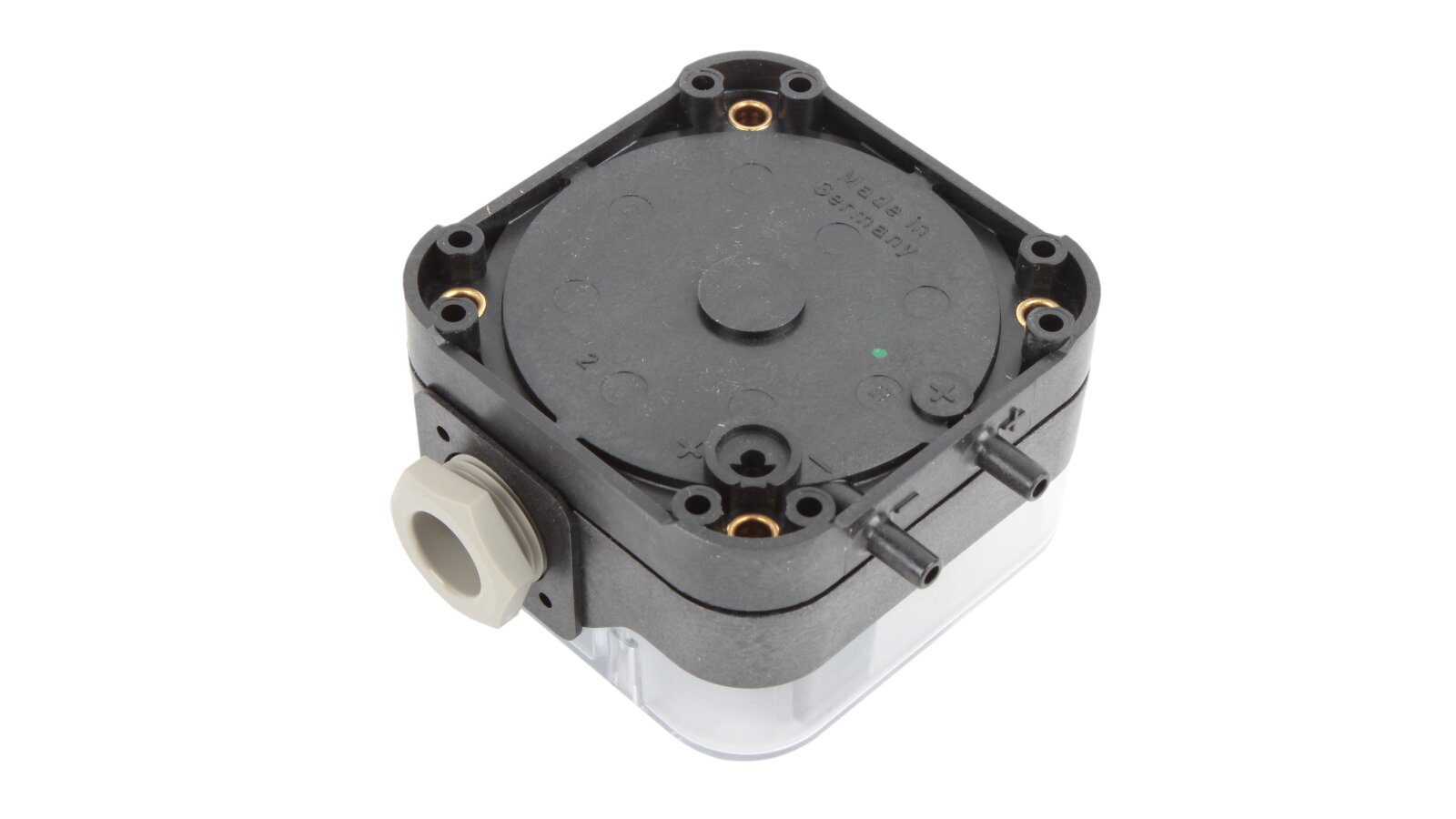

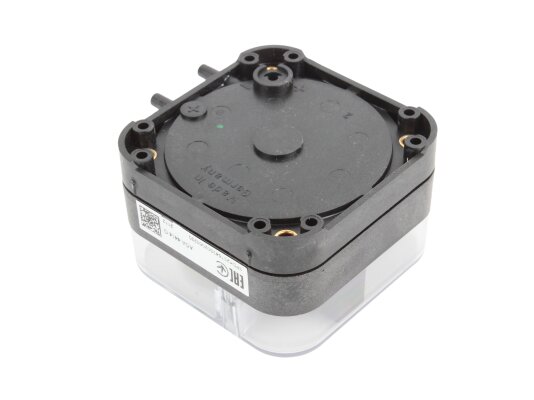

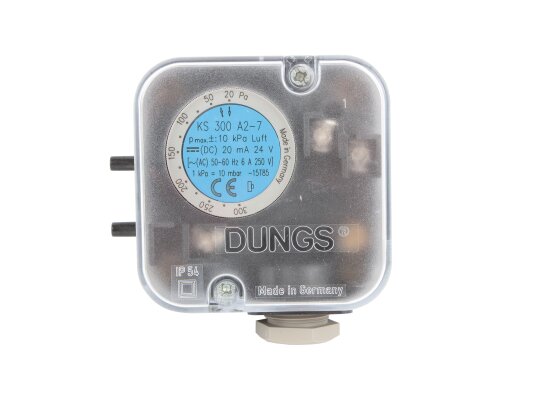

The sensor is equipped with a durable plastic housing with a transparent cover. The degree of protection of electrical parts from dust/moisture complies with the IP54 standard. The highly sensitive membrane is made of NBR.

The switching mechanism of the device reacts to differential pressure. When the difference increases or decreases beyond the permissible limit, the contact in the electrical network closes/opens/switches and a signal is sent to the control unit.

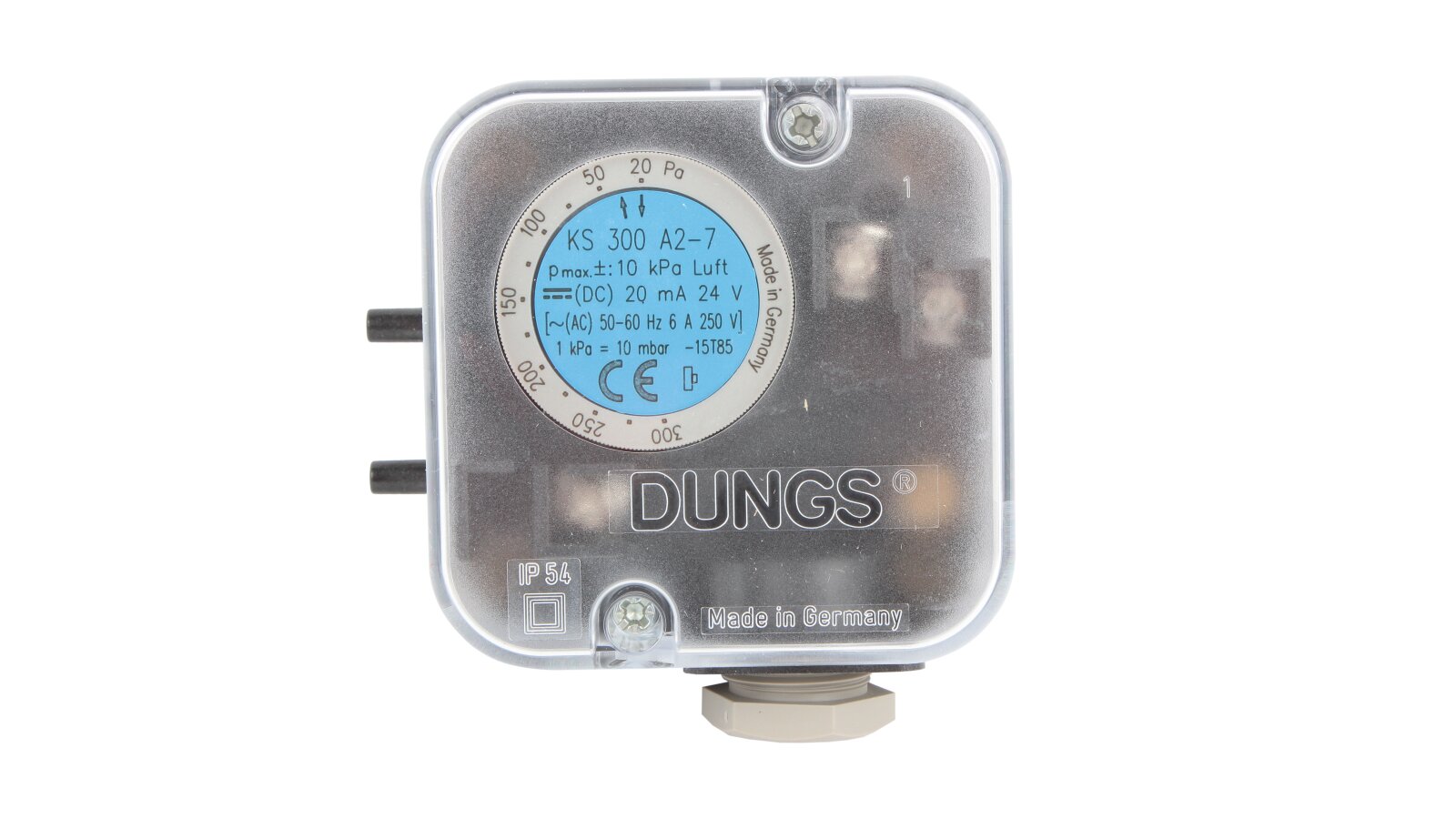

Manual adjustment of the response parameters is performed using a tuning wheel with markings.

Advantages:

• precise response;

• high membrane sensitivity;

• easy adjustment;

• ready-made installation kit;

• dust and moisture protection (IP 54);

• compact dimensions.

The ANKAS online store offers a wide range of sensors at affordable prices. To buy the Dungs KS 300 A2-7 pressure switch, fill out the application form. For complete information about the product, read the manufacturer's instructions.
