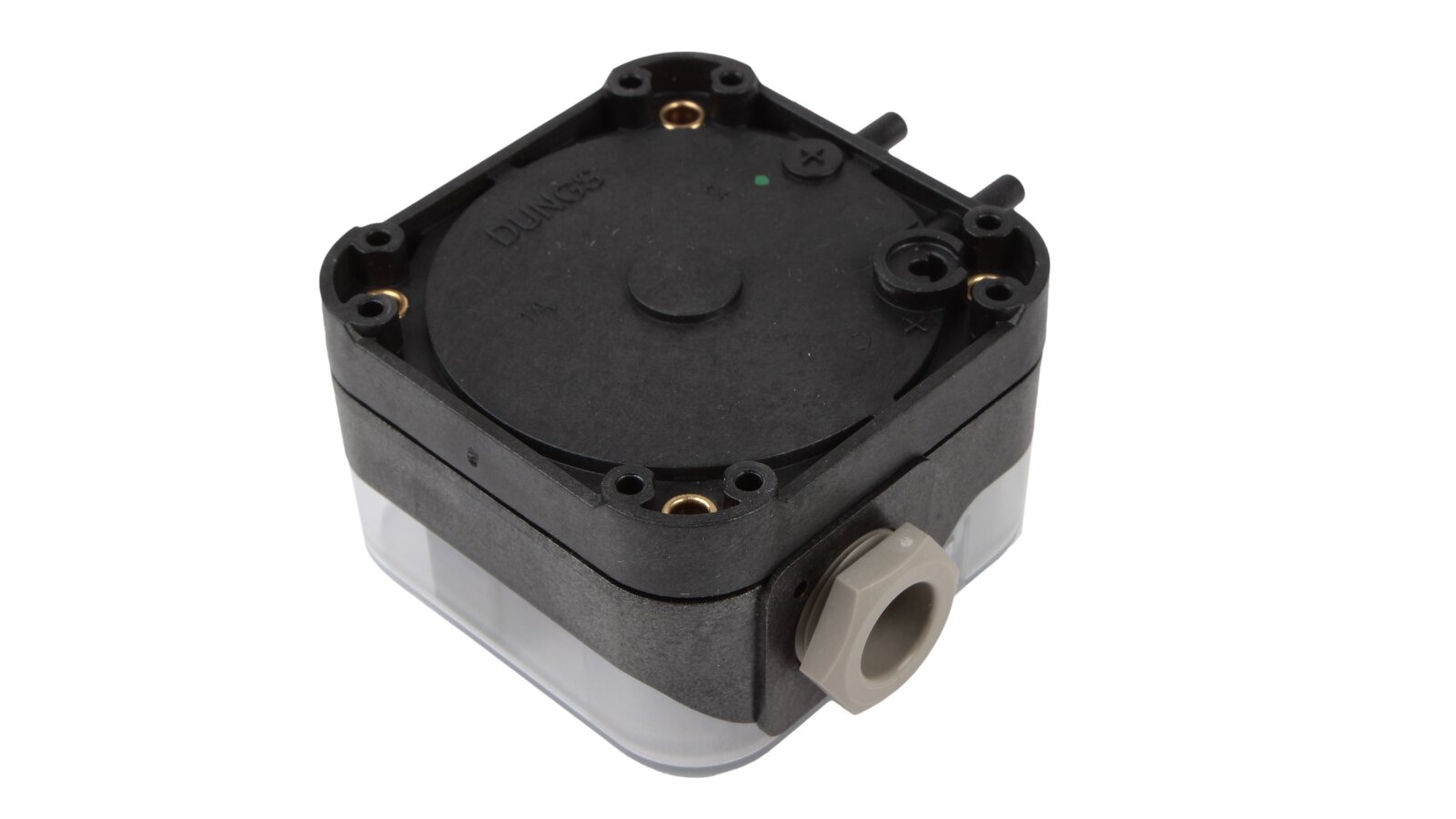

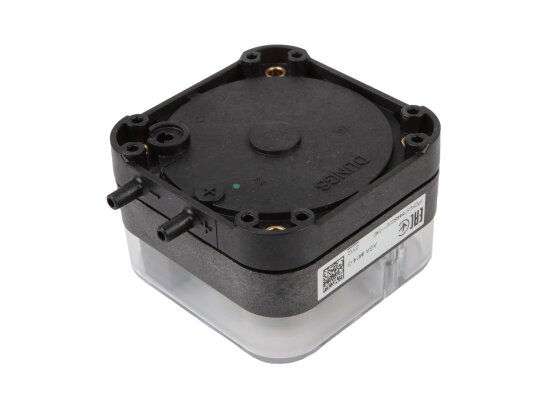

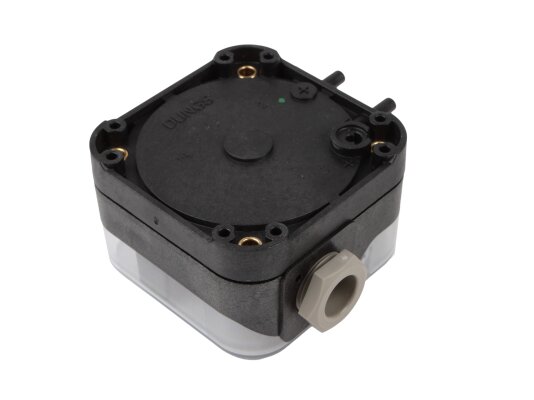

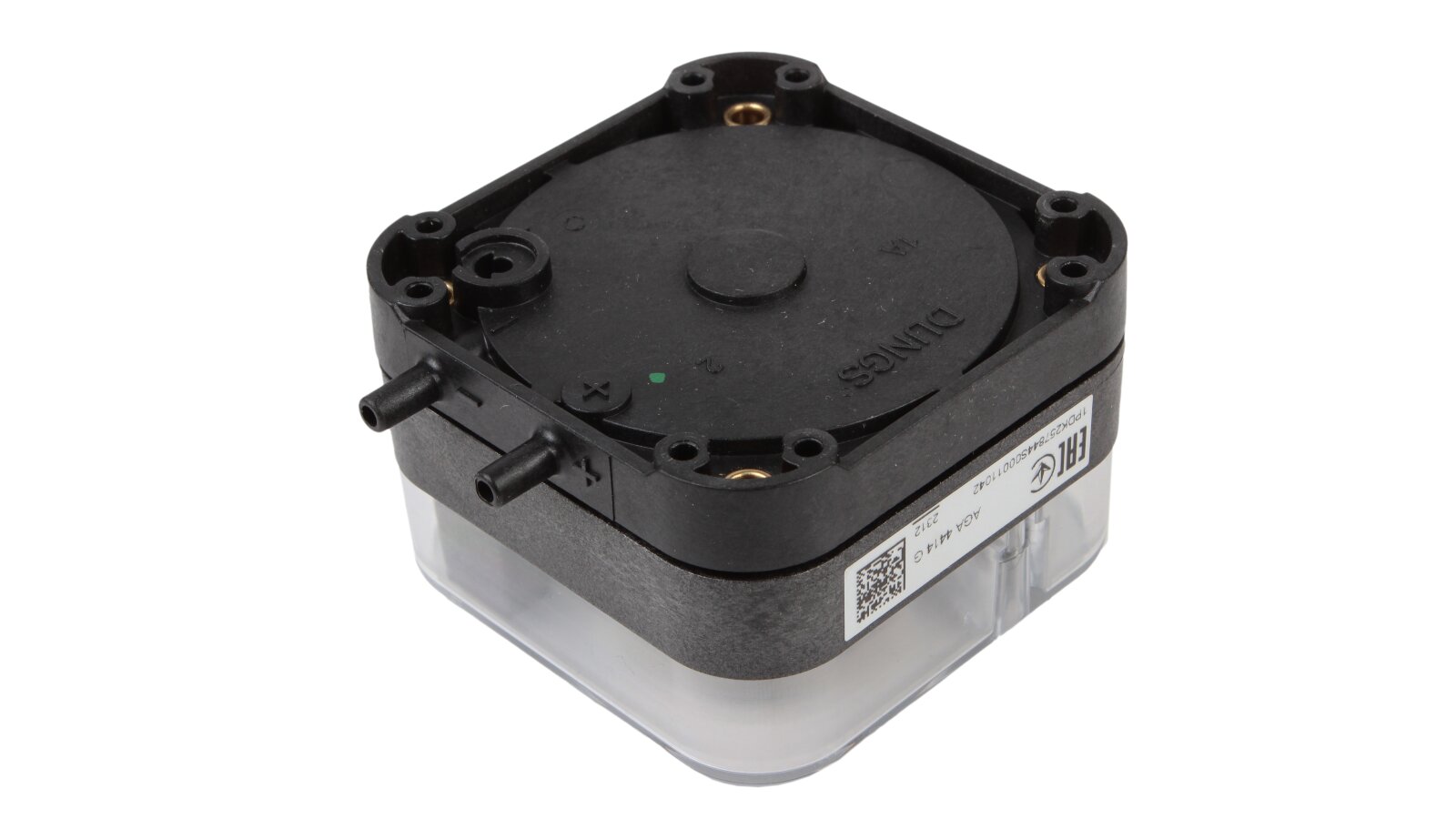

Pressure switch Dungs KS 600 A2-7

Pressure switch Dungs KS 600 A2-7 article 257844 is a compact device for equipping ventilation and air conditioning systems. Monitors vacuum pressure, pressure difference, excess pressure in pipelines, blowers, air filters, fans. Manually adjustable, features precise response, comes complete with mounting accessories.

Main parameters

• Maximum pressure: 100 mbar.

• Controlled environment: flue gas, air.

• Adjustment in the range: 0.3-6 mbar.

• Response interval: 0-0.3 mbar.

• Operating temperature: -15°C to +85°C.

• Connection: using a 4.6 mm hose nipple.

Equipment

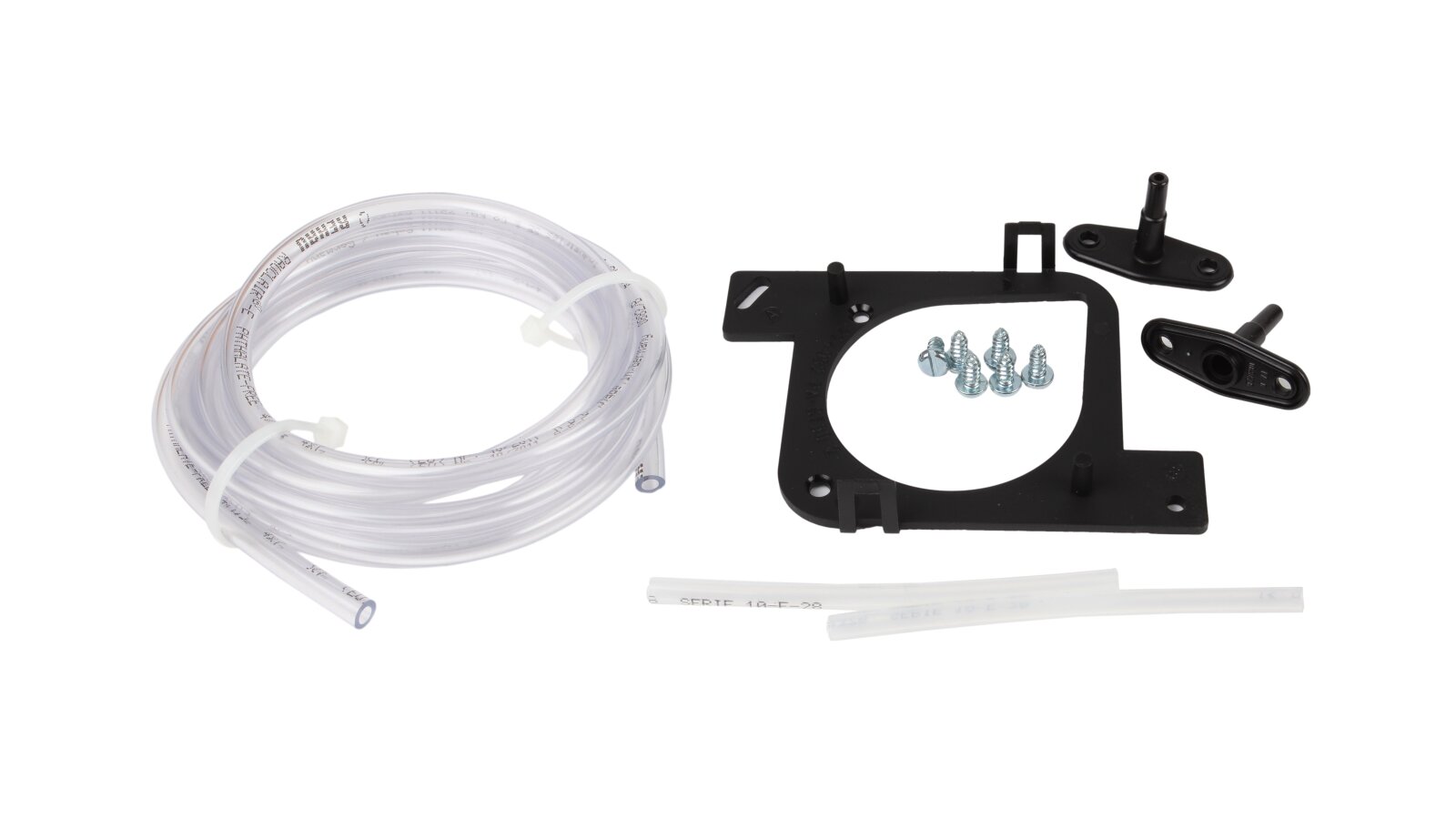

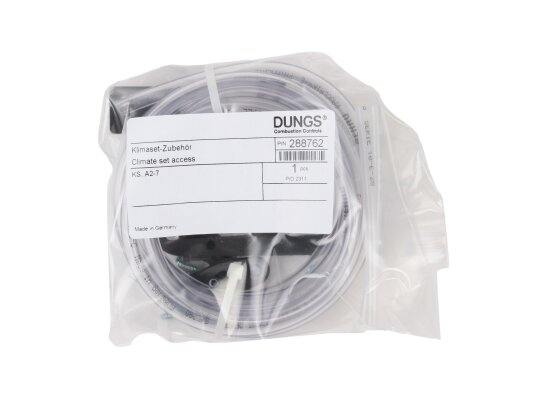

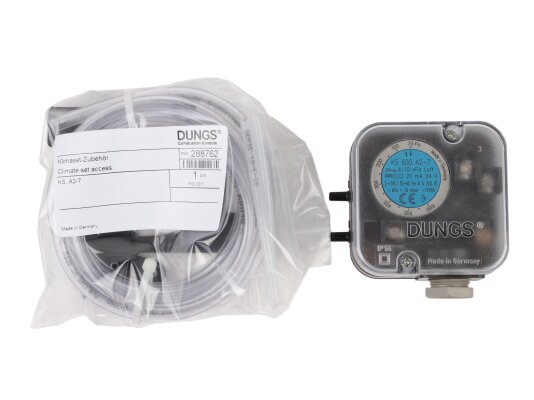

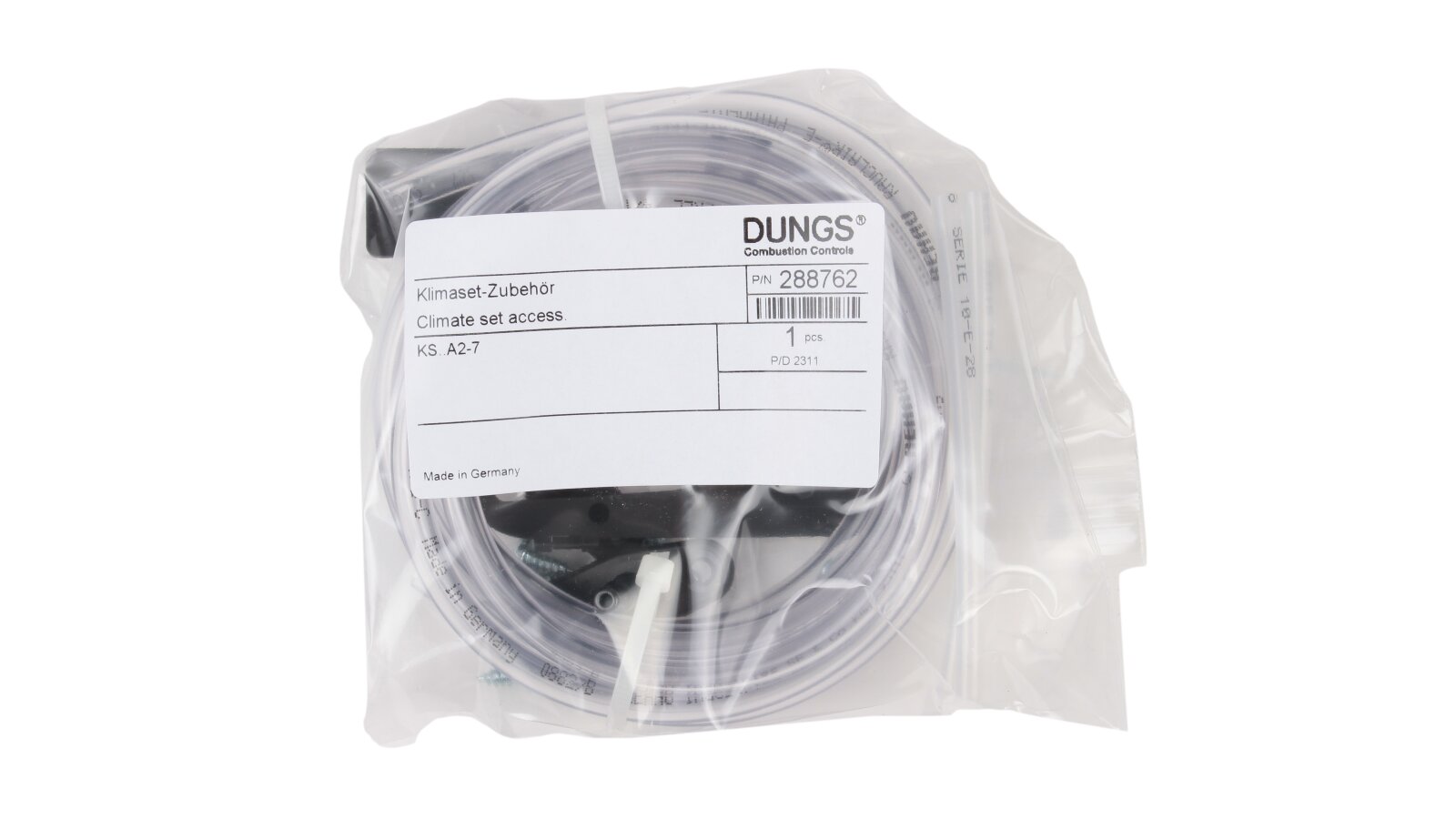

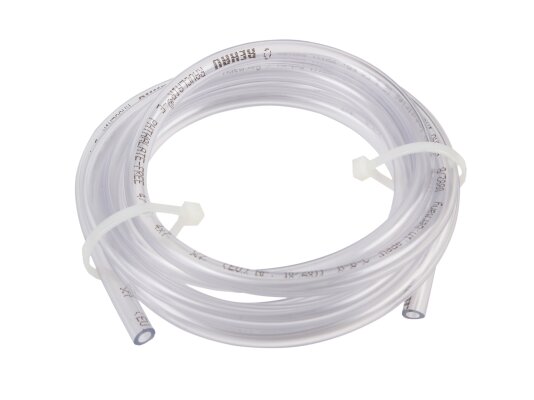

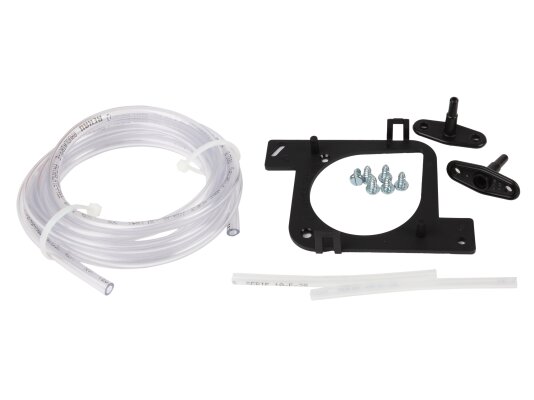

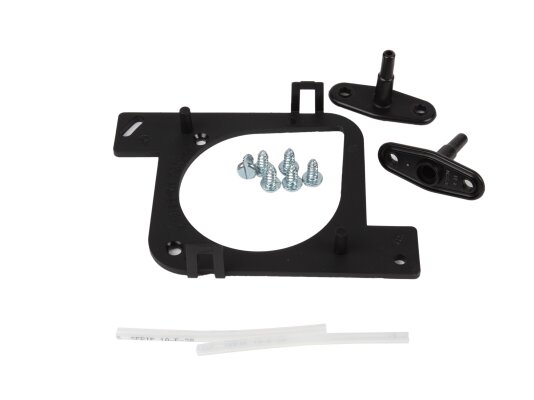

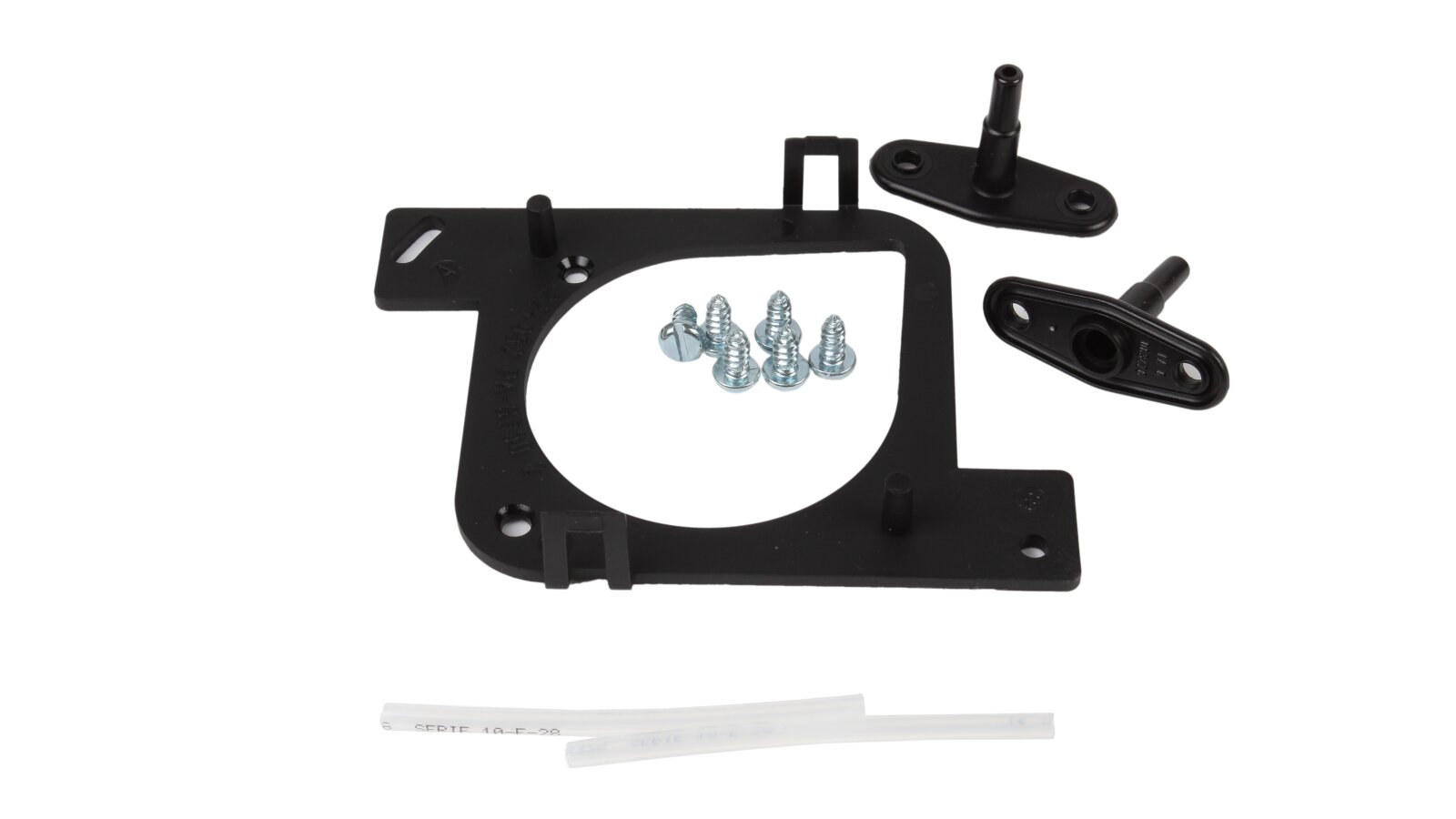

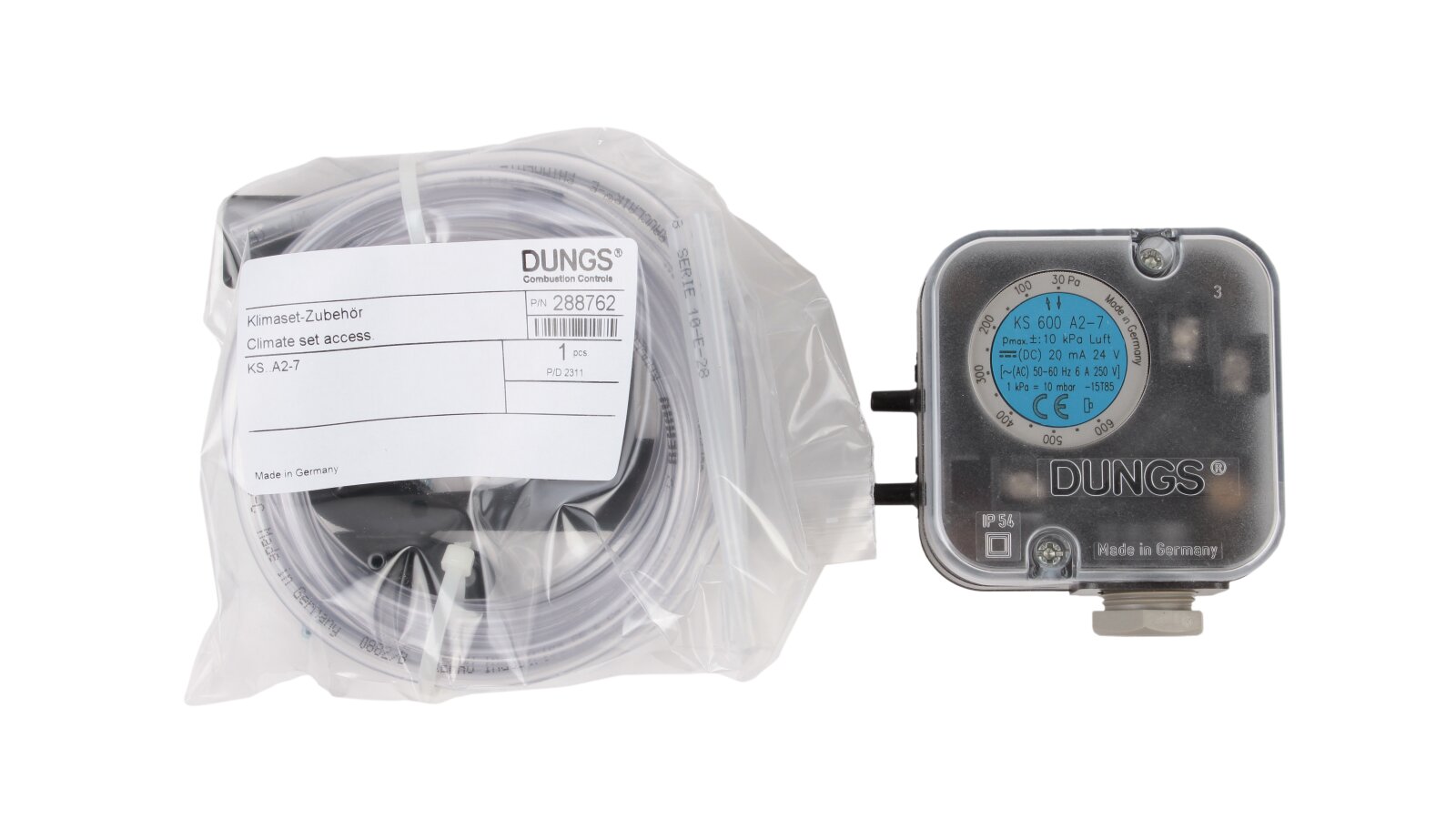

The KS 600 A2-7 kit includes: relay, connecting hose, screws for installing the sensor, 2 hose nozzles, support-fixator, 2 extension pipes, factory instructions.

Design and features

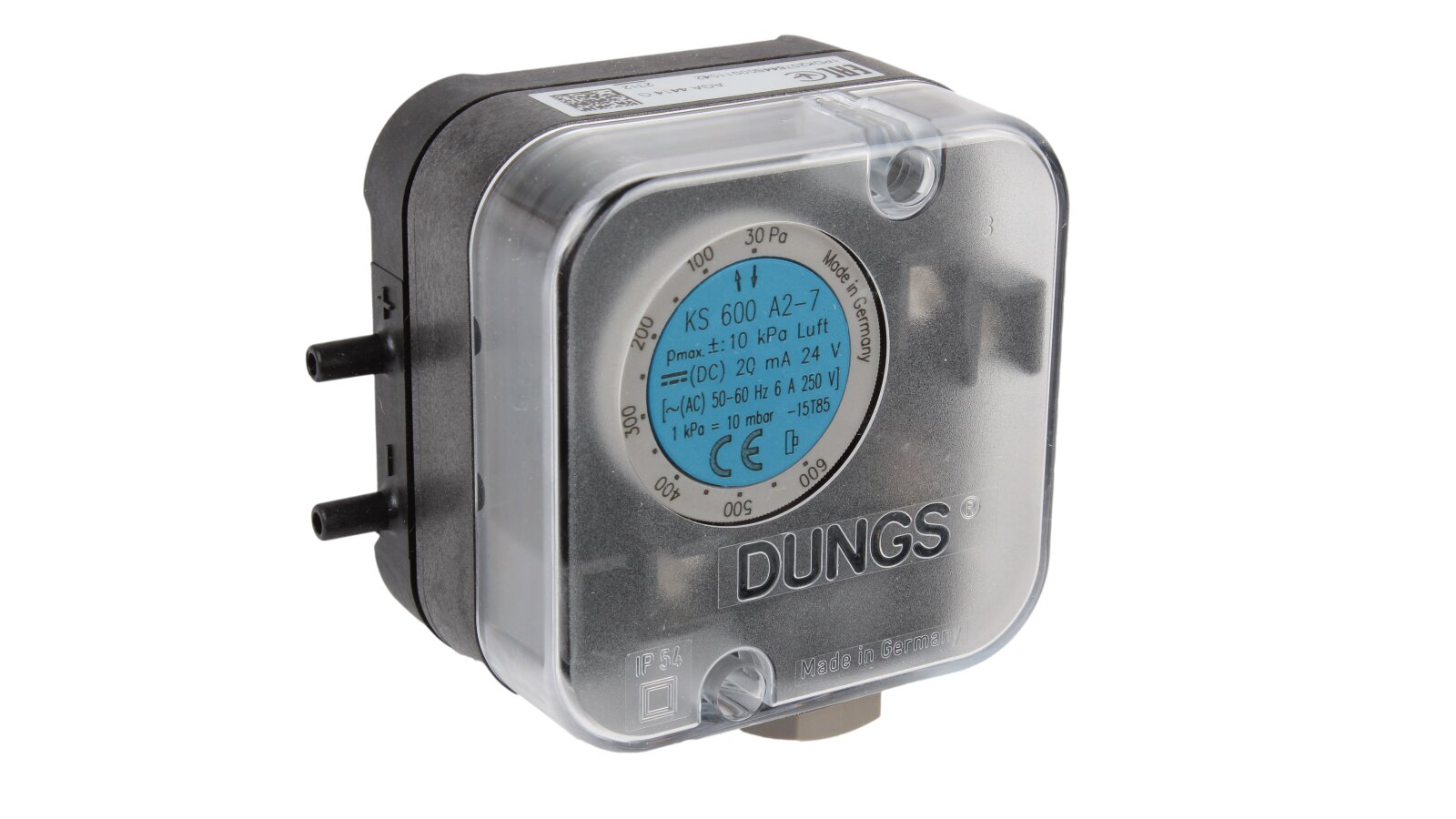

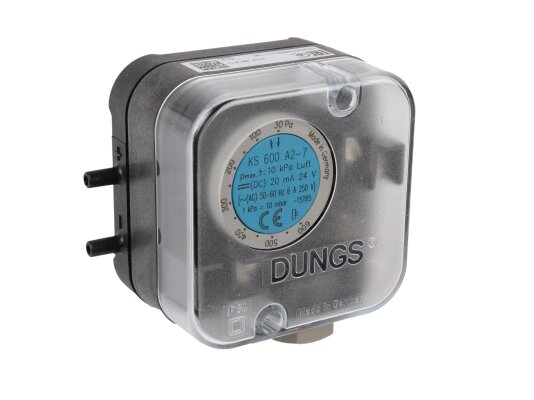

The universal device has a simple and compact design. The housing with a transparent cover is made of durable plastic. Dust and splashes do not get inside the sensor due to protection according to the IP 54 standard. The sensitive membrane is made of butadiene-nitrile rubber.

The switching mechanism reacts to differential pressure. When the pressure difference deviates beyond the set mark, the electrical contacts close / open / switch, the signal is sent to the control unit.

Simplified adjustment of the device is carried out using a special wheel with a scale.

Advantages:

• uninterrupted switching;

• high sensitivity membrane;

• easy adjustment of response parameters;

• mounting kit included;

• body insulation according to IP 54 standard;

• compact dimensions;

• optimal price.

On the ANKAS website you can buy the Dungs KS 600 A2-7 pressure switch and other devices for equipping systems for various purposes. To familiarize yourself with all the characteristics and operating features, we recommend that you study the manufacturer's instructions.
