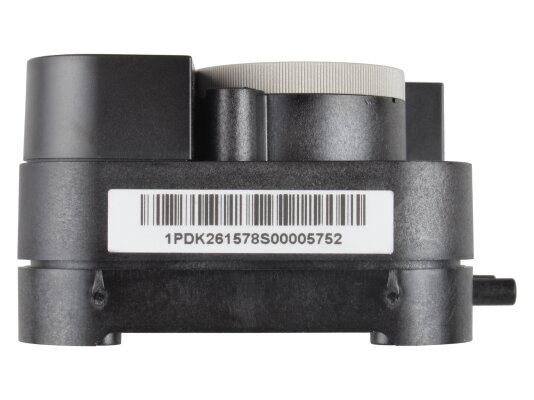

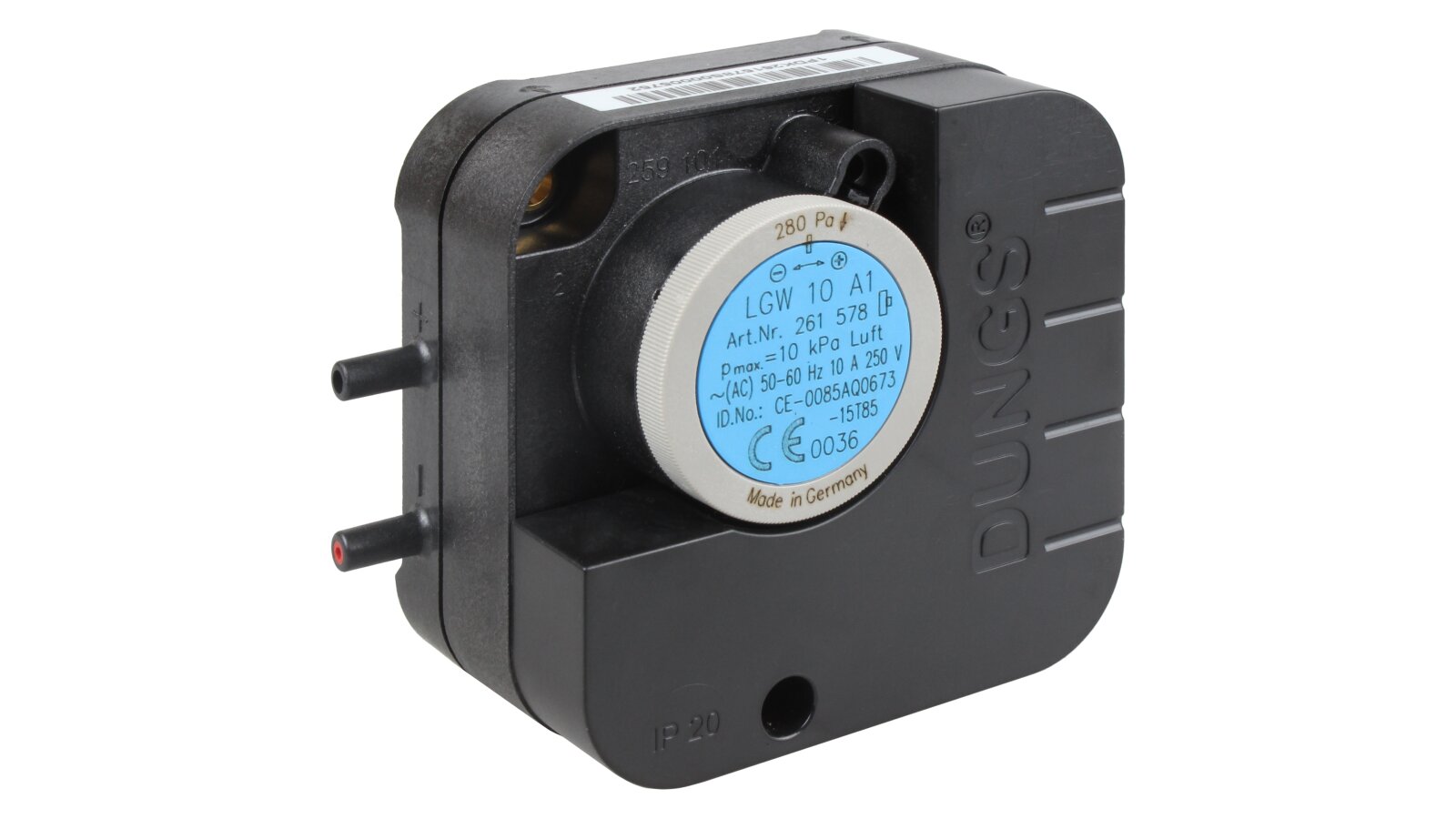

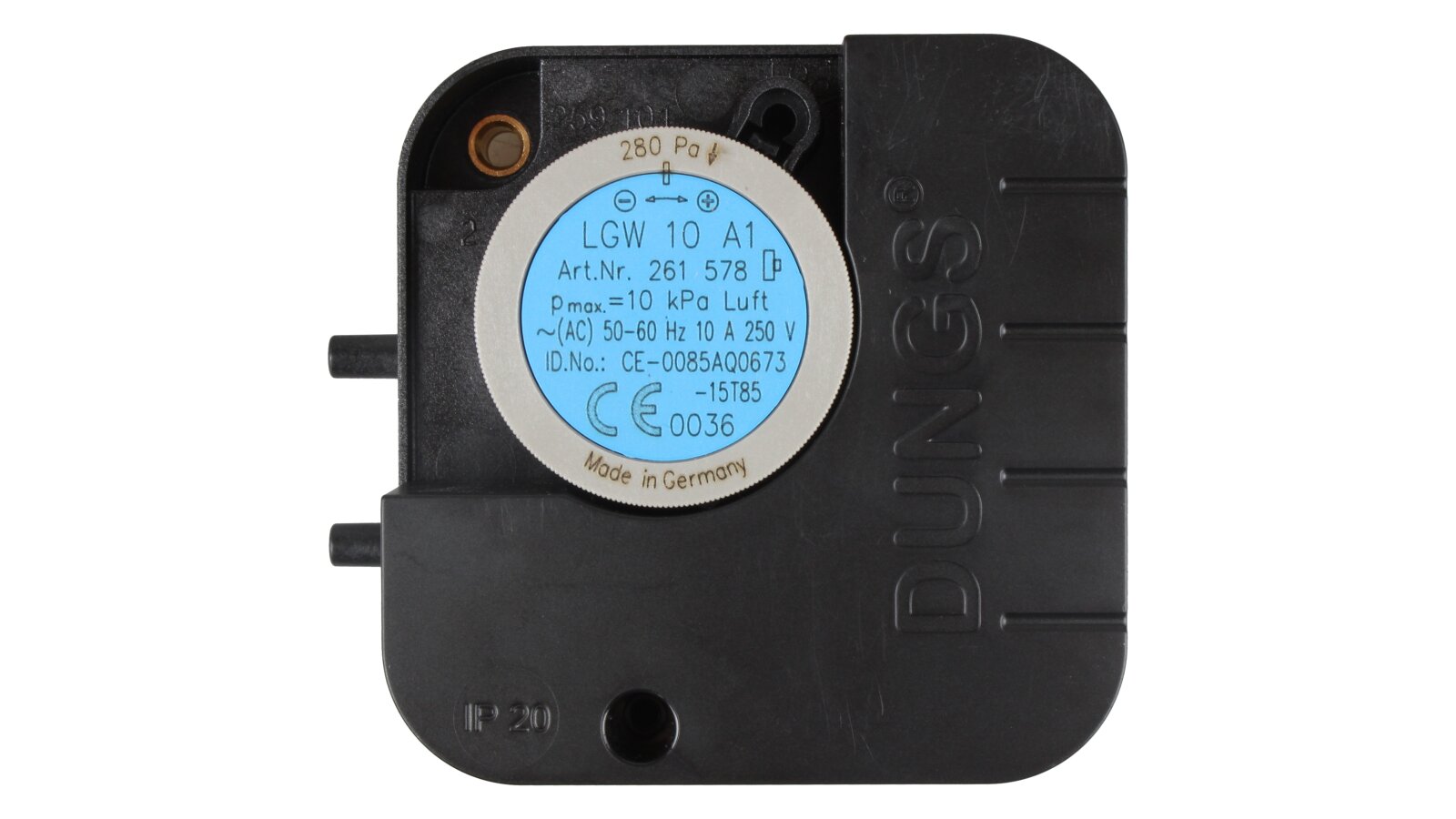

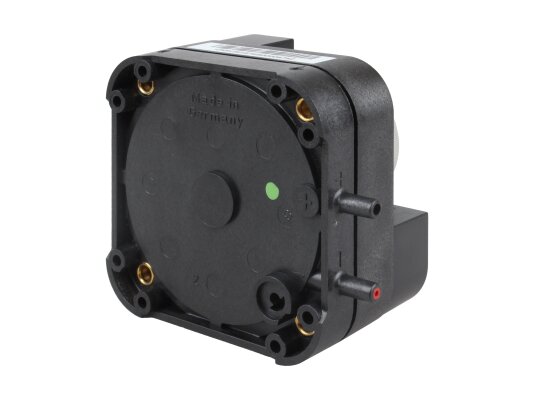

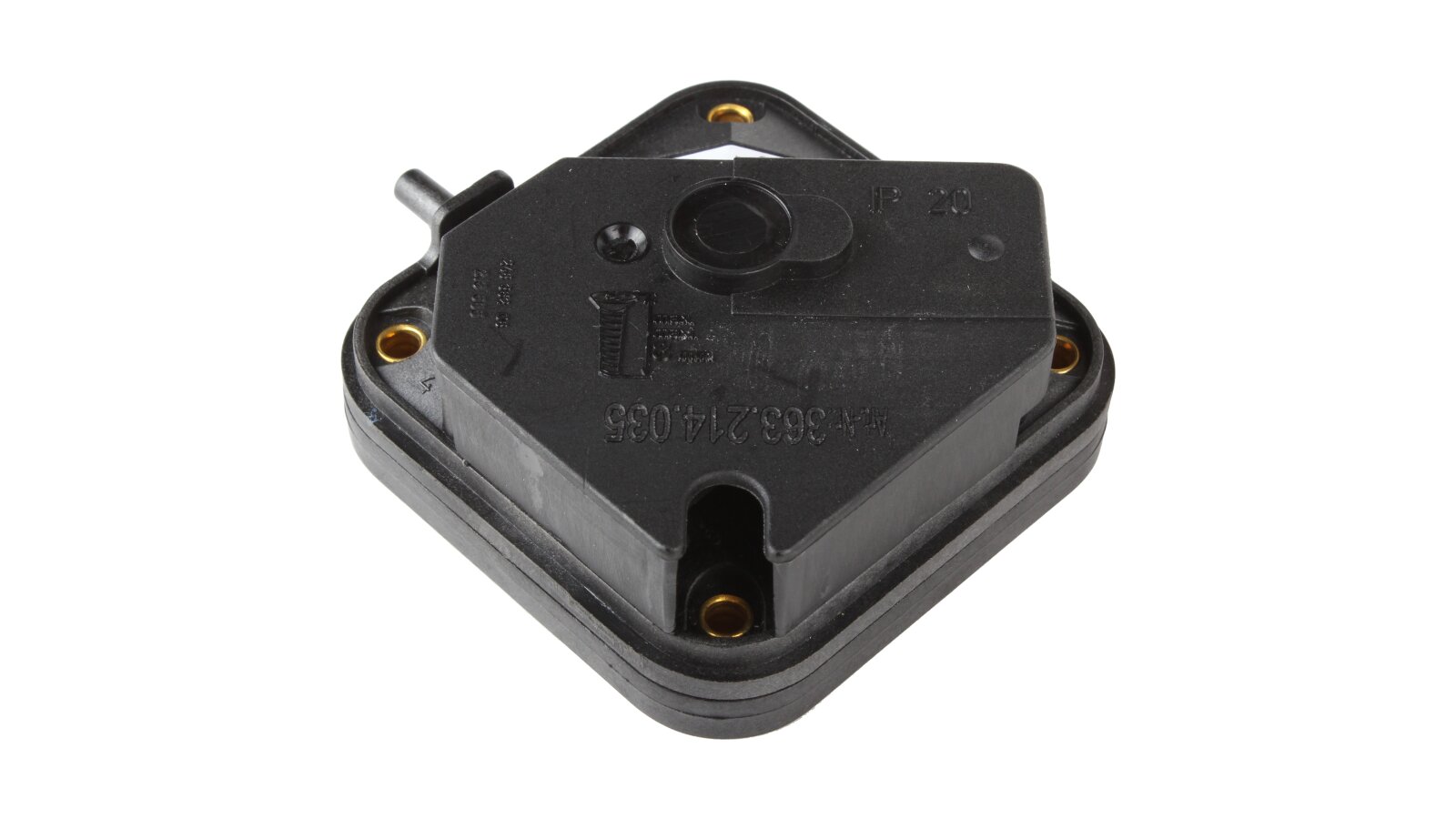

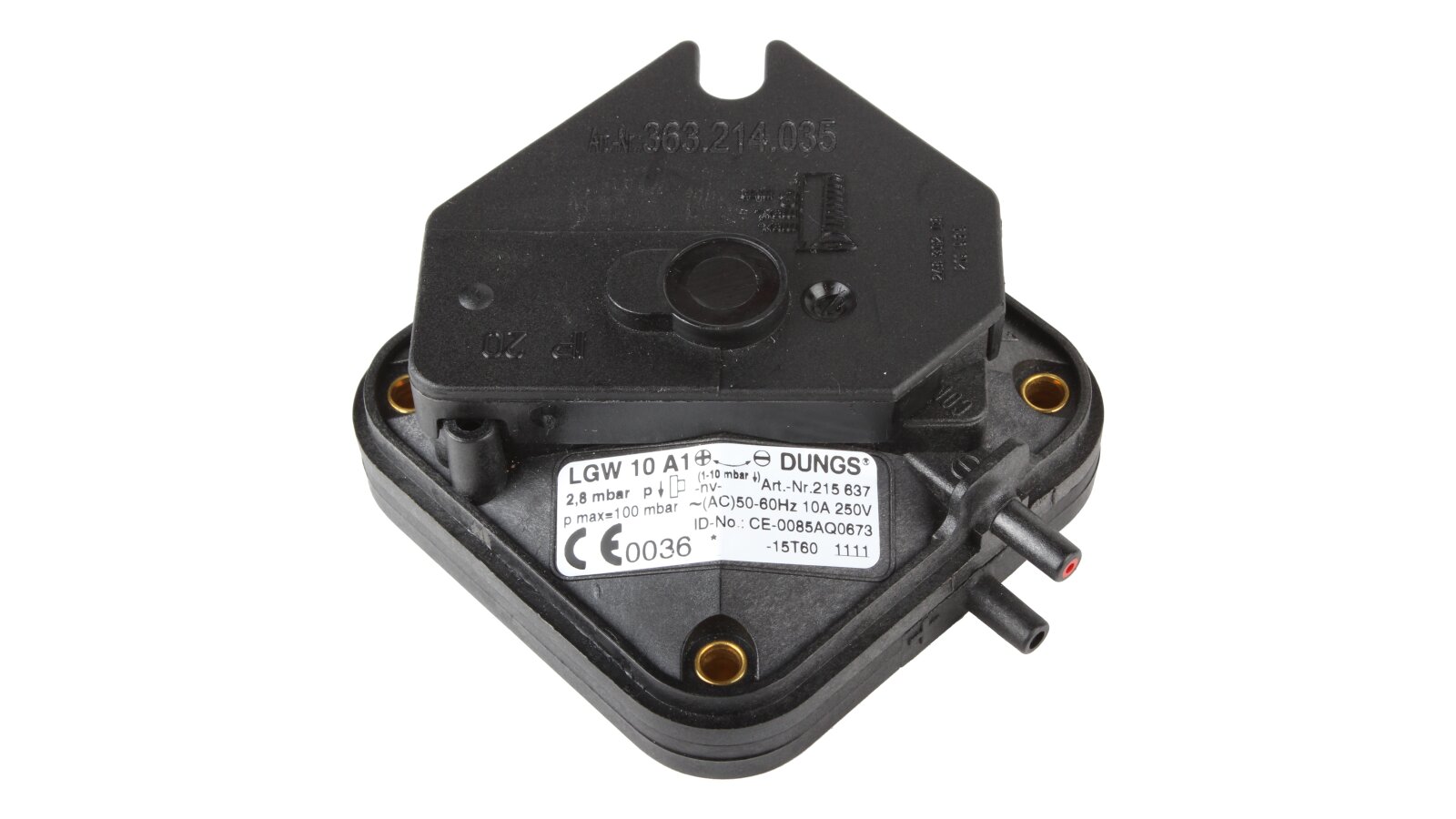

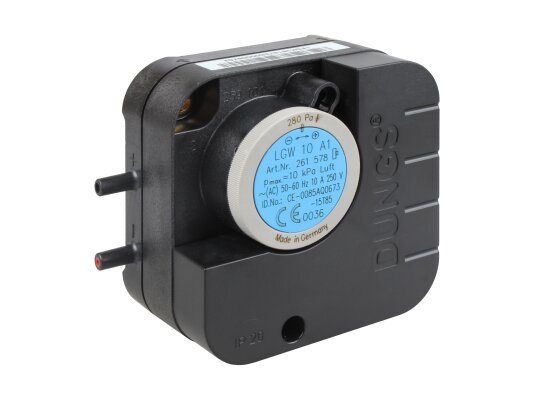

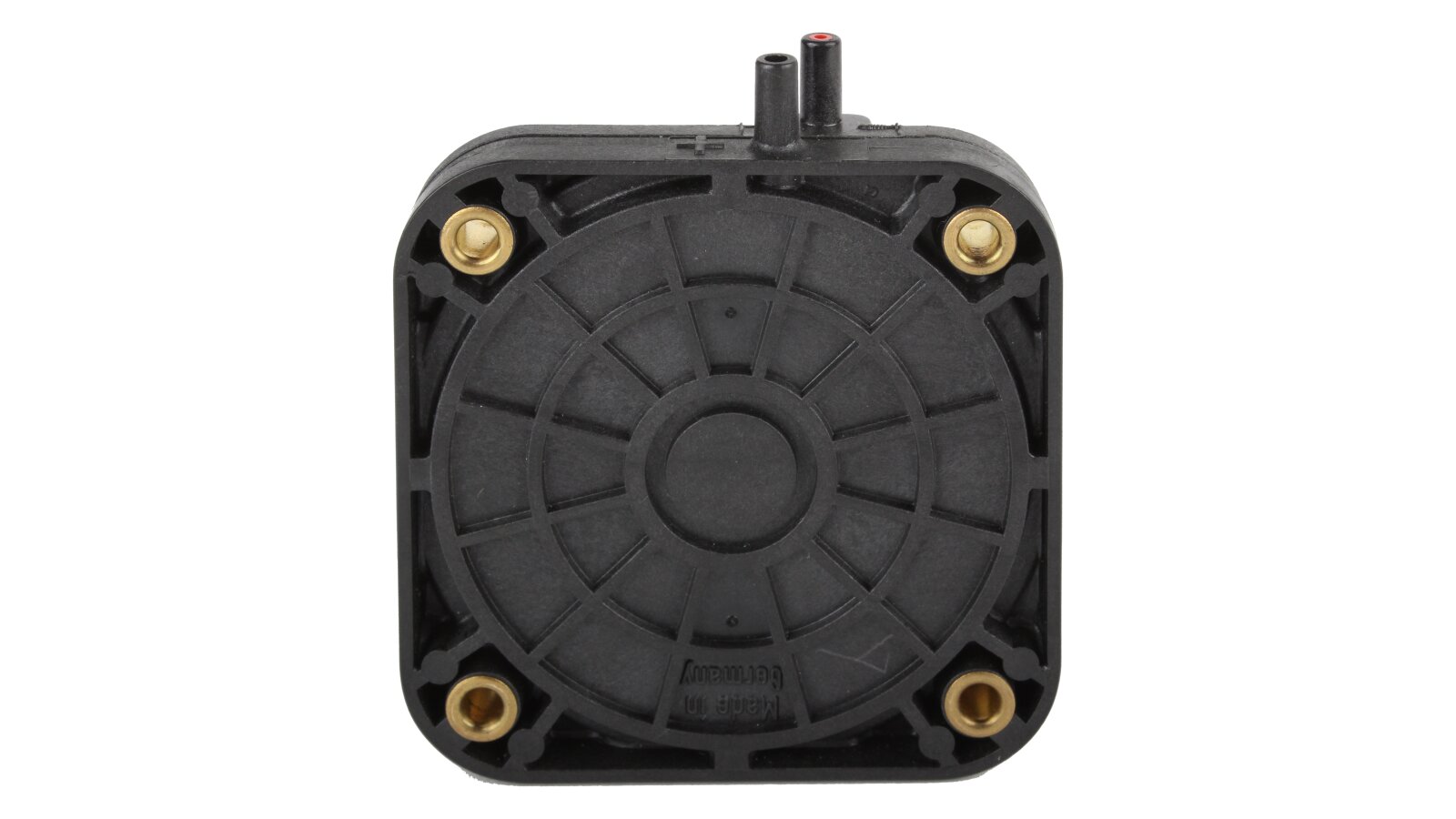

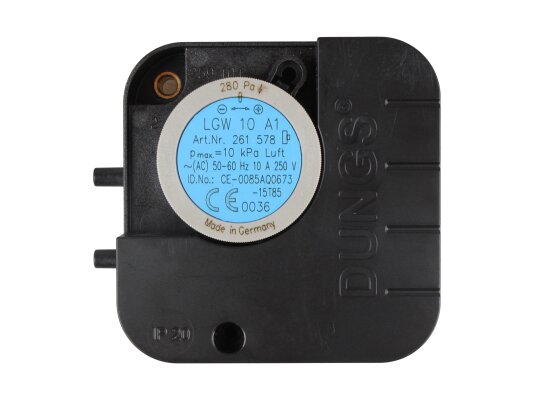

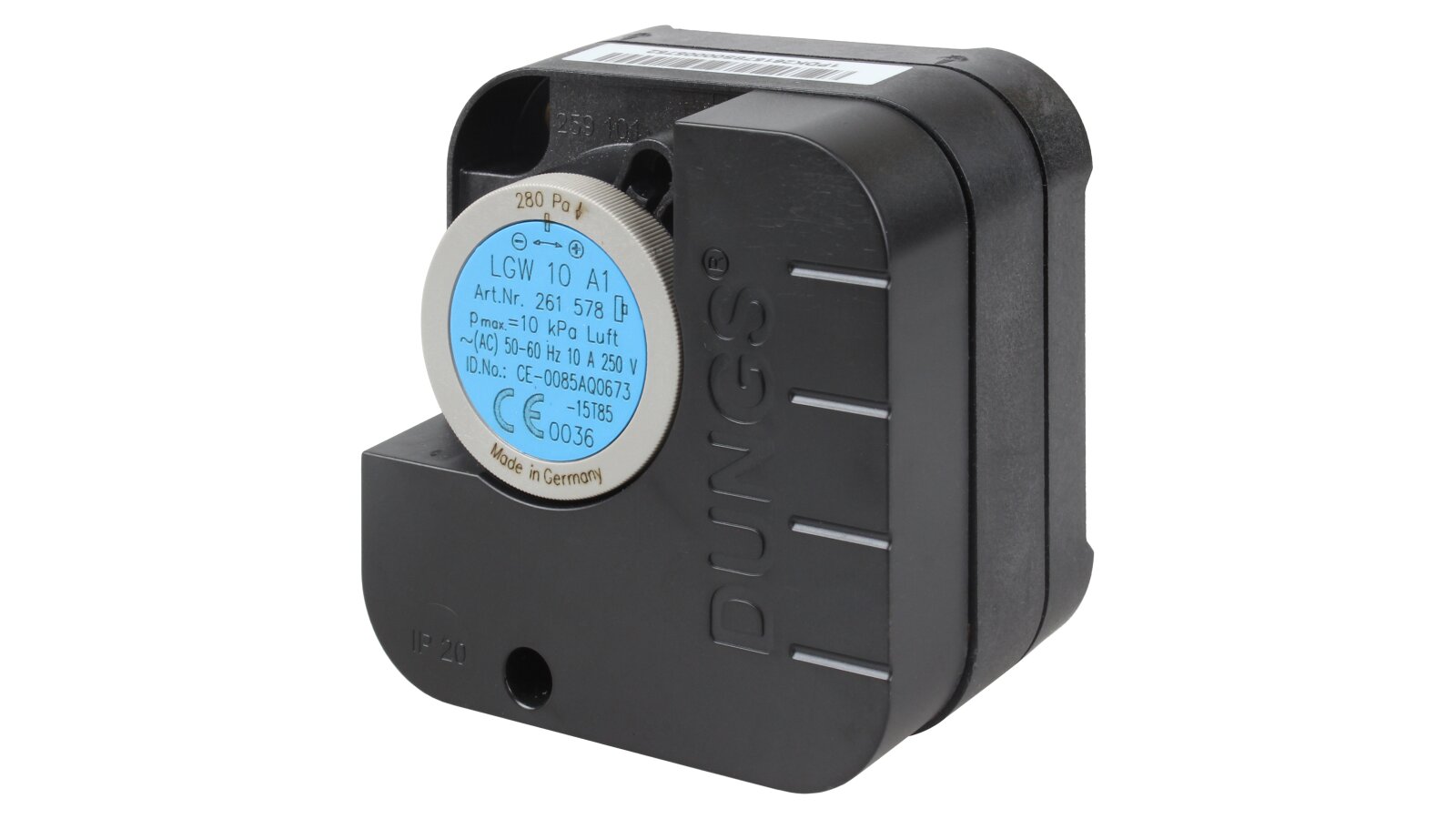

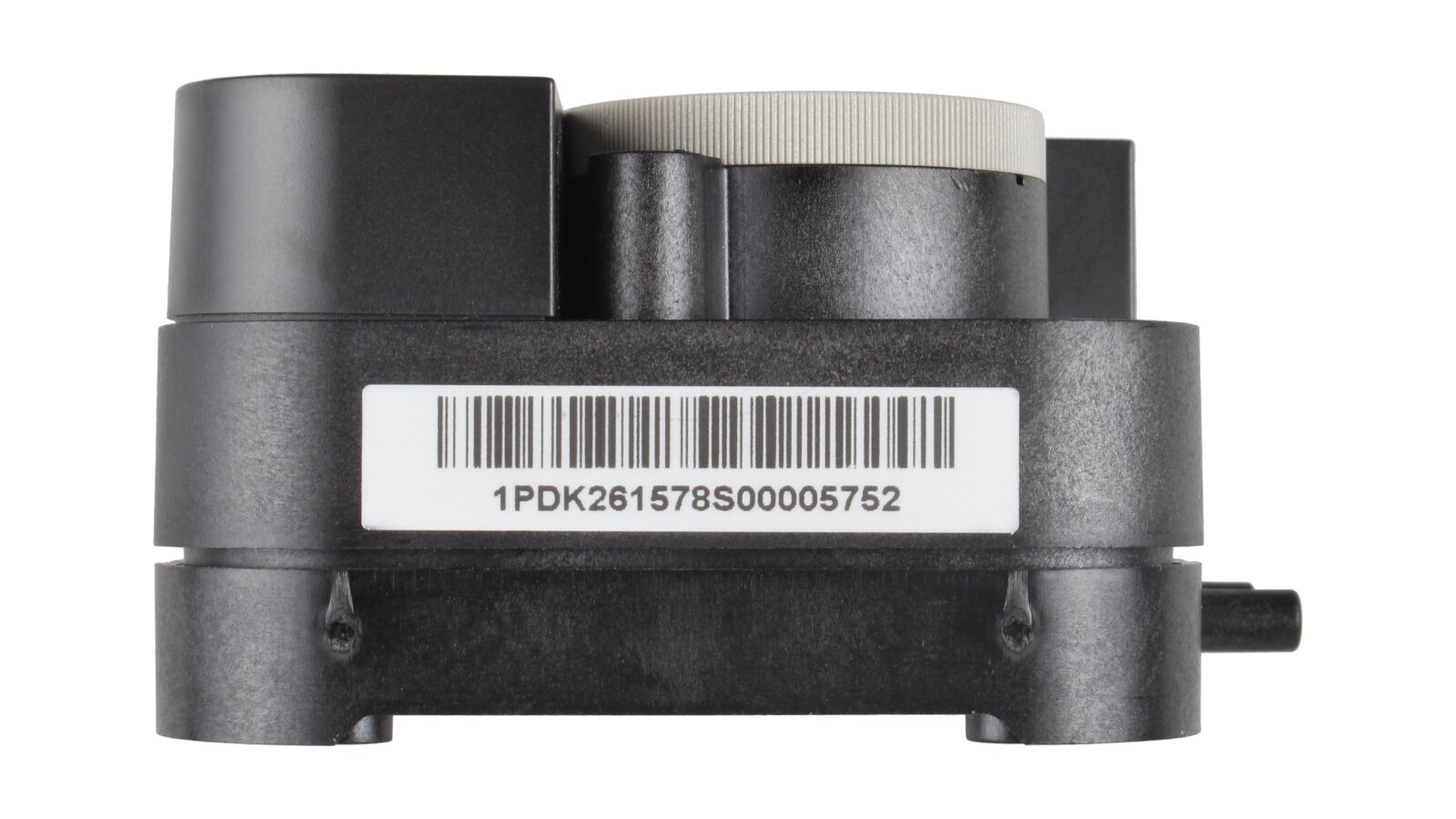

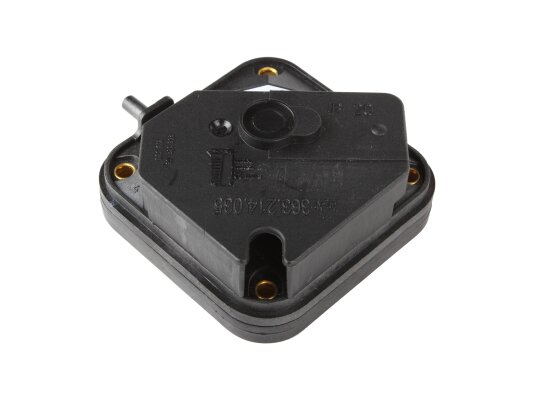

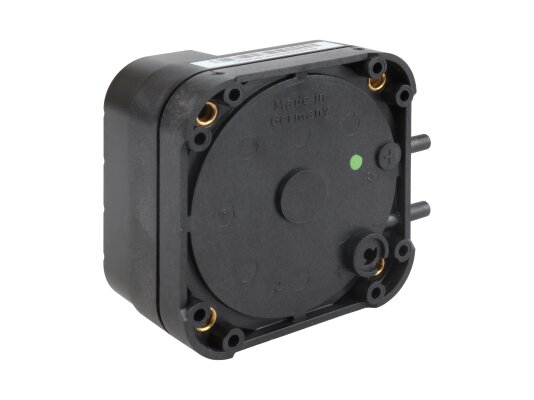

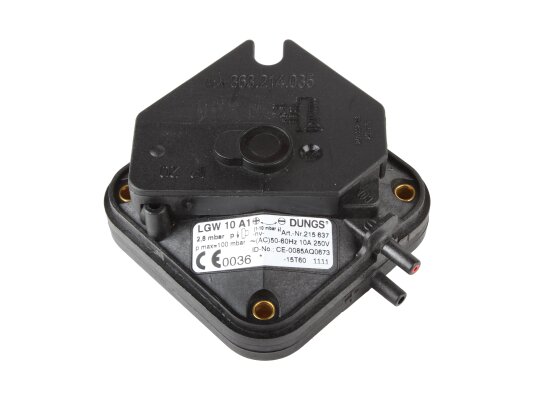

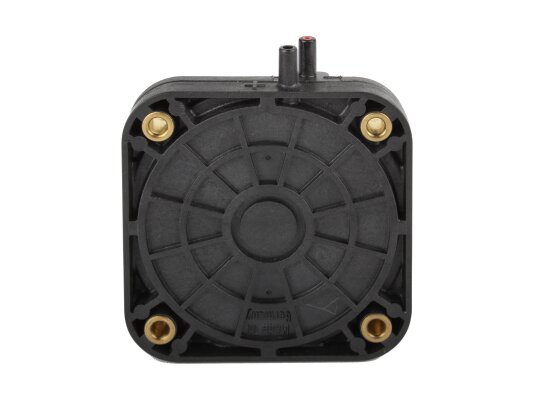

Pressure switch Dungs LGW 10 A1

To equip automatic gas and air pressure control systems, we offer to buy the Dungs LGW 10 A1 pressure relay. The certified device is used for various types of control: differential pressure, discharge pressure, vacuum pressure. It is installed in gas boiler safety systems, ventilation and air conditioning devices. The sensor is supplied with a pre-set response pressure.

Characteristics

• Supply pressure (maximum): 100 mbar.

• Controlled environments: air, non-aggressive non-flammable gases.

• Adjustment in the range: 1-10 mbar.

• Response within: 0-0.5 mbar.

• Basic pressure setting: 8 mbar.

• Operating temperature: -15…+85 °C.

Features

The differential sensor-relay operates in the range of excess and reduced pressure. The switching device is triggered when the set parameters are met, which leads to switching on/off/switching of contacts in the electrical circuit. A screw is provided for adjusting the factory setting of the trip point.

The main feature of the Dungs LGW 10 A1 pressure switch is precise, stable operation, which is due to the use of a special uninterruptible switching system.

The product is made of polymer material (housing, contact fuse and switch) and butadiene-nitrile rubber (working membrane). The height of the device is 44 mm.

The degree of electrical protection corresponds to the IP20 standard (contact fuse, without a device for relieving the wire from strain).

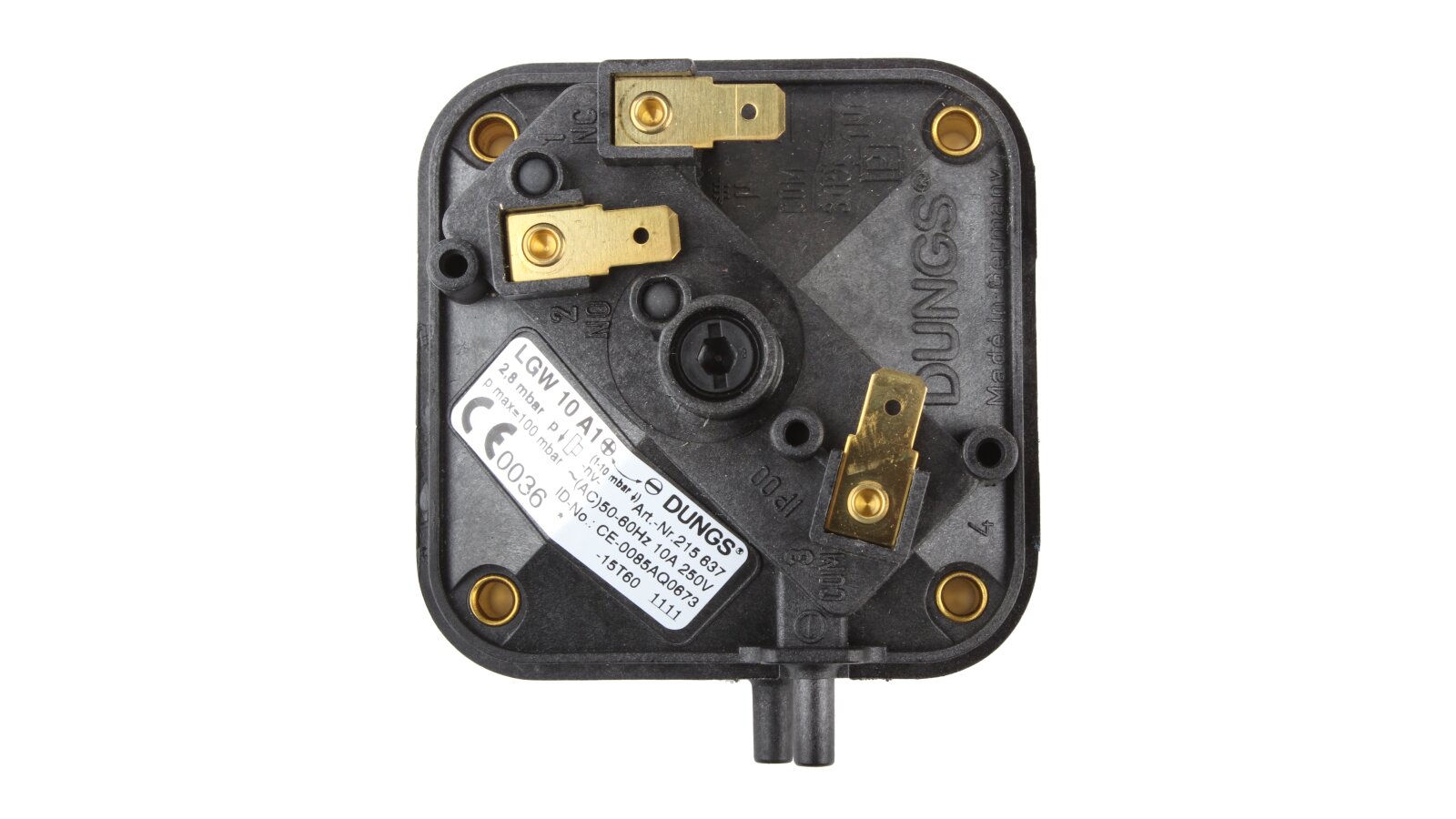

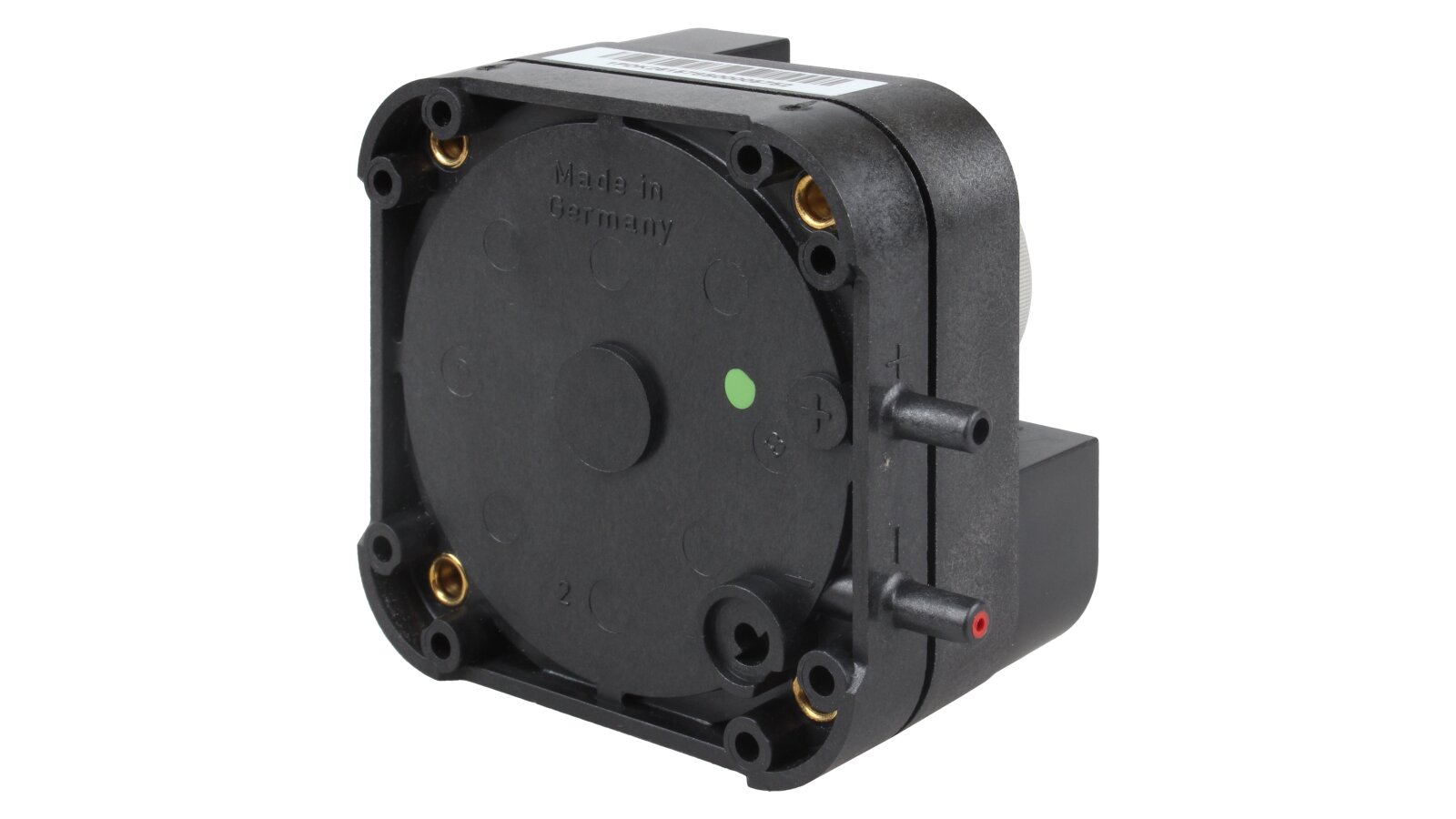

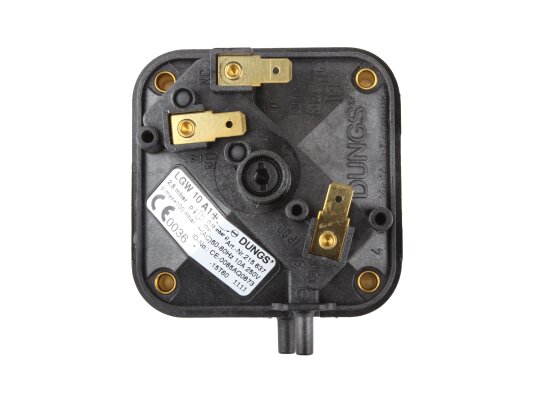

Connecting nipples for impulse hoses are provided. Electrical connection - 3-pin, FASTON 6.3x0.8 mm.

Advantages:

• factory setting of the response pressure;

• precise, uninterruptible operation;

• wide range of applications;

• protection from contact;

• possibility of changing parameters;

• use for various types of control;

• compact design.
