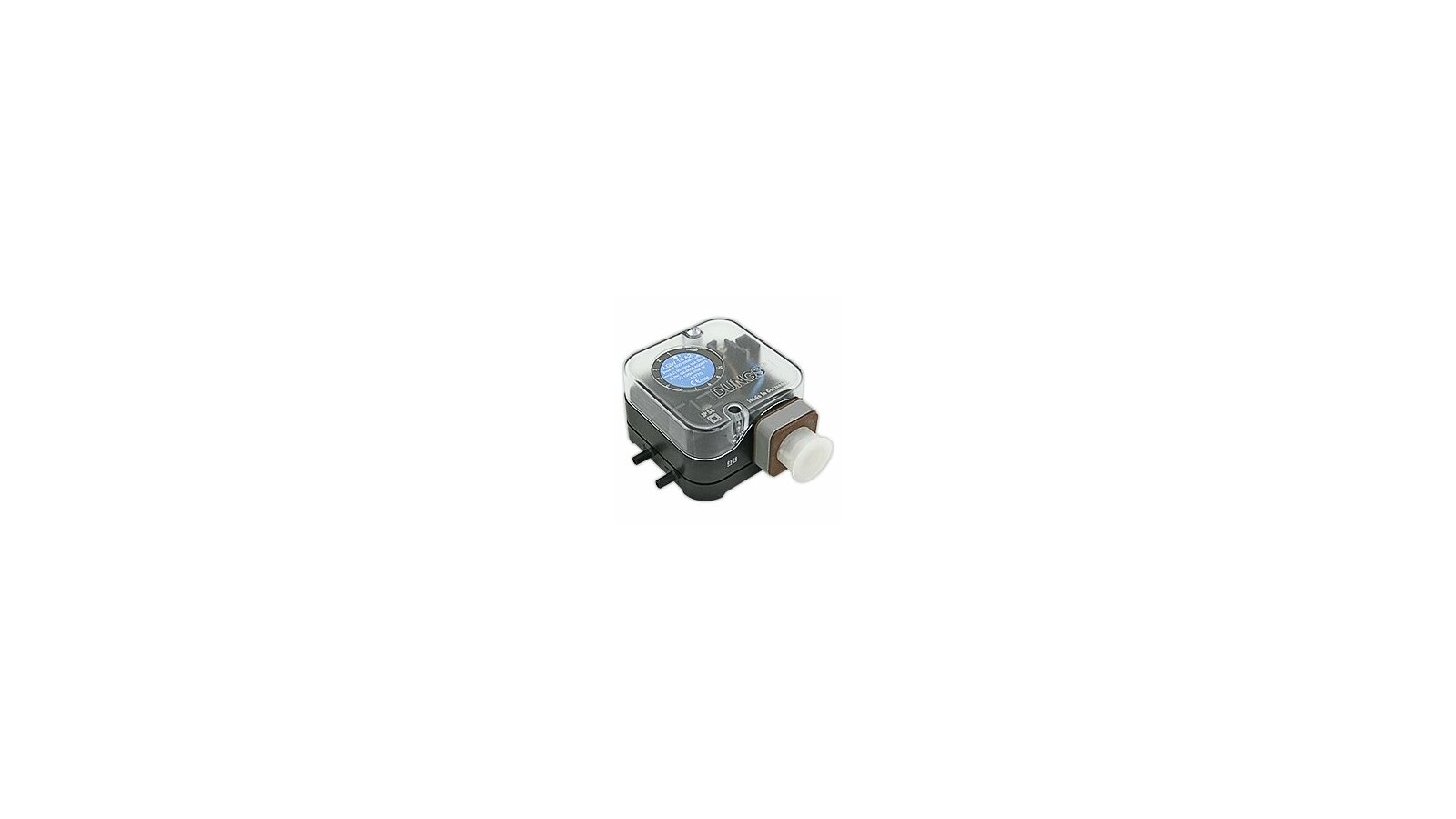

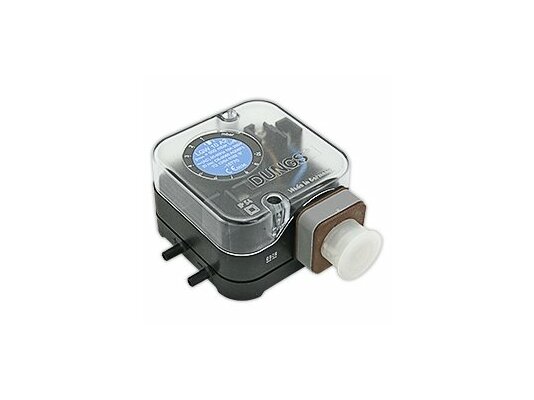

Pressure switch Dungs LGW 10 A2 G3
Alternative Part Number
Lamborghini
04041910
Oilon
37175069
About product
Go to descriptionAED 480
Description
The Dungs LGW 10 A2 G3 pressure switch is one of the elements of the gas supply safety system. The device ensures control of the differential pressure of the working environment, suitable for equipping burners of many brands. The universal device can also be used as part of air conditioning and ventilation systems.
Main parameters
Class: S in accordance with EN 1854.
Maximum working pressure: 500 mbar.
Working environment: air, non-aggressive gases (except flammable gases).
Setting in the range: 1-10 mbar.
Differential: 0-0.5 mbar.
Operating temperature: -15°C to +70°C.
Design and operating principle
The differential switch operates in the range of excess and reduced pressure. The switch responds to an increase/decrease in the set pressure value. When the set parameters are reached, the contacts close and a signal is transmitted to the control unit.
To adjust the relay, there is an adjustment ring and a scale with numbers.
Accurate operation occurs due to a highly sensitive NBR membrane. The small case is made of high-quality polymer material, protects the internal "filling" from dust, moisture and mechanical impacts (class IP 54). At the customer's request, it is possible to perform according to the IP 65 standard.
The Dungs LGW 10 A2 G3 pressure relay can be installed in any position. It should be taken into account that when installed in an orientation different from the standard, the operation will occur at a pressure higher / lower than the set one by ± 0.5 mbar.
Advantages:
Accurate operation due to a highly sensitive membrane;
Adjustment disk and digital scale for adjustment;
Low maintenance;
Reliable protection of electrical contacts IP 54;
Universal application.
The ANKAS company presents reliable German equipment and accessories for heating systems at affordable prices. All products are certified and are popular among consumers due to their impeccable performance, reliable operation, and long service life. Full information about the product is reflected in the specification.
