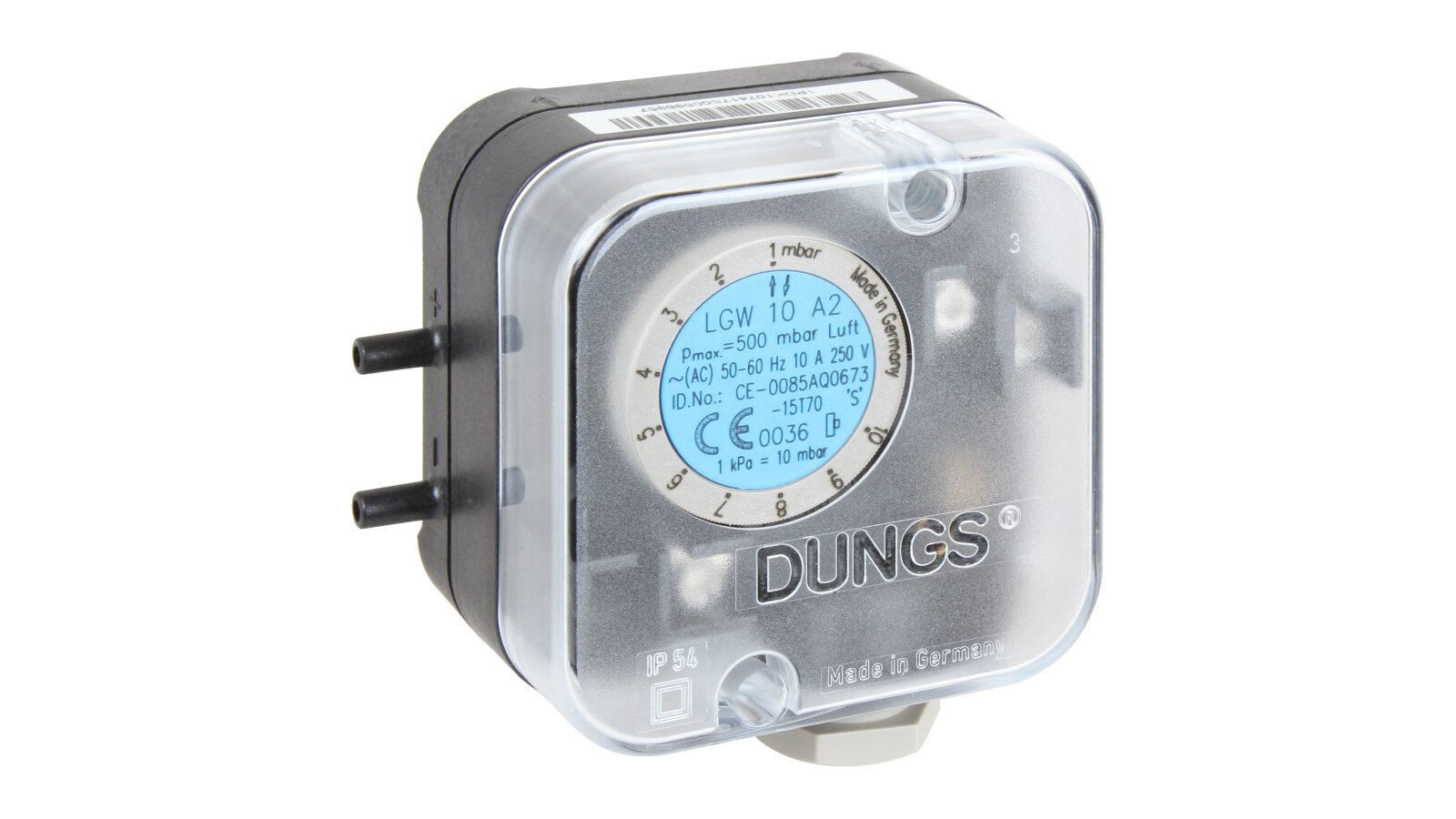

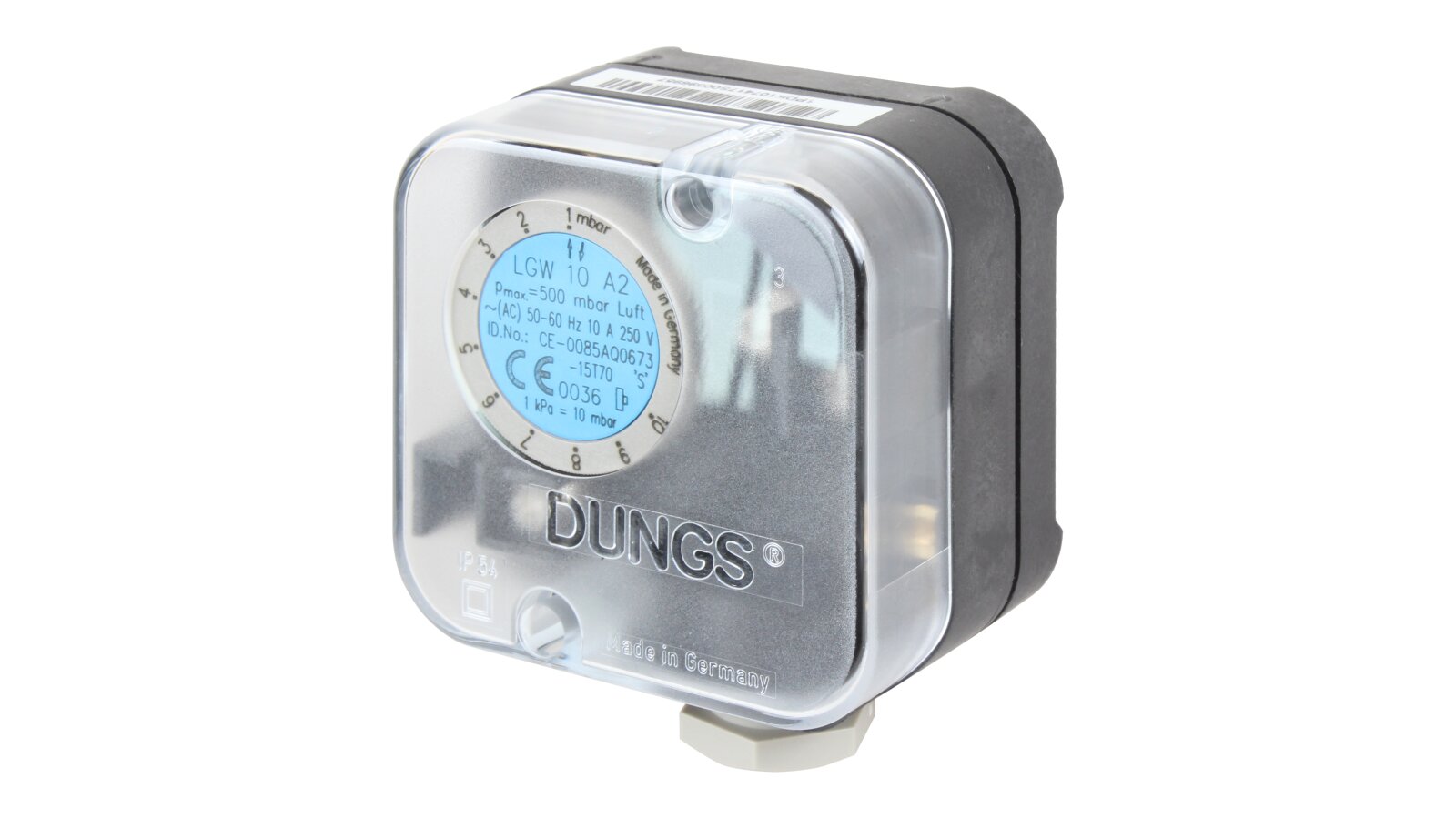

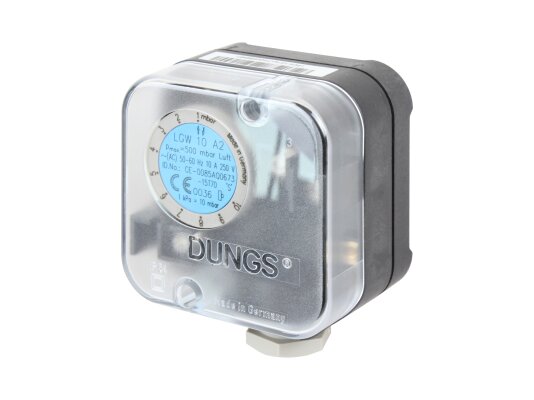

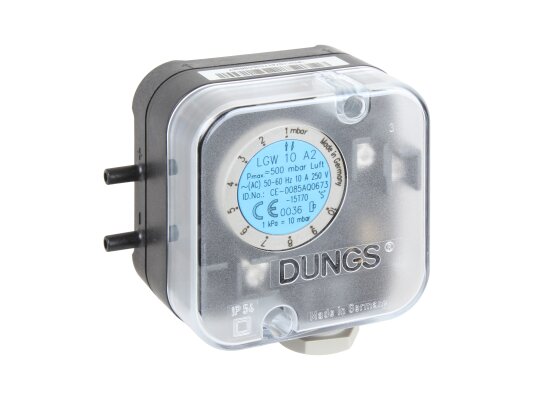

Pressure switch Dungs LGW 10 A2 M

The Dungs LGW 10 A2 M pressure relay is an adjustable device for completing safety systems and monitoring gas supply pressure in combustion units. It is characterized by its compact design, reliability and undemanding operation. It is used to monitor differential pressure.

Main characteristics

• Maximum permissible pressure: 500 mbar.

• Media: air, non-aggressive gases (except technical flammable gases).

• Adjustment range: 1-10 mbar.

• Response: 0-0.5 mbar.

• Class: S in accordance with EN 1854.

• Operating temperature: -15°C to +70°C.

Design and operating principle

The relay is used as a switching device when the pressure decreases or increases. Provides switching on/off/switching of electrical contacts and sending a signal to the control unit when the actual pressure changes.

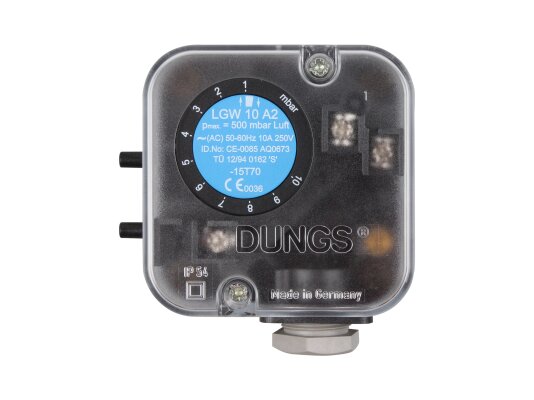

The switching point is selected by turning the adjustment wheel and the marking scale.

The relay is equipped with a highly sensitive NBK membrane. The compact housing is made of polycarbonate. The internal elements are reliably insulated, which prevents small splashes and dust from entering (IP 54 standard). IP 65 design is available upon customer request.

Installing the relay in a position different from the standard changes the response point. In this case, switching occurs at a pressure higher/lower than the set one by ± 0.5 mbar.

Advantages:

• wide range of applications;

• uninterrupted service;

• sensitive membrane;

• easy installation;

• adjustment disk with scale;

• protection according to IP 54 standard;

• compact design.

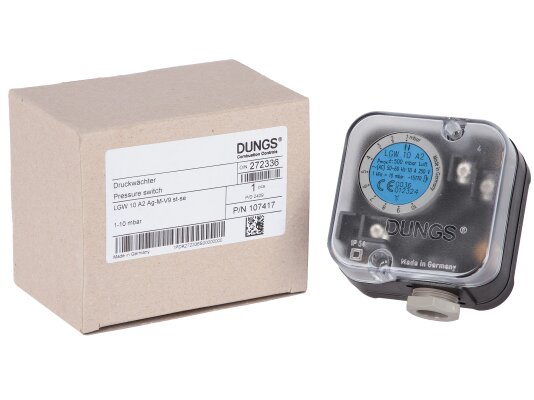

For installation in burners of many brands, including Lamborghini, Baltur, Elco, Weishaupt, Riello, we offer to buy a pressure switch for the Dungs LGW 10 A2 M pump, article 272336, at the best price. Detailed information about the product is reflected in the manufacturer's specification and installation and operating instructions.
