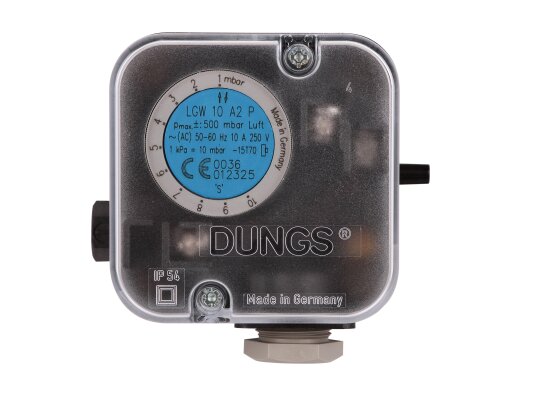

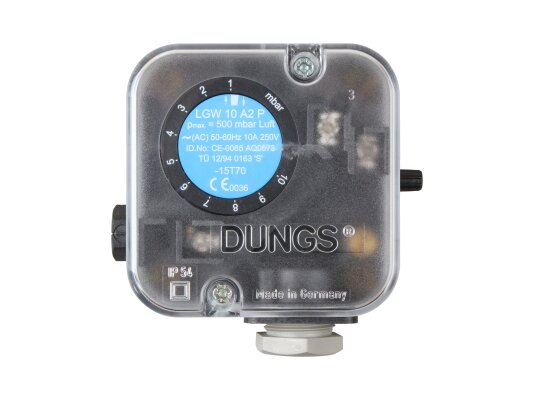

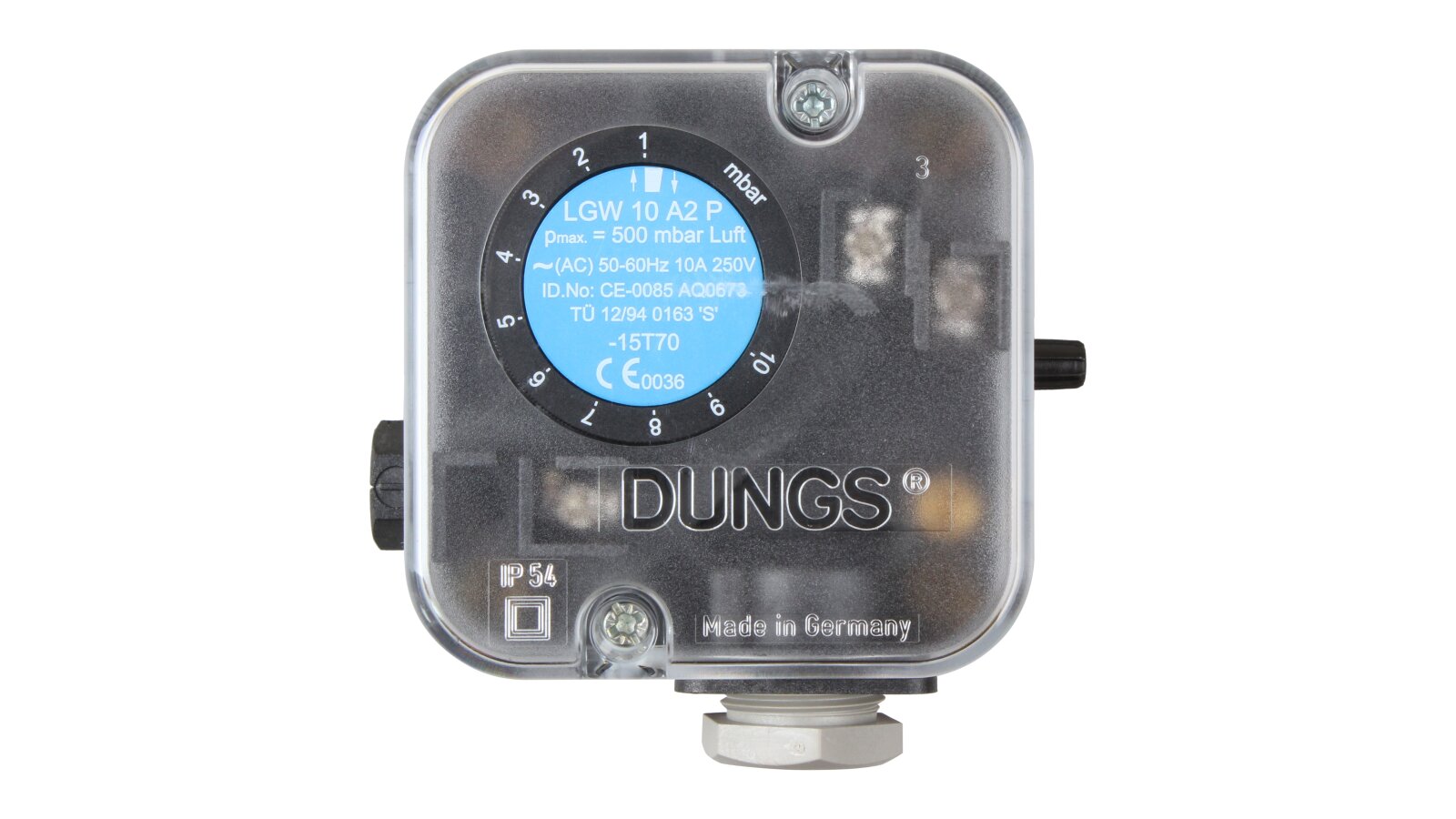

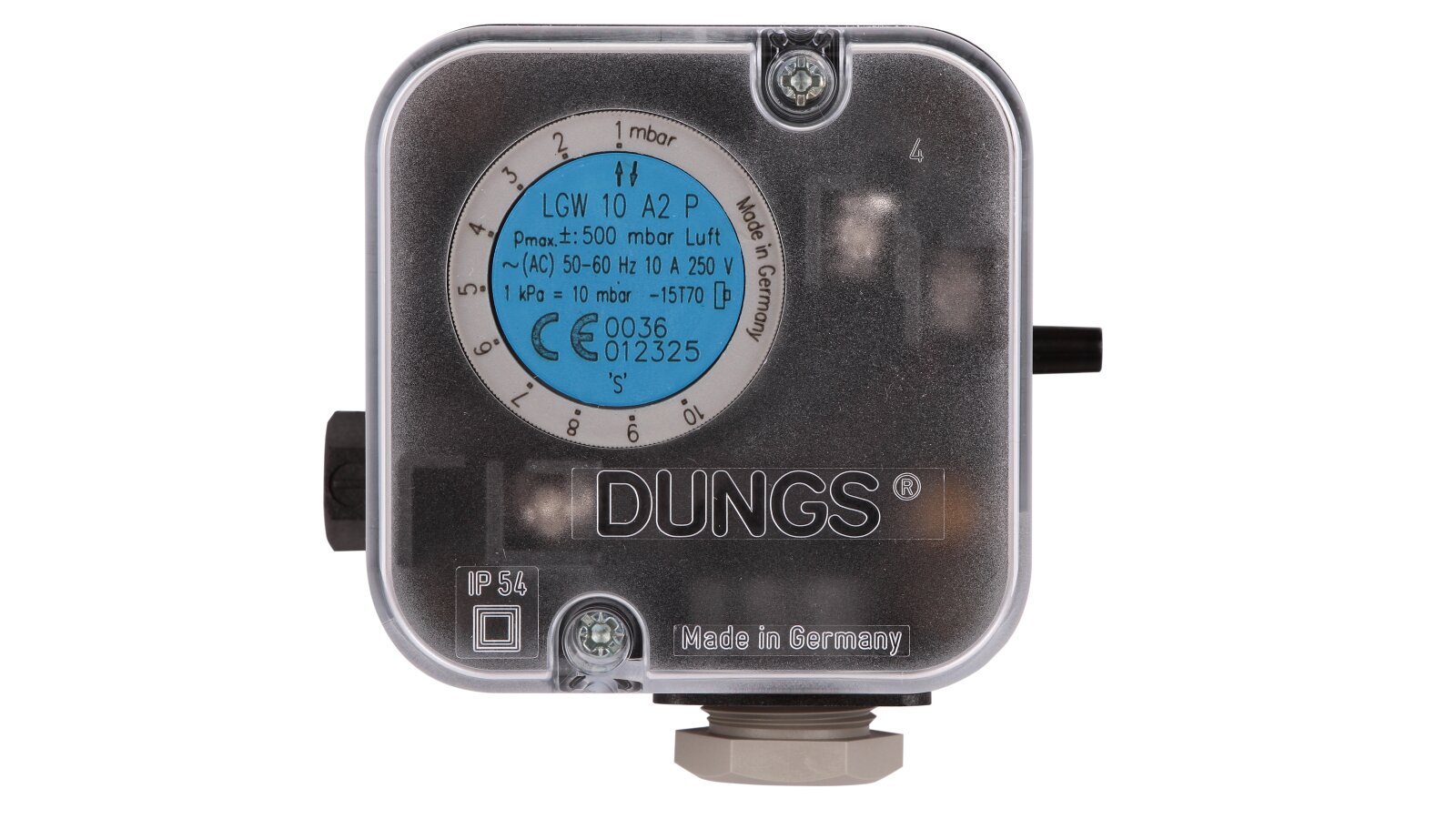

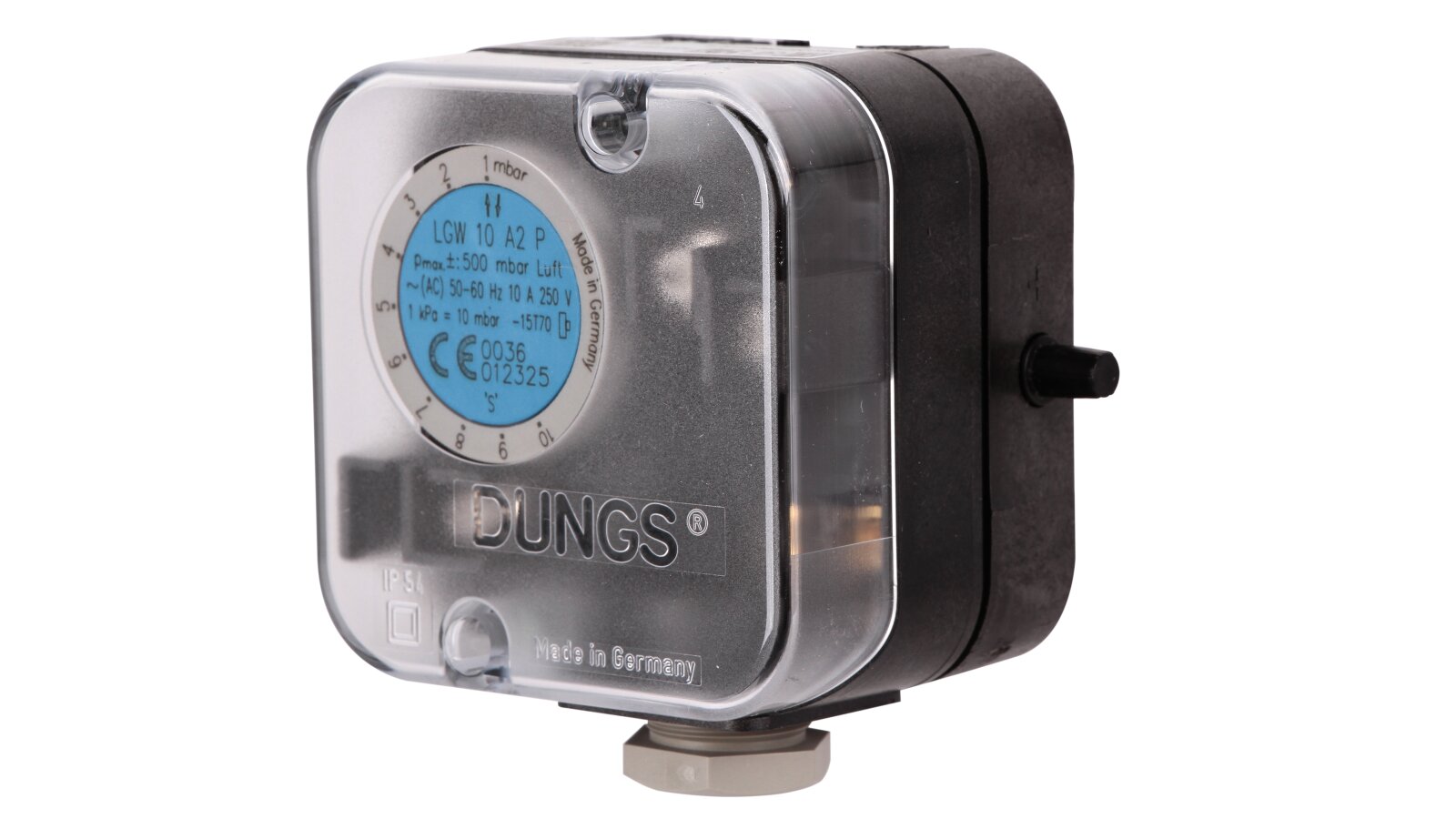

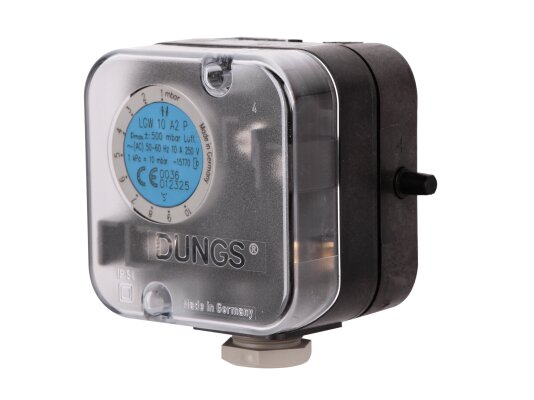

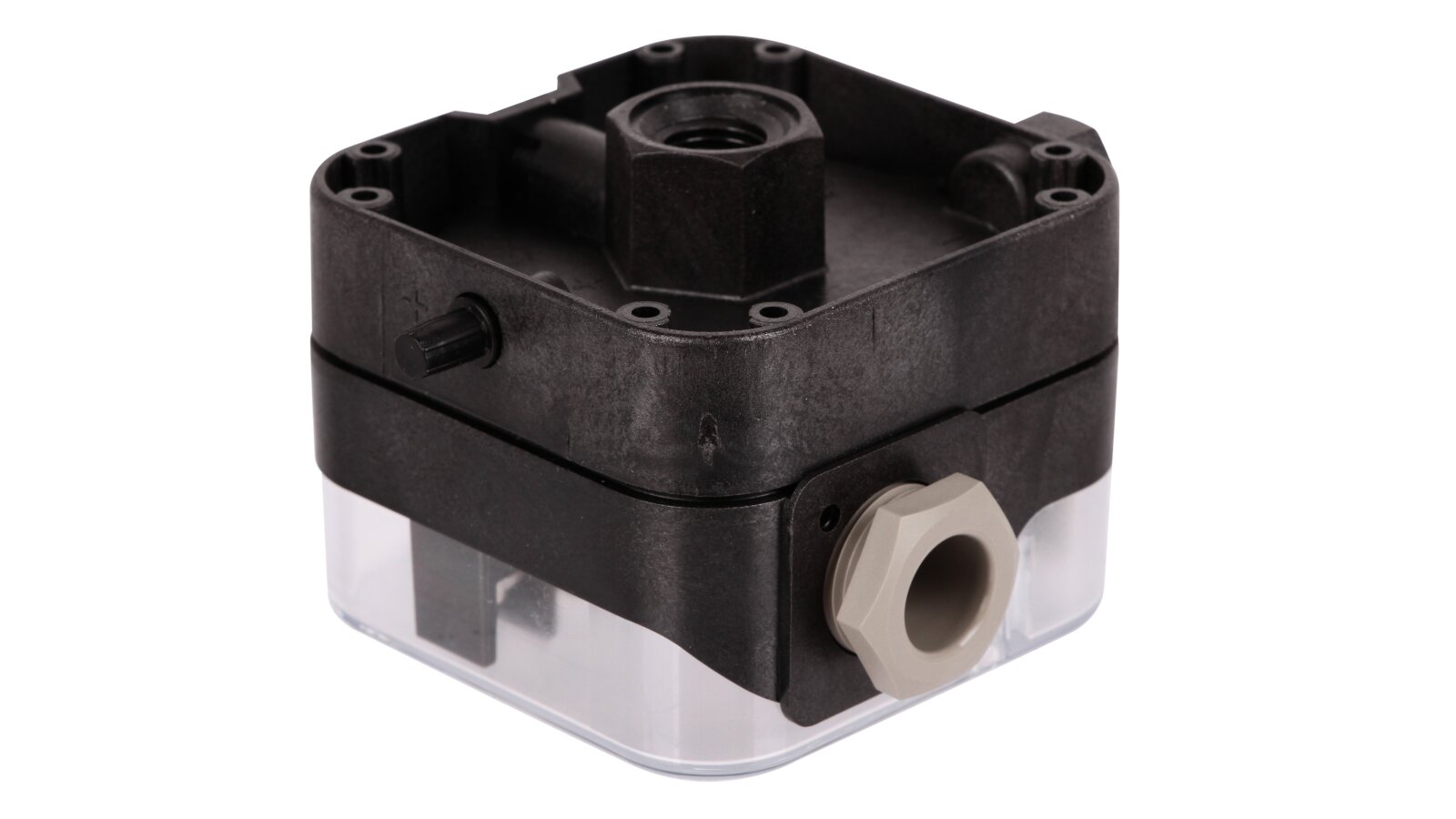

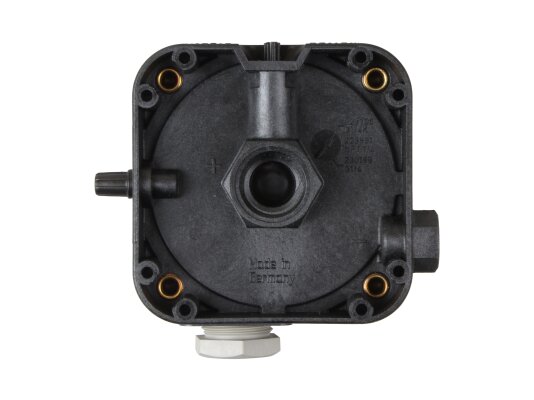

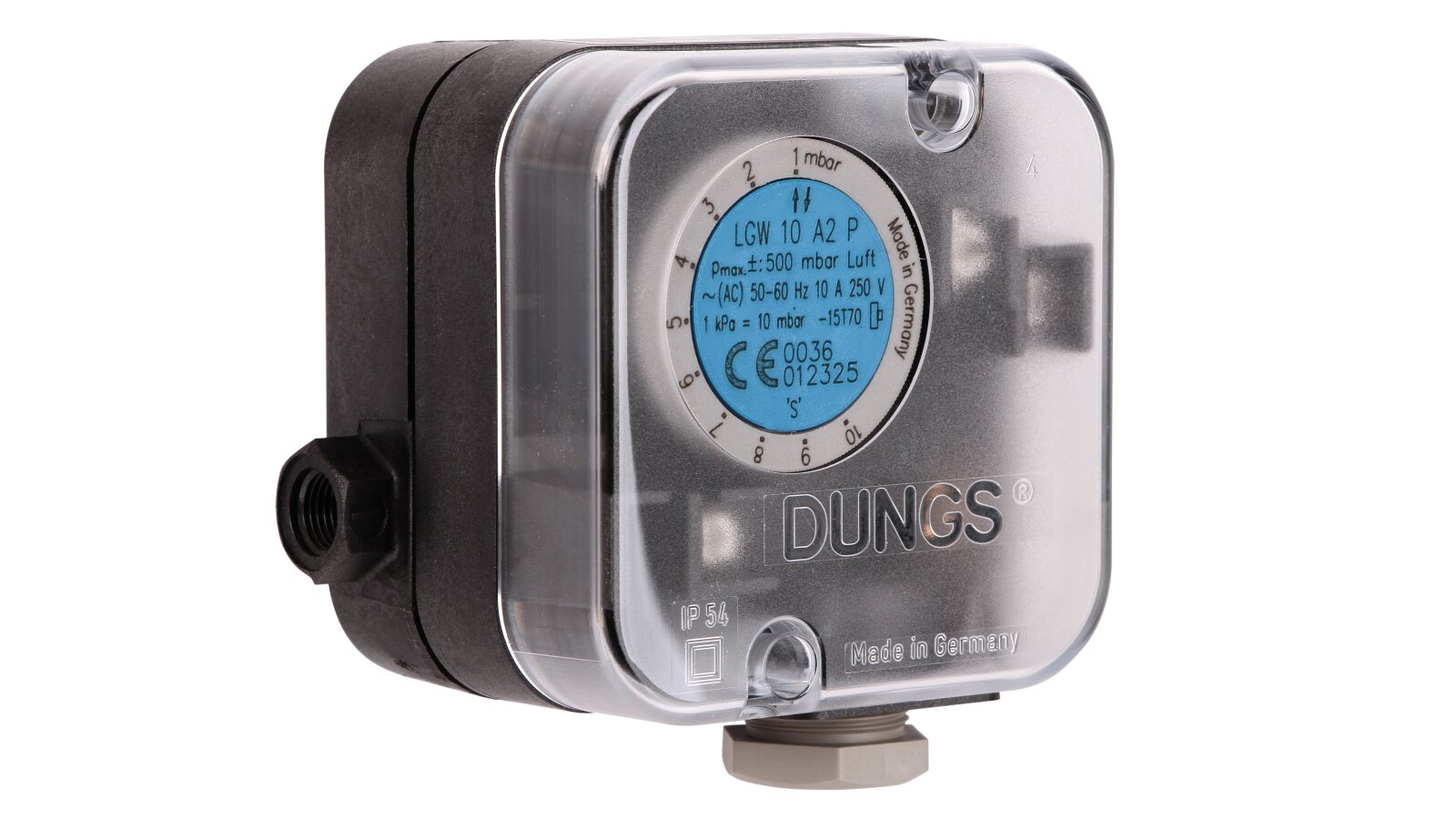

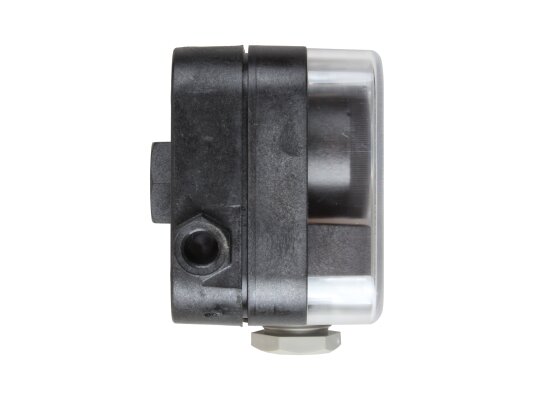

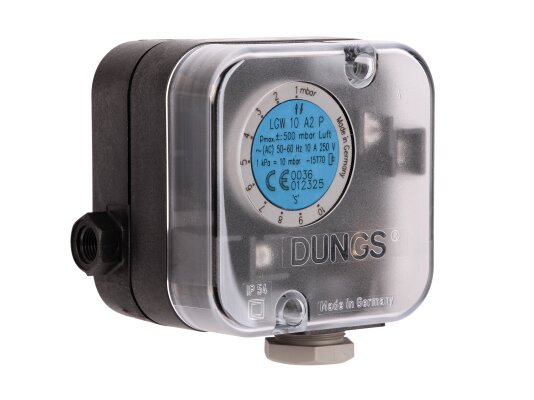

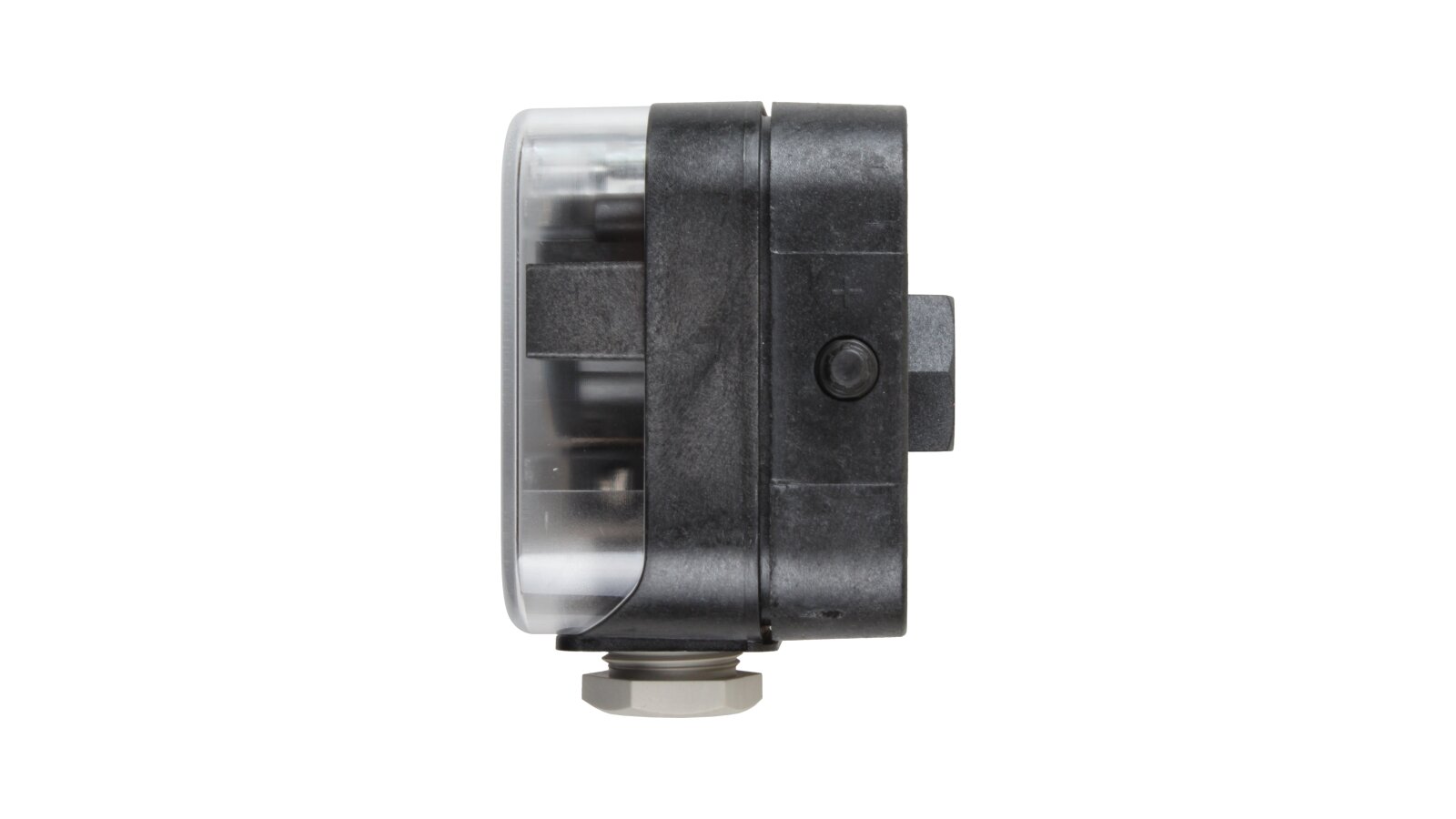

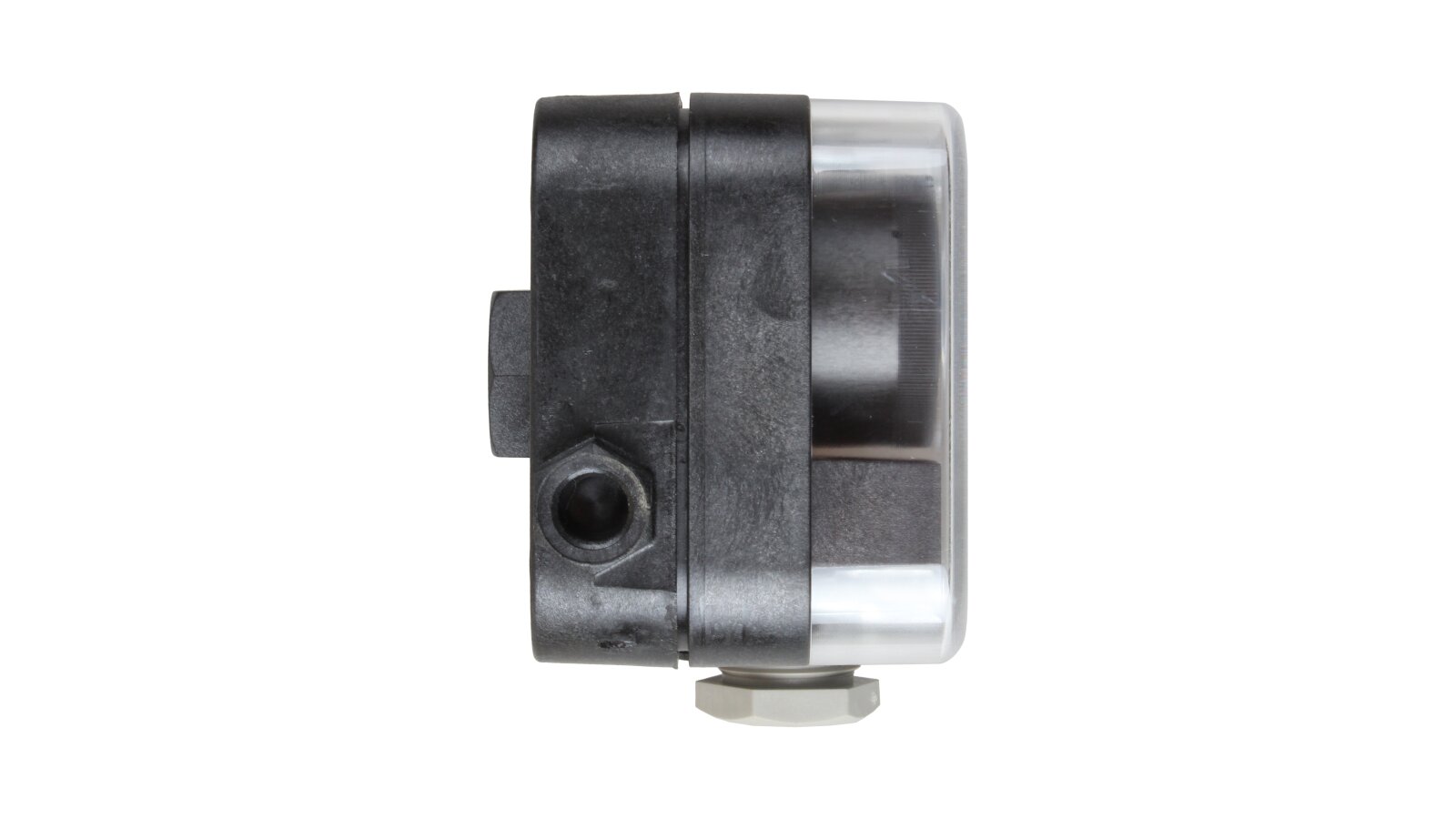

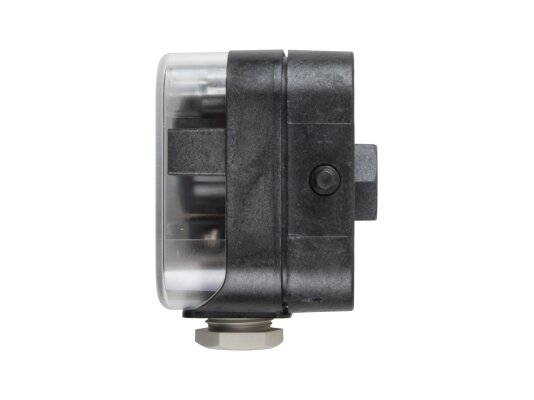

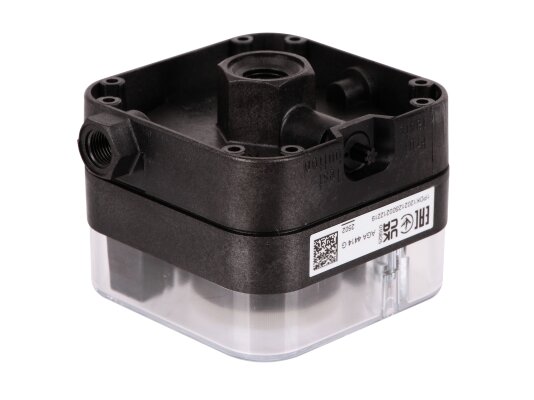

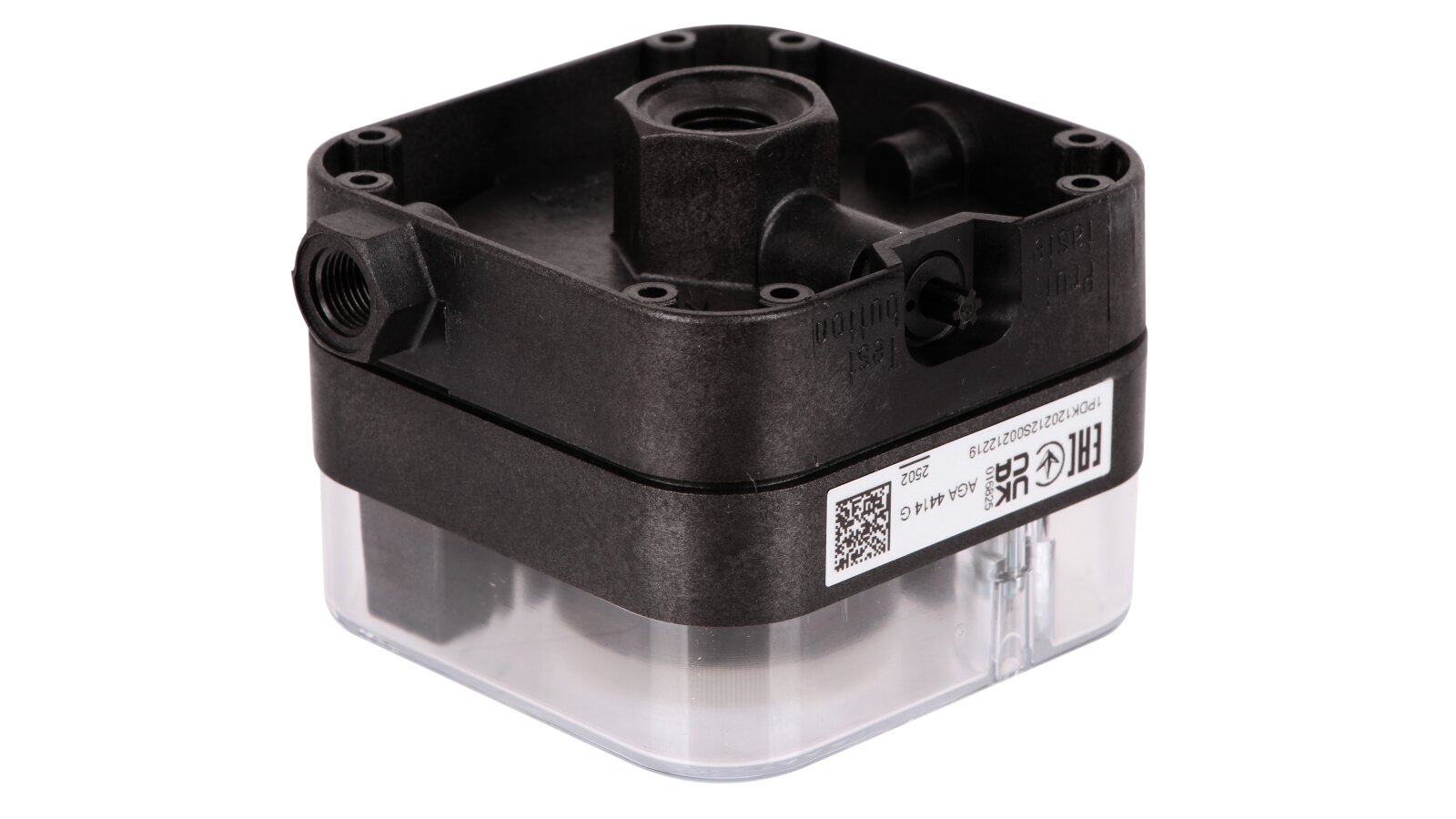

Pressure switch Dungs LGW 10 A2P

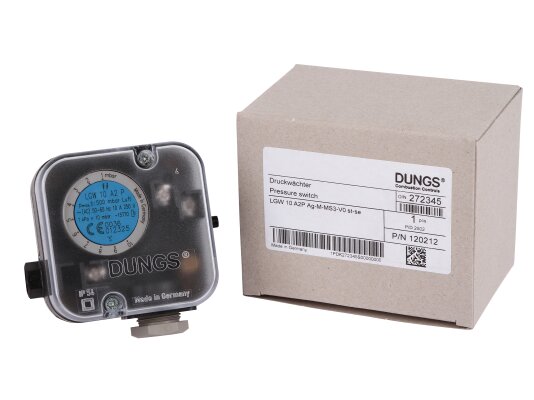

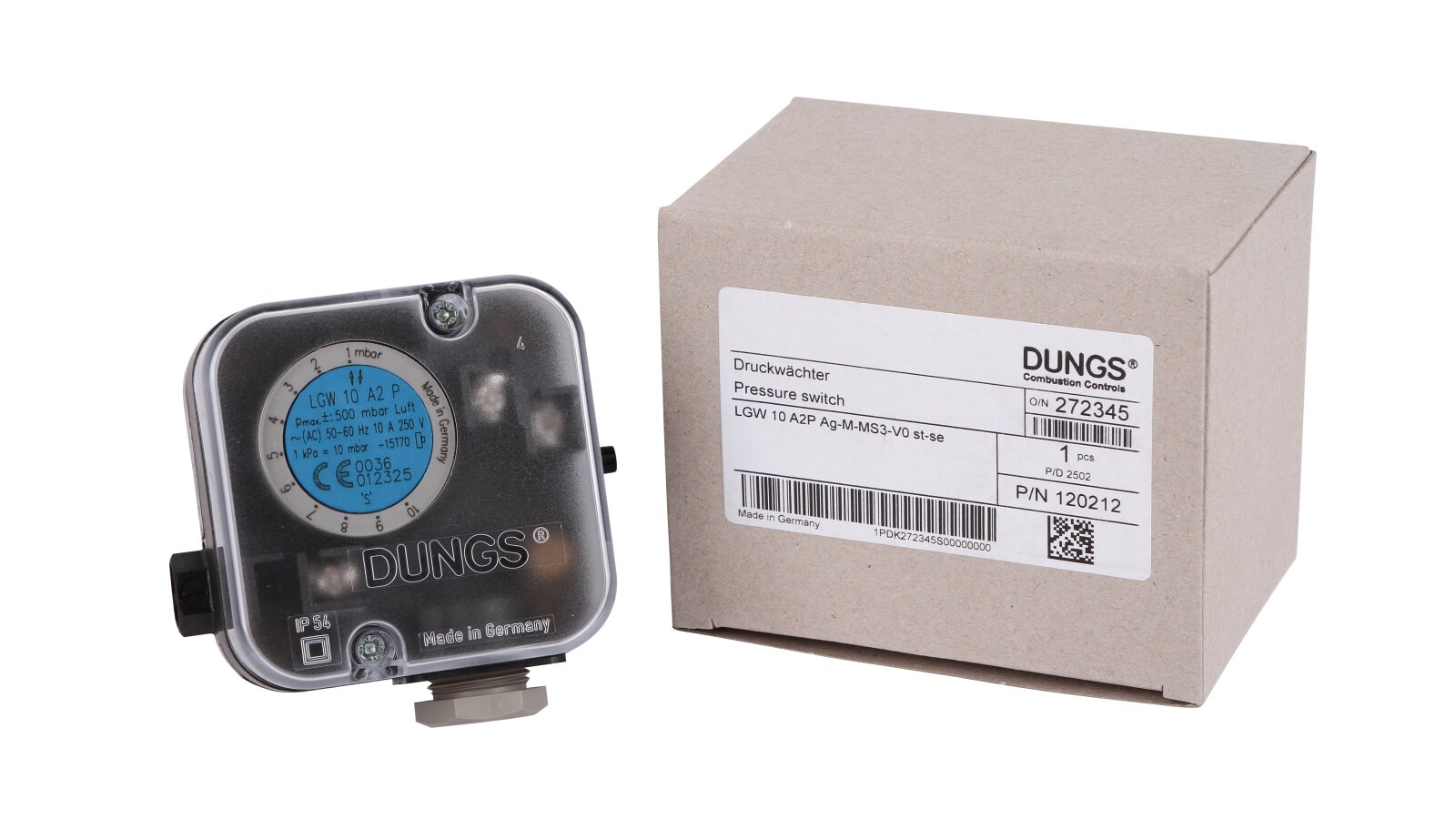

The Dungs LGW 10 A2P pressure switch, article 272345, is designed to monitor differential pressure. A special feature of the device is the presence of a control button, which is used to check the safety function. The universal sensor is used in furnace units, ventilation and air conditioning systems.

Key features

• Maximum permissible pressure: 500 mbar.

• Media: air, non-aggressive gases (except technical flammable gases).

• Setting range: 1-10 mbar.

• Response: 0-0.5 mbar.

• Class: S in accordance with EN 1854.

• Operating temperature: -15°C to +70°C.

Design and operating principle

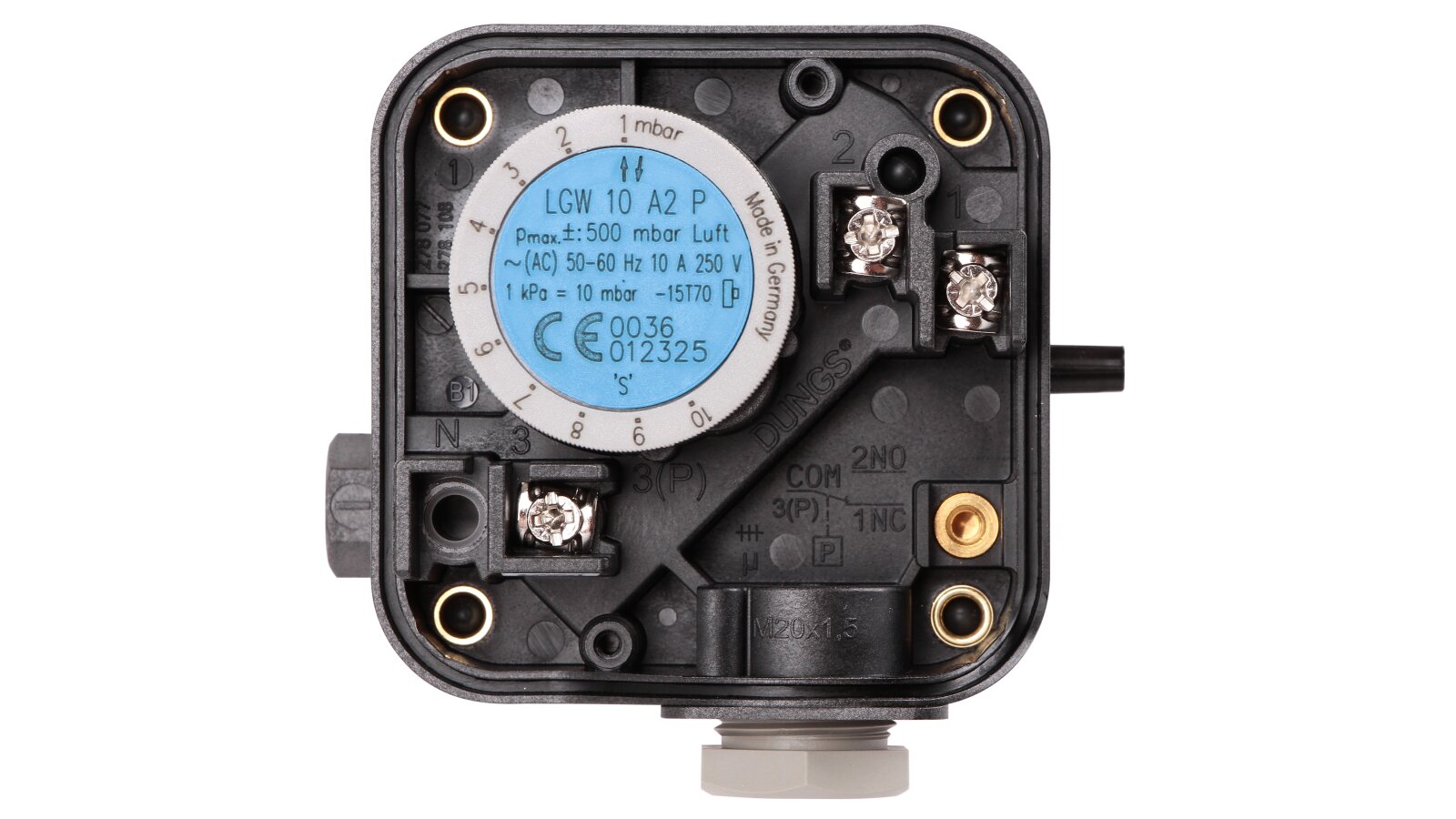

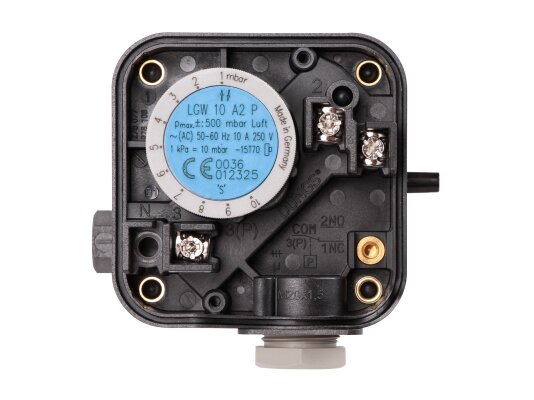

The switching device responds to differential pressure. The device operates by transmitting a signal to the control unit and closing the contact when the set pressure value increases or decreases. A rotary disk and a digital scale are provided for regulating the relay.

The relay is equipped with a highly sensitive membrane made of NBC. The housing made of high-quality polymer has compact dimensions and meets the IP 54 electrical protection standard. At the customer's request, protection can be increased to IP 65.

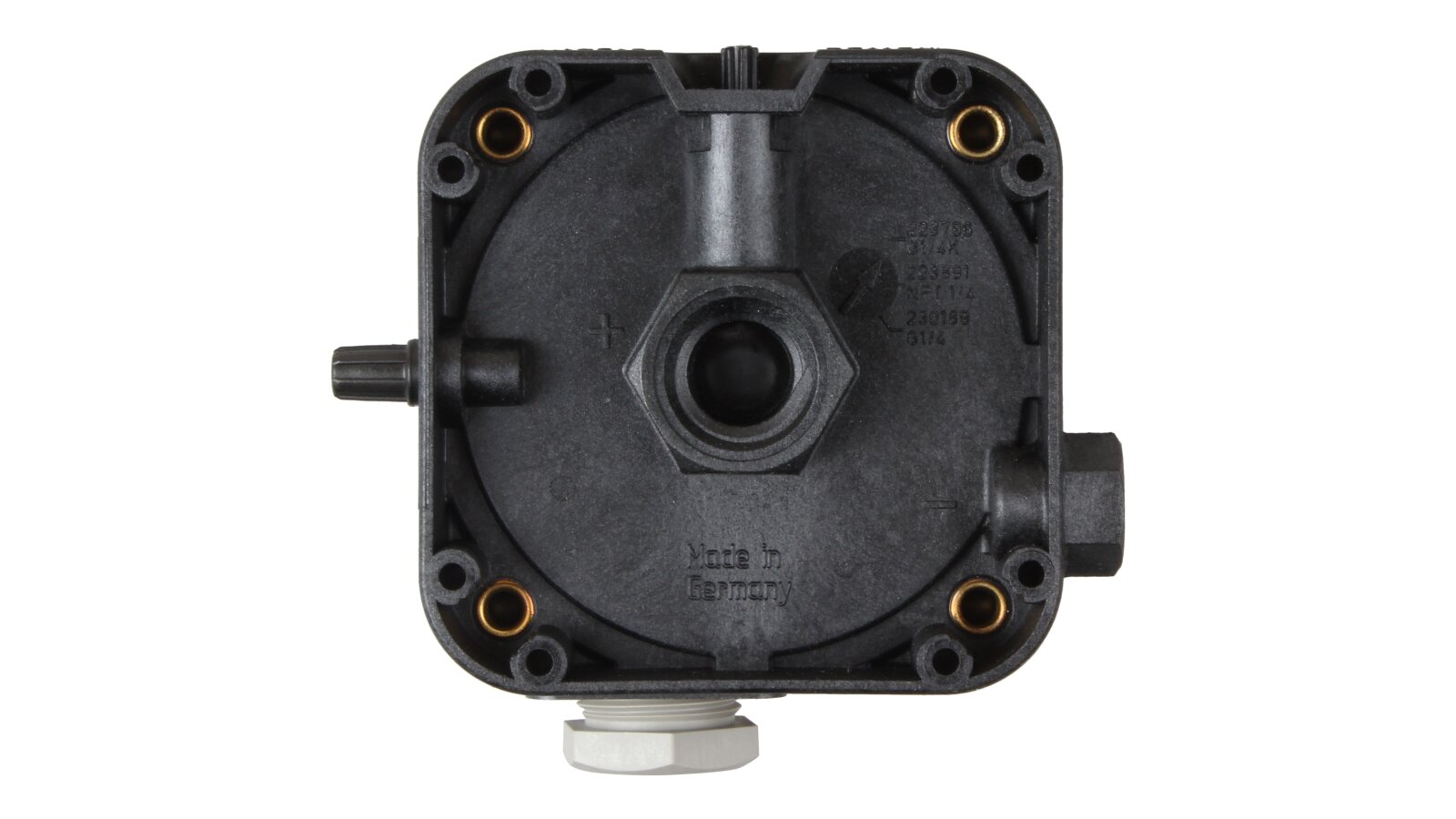

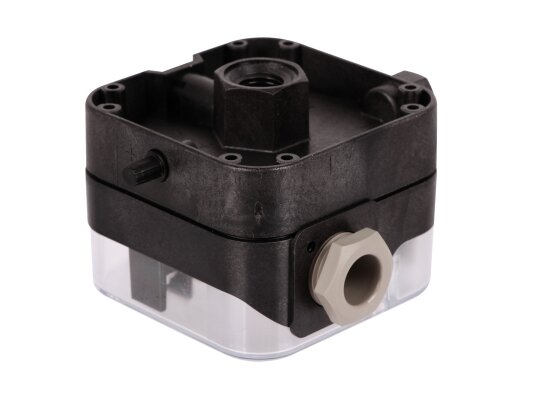

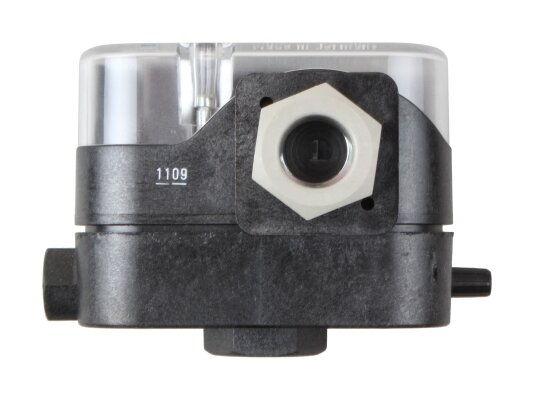

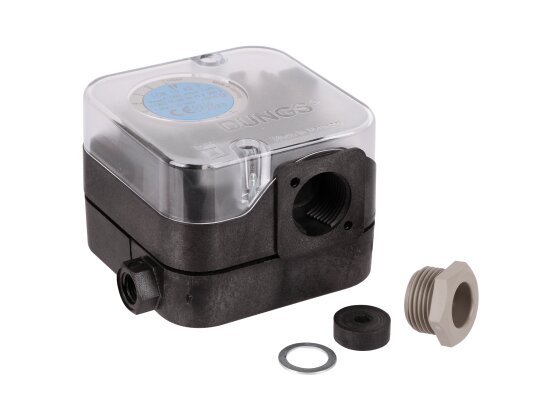

The relay is connected to the thread. The mounting position (recommended) is vertical. With any other orientation, the triggering will occur at a pressure higher/lower than the set one (maximum ± 0.5 mbar).

Advantages:

• control button;

• highly sensitive membrane;

• simple threaded connection;

• manual adjustment of the switching point;

• protection of electrical contacts according to the IP 54 standard;

• universal purpose.

In the ANKAS store, you can buy the Dungs LGW 10 A2P pressure relay and other components of the German brand with an optimal quality-price ratio. Detailed information about the model can be obtained from the attached instructions.
