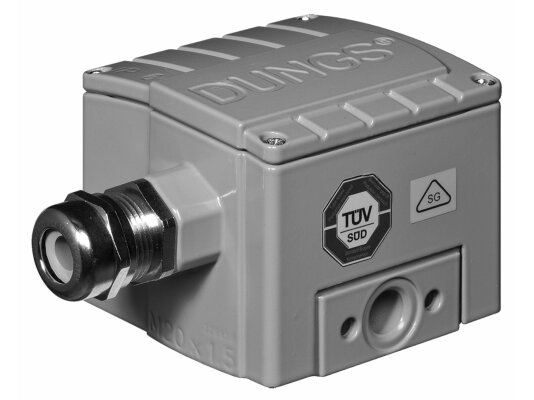

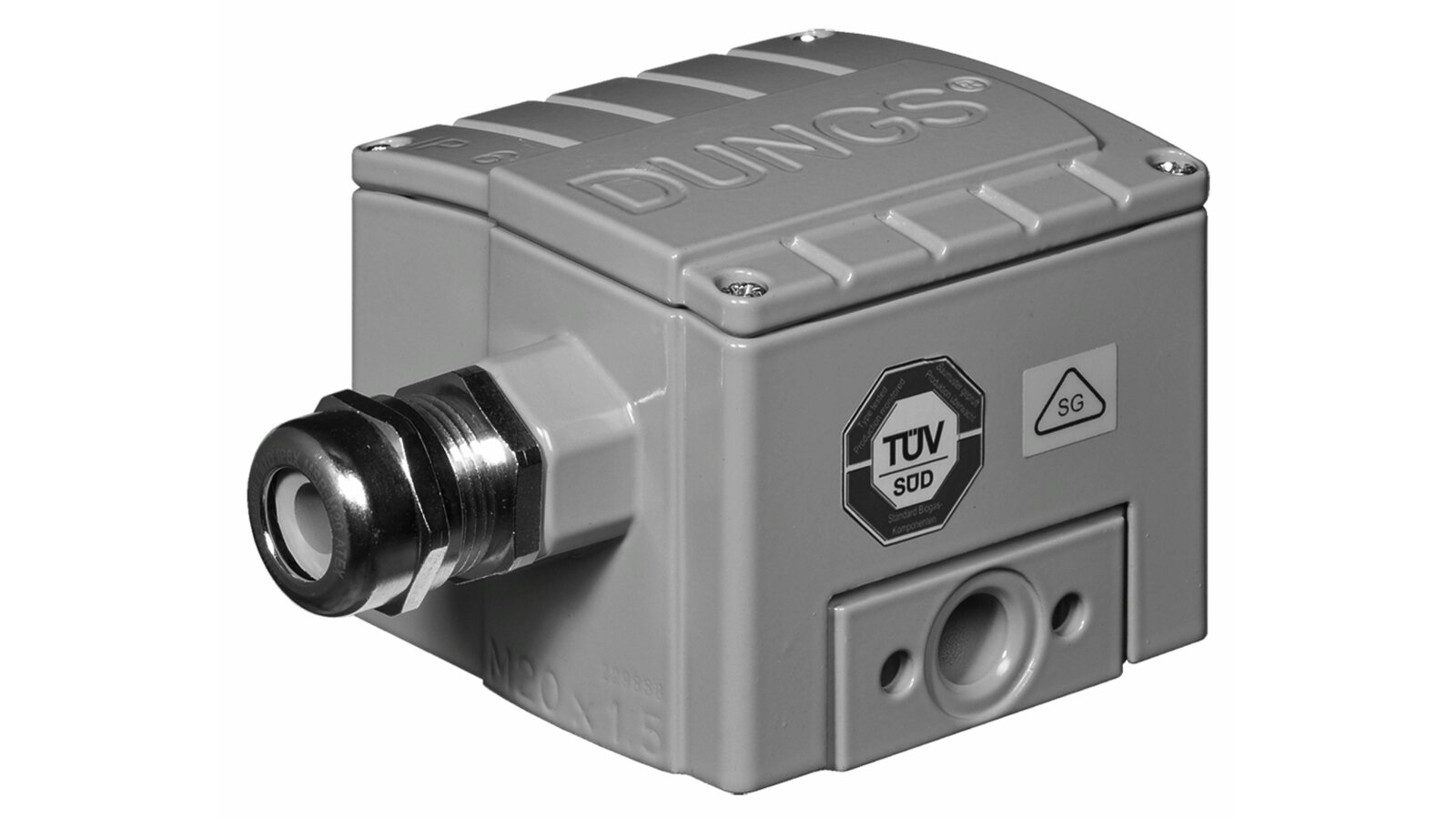

Pressure switch Dungs LGW 10 A4/2 M

Pressure switch Dungs LGW 10 A4/2 M, art: 232046 – adjustable device for assembly and uninterrupted operation of security systems and gas/air supply control during industrial installations. It features reliable design, compact dimensions, long service life, easy adjustment of response parameters. Designed to monitor differential pressure.

Features:

• controlled environment – ​​air, flammable gas;

• adjustment within 1 to 10 mbar;

• response range: from 0 to 0.5 mbar;

• maximum working environment pressure – 500 mbar;

• reliable corrosion-resistant design with metal housing;

• lower part made of die-cast aluminum;

• zinc cast casing with powder coating;

• protection of electrical contacts from dust, moisture class IP 65;

• polycarbonate switch;

• highly sensitive membrane made of NBR rubber;

• switching contact material – Ag;

• stable response at ambient and controlled environment temperatures from -15 to + 70 °C;

• electrical connection – cable entry M20;

• compact dimensions simplifying installation;

• convenient adjustment of operating parameters using a dial with a digital scale;

• measuring nipple in the device body;

• connection – internal thread Rp 1/4".

When installing the Dungs LGW 10 A4/2 M pressure switch, it should be taken into account that a deviation from the recommended position leads to a change in the response point.
