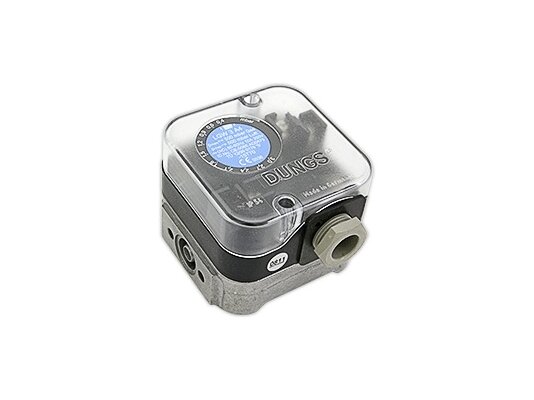

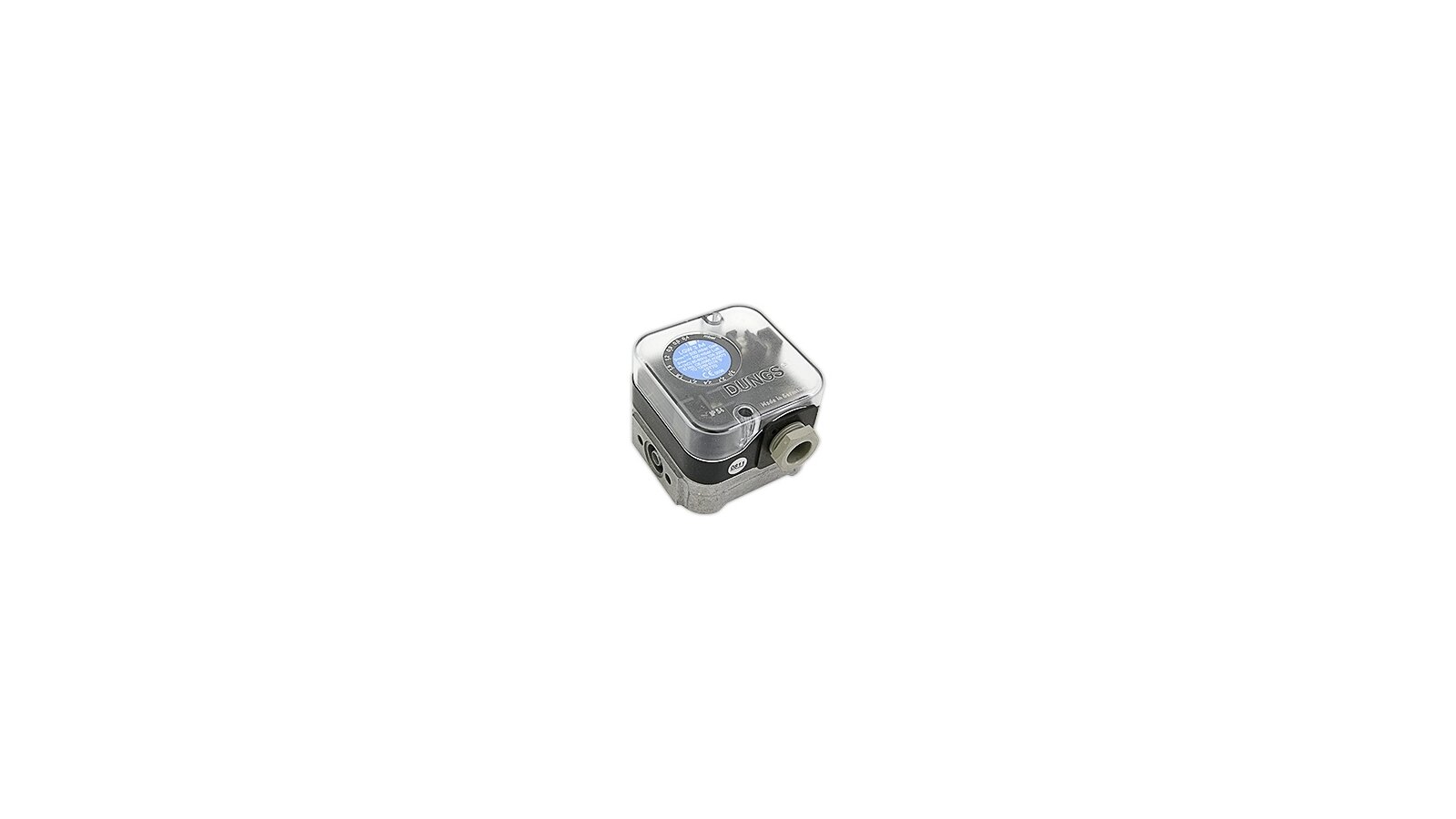

Pressure switch Dungs LGW 150 A4 M

The Dungs LGW 150 A4 M pressure switch is an important device in the gas system. It allows you to monitor pressure changes relative to the set values ​​for further signal transmission to the control units. The model is used for installations with a pressure of no more than 500 mbar.

Features

• The sensor has small dimensions and a robust design, protected from dust and moisture in accordance with the requirements of the IP54 standard. There is a transparent cover on top of the housing.

• The base is made of cast aluminum, the cover and switch are made of polycarbonate, the membrane is made of NBC, the switching contact is made of Ag. The design is designed for operation at temperatures of the external and working environment from -15 ° C to +70 ° C.

• The relay is easy to install in the system. When installing, it should be taken into account that with non-vertical placement (horizontal, inverted, diagonal), the response point shifts up to ± 15% relative to the set level. Details of installation and connection are set out in the manufacturer's instructions posted on the website.

• The selection of response parameters is allowed within 30–150 mbar using a circular regulator with a digital scale. The response range is 3 mbar

You can buy a Dungs LGW 150 A4 M pressure relay, article 272353, from us to complete most burners of well-known brands.
