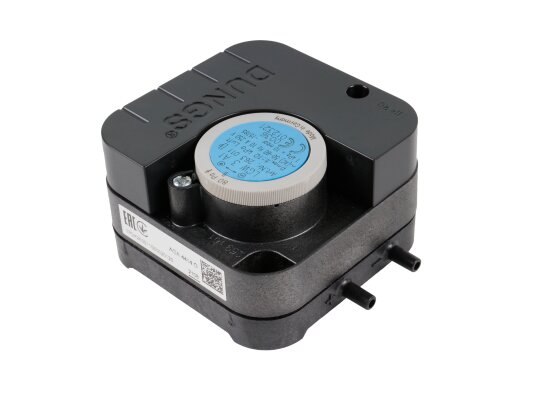

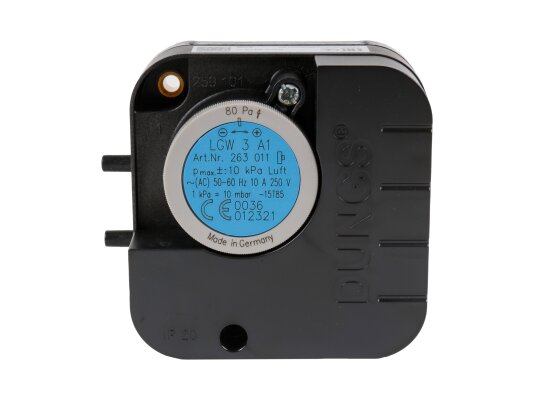

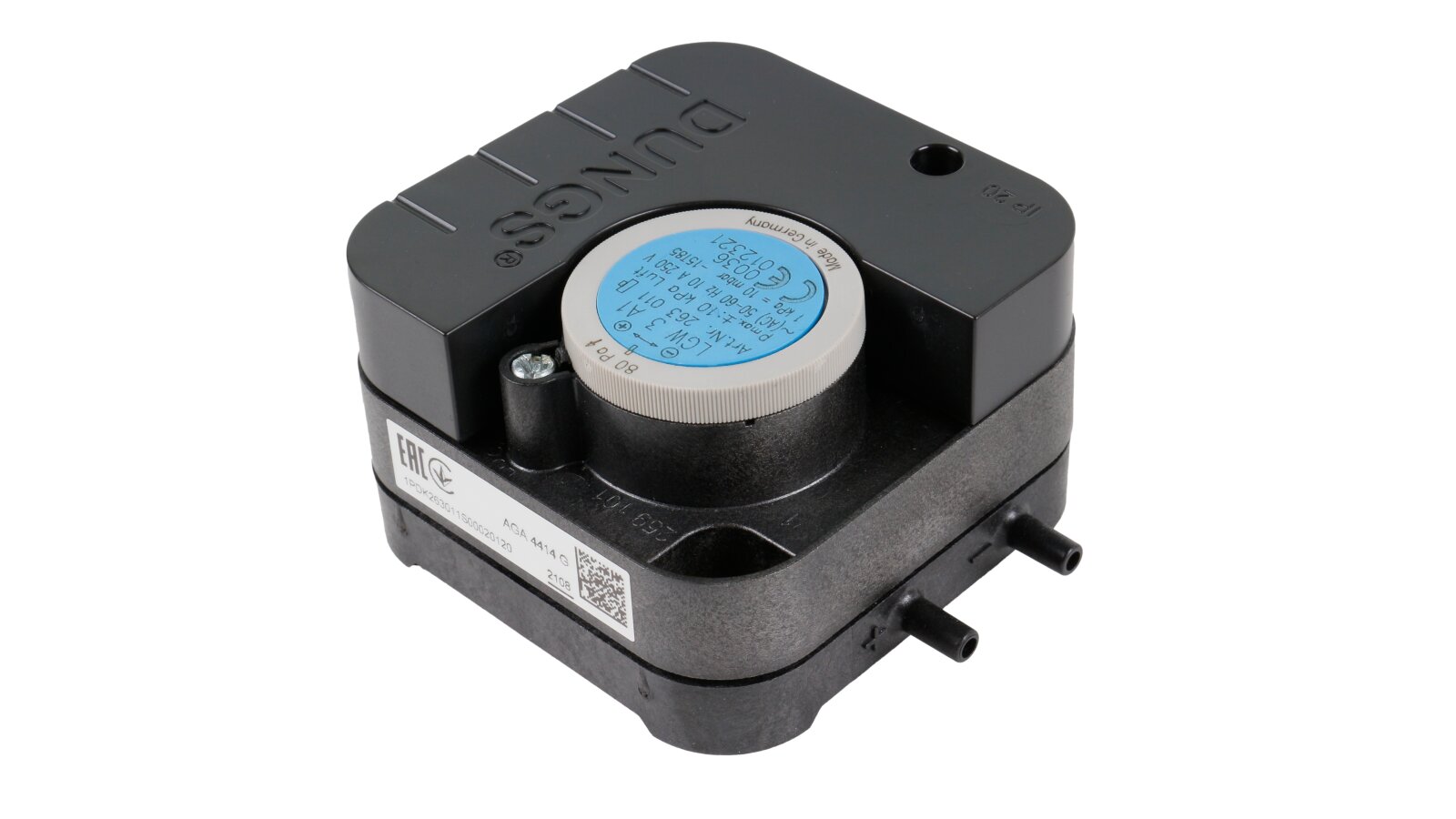

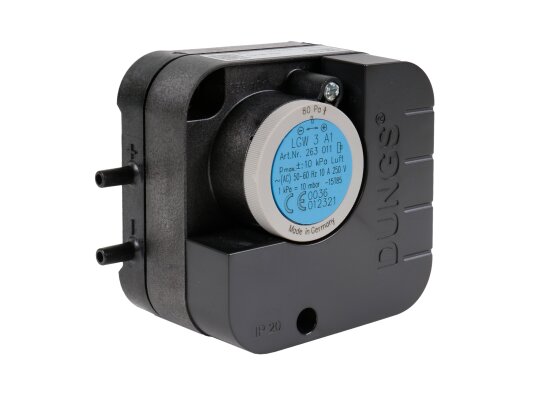

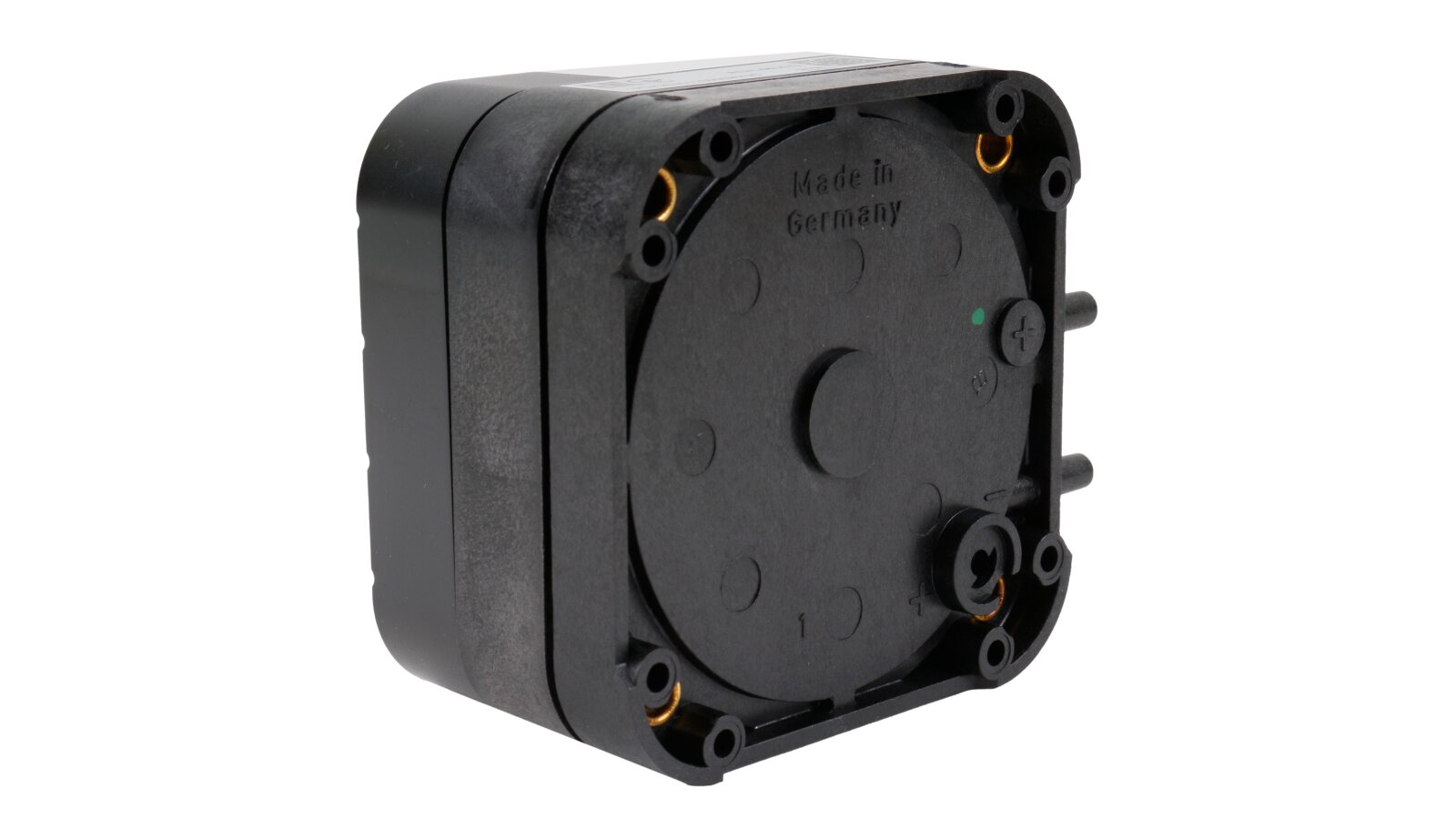

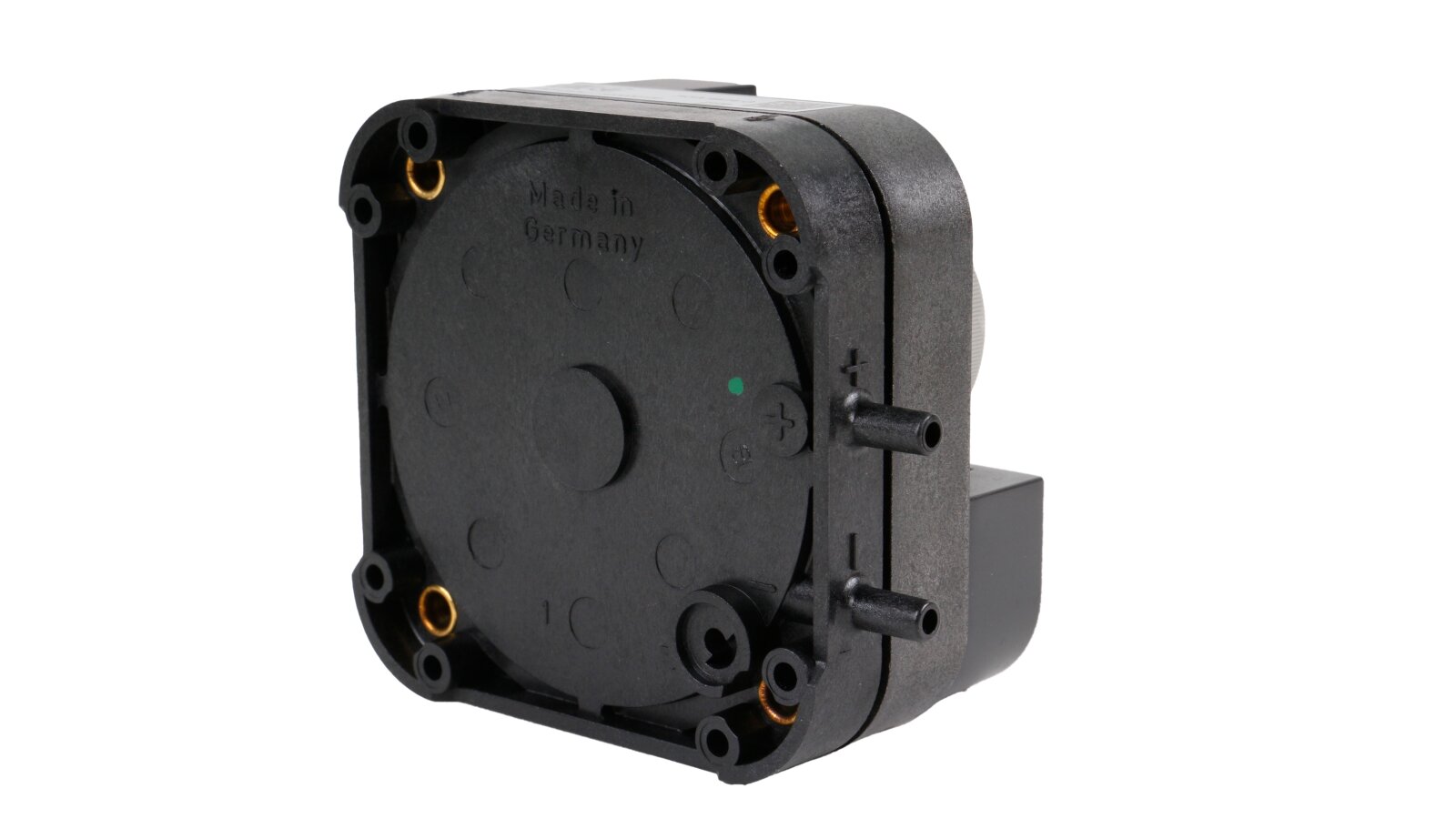

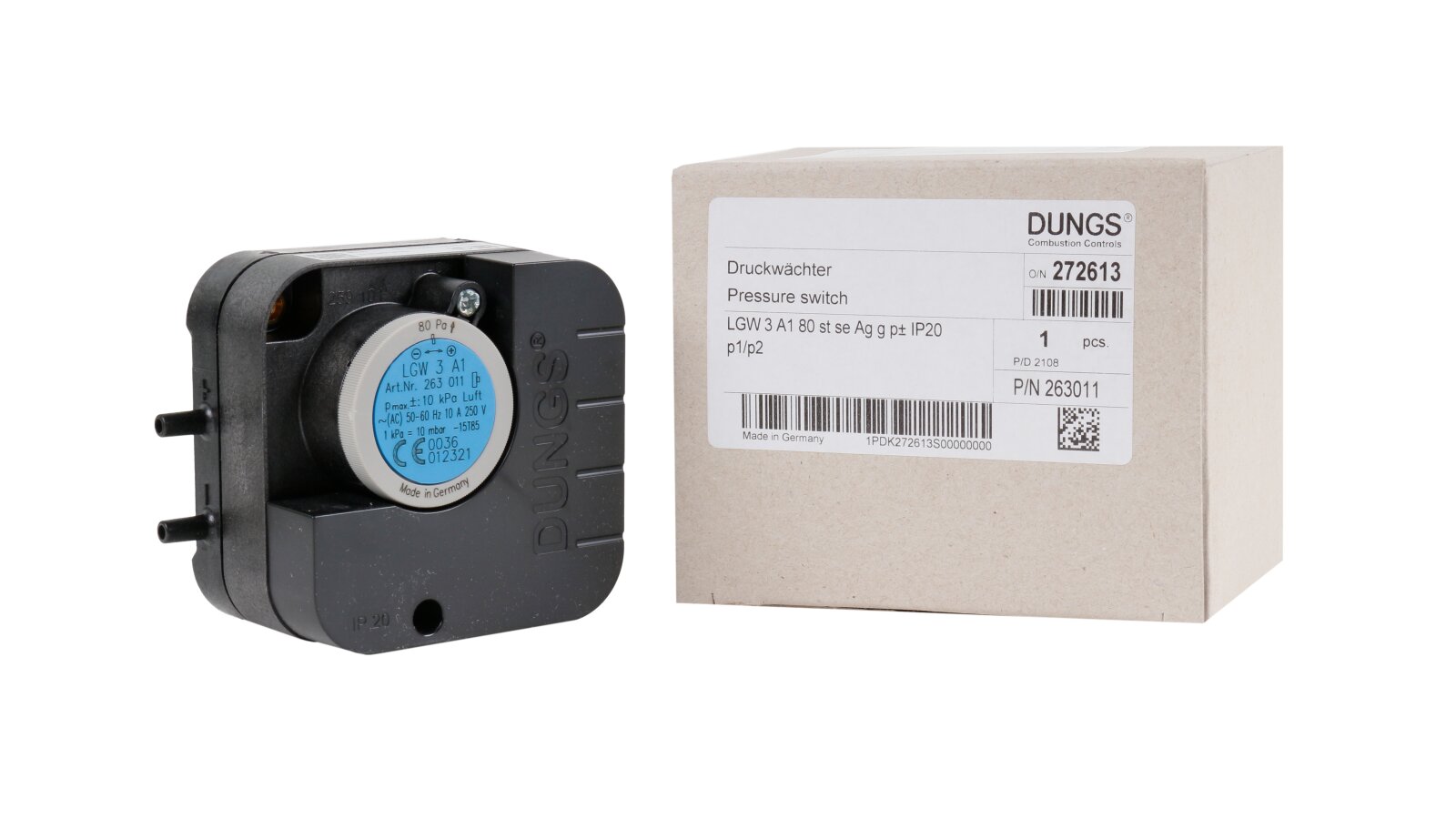

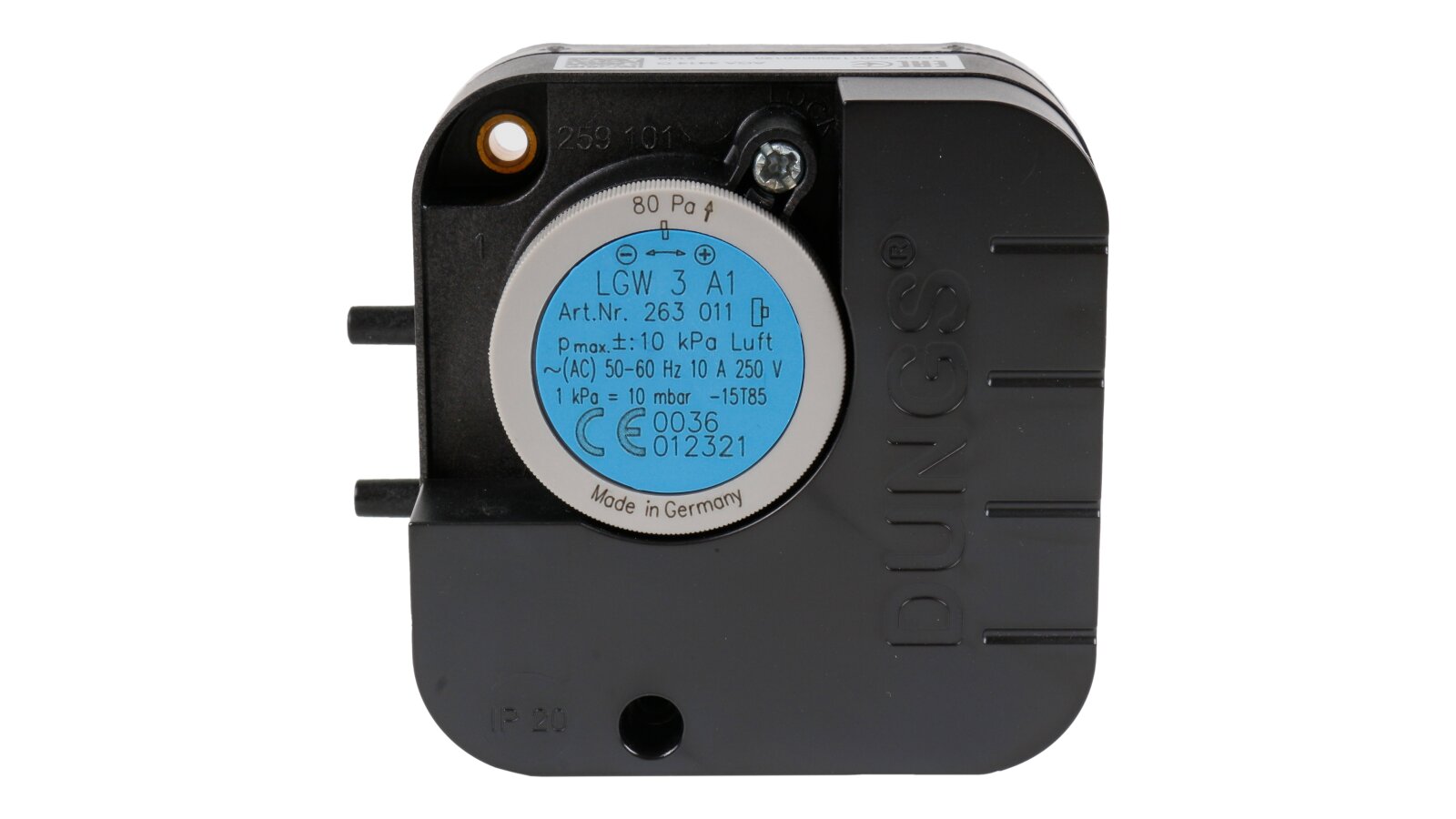

Pressure switch Dungs LGW 3 A1, 272613

The Dungs LGW 3 A1 pressure switch, art: 272613, is used in automatic pressure control systems during operation of furnace units and other industrial equipment with a pressure of up to 100 mbar. Smoothly adjustable in the range of 0.4-3 mbar using an adjustment disk with a scale. It features precise, uninterrupted operation, reliable small-sized design, ease of installation and connection.

Features

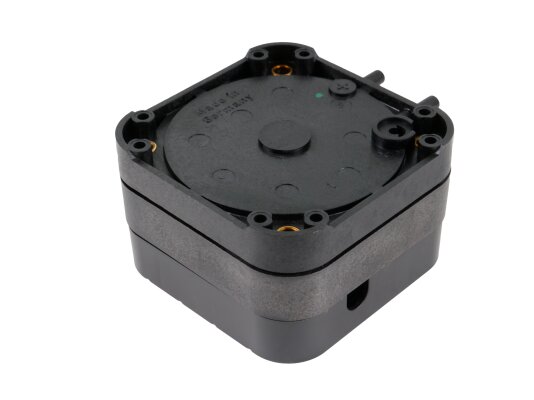

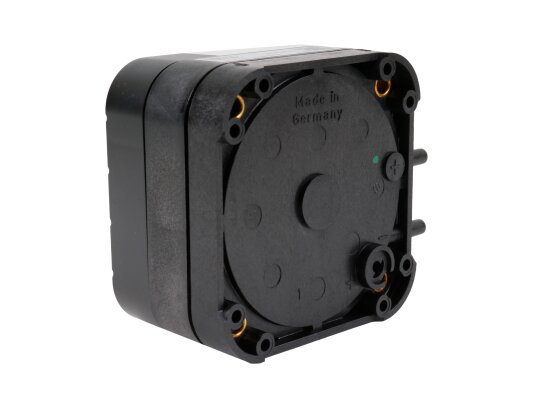

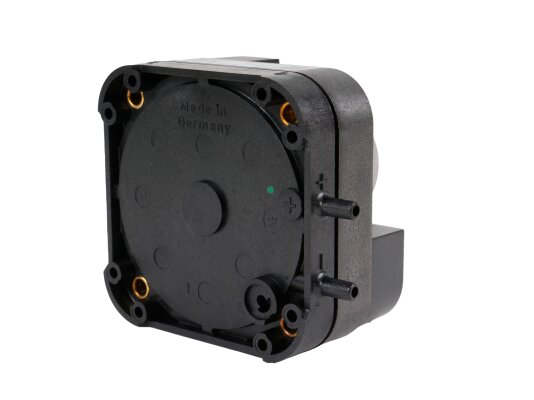

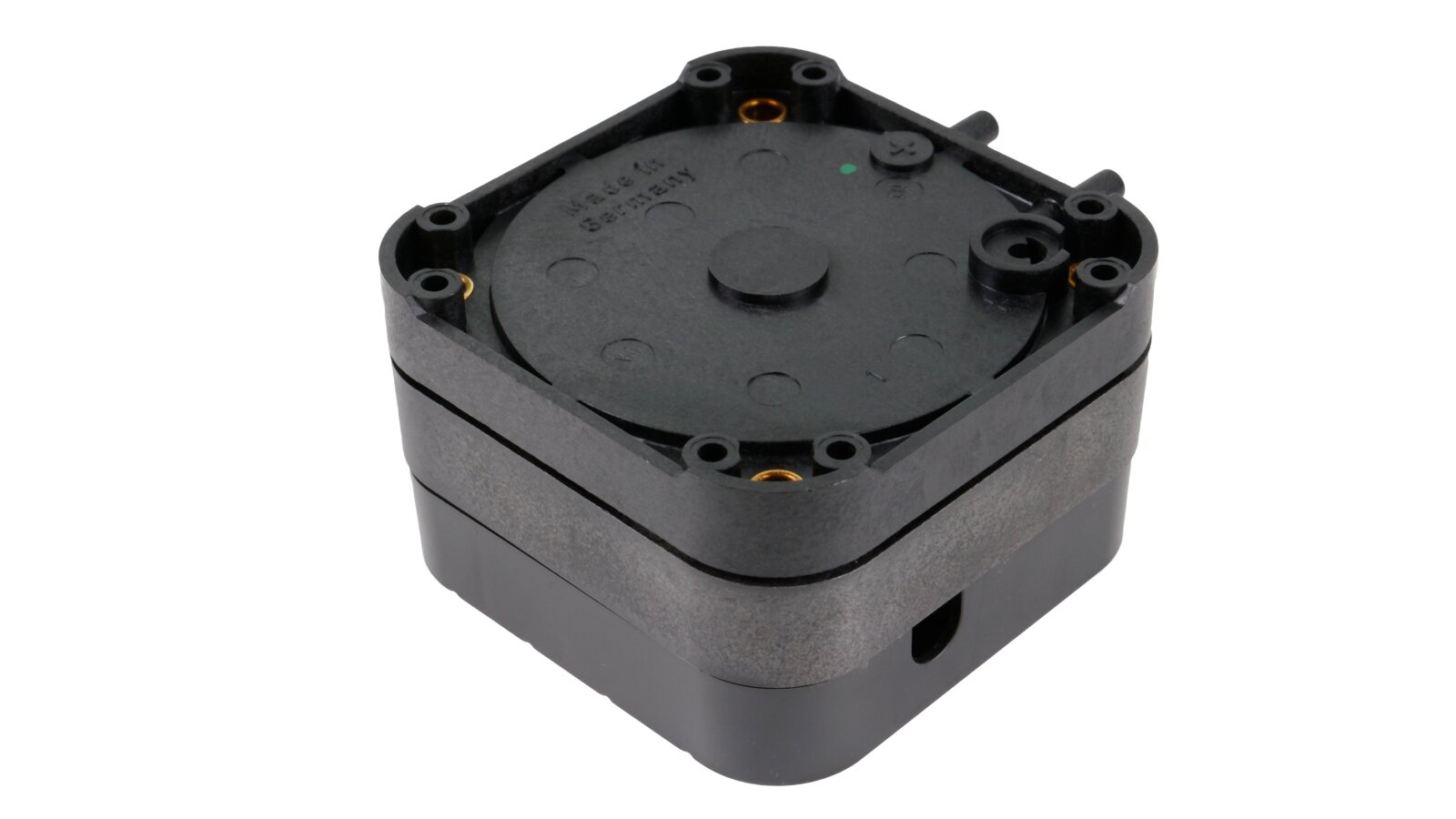

The sensor is assembled in a compact shockproof housing. The main parts of the design are made of polycarbonate, the working membrane is made of NBR rubber. Contact material - Ag. The level of protection against dust / moisture corresponds to the IP 20 standard (protection against contact).

Thanks to the reliable switching system, the relay operates stably at low and high temperatures, from -15 to +85 ° C. Connected using a FASTON connector. Easily adjusted in the permissible range. Factory setting - 0.8 mbar.

Advantages:

• reliable, uninterruptible switching system;

• simple setting of the response point;

• compact dimensions, facilitating installation;

• for various applications;

• adjustable hysteresis;

• wide range of operating temperatures.

Application

The Dungs LGW pressure switch is used to equip automatic air pressure control systems, non-aggressive gases, excluding technical flammable gases. The sensor is built into furnace units, ventilation units, air conditioning devices.
