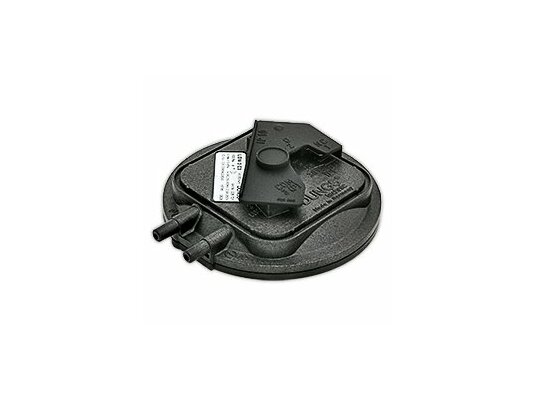

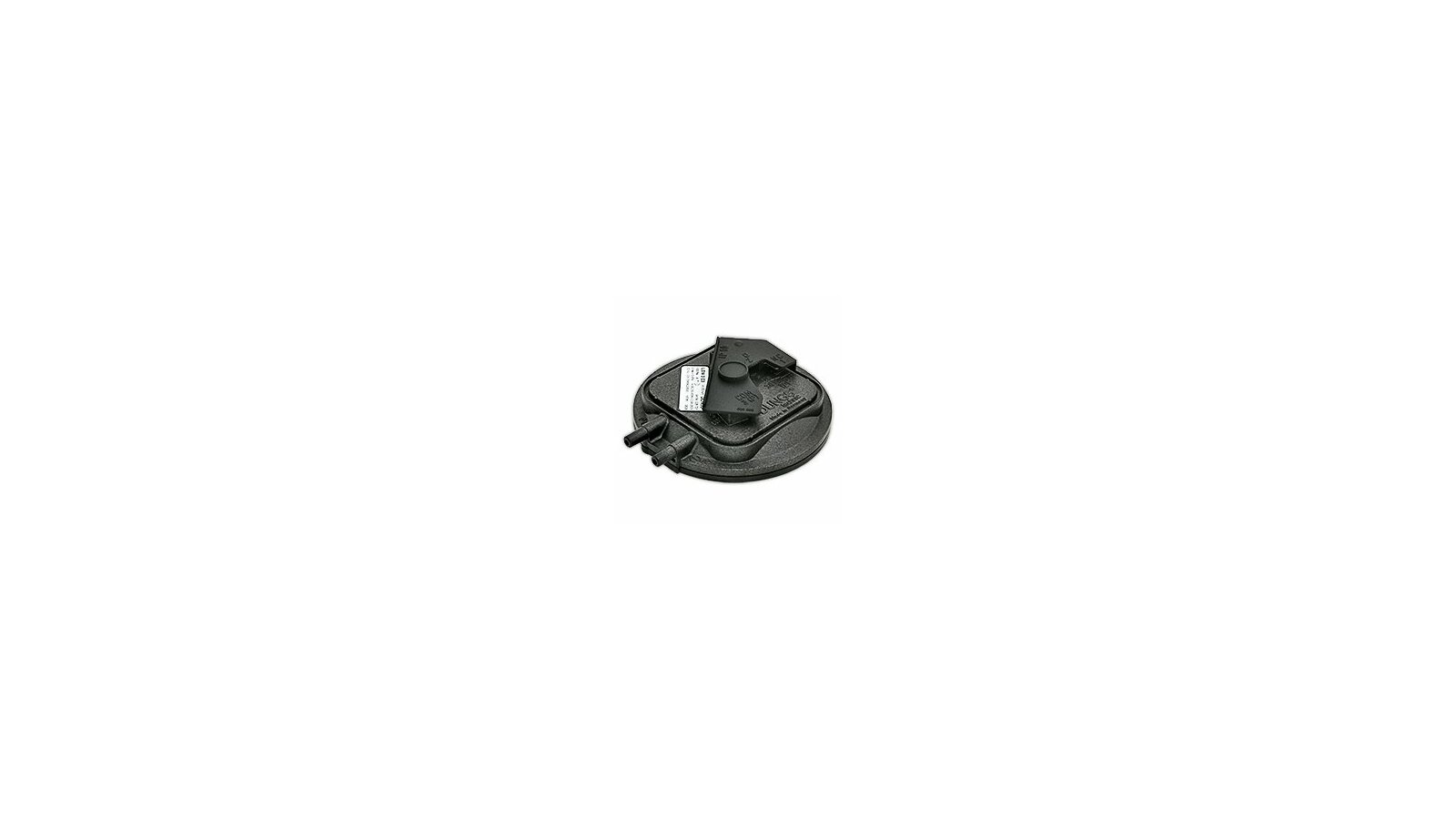

Pressure switch Dungs LGW 3 C3
Dungs
Alternative Part Number
Elco
13003665
About product
Go to descriptionWorking environment air, neutral gasesOperating ambient temperature from -15 to 70 °CMaximum working pressure 50 mbarFactory setting 1 mbarResponse range from 0 to 0.12 mbarAdjustment range from 0.4 to 3 mbar
- Discontinued
Description
Connecting nipples for impulse hoses Ø6.1 X 11 mm
3 contacts electrical connection
FASTON electrical connection 6.3 X 0.8 mm
Diameter 102 mm
Cover BS1 / IP10, 13004285
Used with clamp 13007718.
Characteristics
Working environment: air, neutral gasesOperating ambient temperature: from -15 to 70 °CMaximum working pressure: 50 mbarFactory setting: 1 mbarResponse range: from 0 to 0.12 mbarAdjustment range: from 0.4 to 3 mbarType of connection: Faston 6.3x0.8 mmDegree of protection: IP20For controlling: vacuum pressure and discharge pressure, differential pressure
