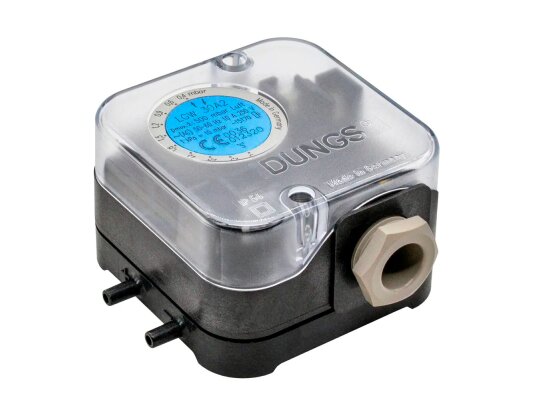

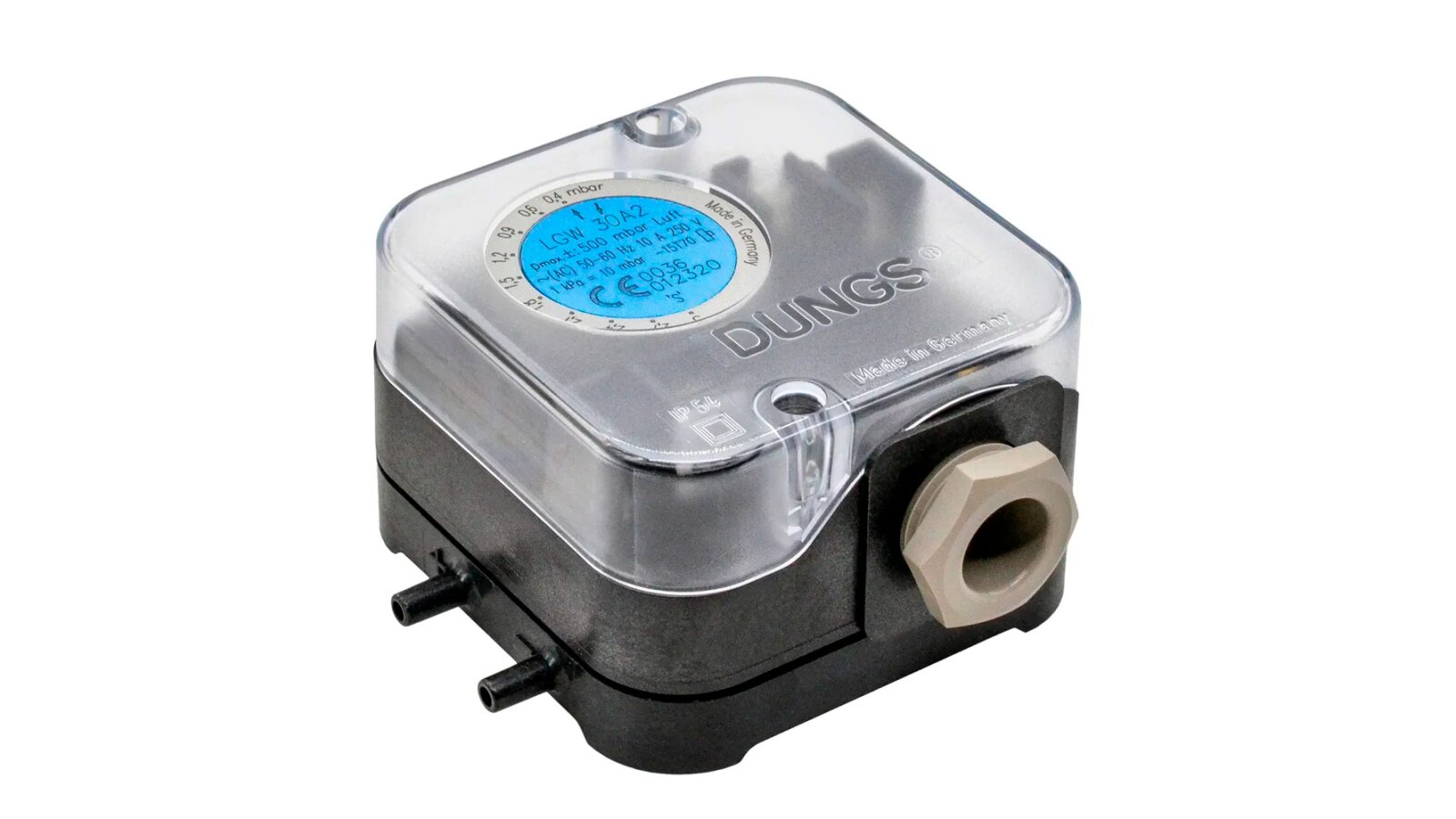

Pressure switch Dungs LGW 30 A2

The Dungs LGW 30 A2 pressure switch, art: 257438, is used to monitor air pressure. It is equipped with a highly sensitive membrane that responds to pressure changes. Compact dimensions simplify installation in confined spaces. A handwheel with digital markings is provided for setting the response point.

Features:

• for systems with a medium pressure of up to 100 mbar;

• housing and switch material - polycarbonate;

• sensitive membrane made of butadiene-nitrile rubber NBR;

• contacts made of Ag (optionally gold-plated);

• electrical connection - screw terminals through a cable hole;

• ambient temperature from -15 to +85 °C;

• protection of electrical contacts from dust and moisture according to IP 54;

• any mounting position;

• for monitoring differential pressure;

• compact design;

• for industrial use;

• easy adjustment of the response point by rotating the disk with the adjustment scale.

The Dungs LGW relay is designed to equip heating equipment, ventilation units, and air conditioning devices.
