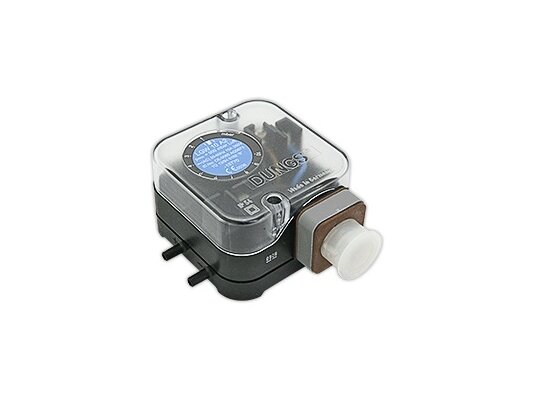

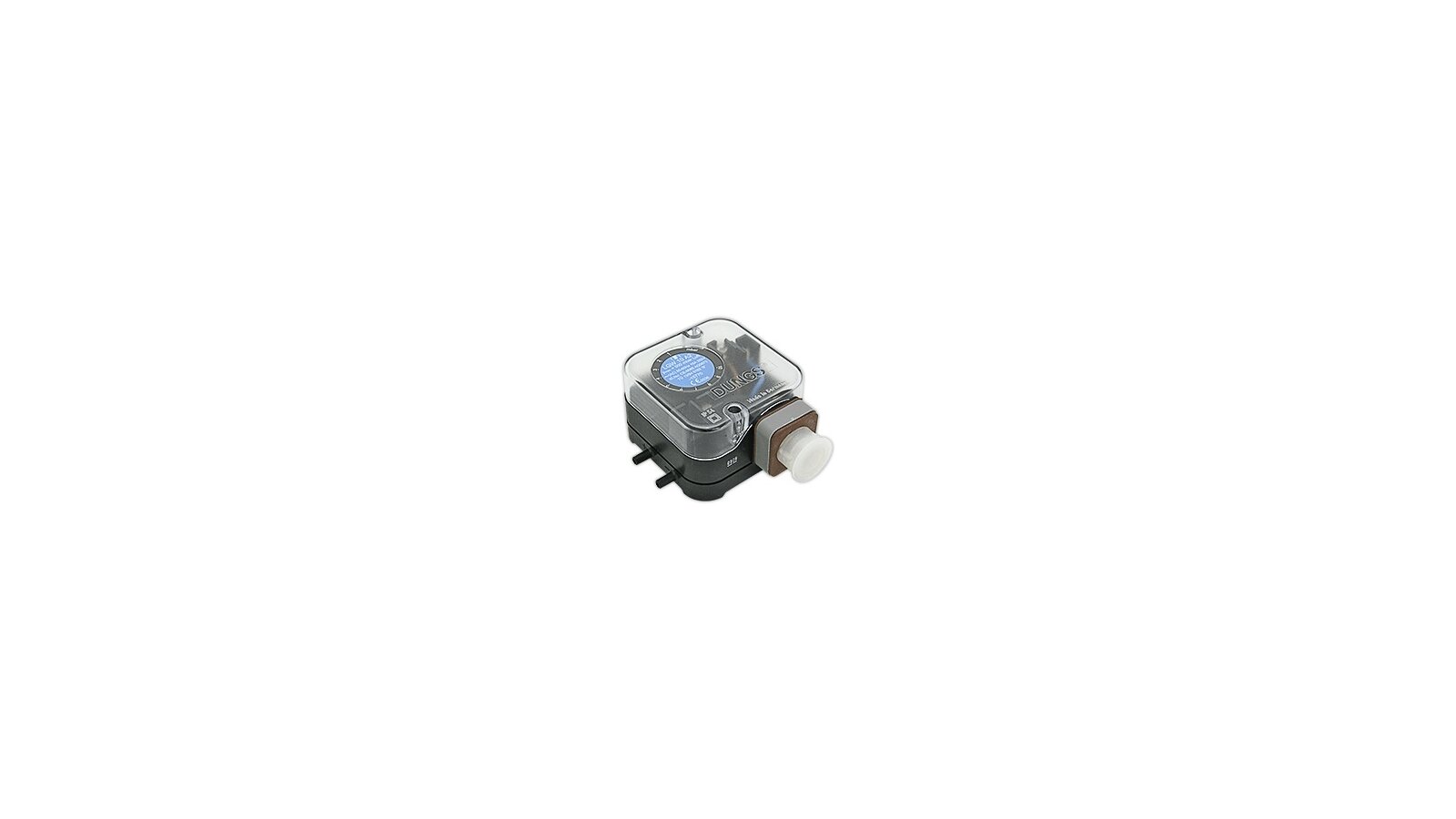

Pressure switch Dungs LGW 50 A2 G3

The Dungs LGW 50 A2 G3 pressure switch is a necessary element of the industrial gas installation safety system. It controls discharge pressure, vacuum pressure, and differential pressure. The versatility of the device allows it to be used in air conditioning and ventilation devices. The package includes a power cable.

Main parameters

• Class: S in accordance with EN 1854.

• Maximum working pressure: 500 mbar.

• Working environment: air, non-aggressive gases (except flammable gases).

• Setting range: 2.5-50 mbar.

• Differential: 0-1 mbar.

• Operating temperature: -15°C to +70°C.

Operating principle

The relay is used to turn on/switch/turn off the electrical circuit when the system pressure changes to a set value. The response point is set manually using a rotary disk and a scale with numbers.

Features

Highly sensitive diaphragm made of butadiene-nitrile rubber ensures precise response. Compact plastic housing protects electrical contacts from dust and moisture (IP 54 class). IP 65 standard design is available upon customer request.

Dungs LGW 50 A2 G3 pressure switch can be installed in any position. It should be noted that response when the orientation deviates from the standard will occur at a higher or lower gas/air pressure (± 0.5 mbar). For more information, see the installation and operating instructions.

Advantages:

• ability to adjust response parameters;

• high sensitivity of the working membrane;

• easy adjustment using a rotary disk and scale;

• low maintenance requirements;

• insulation of electrical parts (IP 54);

• versatility of use.

The ANKAS company is the official representative of Dungs equipment, so we sell only original components and offer reasonable prices. To place an order, go to the virtual cart and fill in the required information.
