Pressure switch Dungs UB 150 A4
About product
Go to descriptionAED 875
Description

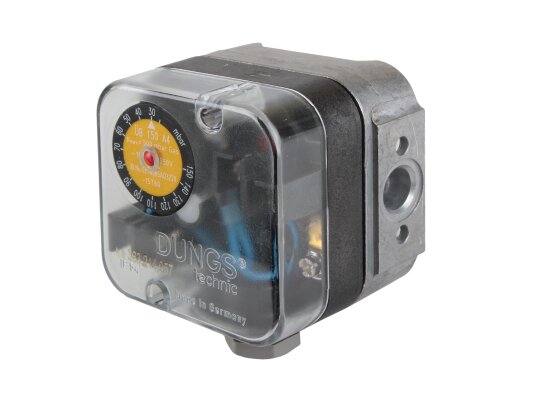

The Dungs UB 150 A4 pressure relay, article 138630, is an indispensable element of the gas installation safety system. It is used to control the maximum pressure and vacuum pressure. It limits the pressure in combustion units, where any pressure deviation is critical. The device is blocked every time the response point is reached. It is adjusted in a wide range, from 30 to 150 mbar.
Characteristics
Maximum pressure: 500 mbar.
Adjustment limits: 30-150 mbar.
Environment: gas 1-3 families/neutral.
Operating temperature: -15°C to +70°C.
How the relay works
Dungs UB 150 A4 reacts to excess pressure. It turns on as soon as the set pressure value is exceeded - the contact closes and a signal is sent to the control unit. In the locked state, the indicator on the sensor body lights up, signaling that the pressure has reached a critical level. Pressing the button in the center of the adjustment disk unlocks the relay.
Design and features
The response parameters are adjusted without using a pressure gauge, by turning the wheel. A scale with numbers is provided for precise adjustment of the switching point.
The relay is made of highly reliable materials. The cast housing is aluminum, the membrane is made of NBC, the switch is made of polyamide, the contacts are made of silver. Electrics and vulnerable parts are protected by a dust- and moisture-proof housing (class IP54 according to IEC 529).
The connection to the power source is made through a PG cable entry. The design provides a measuring nipple.
The relay is mounted on threaded holes (internal thread G 1/4"). The mounting orientation is standard (recommended). If the installation position deviates, the sensor-relay is switched on at a higher/lower pressure in relation to the set values.
Advantages:
adjustment disk for easy adjustment;
locking function;
wide pressure adjustment range;
dust and moisture protection according to IP 54;
installation using a threaded connection;
switching on a signal lamp when blocked;
installation in gas units for various purposes;
compact dimensions.
You can buy the Dungs UB 150 A4 pressure relay at an affordable price online by filling in the data to place an order. The product is supplied with detailed operating and installation instructions, factory instructions.
