Pressure switch Dungs UB 500 A2
About product
Go to descriptionAED 1,050
Description

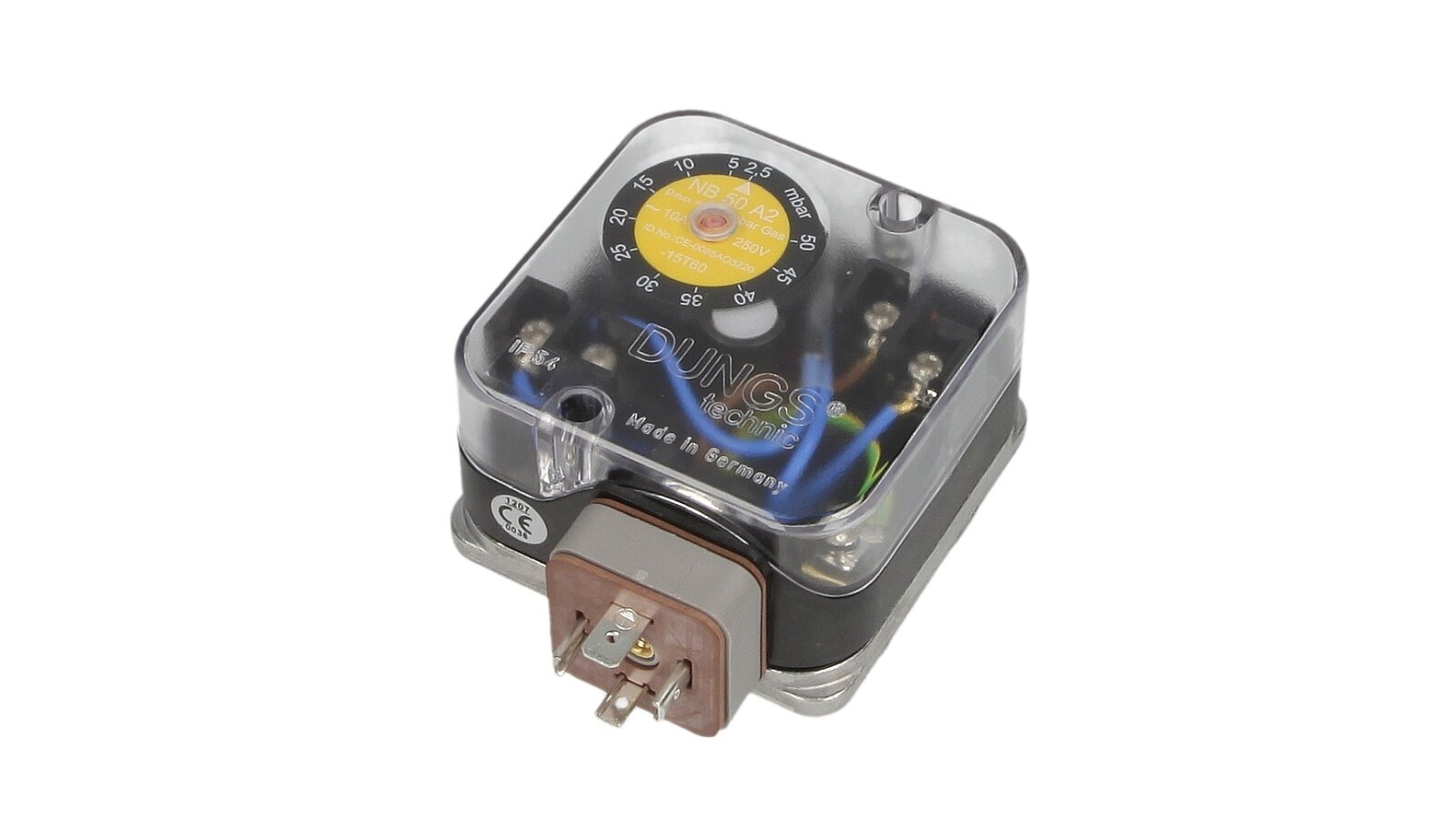

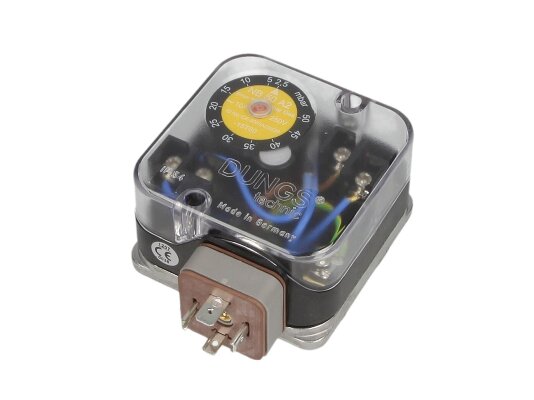

The Dungs UB 500 A2 pressure switch, article 215246, is an adjustable device for limiting excess pressure in the system. It is used in combustion units where any change in gas pressure is critical. The compact, reliable device is easy to configure and does not require special maintenance. Complies with the European standard EN 1854. It stands out in the line with a wide range of response pressure.
Characteristics
Maximum pressure: 600 mbar.
Adjustment range: 50-500 mbar.
Gas: 1-3 families/neutral.
Ambient temperature: -15°C to +70°C.
Operating principle of the sensor-relay
The maximum pressure limiting relay responds to excess gas pressure in the system. When the set pressure limit is exceeded, the contact in the electrical network is switched on, switched off, and a signal is sent to the control unit. At the same time, the indicator turns on and the sensor is blocked.
To unlock the relay, press the button in the center of the adjustment disk. No additional energy is needed to operate the switch.
Design and features of the relay
A wheel and a digital scale are provided for setting the device. A pressure gauge is not used.
The housing and the working membrane are made of durable materials - aluminum and NBC (respectively). The contact material is silver. The electrical insulation of vulnerable elements complies with the IP54 electrical protection standard according to IEC 529. The relay is connected to the network via a PG cable entry.
Due to the design features, the relay can only be installed on Dungs fittings. In this case, a sealing ring is used.
It is recommended to select the standard position for installation. When installed in a horizontal, inverted or intermediate position, the relay will operate at a higher/lower pressure compared to the specified parameters.
Advantages:
wide pressure adjustment range;
easy adjustment using a disk;
blocking at a critical pressure value;
a signal lamp to indicate blocking;
resistance to dirt and splashes (protection class IP 54);
wide range of applications;
compact installation dimensions.
In our store you can buy pressure relay Dungs UB 500 A2 and other components of the German brand at low prices for assembly, adjustment and re-equipment of furnace units. All products presented in the catalog are supplied with factory warranties and permits.
