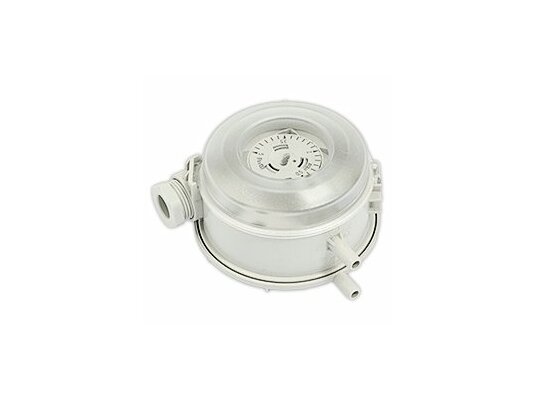

Pressure switch Huba Control 605.99620

The Huba Control 605.99620 mechanical air pressure switch is manufactured on modern automated lines and is very popular among consumers in many countries. The main advantages of the device are high adjustment accuracy and measurement repeatability. The relay is specially designed to equip heating systems. It is designed to control the discharge and differential pressure of air/gas.

Main characteristics

• Adjustment range: from 0.2 to 4 mbar.

• Switching differential: 0.5 / 0.4 mbar.

• Operating temperature: from -30 to +110 °C

• Monitored environment: air, neutral gas.

Features

• The relay is characterized by high-precision adjustment of response parameters and high measurement repeatability.

• The sensor body (diameter 80.8 mm) is made of Lexan 500R polycarbonate, prevents damage to the device and dust ingress.

• The structure is very easy to fix with a bracket or a mounting clamp.

• A flat 6.3 mm connector is provided for electrical connection, and 4 holes are provided for fixing electrical cables. Pulse tubes are connected through 6.2 mm holes.

"ANKAS" offers to buy a Huba Control pressure switch - a practical device for a Viessmann gas burner. Our catalog also presents other components and accessories at affordable prices for equipping equipment of various purposes and power.
