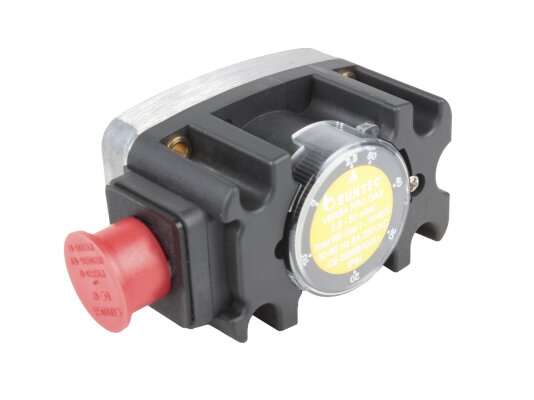

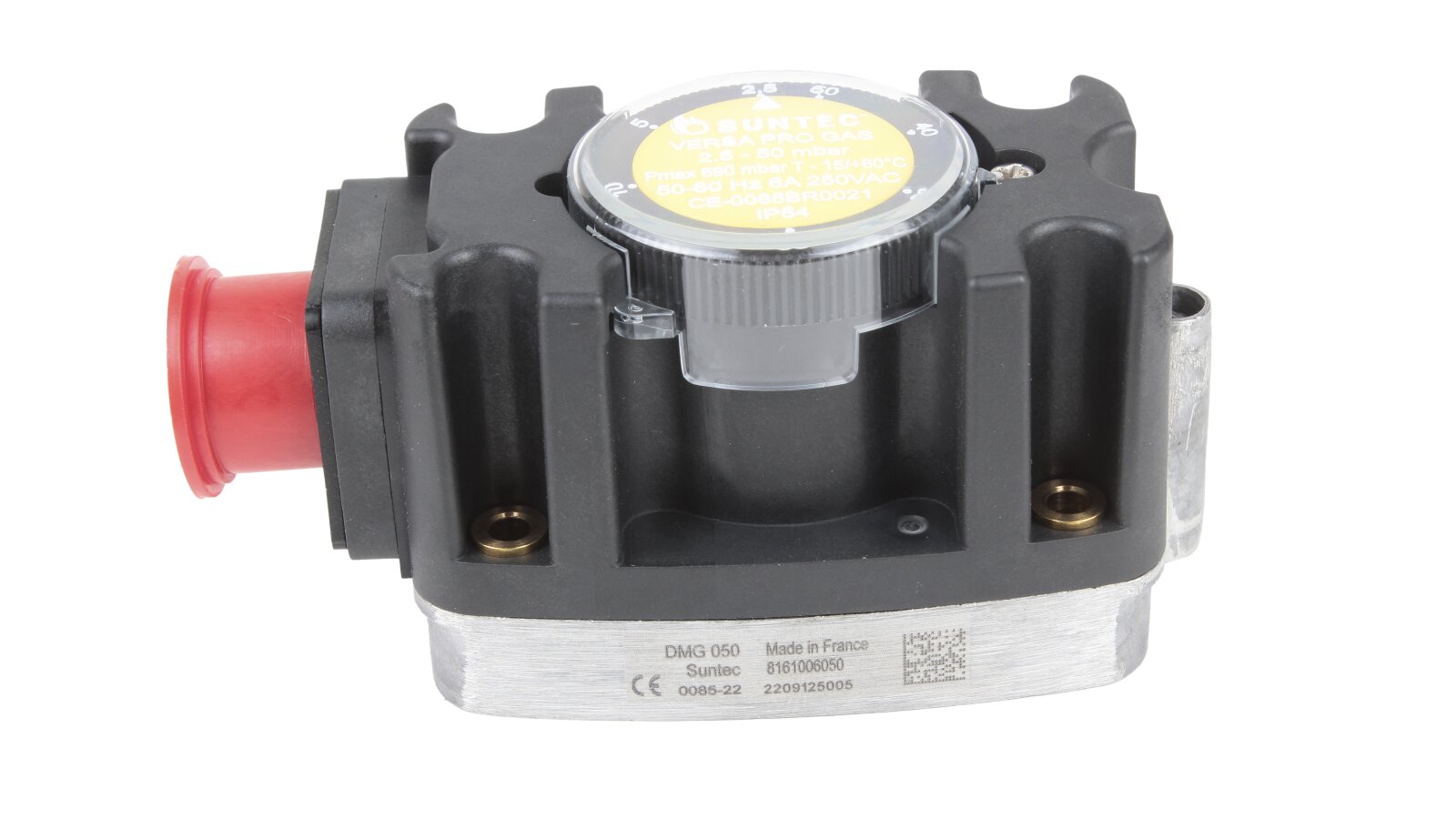

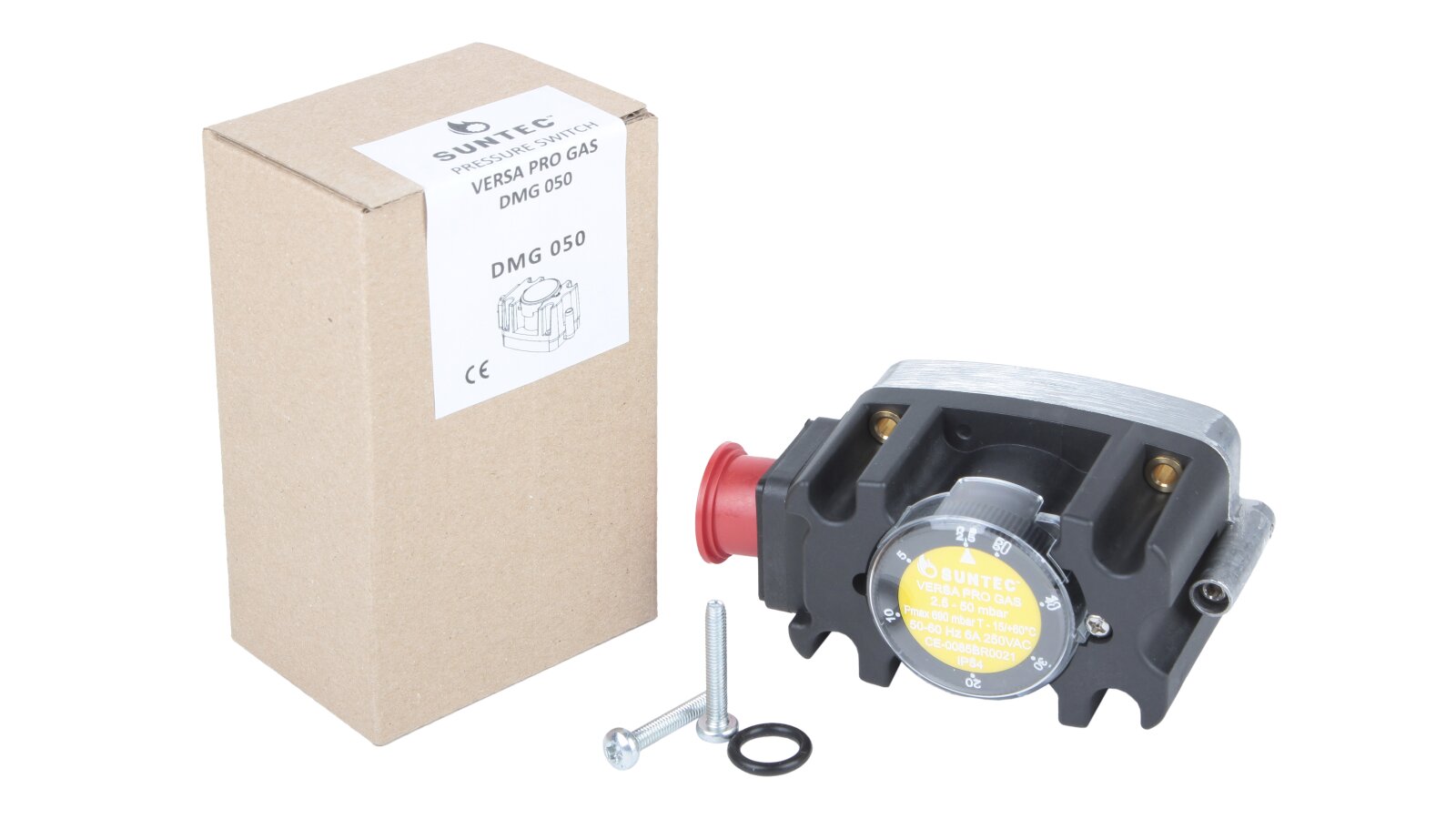

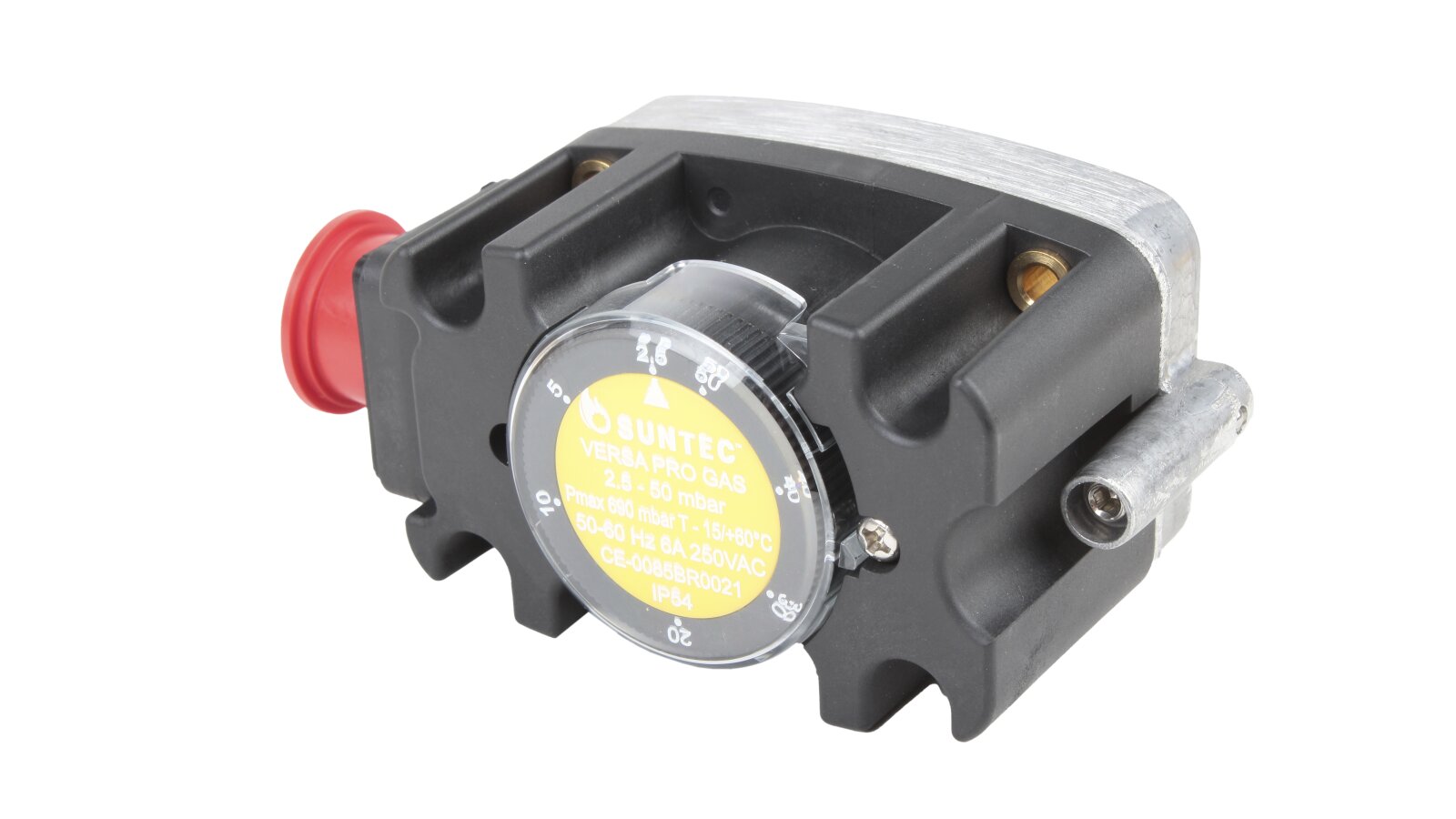

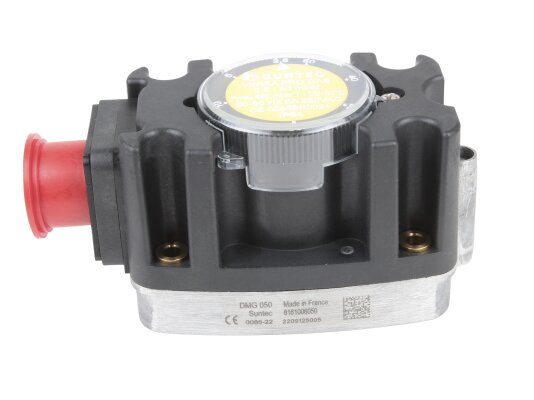

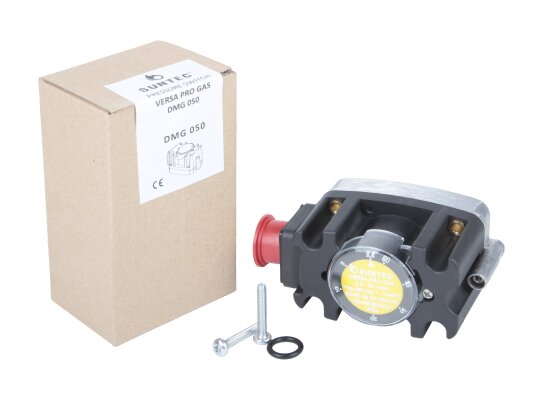

Pressure switch Suntec DMG 050

The Suntec DMG 050 pressure switch, art.: 8161006050, is characterized by precise operation thanks to a reliable switching system that operates without interruptions. It is used to monitor excess pressure and vacuum pressure of gas during operation of industrial burners. It closes or opens contacts when the pressure in the system drops below or rises above the set value. The sensor-relay is adjusted in the range of 2.5-50 mbar by smoothly rotating the adjustment disk with a marking scale.

Main parameters and features:

• for automatic gas flow monitoring and control systems;

• reliable protection of the switching mechanism and membrane from external influences;

• precise, stable switching of contacts;

• adjustable hysteresis, range 0-3 mbar;

• small-sized device, space saving;

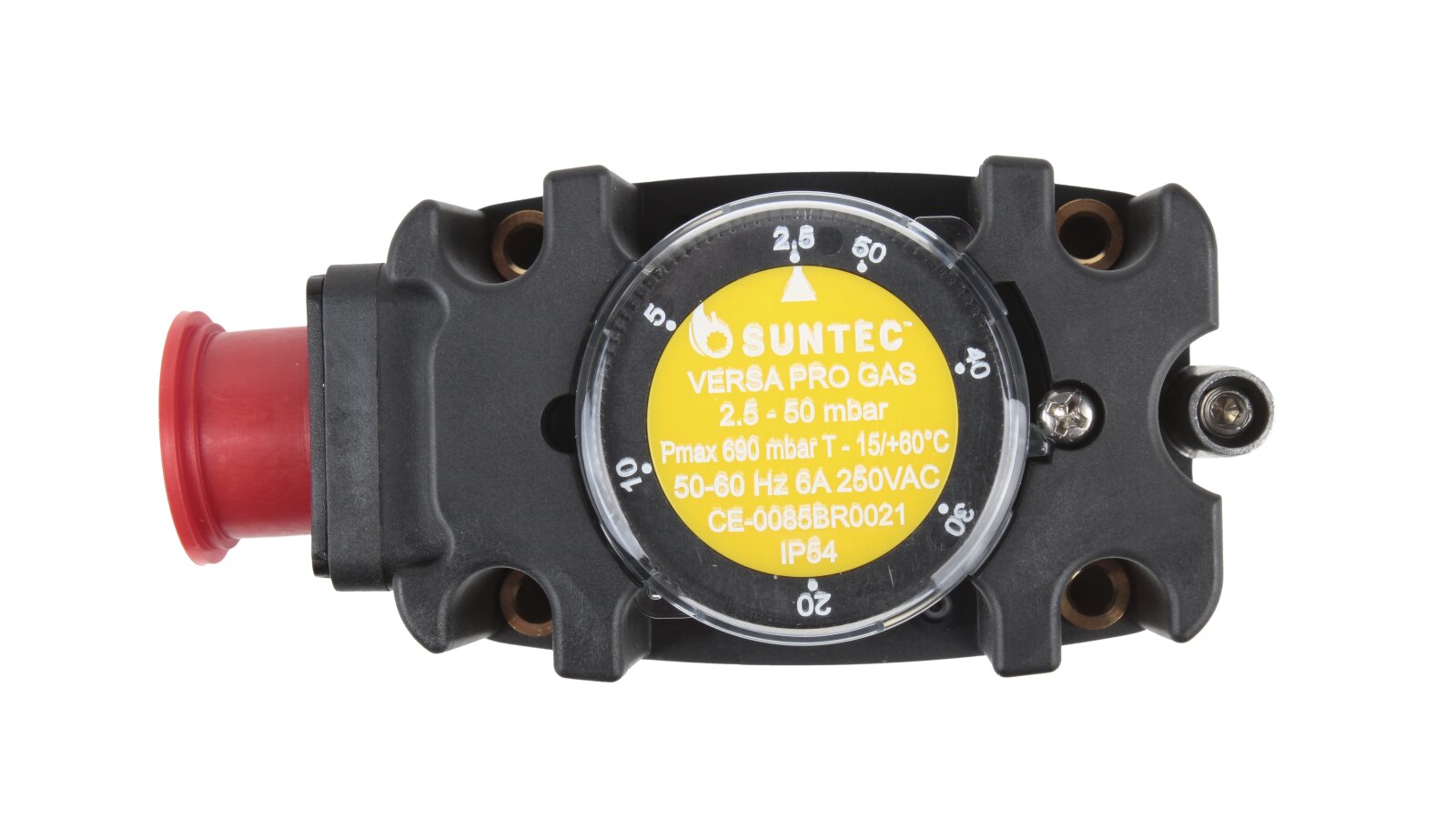

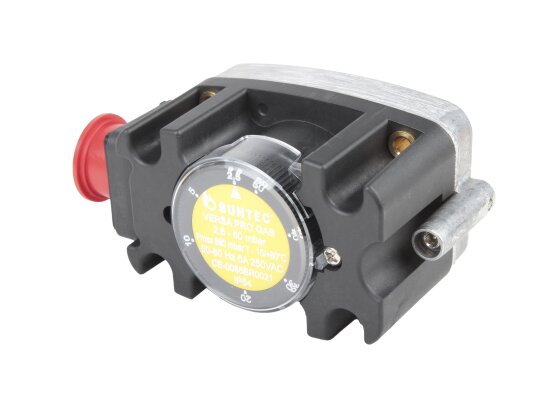

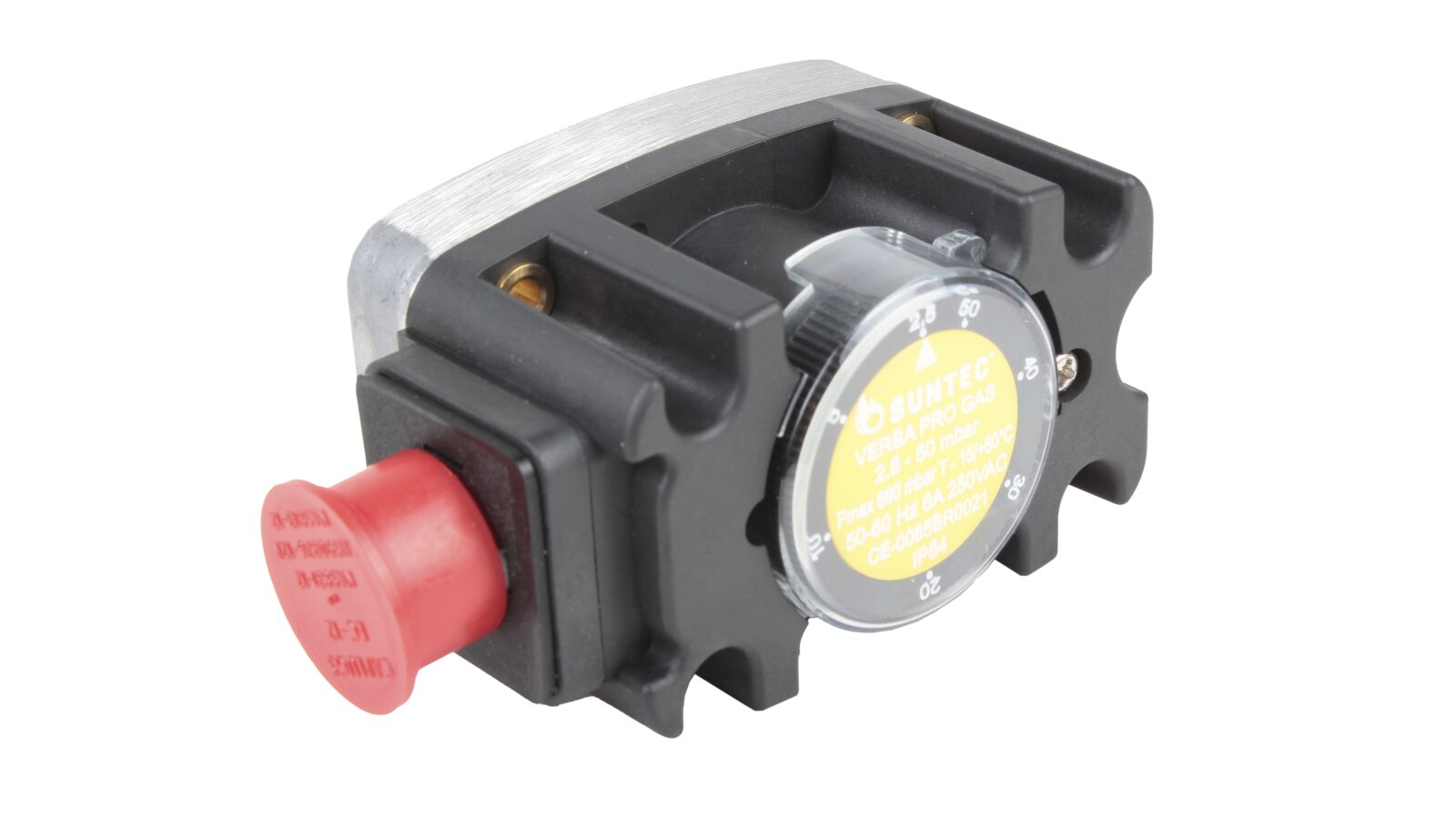

• simple adjustment of the switching pressure using a wheel with numbers;

• automatic reset;

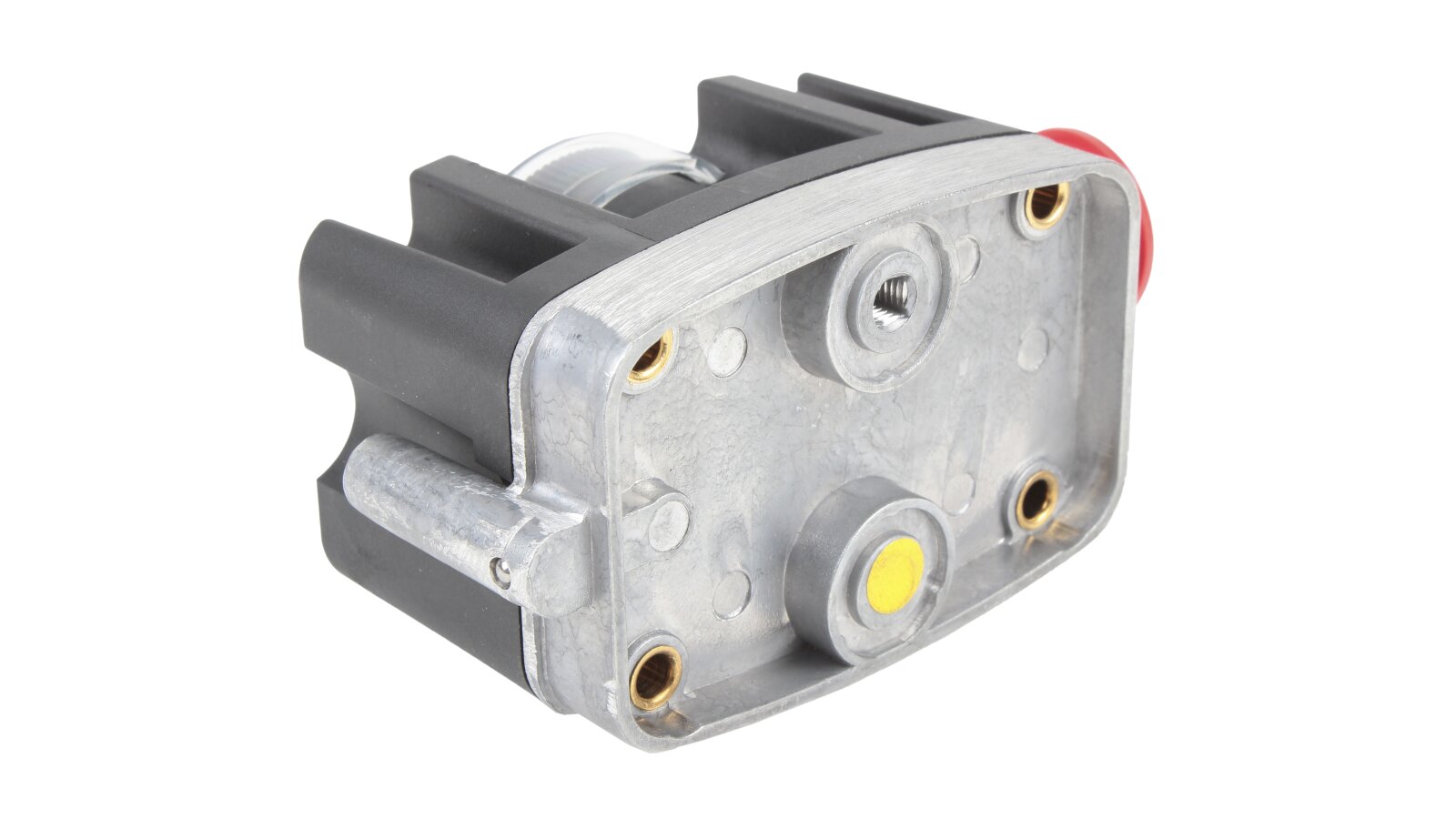

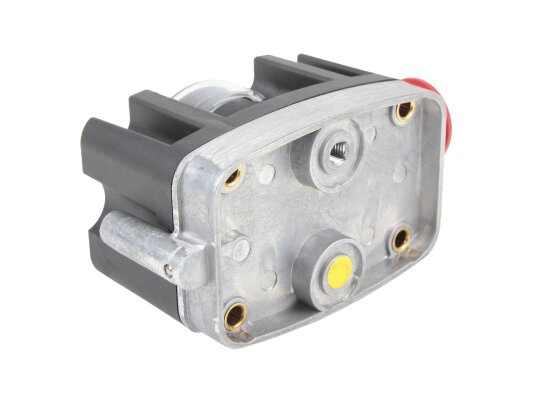

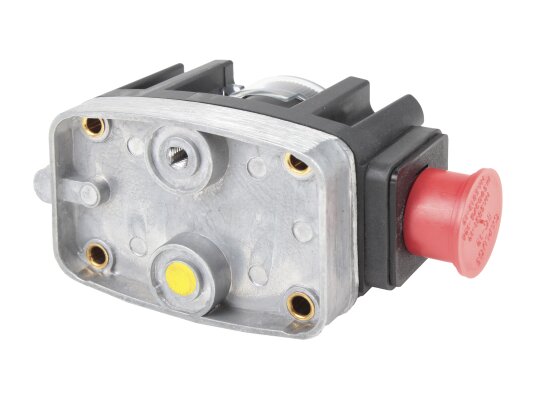

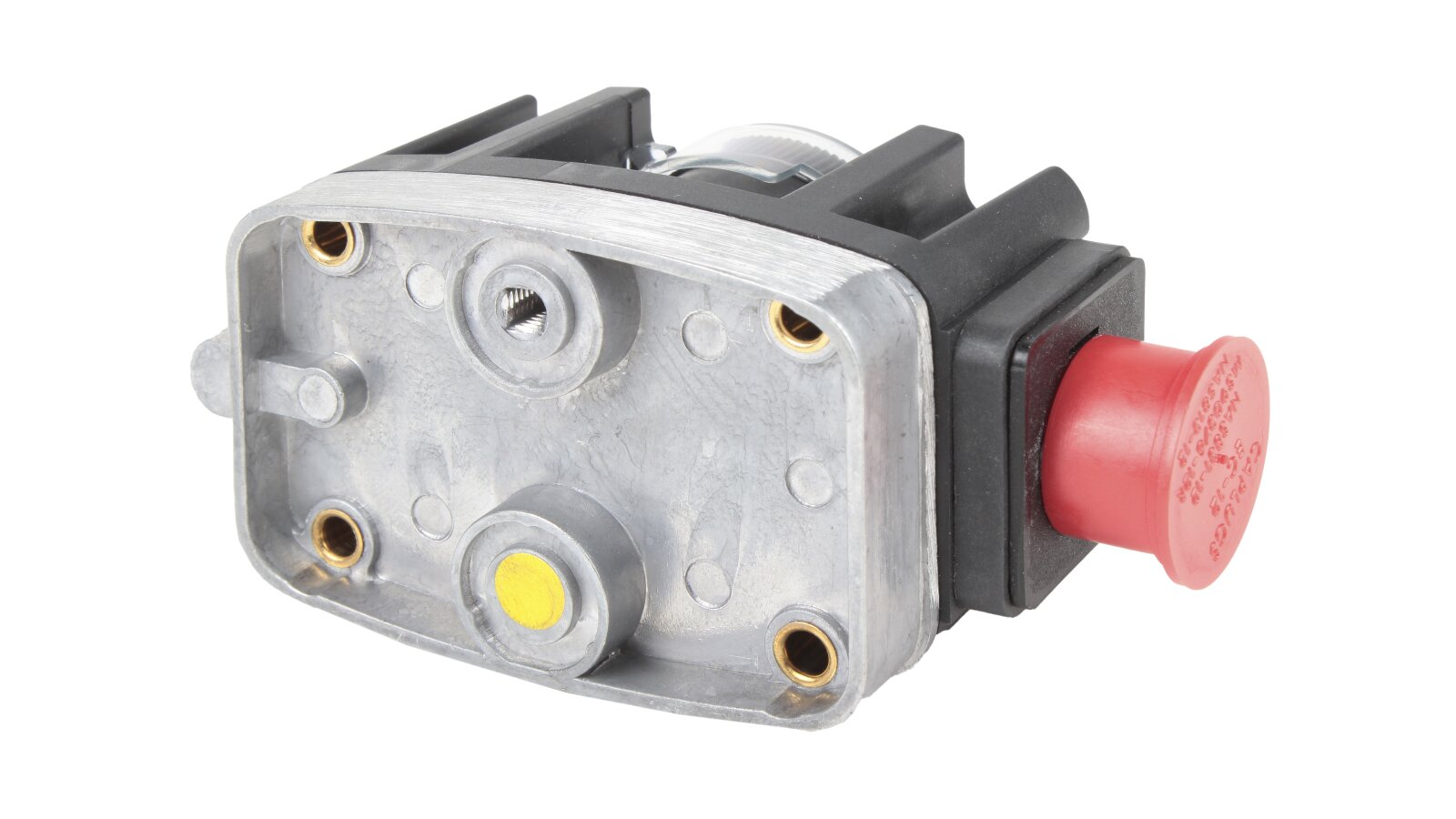

• housing made of die-cast aluminum and high-gas-density polymer;

• removable transparent regulator cover;

• IP 54 casing impermeability;

• for gas installations with pressures up to 690 mbar;

• installation on a gas valve;

• fast and reliable electrical connection via a DIN plug;

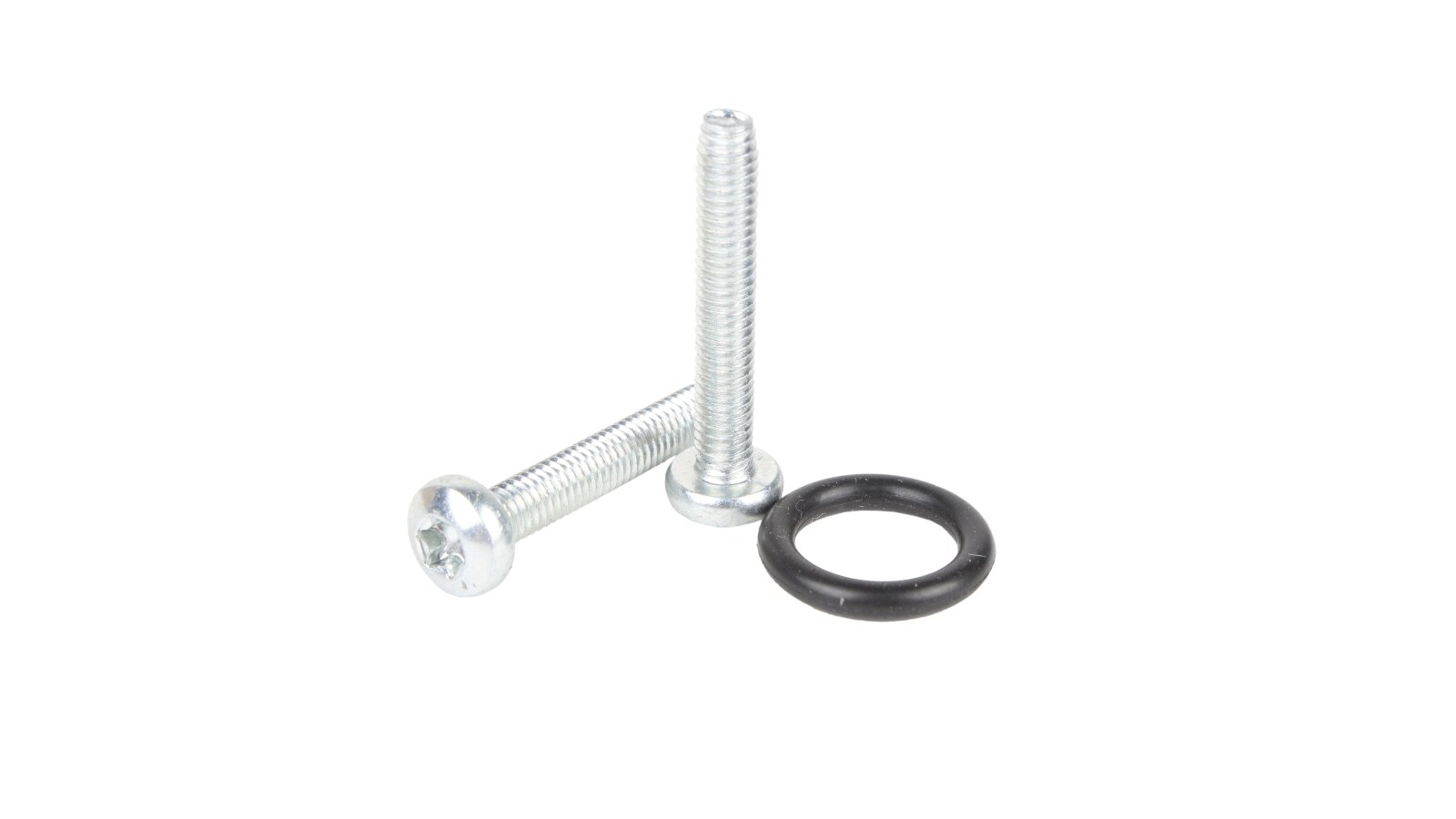

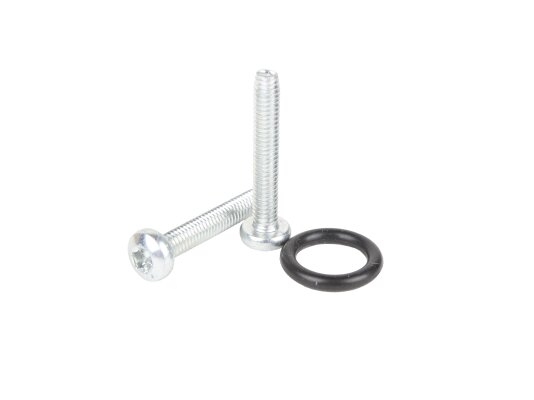

• fastening using sealing rings.

The pressure switch operates stably at ambient temperatures from -15 to +60°C. During installation and operation, it is necessary to prevent moisture from getting on the device, as well as protect it from solar radiation.

Advantages:

• uninterruptible switching system;

• simple adjustment using a dial regulator;

• adjustable hysteresis;

• compactness, space saving;

• protection from contact, dust / moisture;

• frost-, heat-resistant.

Application

The Suntec DMG 050 pressure switch is designed to equip burners, boilers, heat generators and other devices burning gas of family I-III according to EN 437.
