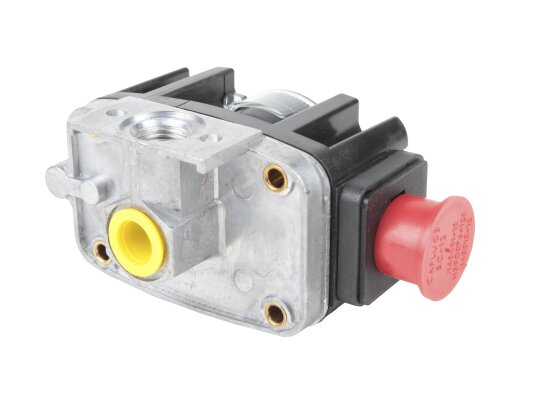

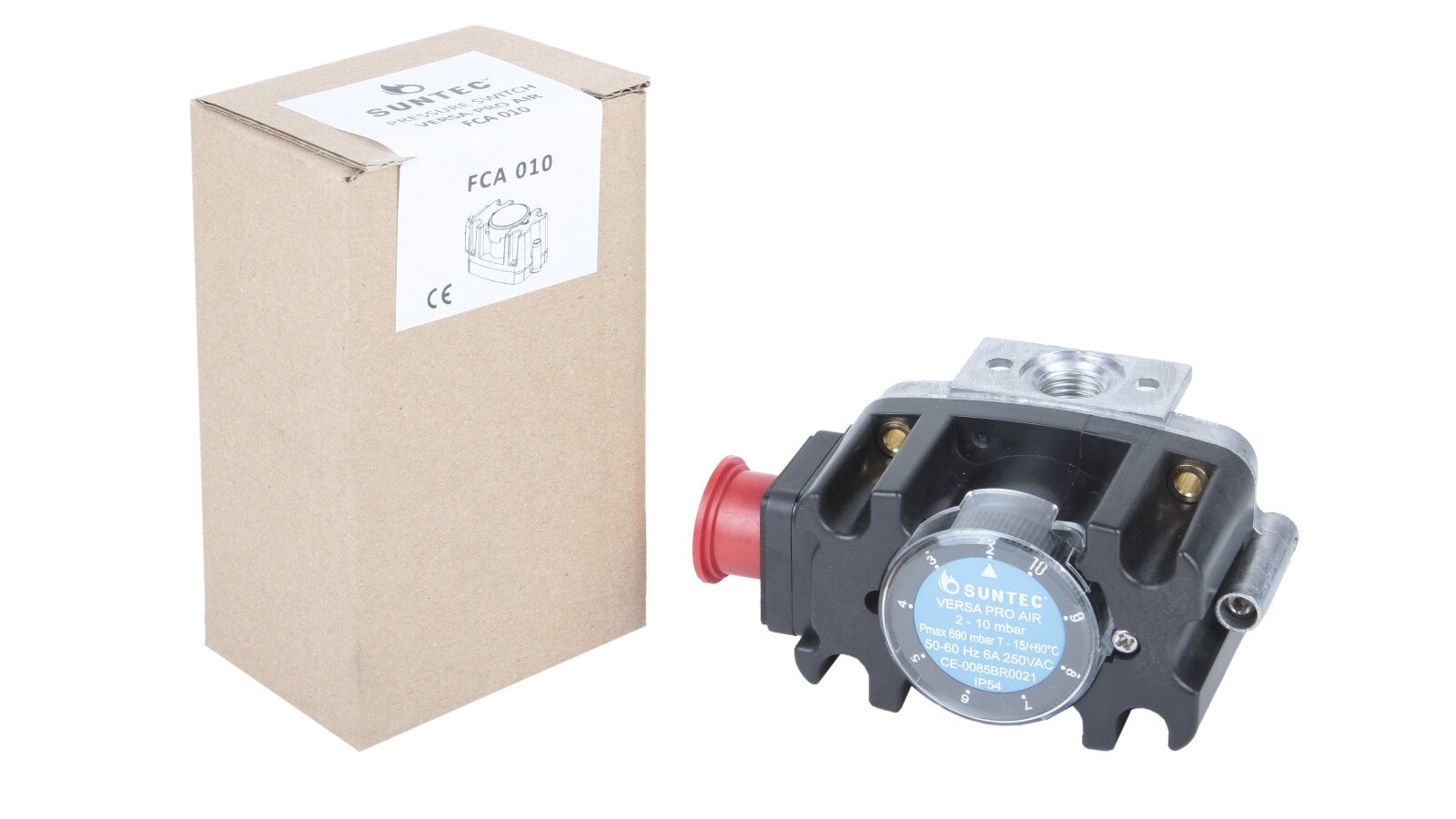

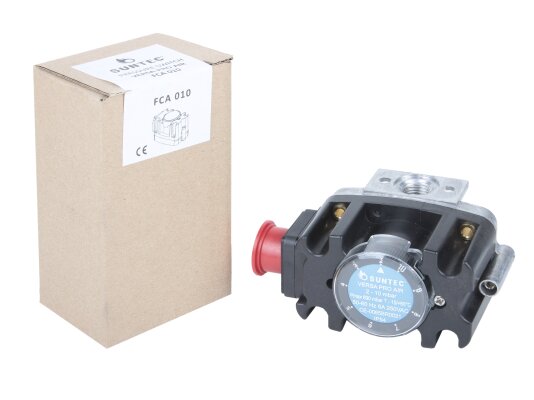

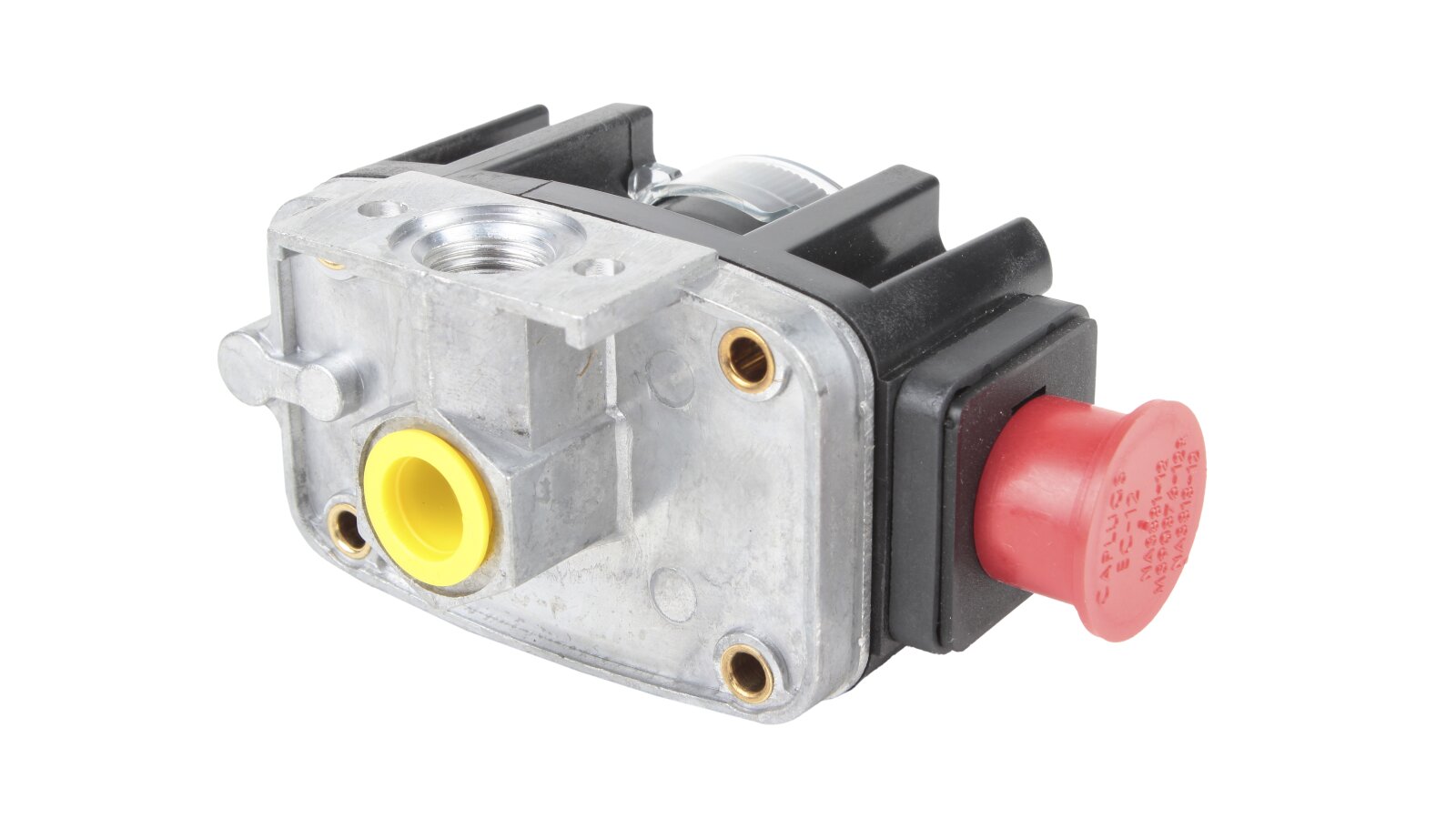

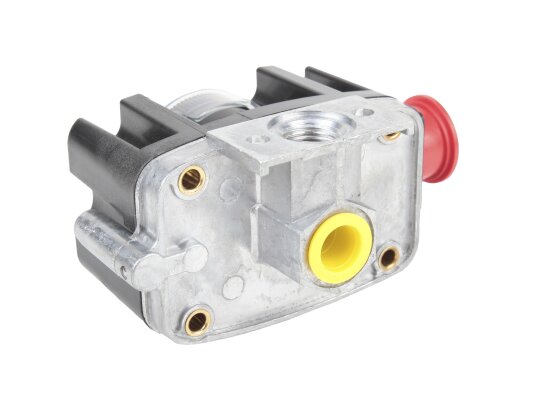

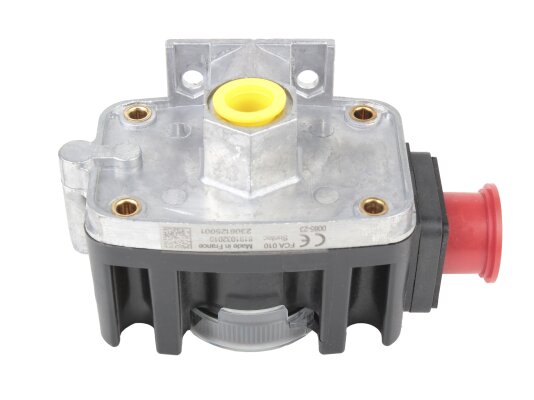

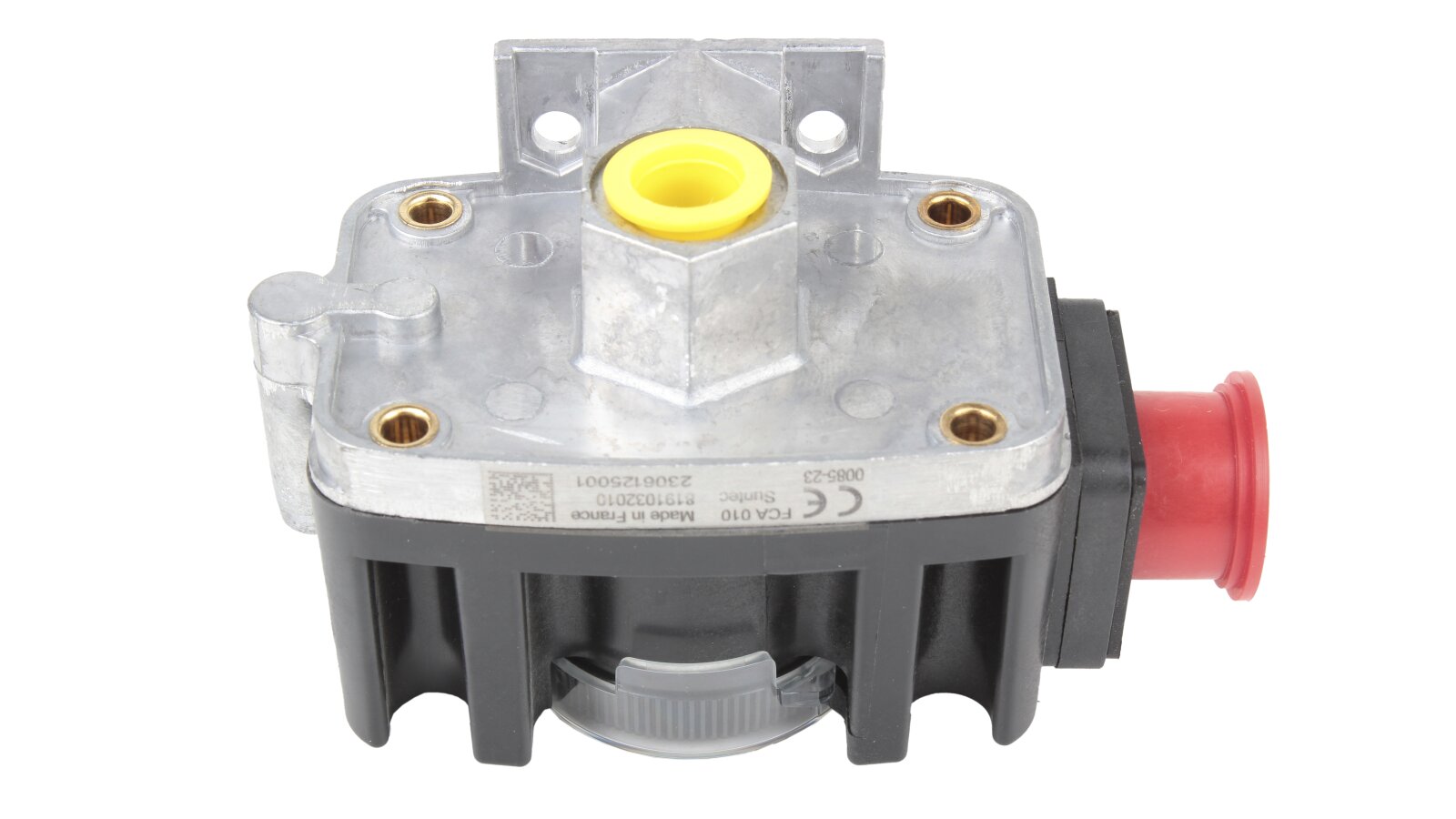

Pressure switch Suntec FCA 010

The Suntec FCA 010 pressure switch, art.: 8191032010, is equipped with a reliable switching system that operates without interruption. It is used to control excess pressure and vacuum pressure of air during operation of industrial burners. It closes or opens contacts when the pressure in the system drops below or rises above the set value.

Main parameters and features:

• For automatic air supply control and management devices;

• Maximum system pressure – 690 mbar;

• Reliable protection of the switching mechanism from external influences;

• Accurate, stable operation;

• Small dimensions to save work space;

• Simple adjustment of the switching pressure using a wheel with numbers;

• Series with automatic reset;

• Housing made of aluminum casting and high gas density polymer;

• Removable transparent regulator cover;

• Outer shell impermeability class IP 54;

• Fast and reliable electrical connection via a DIN plug.

Setting

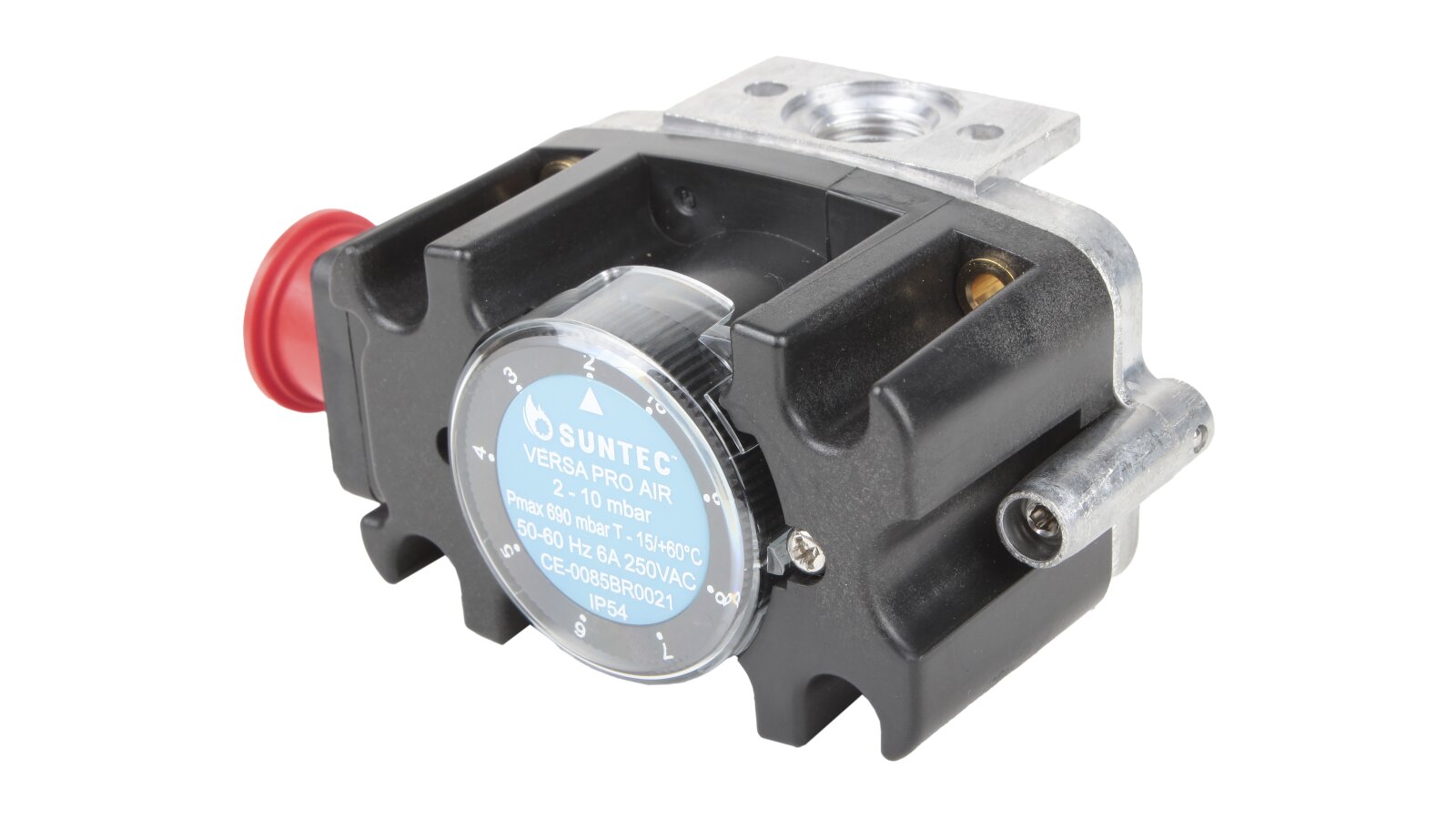

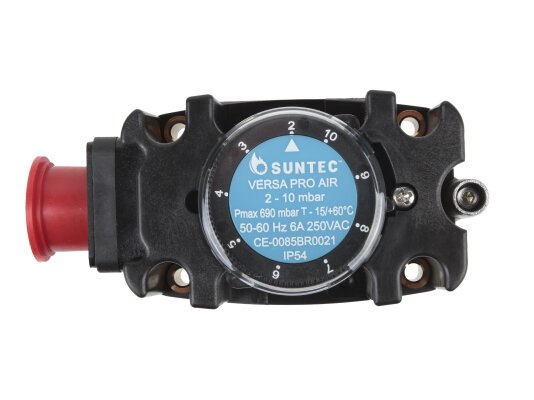

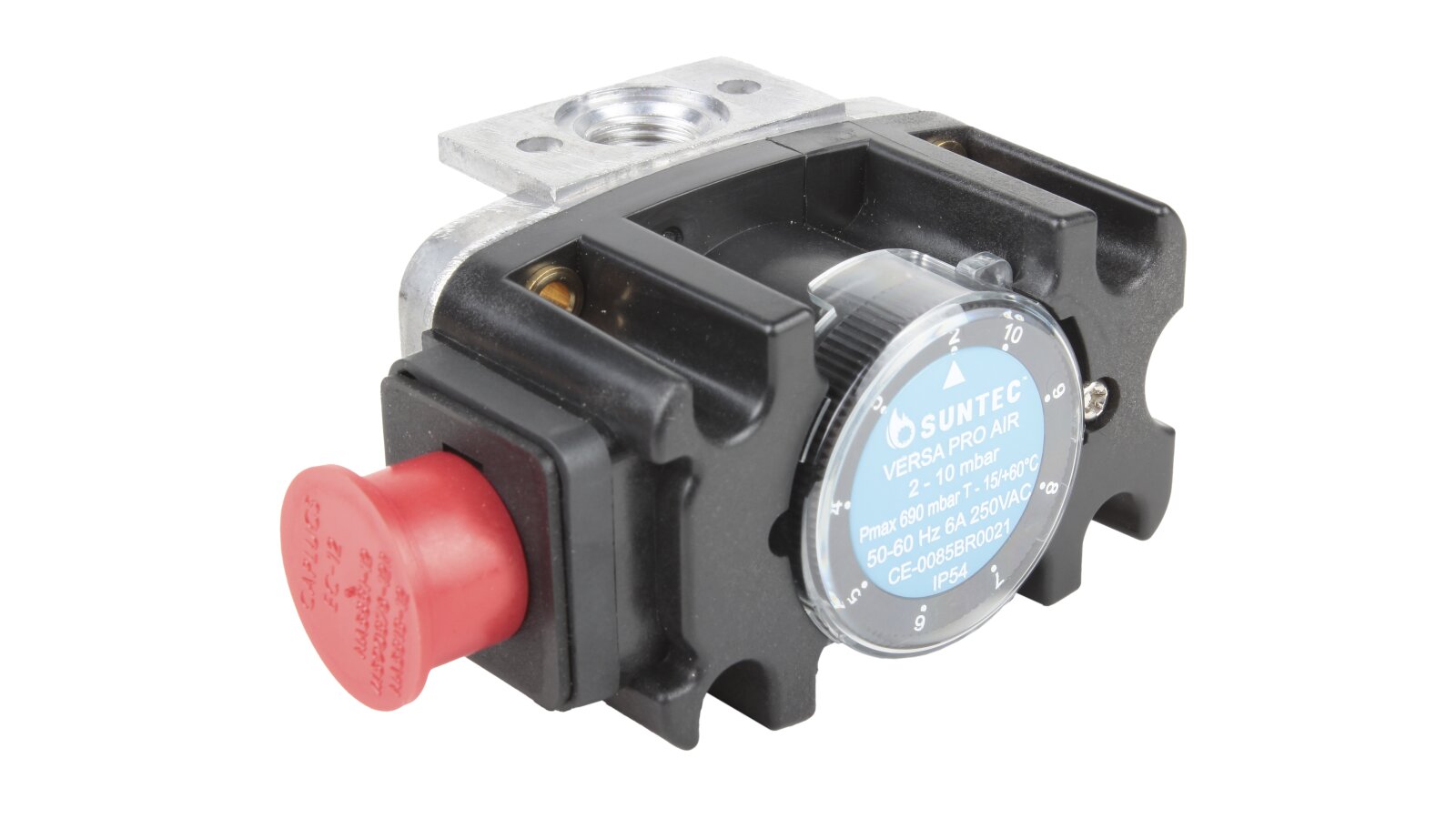

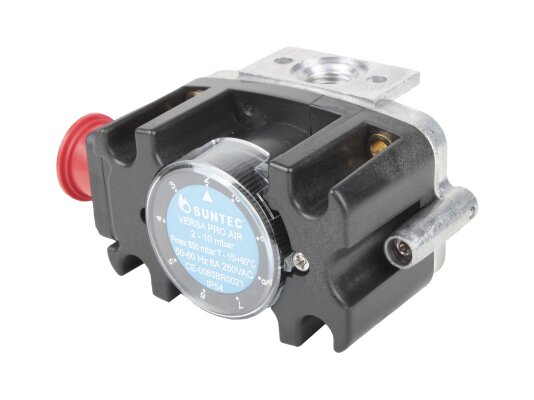

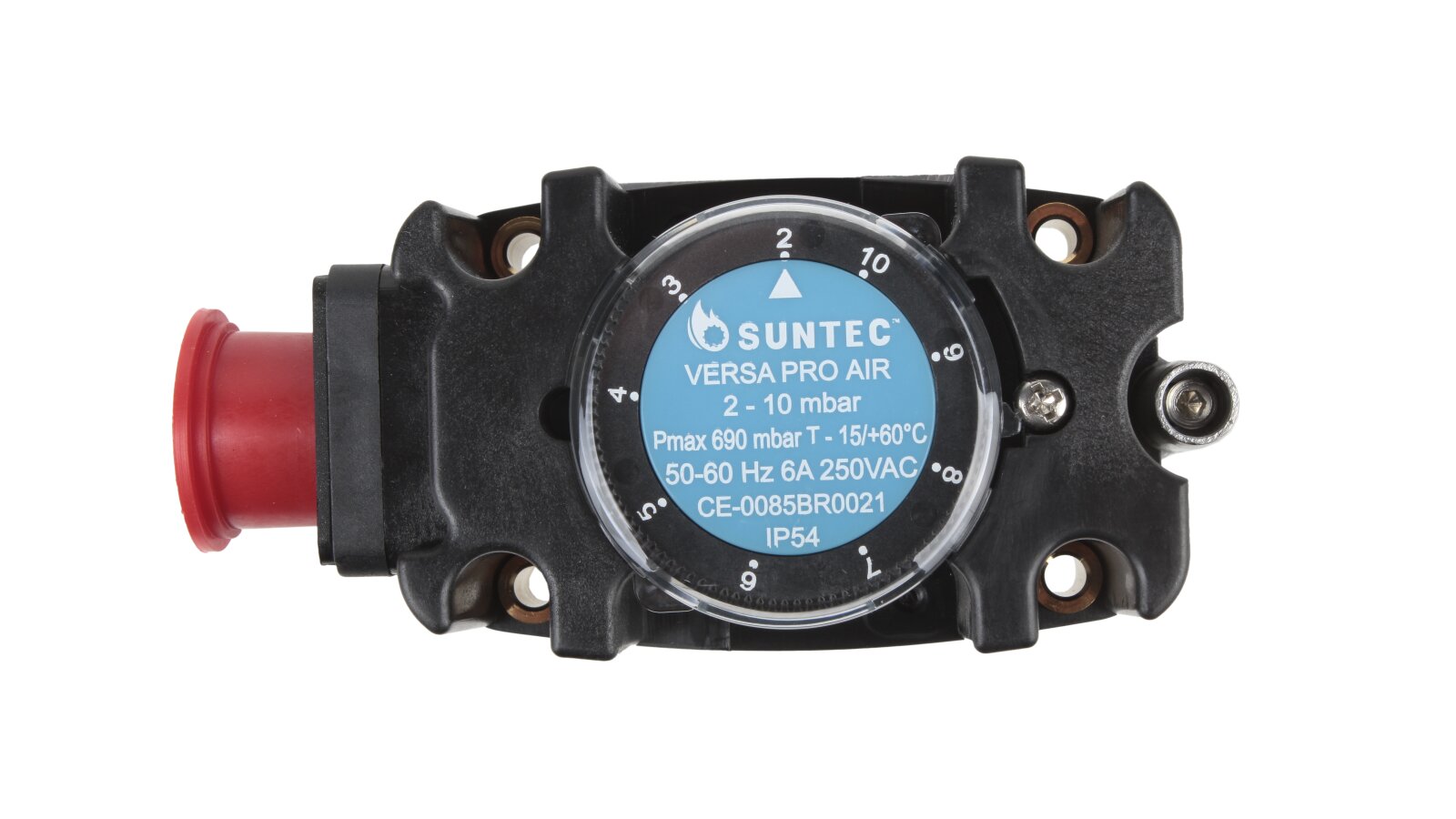

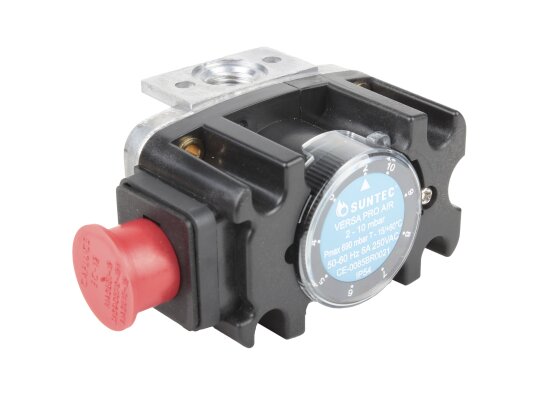

The sensor-relay is precisely adjusted in the range of 2-10 mbar by smoothly rotating the disk with digital markings, without using a pressure gauge. Adjustable hysteresis is provided, range 0-1.5 mbar.

Advantages:

• uninterrupted switching system;

• simple setting of parameters using a disk regulator;

• compactness, space saving;

• protection from contact, dust, moisture;

• adjustment of response accuracy;

• frost-, heat-resistant.

The Suntec FCA 010 pressure switch stably switches contacts at ambient temperatures from -15 to +60°C. Do not allow moisture and solar radiation to get on the housing when using the device.
