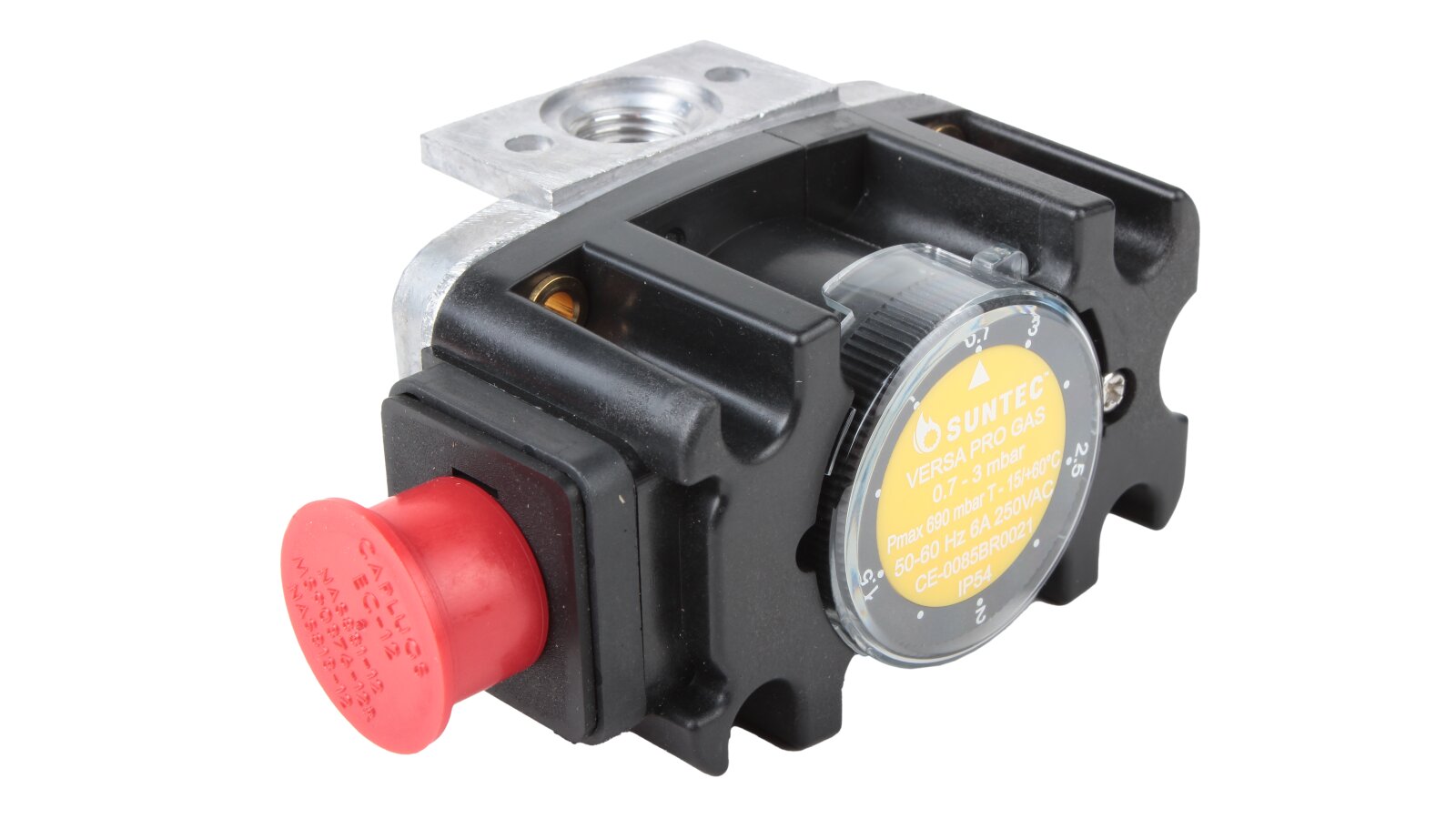

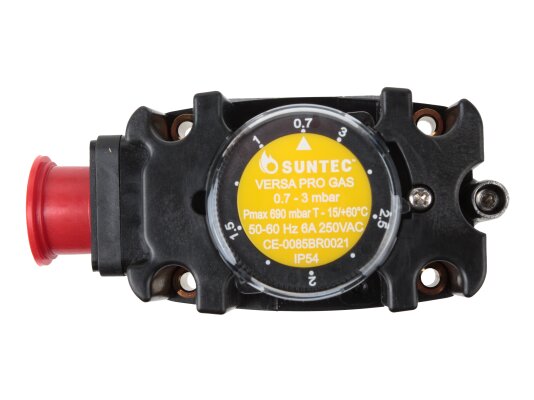

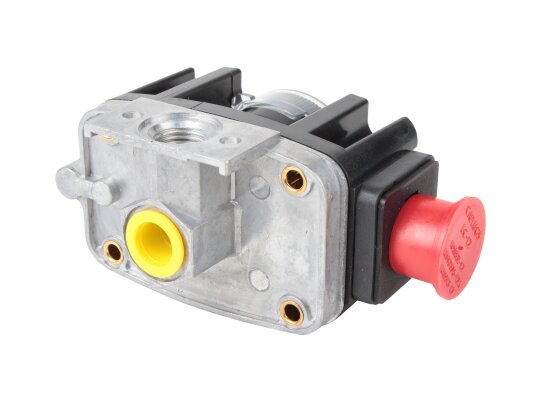

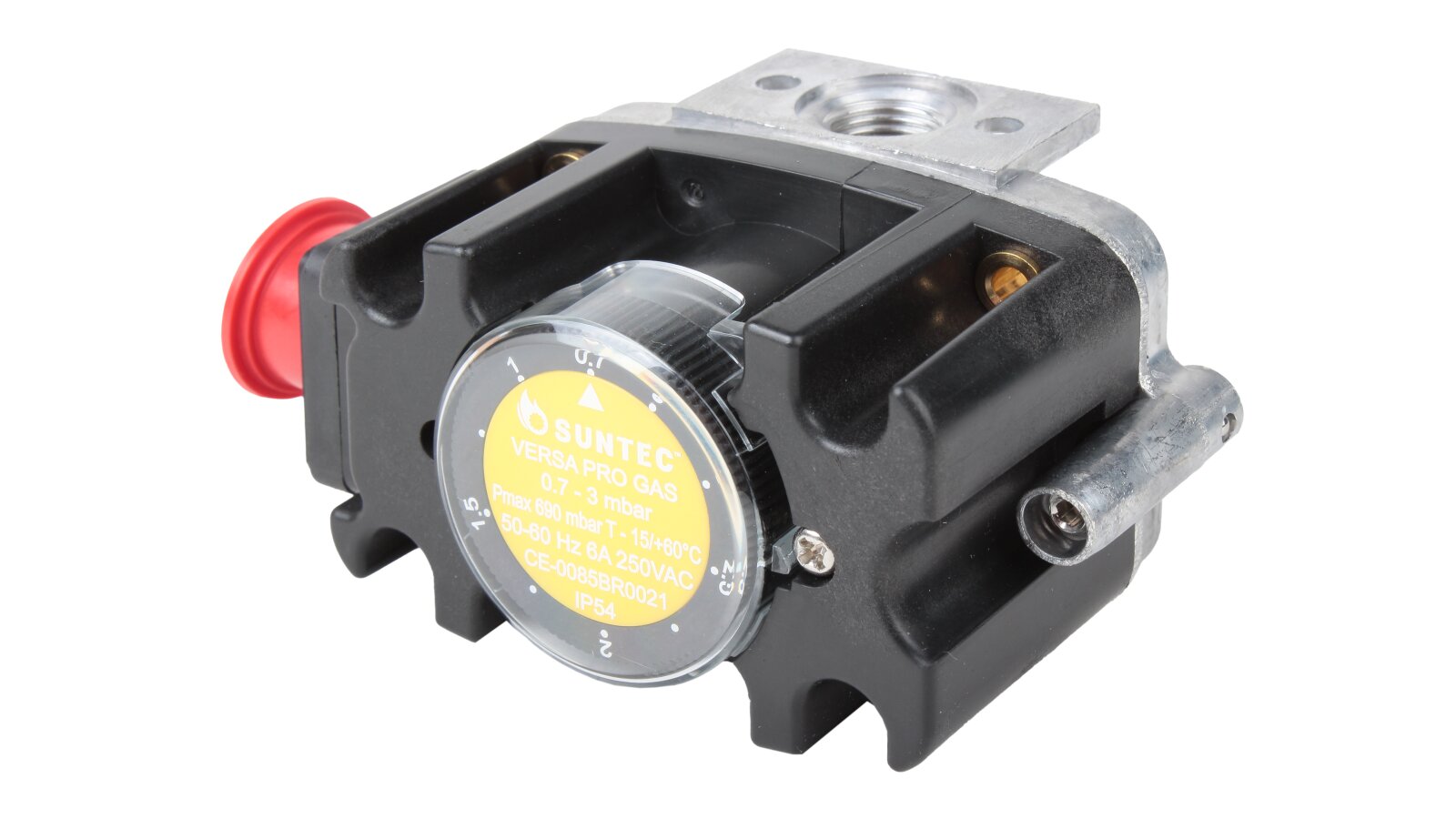

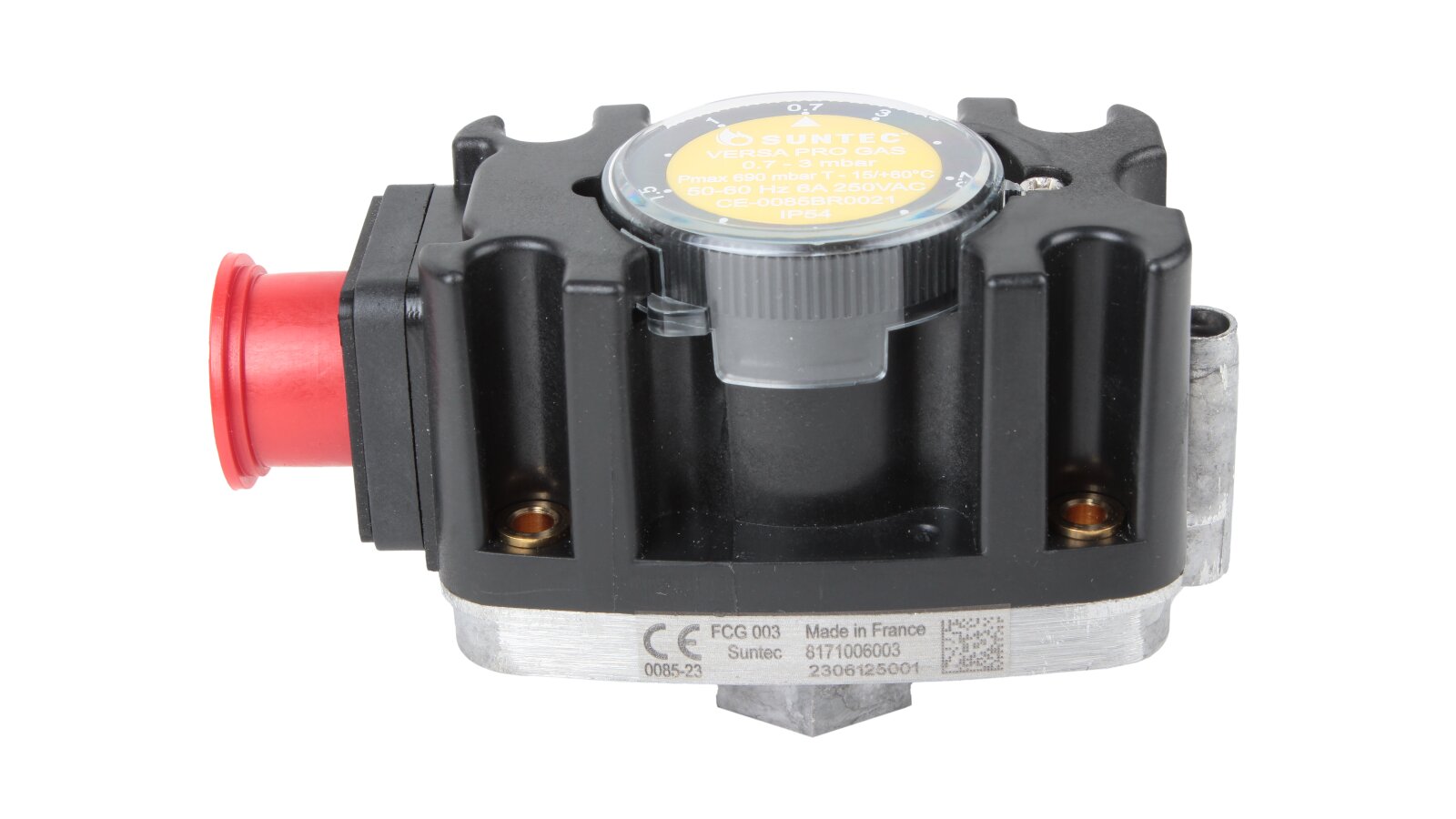

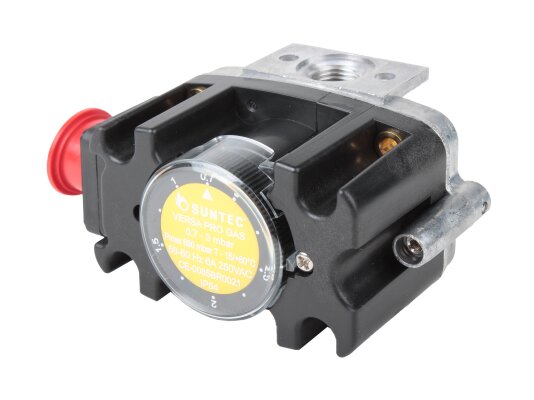

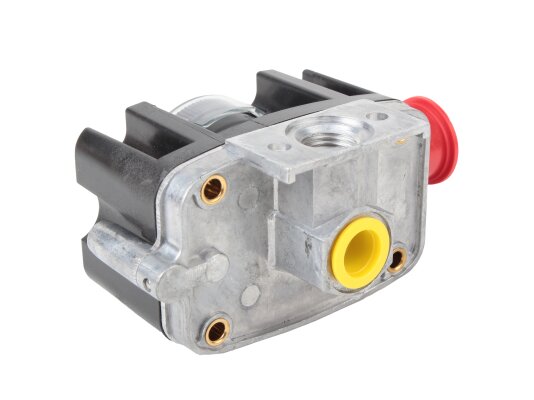

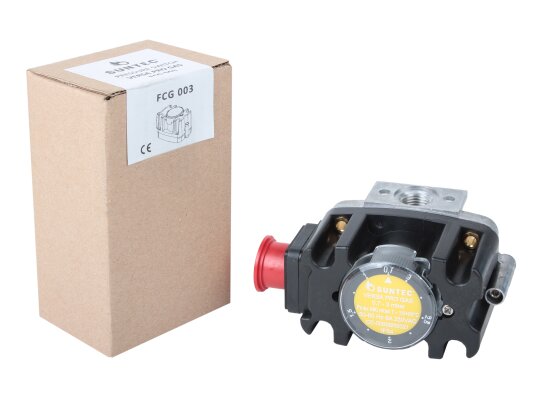

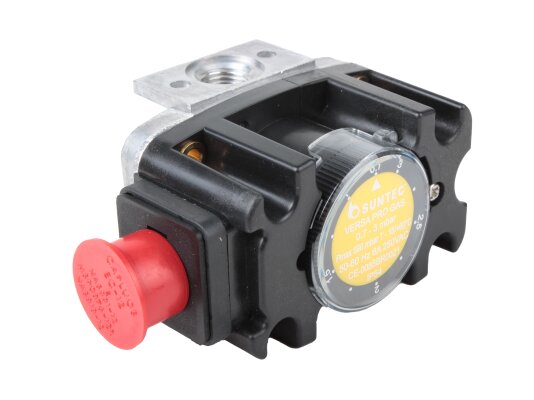

Pressure switch Suntec FCG 003

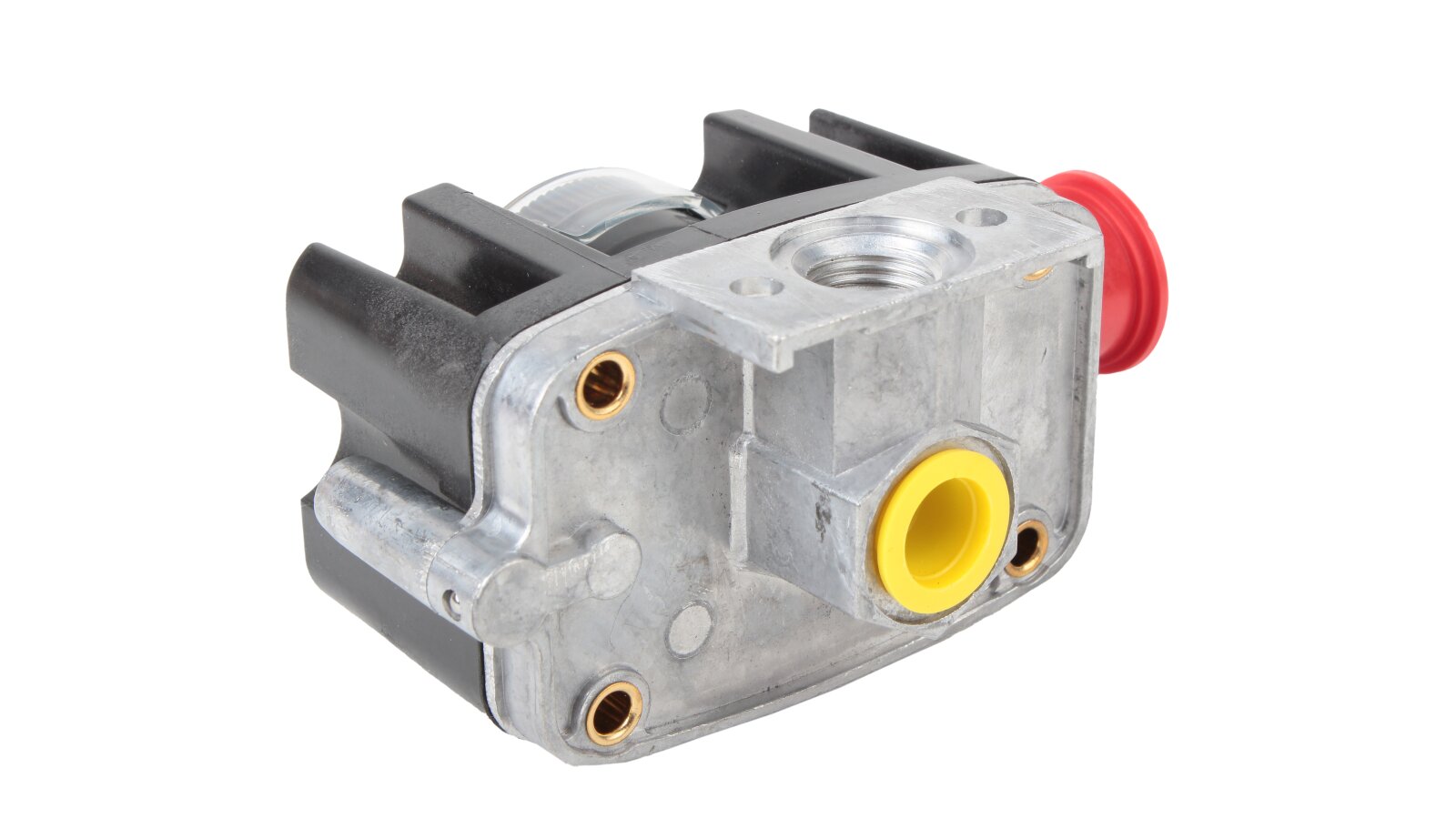

The Suntec FCG 003 pressure switch, art: 8171006003, is a compact switch equipped with a robust plastic housing with a die-cast aluminum base. It is used to automate gas supply in systems with pressures up to 690 mbar. It controls excess pressure and gas vacuum pressure. Adjustment range: 0.7-3 mbar. The contacts switch when the pressure drops below or rises above the set value.

Main parameters and features:

• reliable switching mechanism in a compact housing;

• working environment – ​​gas of family I-III according to EN 437;

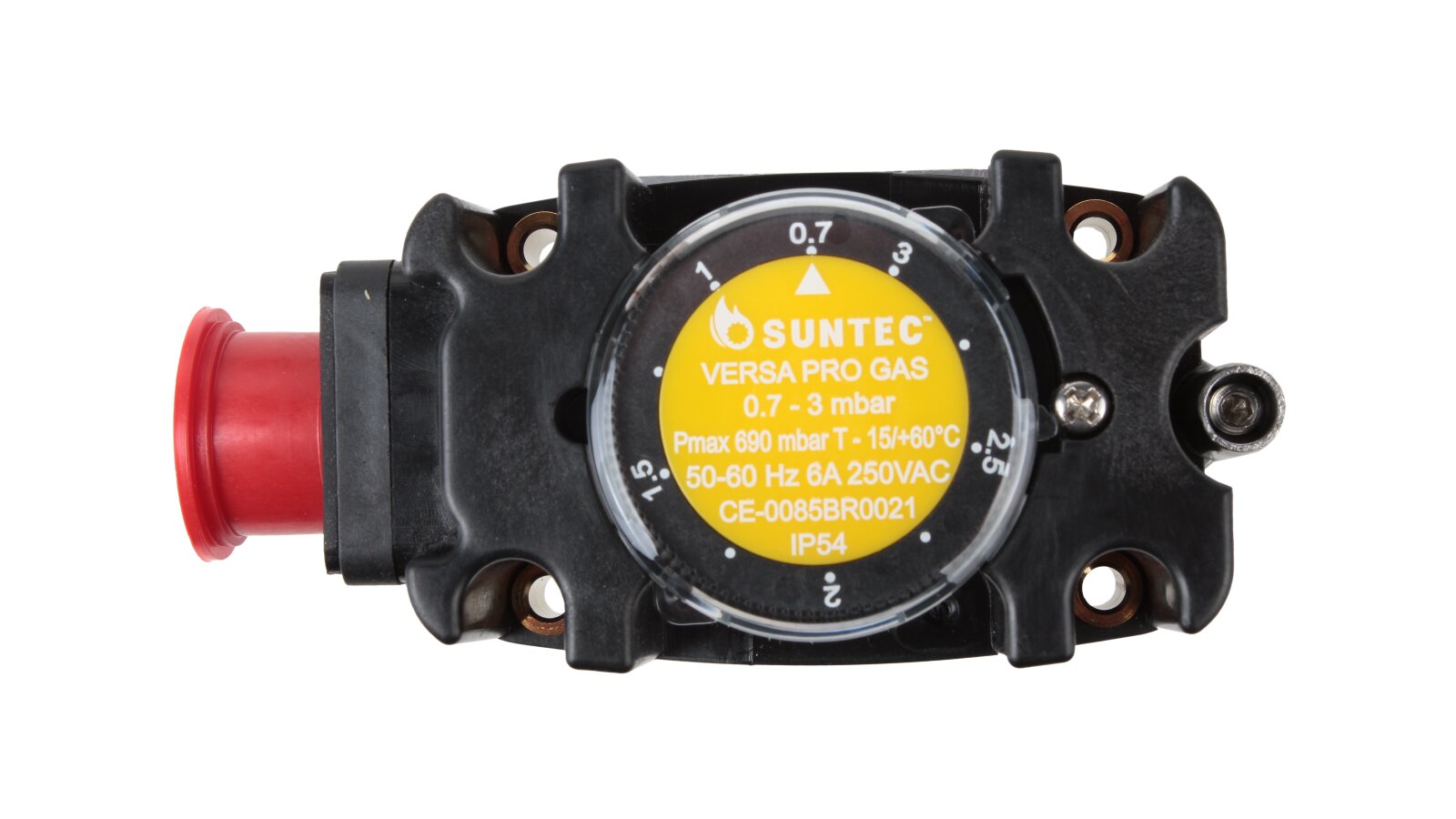

• easy adjustment of response parameters using a disk and scale;

• adjustable hysteresis, 0-0.8 mbar;

• mounting on a gas valve;

• automatic reset;

• housing made of aluminum and gas-tight polymer;

• removable transparent regulator cover;

• stable switching, high membrane sensitivity;

• thread connection Rp ¼";

• impermeability of the outer shell class IP 54;

• mounting directly on the gas valve;

• connection using a DIN plug;

• fastening using sealing rings.

The DMG series pressure switch can be installed indoors and outdoors, designed for ambient temperatures from -15 to +60°C. Moisture and exposure to sunlight are not allowed on the housing.

Advantages:

• precise, stable switching;

• small-sized design;

• smooth switching adjustment and easy reading of parameters;

• adjustable hysteresis;

• contact insulation according to IP 54;

• frost- and heat-resistant design.

Application

The Suntec FCG 003 pressure switch is part of an automatic gas supply control system for the operation of industrial burners, boilers, heat generators and other gas devices.
