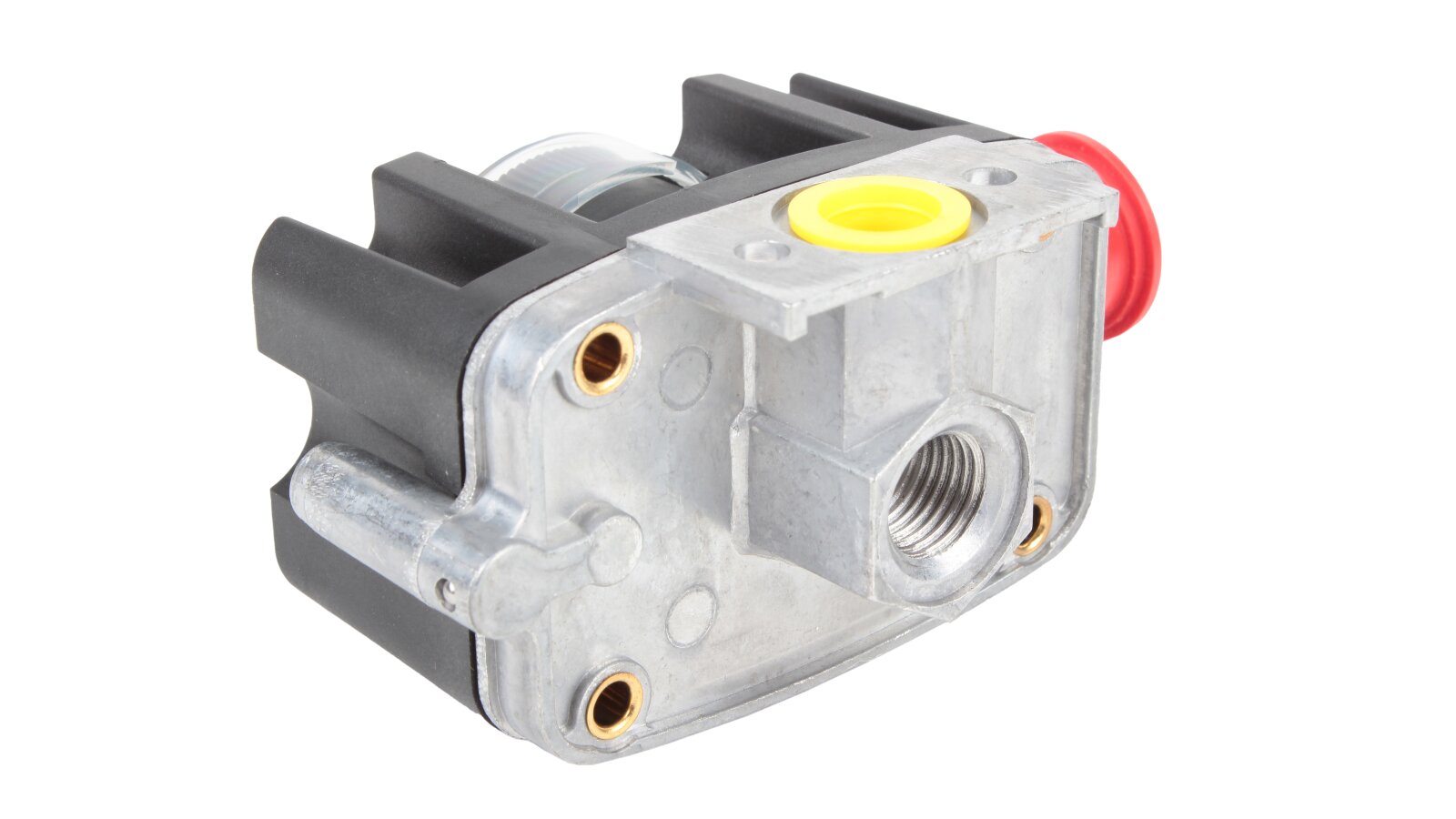

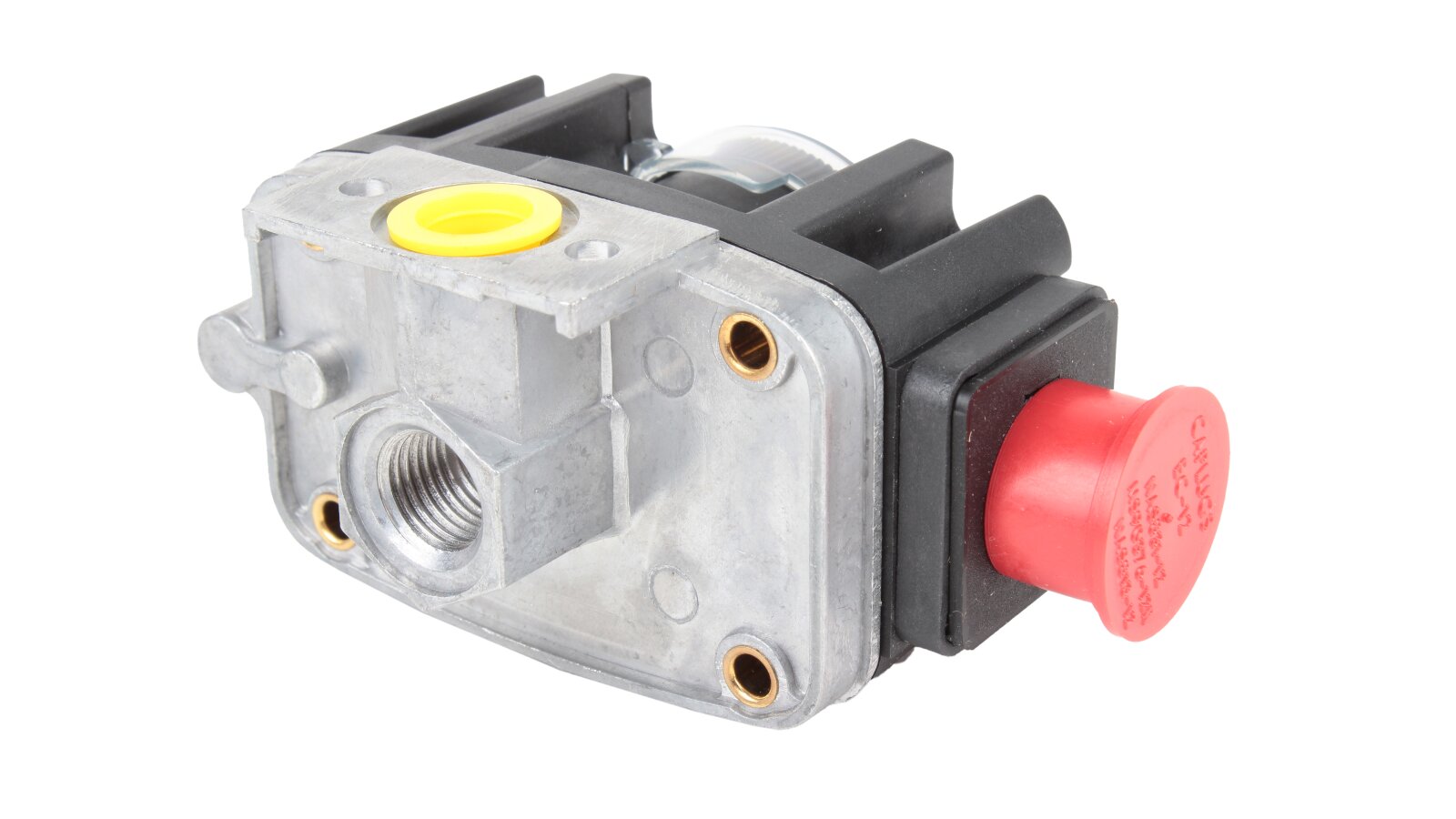

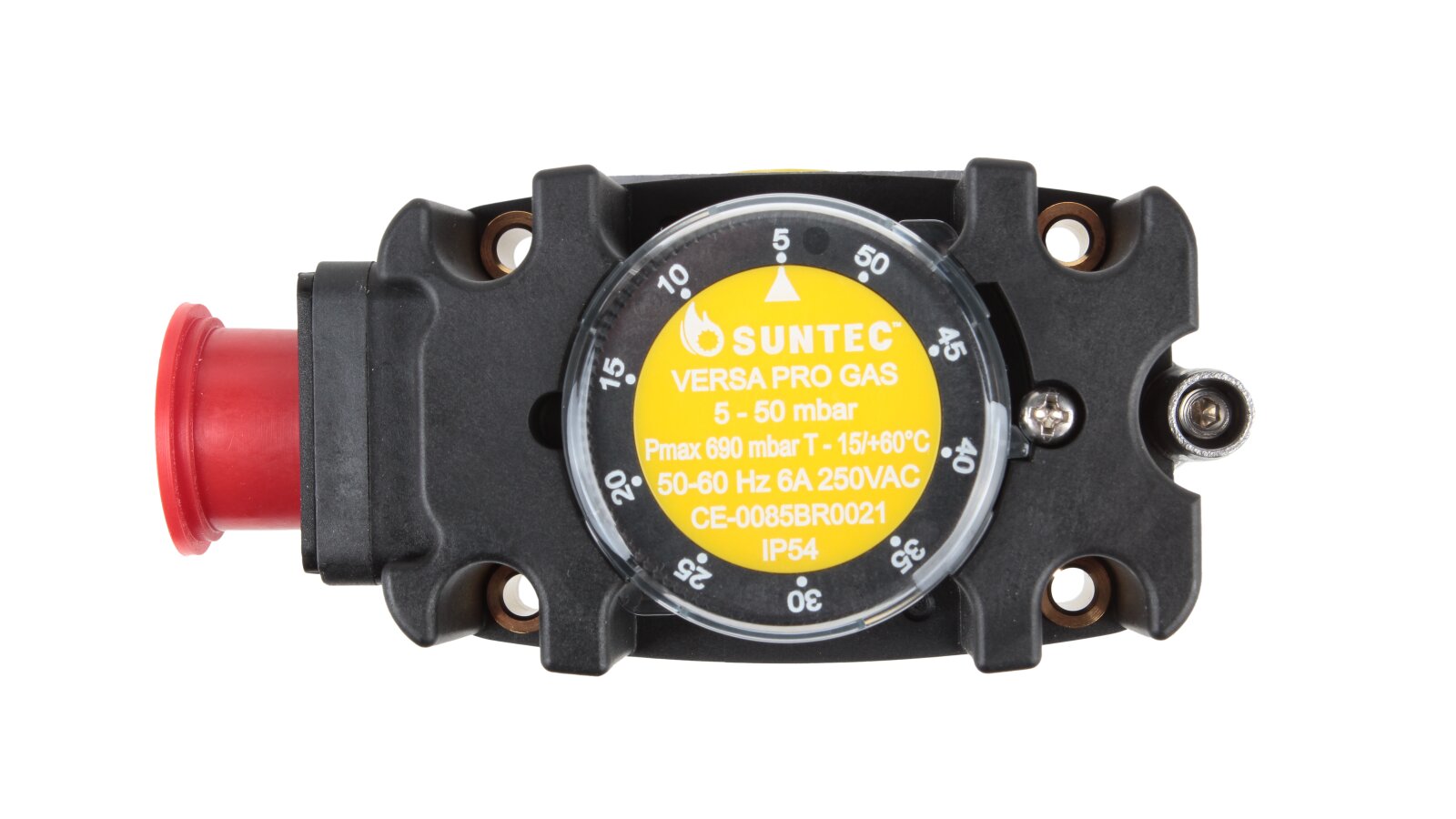

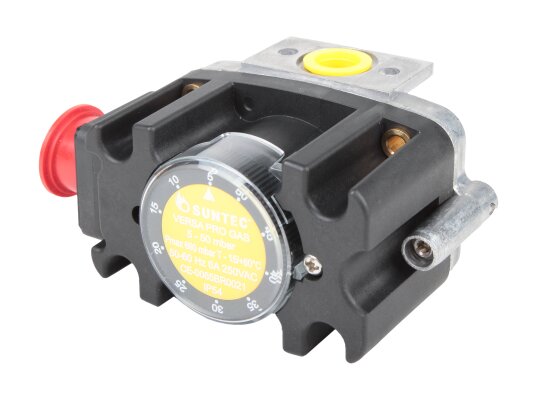

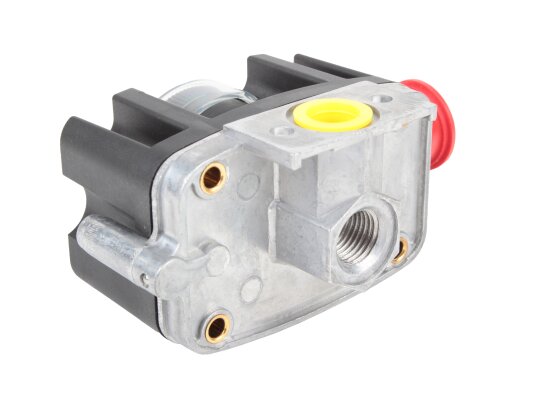

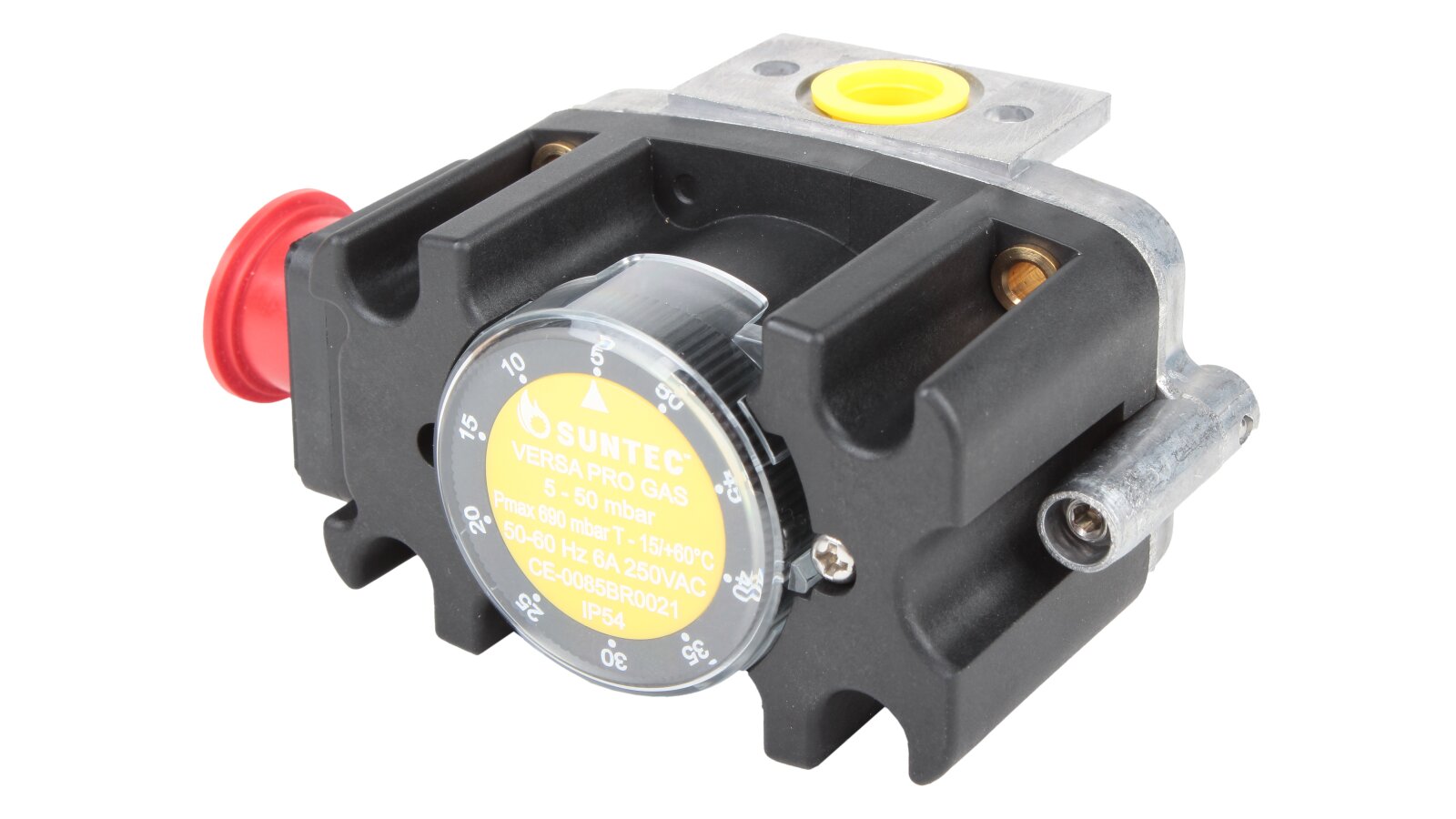

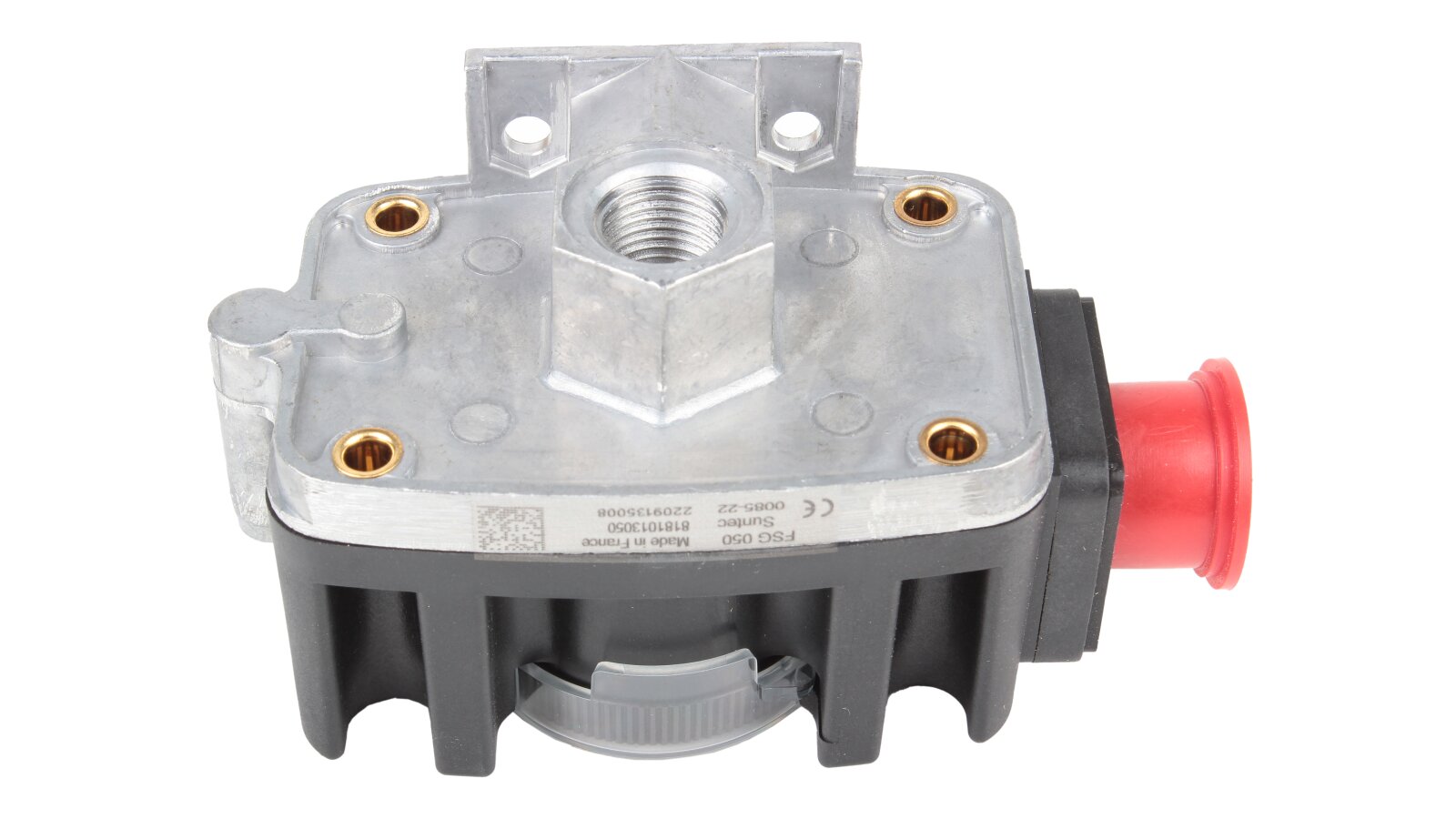

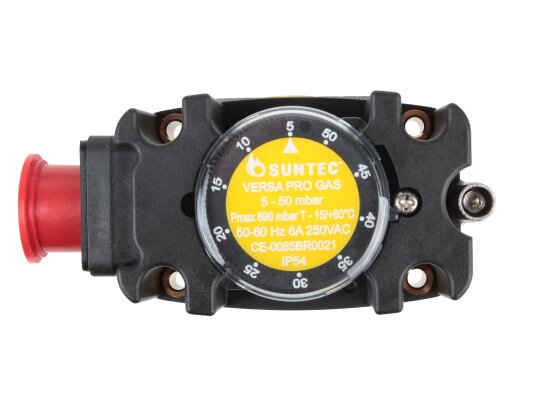

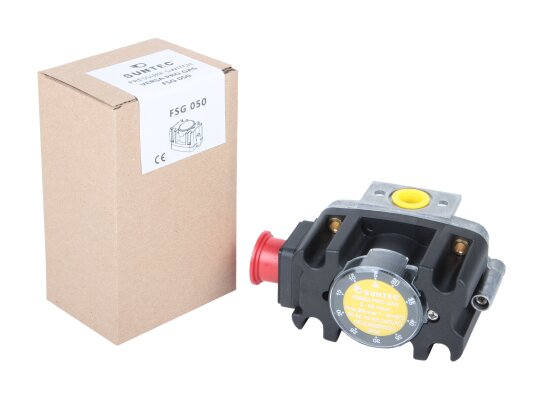

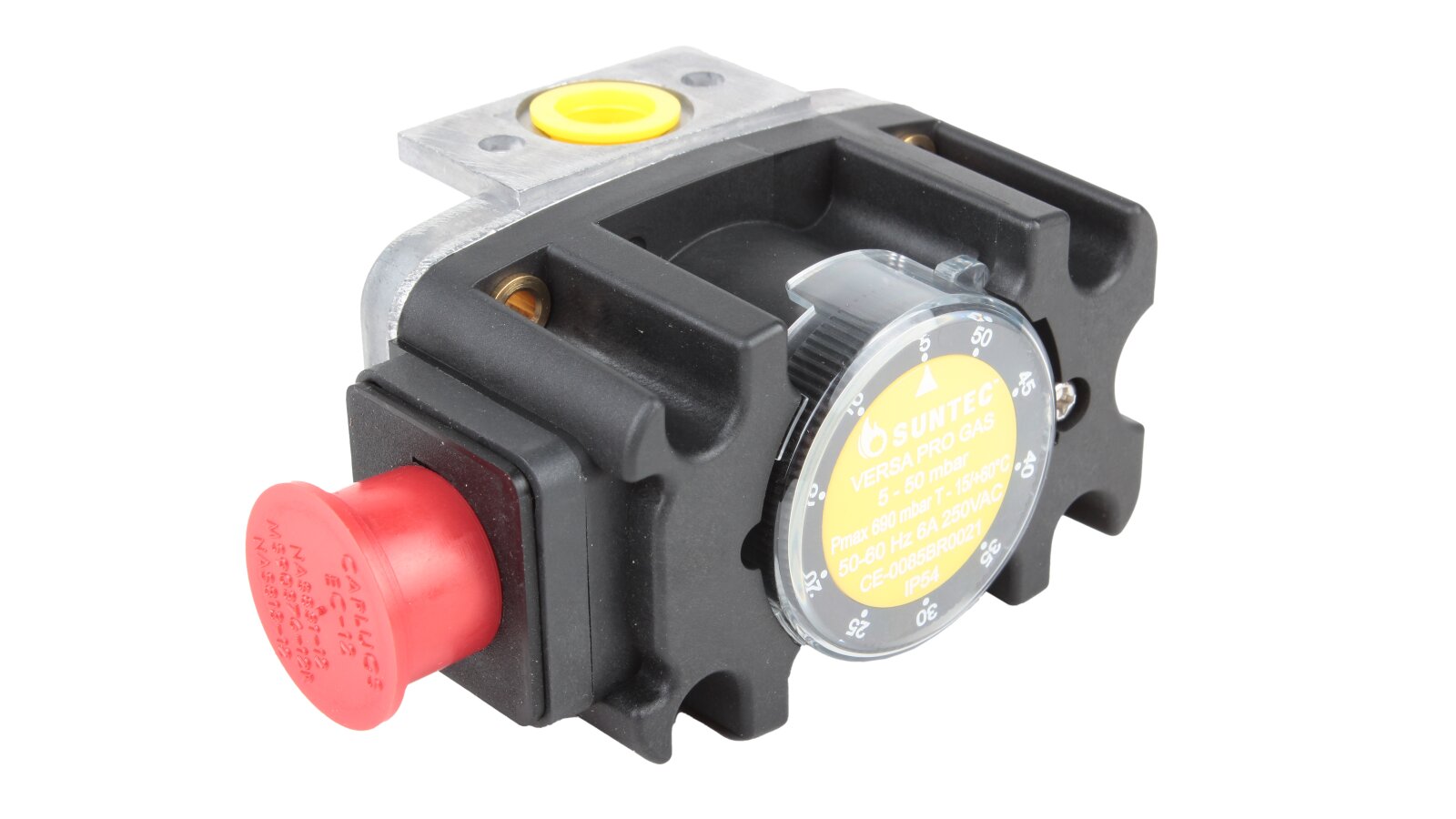

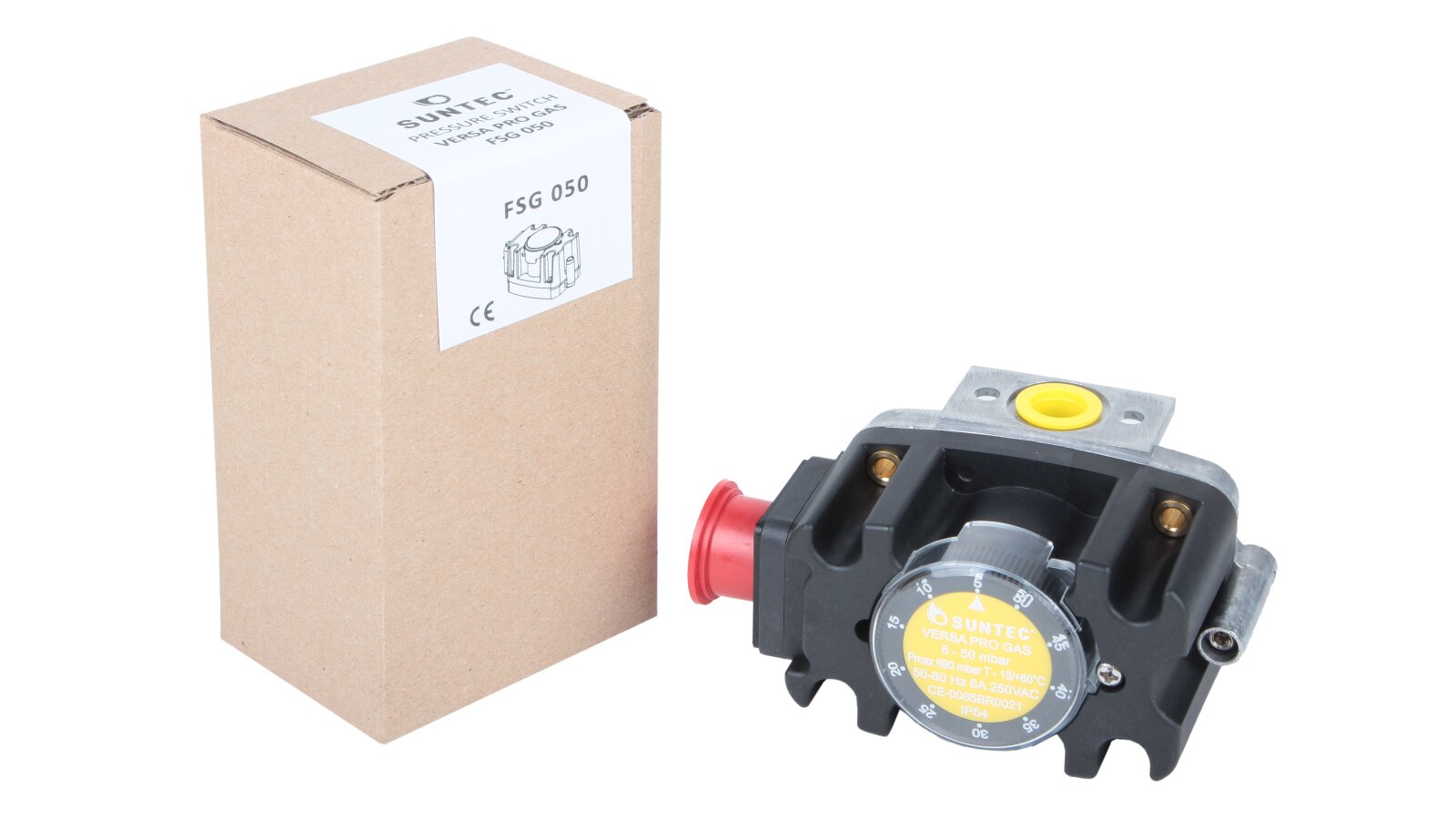

Pressure switch Suntec FSG 050

The Suntec FSG 050 pressure switch, art: 8181013050, is used to monitor excess pressure and vacuum pressure during operation of gas equipment automation systems. Smoothly adjustable in the range of 5-50 mbar by rotating the adjusting disk with a scale. The response accuracy is adjusted within 0-3 mbar. The contacts close or open when the pressure drops below or rises above the set value. The working environment is gas of family I-III according to EN 437.

Characteristics and features:

• for gas installations with a pressure of no more than 690 mbar;

• model with automatic reset;

• reliable switching device;

• adjustable hysteresis;

• uninterrupted, accurate response;

• small dimensions, installation on a gas valve;

• convenient access to setting operating parameters;

• digital regulator for setting the switching pressure;

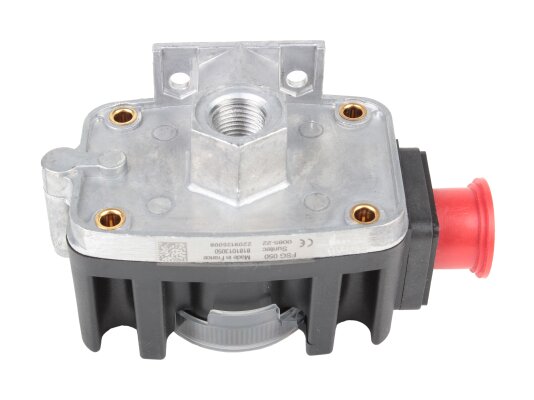

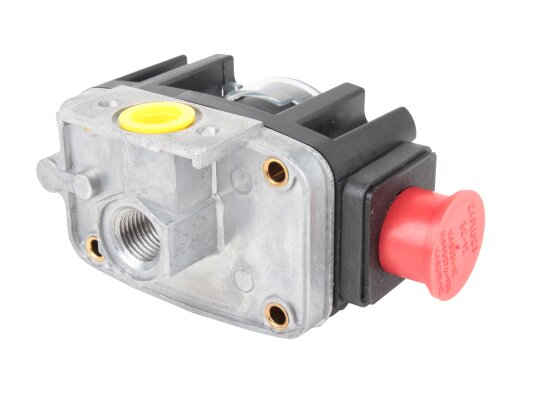

• die-cast aluminum body (base), polymer casing;

• high gas-tight materials;

• connection via DIN plug;

• dust and moisture protection of the outer shell class IP 54;

• fastening using sealing rings.

The Suntec FSG series pressure switch is designed for ambient temperatures of -15...+60°C. During installation and operation, it is necessary to protect the device from moisture and solar radiation.

Advantages:

• reliable, accurate switching;

• regulator for setting parameters on top of the housing;

• compact dimensions;

• dust and moisture protection class IP 54;

• gas-tight design;

• wide range of operating temperatures.

Application

The Suntec FSG 050 pressure switch is used in gas automation to regulate gas supply. It is used to equip burners, boilers, heat generators and other industrial gas equipment.
