Pressure switch Weishaupt DSB146F001

Weishaupt

AED 3,550

  • Discontinued
Pressure Switches
Products code: 29643

Description

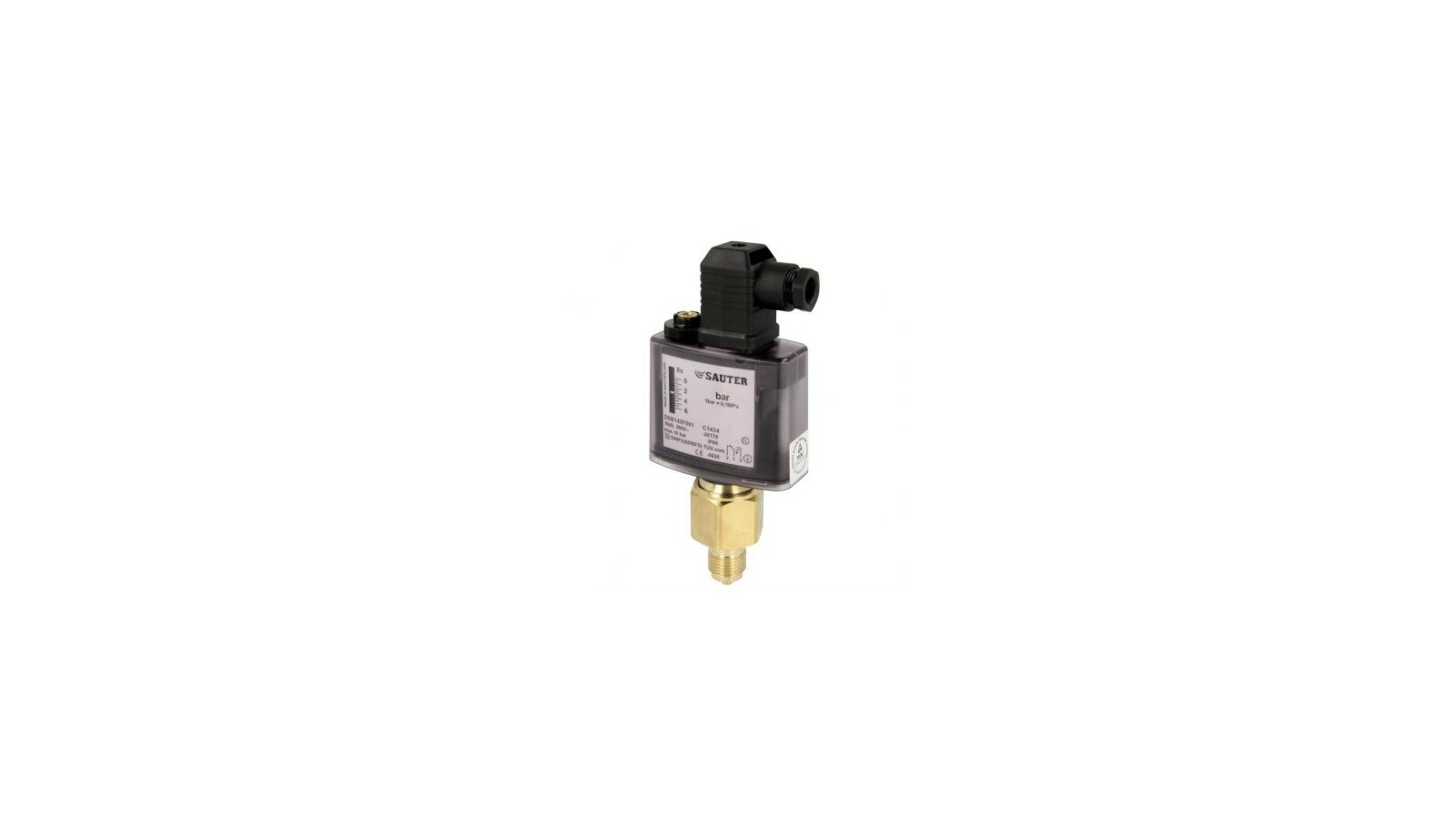

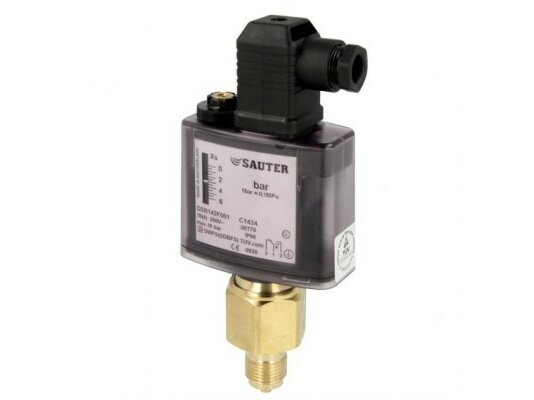

The Sauter DSB146F001 pressure switch is used to equip automatic gas vacuum pressure monitoring systems. It is designed for a medium pressure of no more than 30 bar. The sensor housing is made in accordance with the IP 65 dust and moisture protection standard. The device operates stably in a wide range of ambient temperatures, from -20 to +70 °C.

Features:

  • Shockproof thermoplastic housing with a transparent protective coating;

  • Reliable protection of electrical contacts from dust and moisture;

  • The material of the sensor parts in contact with the working medium is corrosion-resistant brass;

  • Application - liquid, vaporous, gaseous non-flammable, non-aggressive environments;

  • Suitable for marine equipment;

  • Connection parameters - G 1/2" thread;

  • Easy parameter setting;

  • Sealable scale;

  • Protection from physical impact.

You can buy the Sauter DSB relay and additional accessories for installation from us.

Characteristics

Operating ambient temperature: from -20 to 70 °CConnection type: G 1/2"Maximum working pressure: 30000 mbarAdjustment range: from 0 to 10000 mbarShift differential: 800 - 3700 mbarFor controlling: vacuum pressureDegree of protection: IP65Working environment: neutral gases
