Pressure switch Weishaupt DSF158F001

Weishaupt640109

Alternative Part Number

Weishaupt

We640109

Weishaupt

We64010-9

AED 6,300

Pressure Switches
Products code: 36963

Description

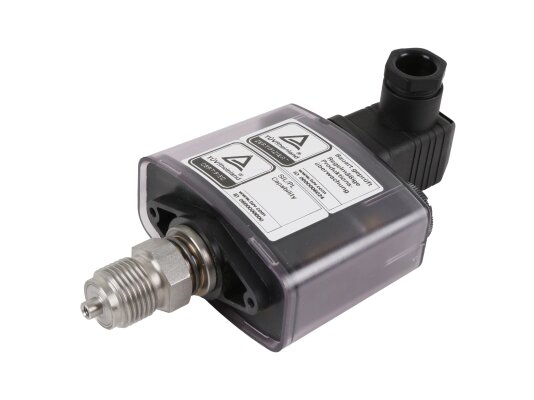

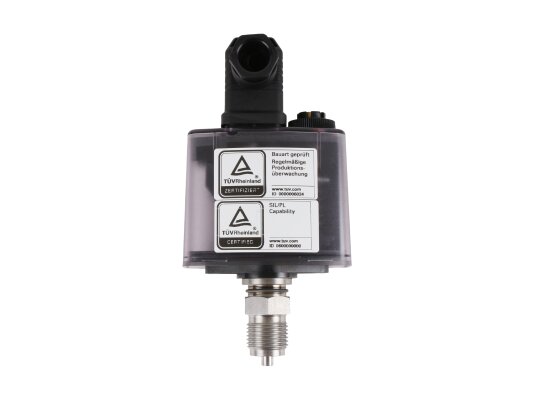

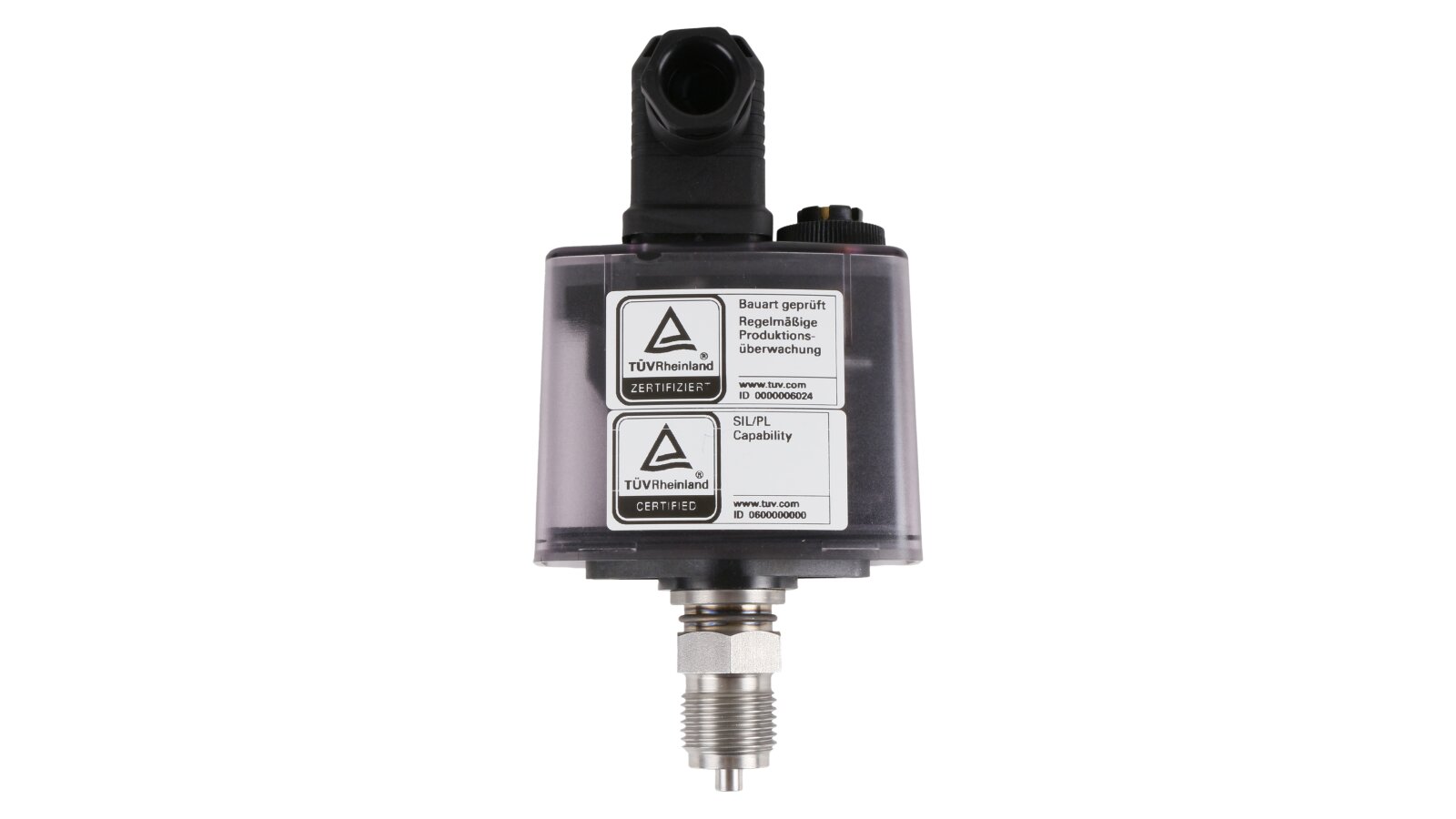

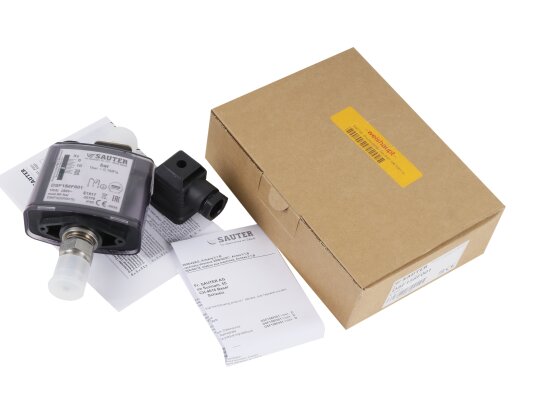

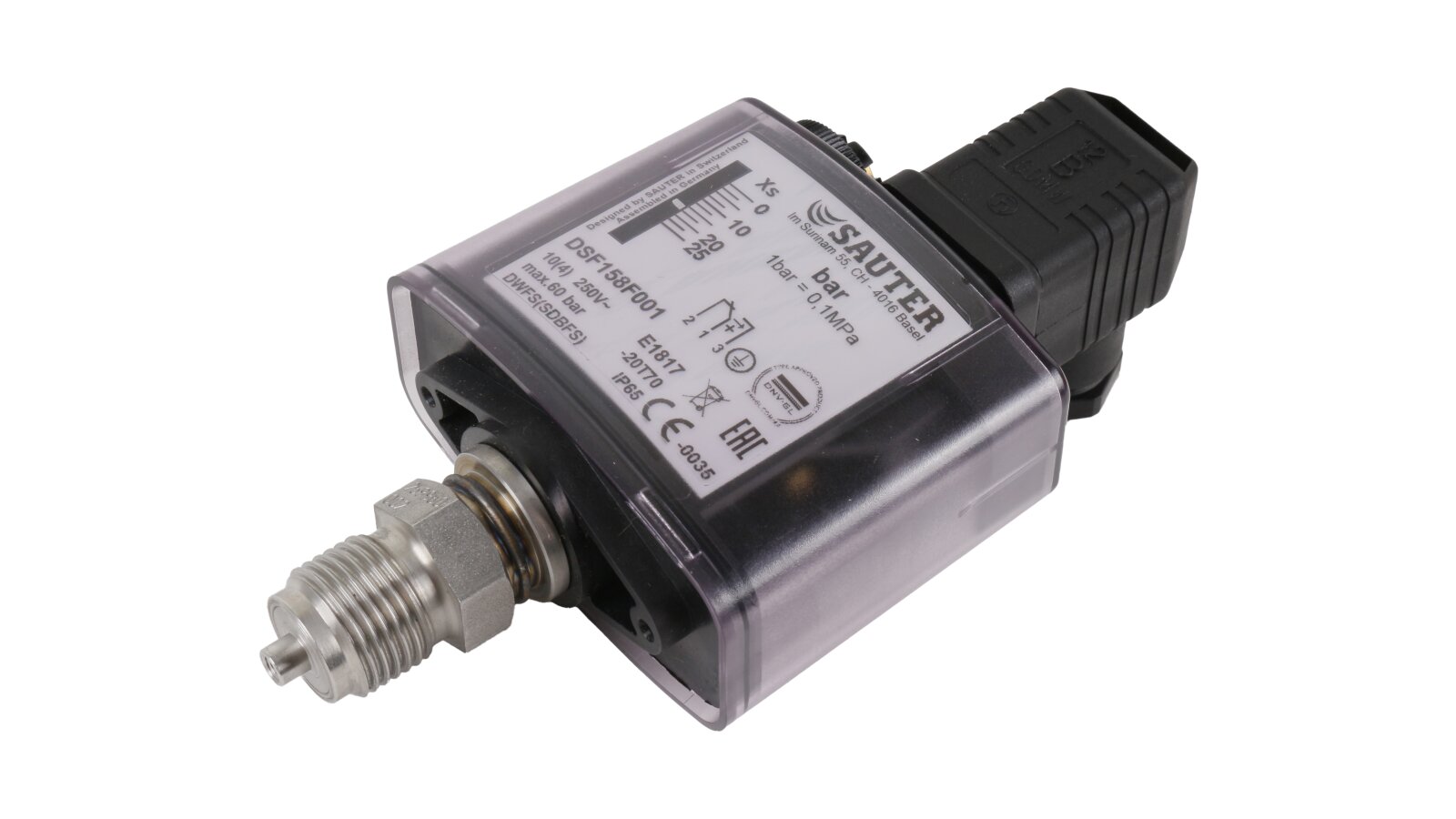

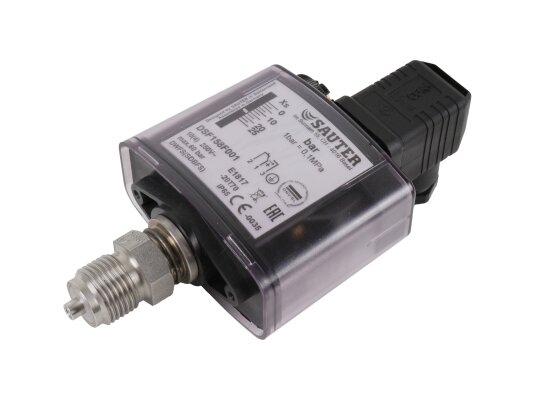

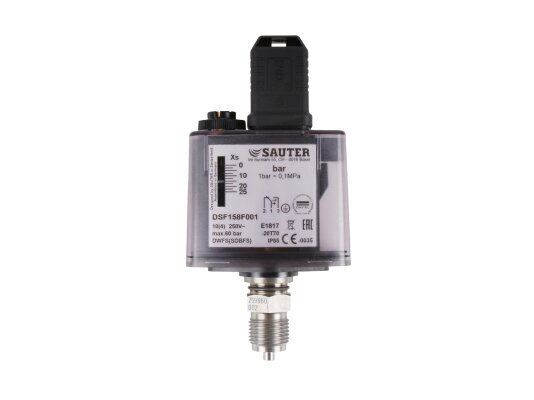

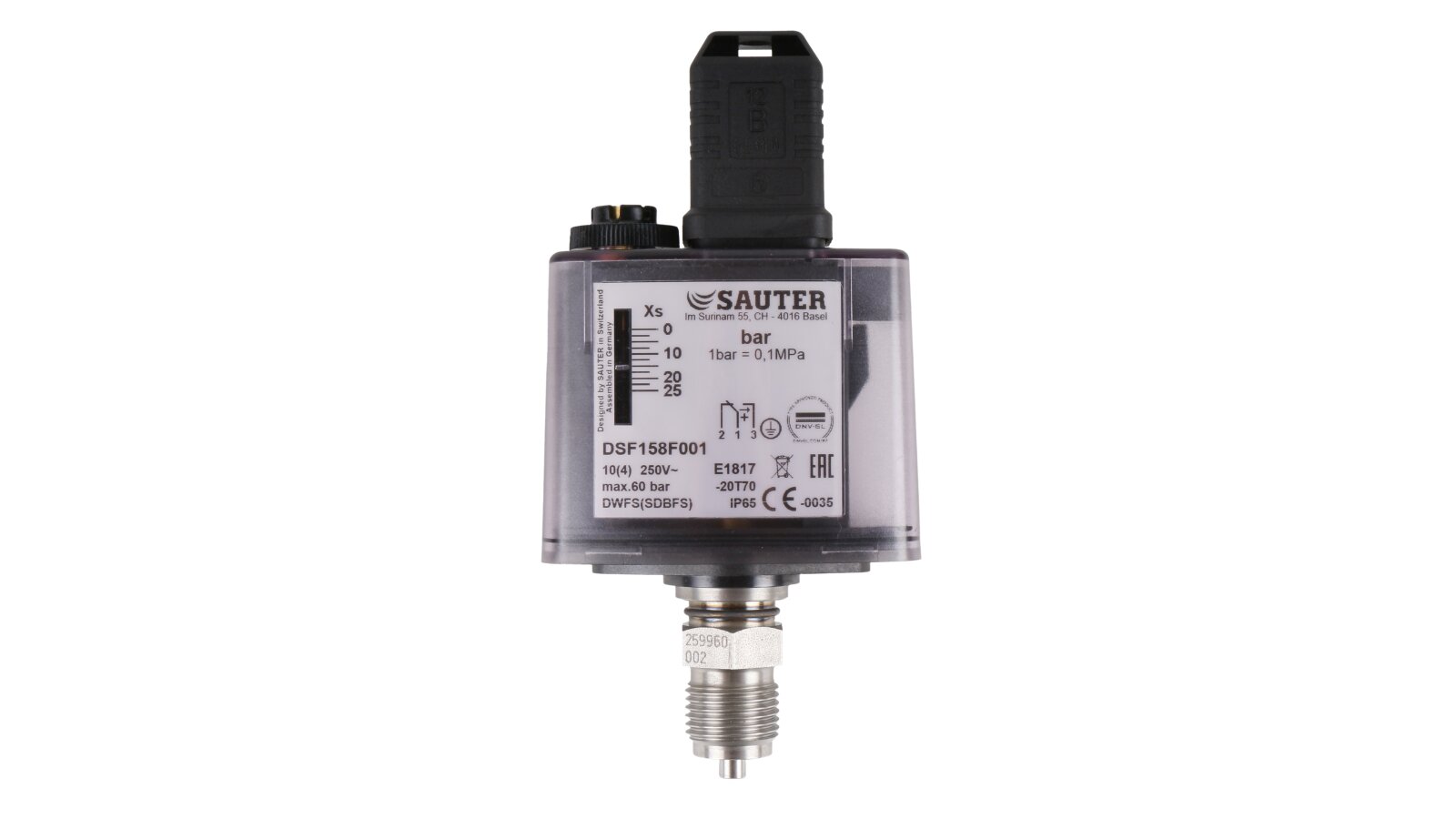

The Sauter DSF158F001 pressure switch is designed to regulate and monitor the vacuum pressure of liquid, vapor and gaseous media. The sensor is used in systems with pressures up to 30 bar. It is characterized by reliable performance, a high level of dust and moisture protection, and stable operation at ambient temperatures from -20 to +70 °C.

Features:

  • material of structural elements in contact with the working environment - stainless steel;

  • case made of impact-resistant thermoplastic with a transparent protective coating;

  • environment - liquid, vapor, gaseous aggressive environments;

  • reliable protection of electrical contacts from dust and moisture, class IP 65;

  • suitable for marine equipment;

  • easy installation and connection;

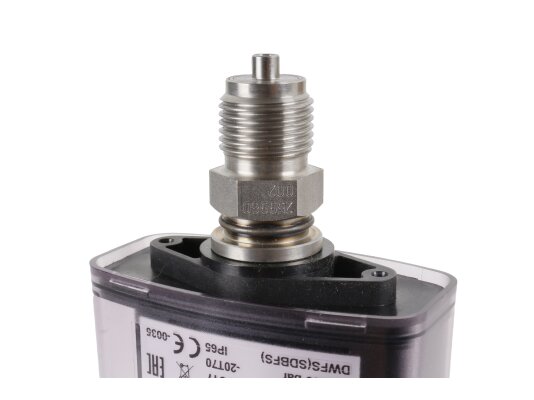

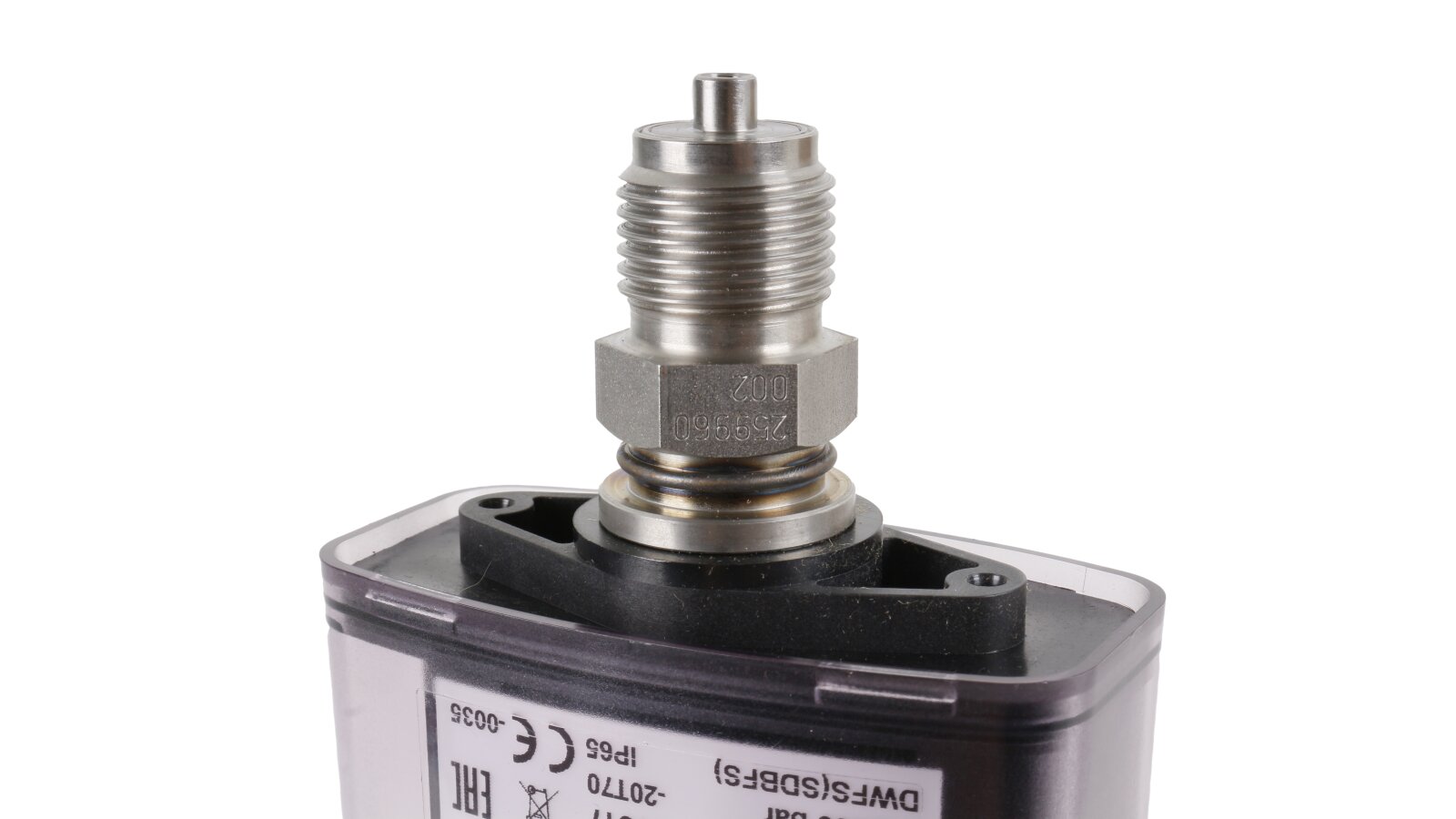

  • connection parameters - thread G 1/2";

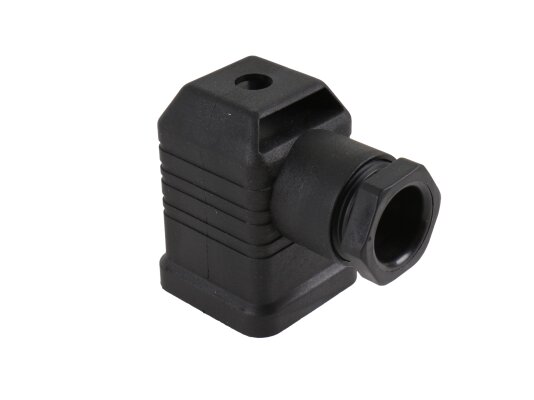

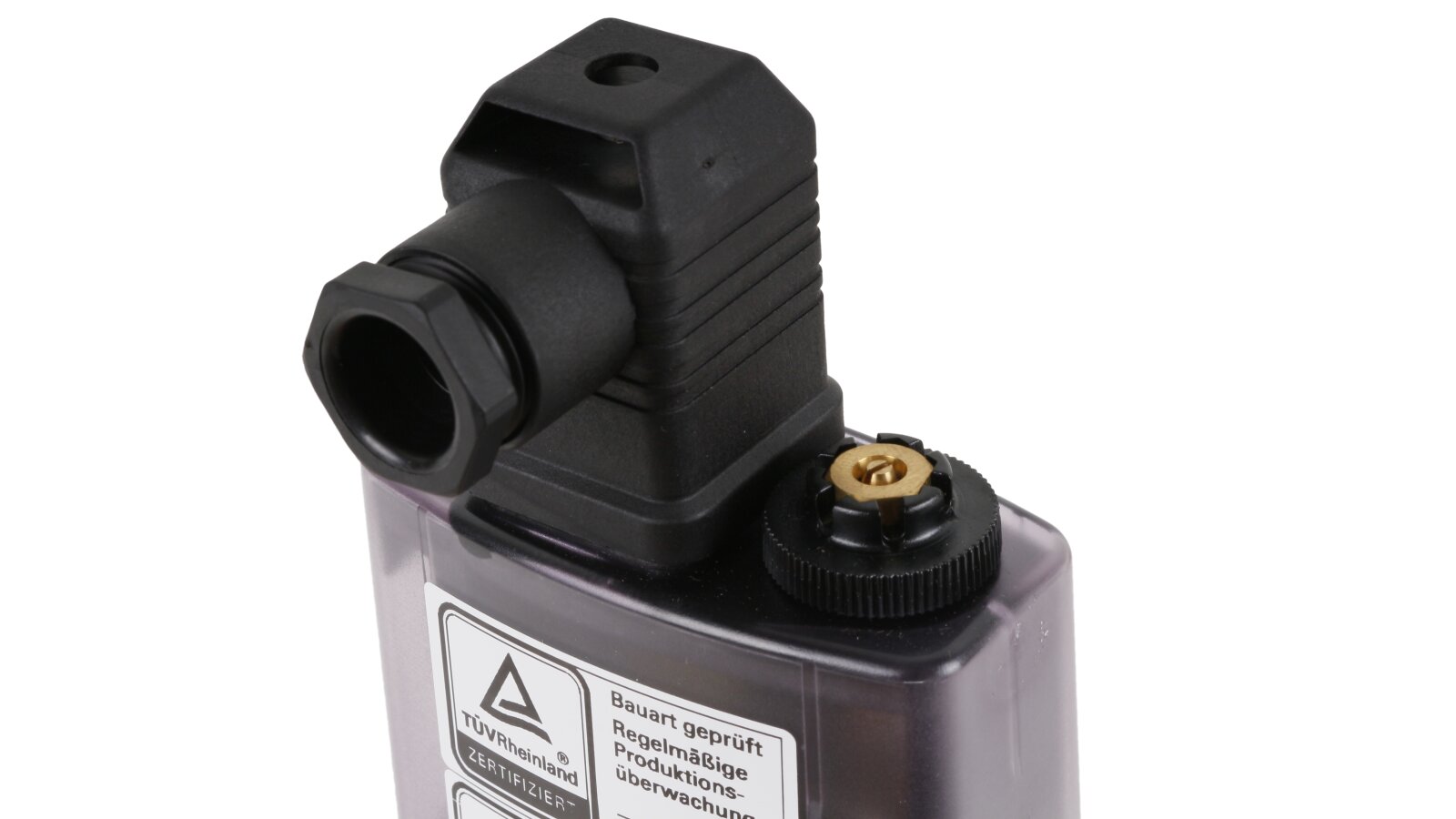

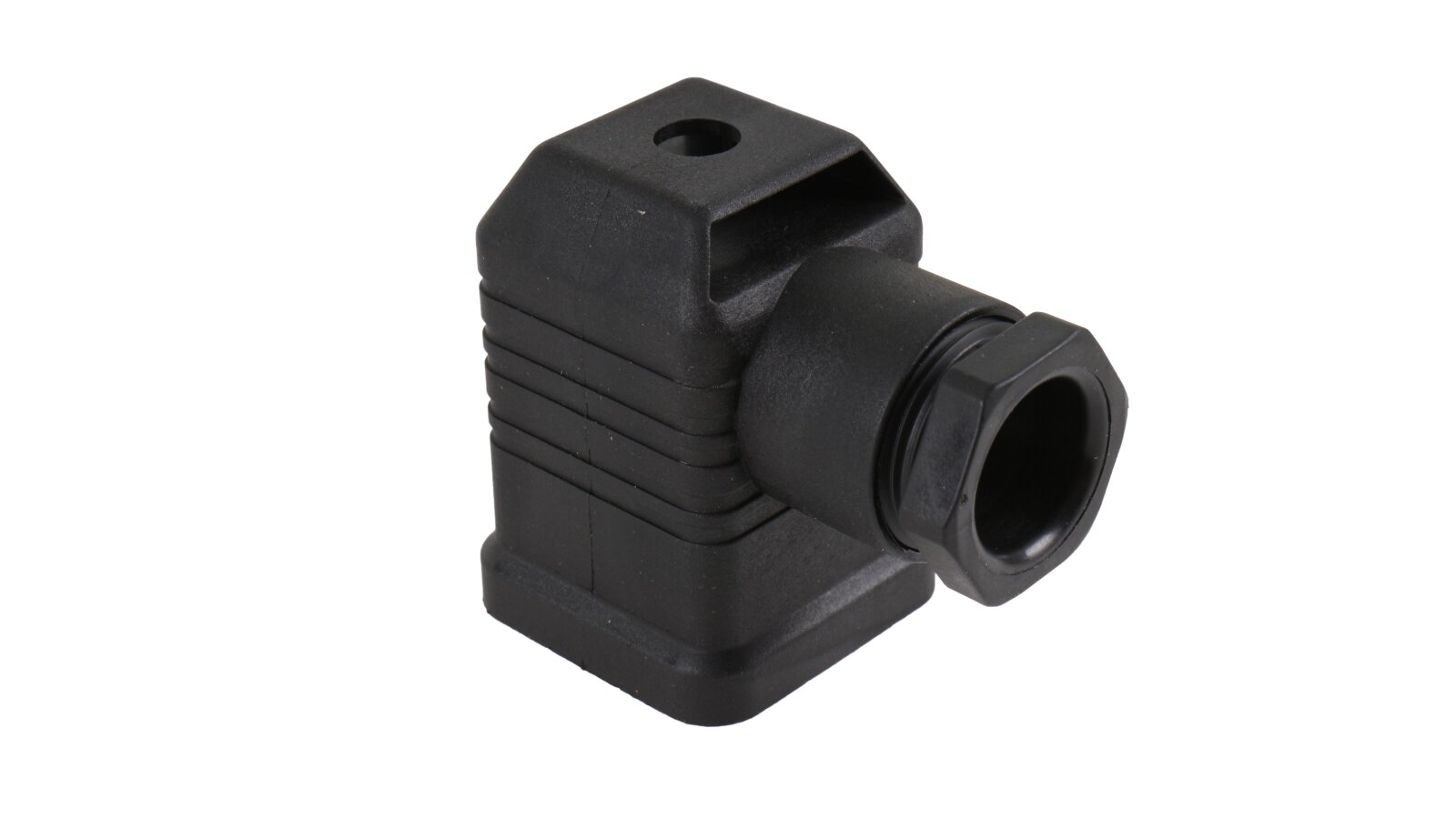

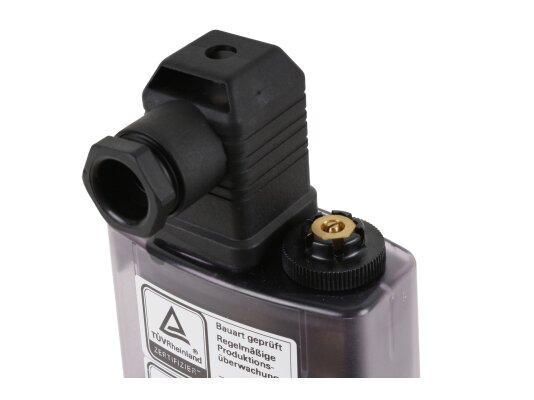

  • electrical connection - DIN plug;

  • protection from physical impact.

You can buy the Sauter DSB relay and additional accessories for installation from us.

Characteristics

Manufacturer Part Number: 640109Operating ambient temperature: from -20 to 70 °CConnection type: G 1/2"Maximum working pressure: 60000 mbarAdjustment range: from 0 to 25000 mbarType of connection: DIN plugShift differential: 1500 - 8000 mbarFor controlling: vacuum pressureDegree of protection: IP65Working environment: neutral gases
