Description

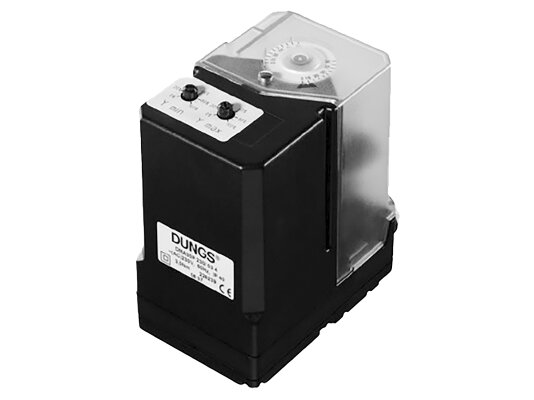

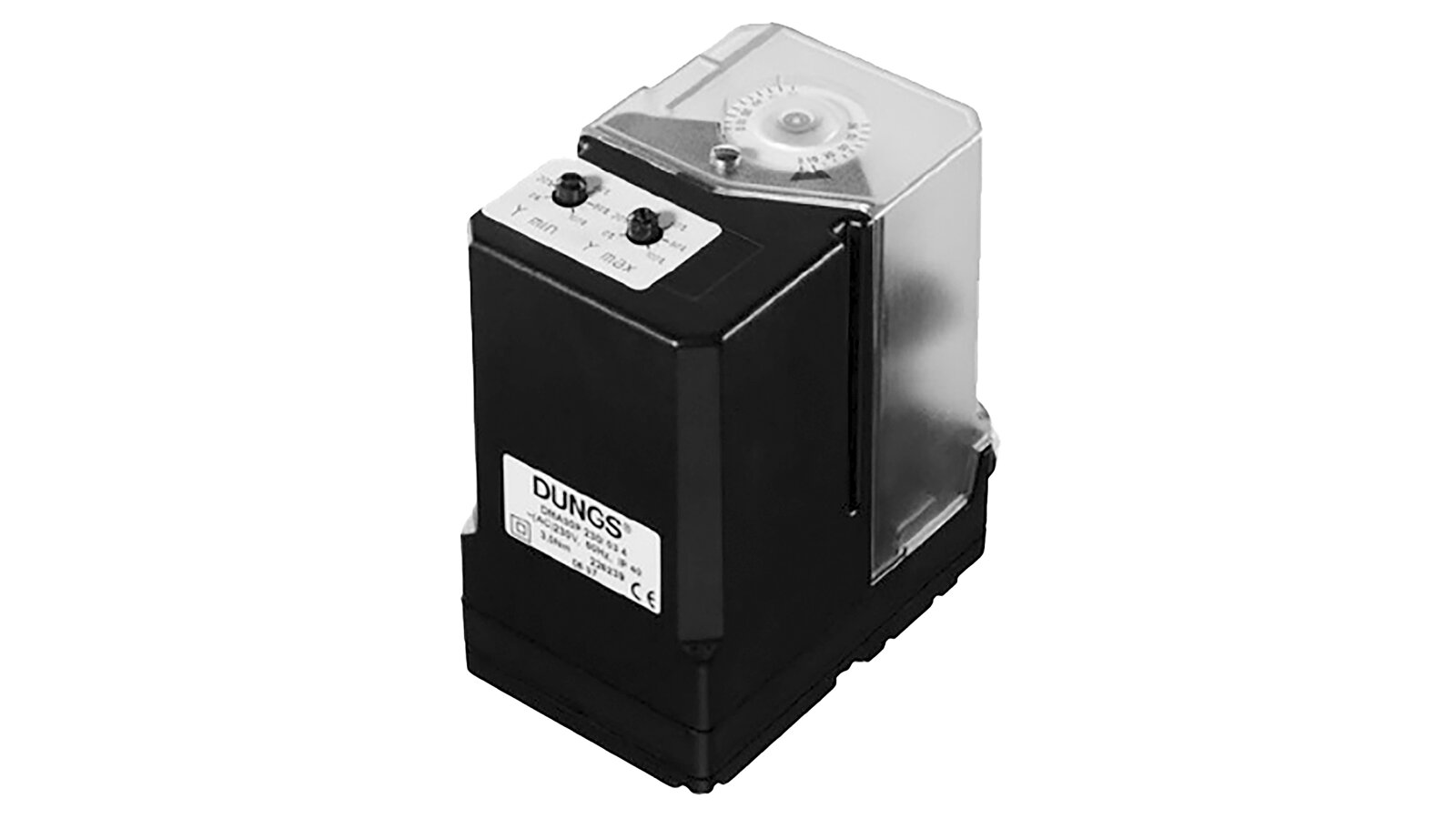

The Dungs DMA 30 P 230/03 0 L actuator is used in combination with the Dungs DMK damper. Provides precise damper positioning, has a robust design, and manual adjustment of the rotation angle. Reliable, trouble-free, functional.
Key features
Power supply: 230 V, 50 Hz.
Opening time at 90º: 30 sec.
Power consumption: max. 3 VA.
Casing protection class: IP 40.
Operating temperature: 0…+50 °C.
Design and features
equipped with a potentiometer and 3 cams for manual adjustment;
powered by a 220-volt electric motor;
provides precise damper rotation between 0 and 90 °;
equipped with a mechanical position indicator that can be read from the outside;
has low energy consumption;
has a freely selectable mounting position;
does not require maintenance;
is used to control the supply of gas or air to gas burner devices.
Detailed characteristics and features of the model are reflected in the specification of the manufacturer. In order to buy a servo drive Dungs DMA 30 P 230/03 0 L, part number: 226239 at the price of a direct supplier, place an order on the website. If you have any questions, you can contact the ANKAS consultant.
Characteristics
