Description

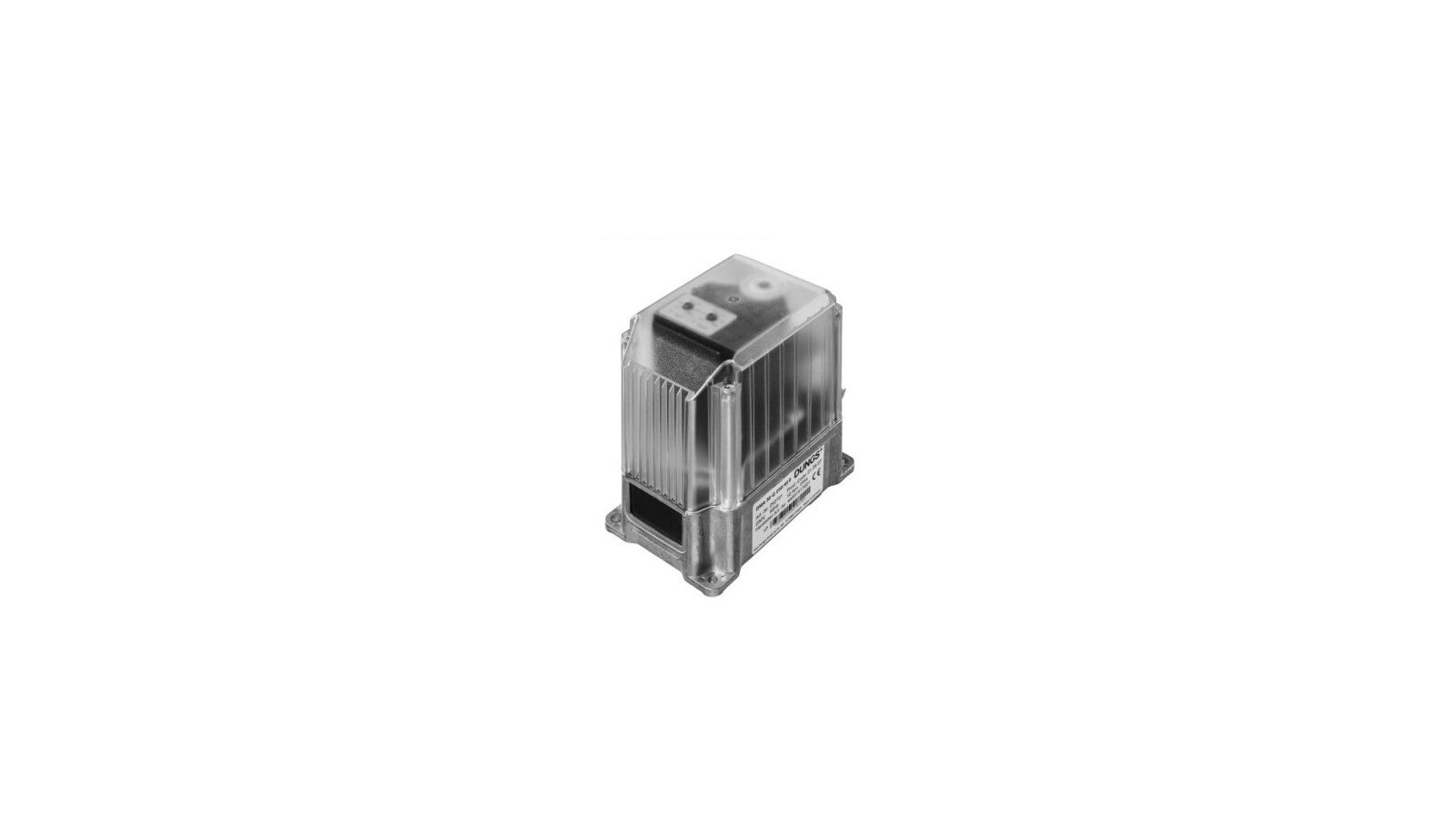

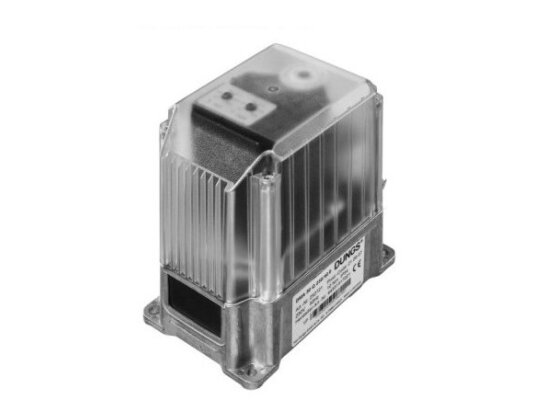

The Dungs DMA 30 Q 230/10 0 L servo drive is equipped with a potentiometer for electronic adjustment of the damper angle. It is used in gas burner devices to prepare the optimal composition of the combustible mixture and obtain the maximum thermal effect from combustion. Provides the accuracy of the damper position, switching stability and efficient operation of the burner.
Main parameters and operating conditions
Voltage / current: 230 V, 50 Hz.
Opening time at 90º: 30 sec.
Power consumption: maximum 3 VA.
Electrical protection rating: IP 54.
Temperature range: 0…+50 °C.
Design and features
equipped with a potentiometer to indicate the damper position and control the device;
operates from a 220-volt motor with a 10-mm shaft;
has manual or automatic control;
is equipped with 3 cams for adjusting the rotation angle in manual mode;
has an analog output of the control signal;
guarantees high accuracy of the damper opening angle within the operating range from 0 to 90 °;
has a high level of protection of electrical components from dust and moisture - IP 54;
is equipped with a mechanical position indicator for tracking the position from the outside;
has a freely selectable installation orientation;
has low energy consumption;
does not require maintenance due to the use of prolonged-action lubricant;
is designed to equip Dungs DML dampers;
is built into heating systems to control the supply of gas or air to the burner.
Detailed information about the servomotor is reflected in the manufacturer's documents. Before buying a servo drive Dungs DMA 30 Q 230/10 0 L article 252721, it is advisable to compare the technical and operational parameters with the burner specification. To clarify the characteristics of the model, contact the consultant "ANKAS".
