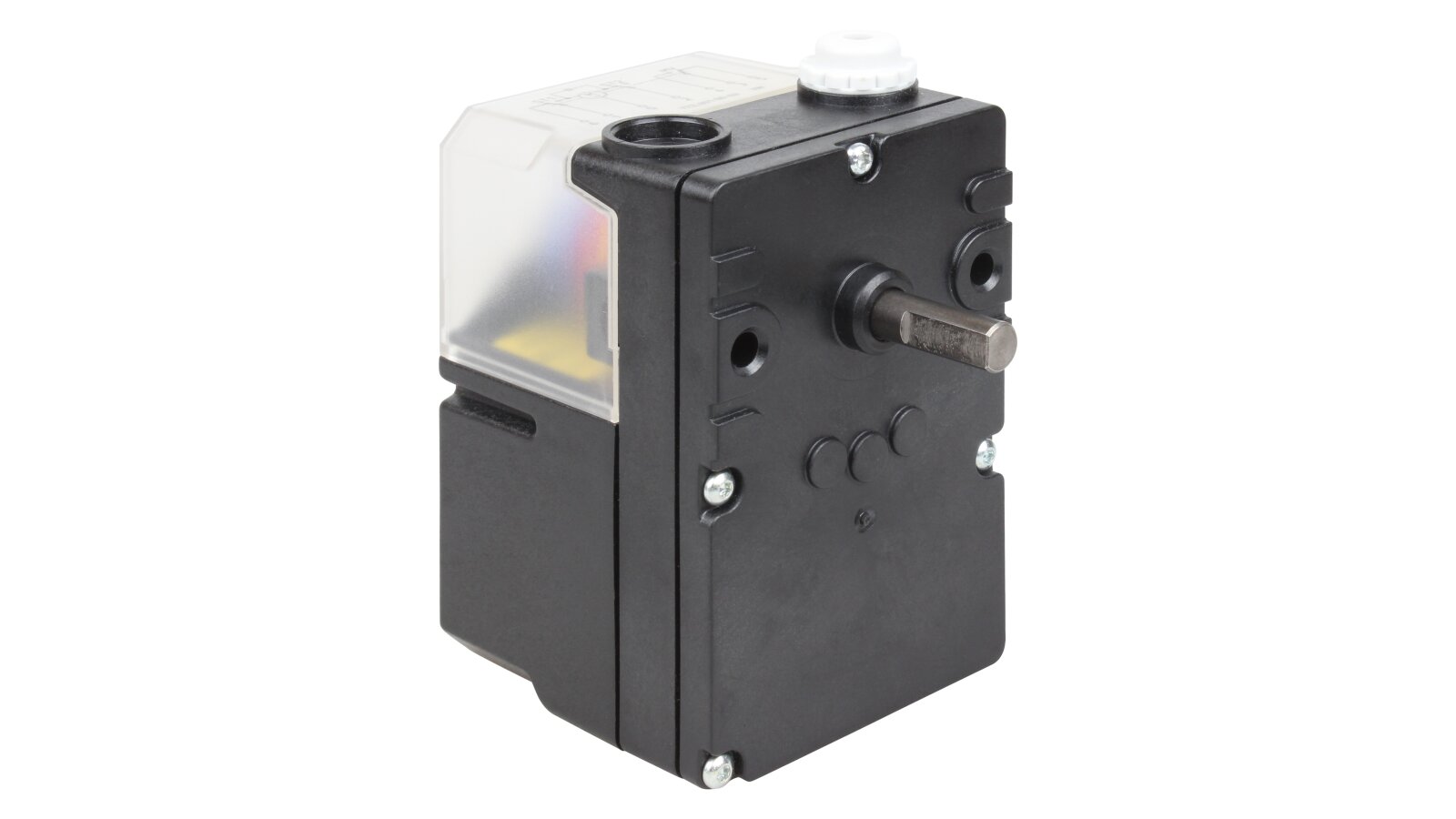

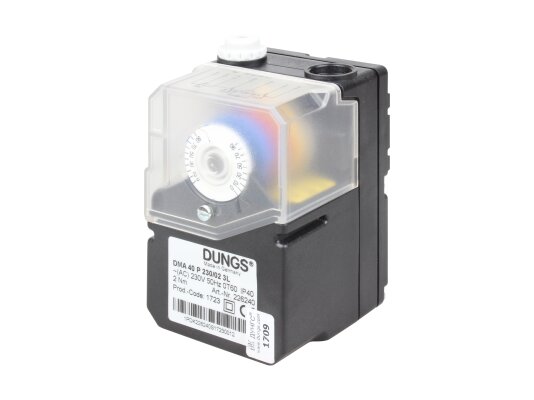

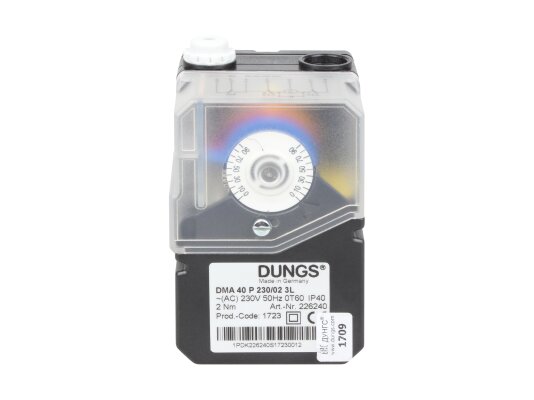

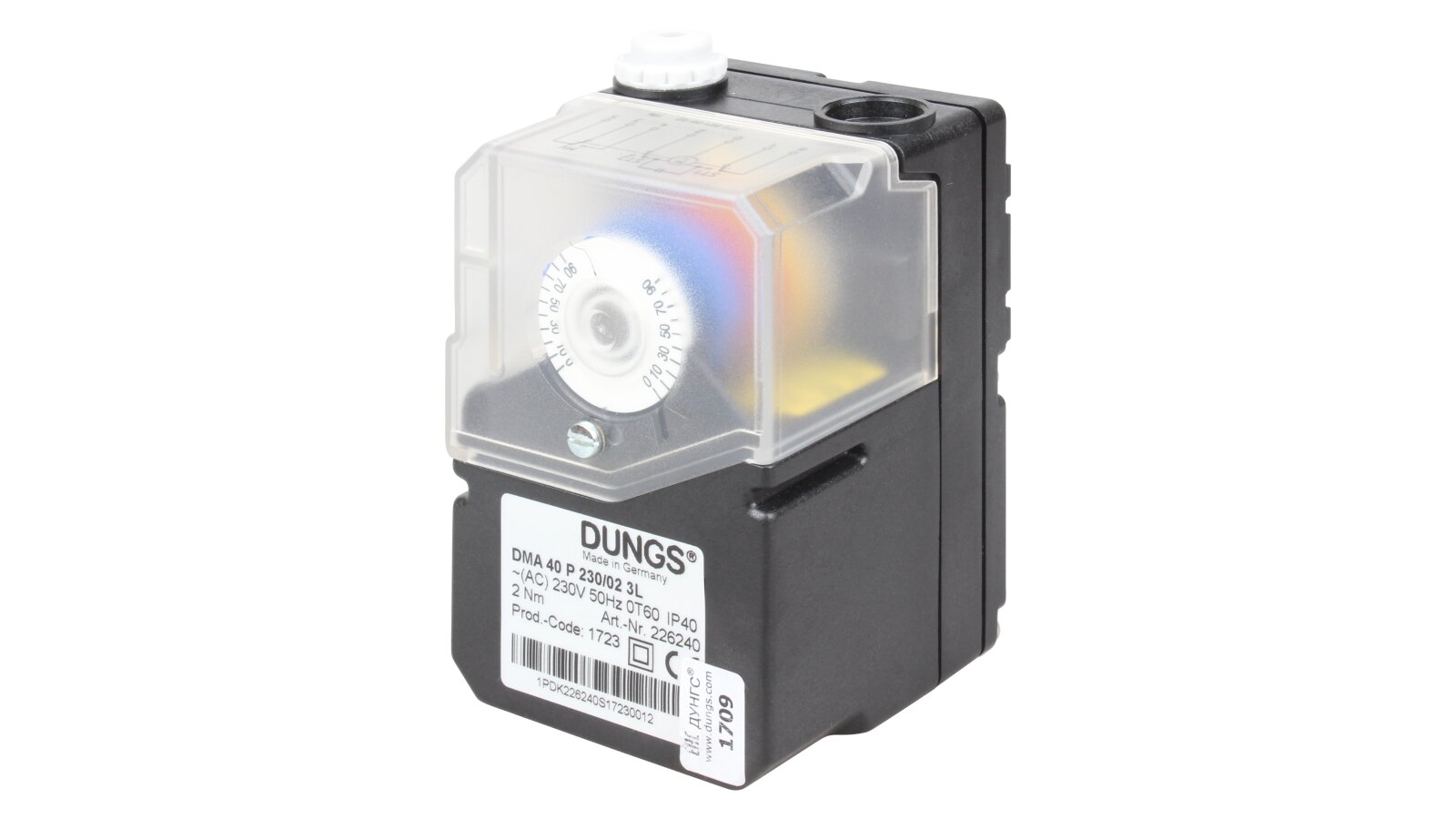

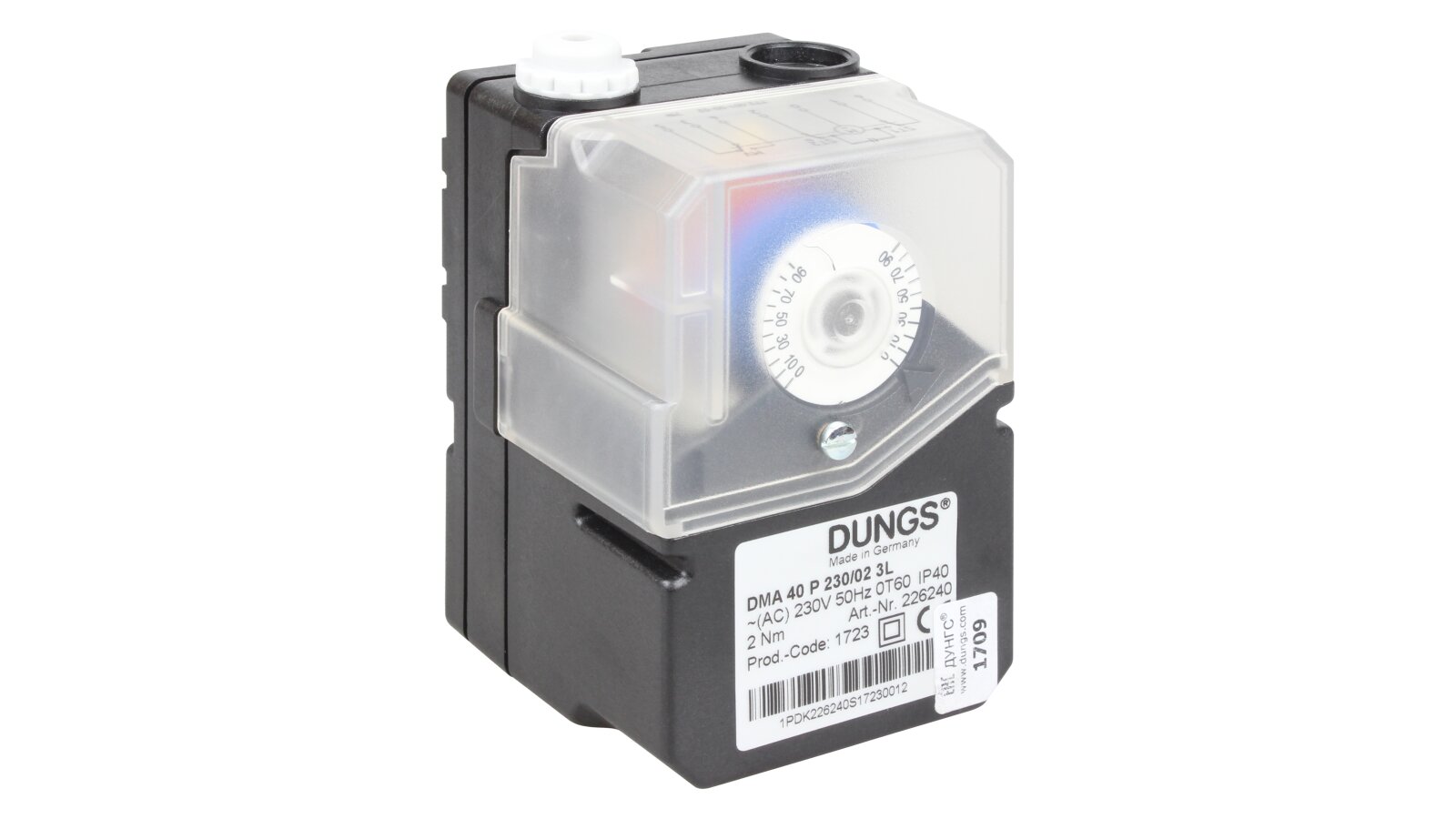

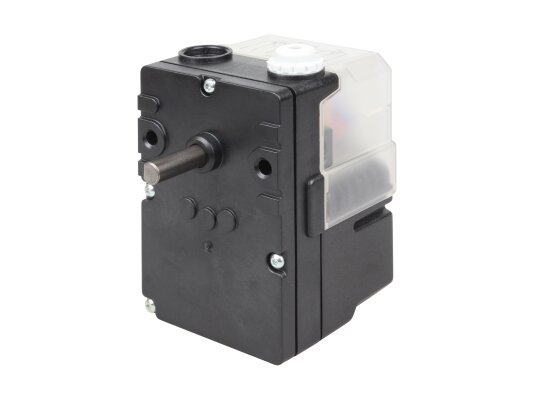

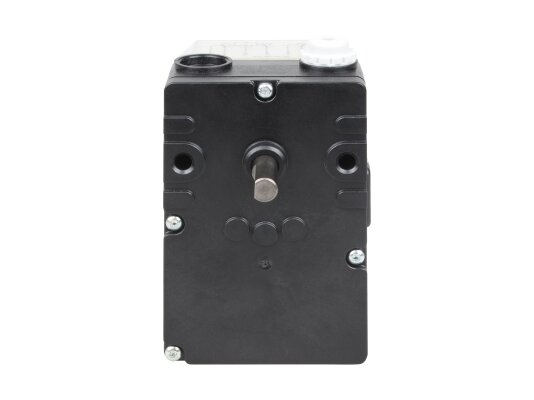

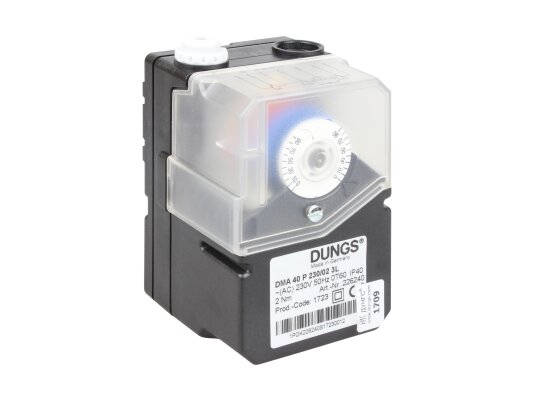

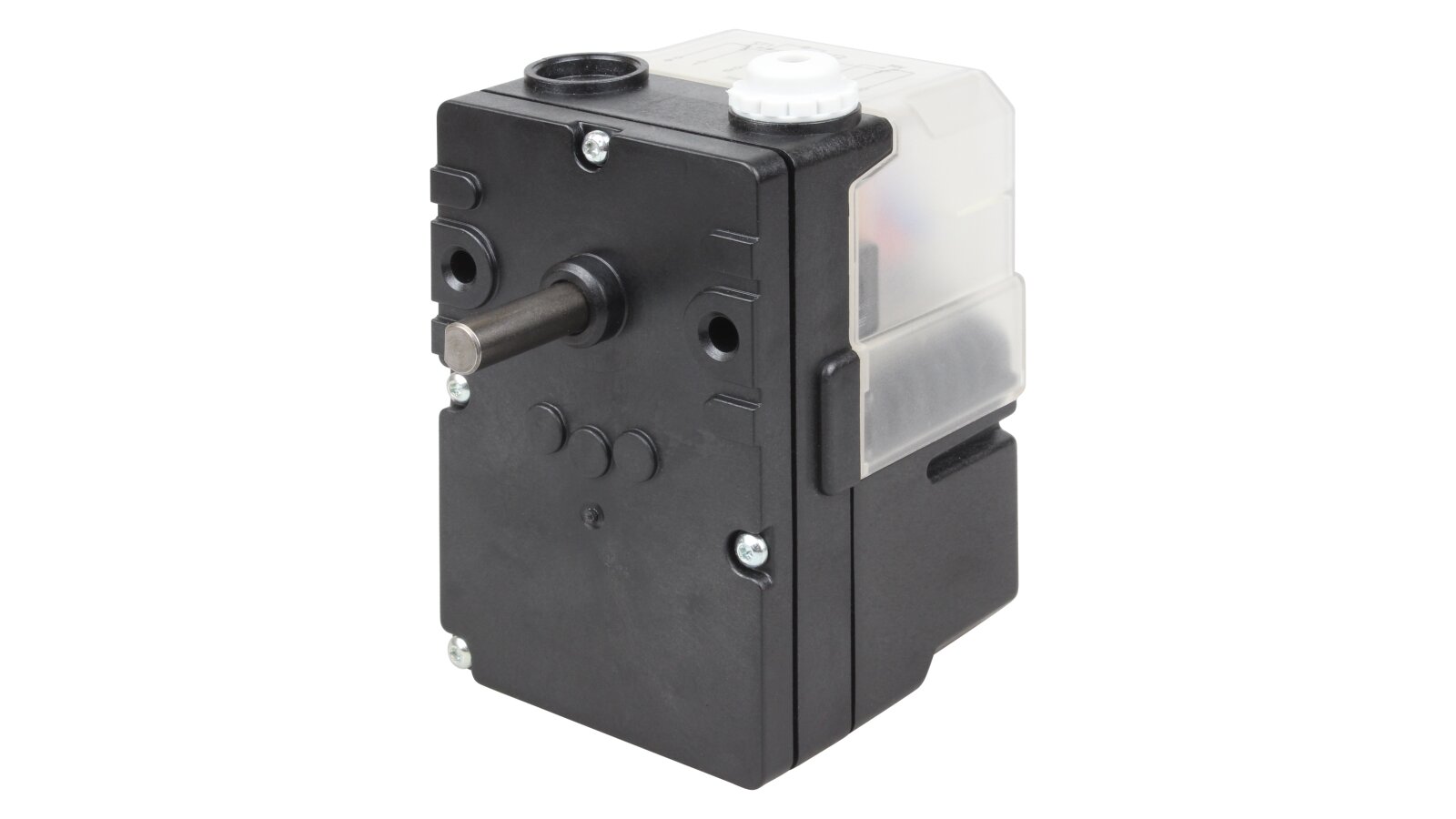

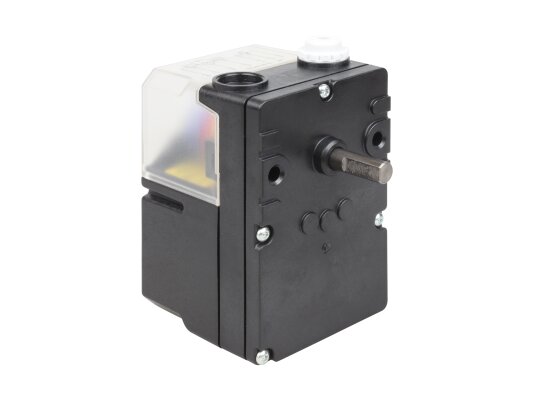

Actuator Dungs DMA 40 P 230/02 3 L

The Dungs DMA 40 P 230/02 3 L servo drive is used together with Dungs DMK type dampers. Its task is to move the damper during the process of regulating the composition of the fuel-air mixture before combustion. It is characterized by precision in operation, variability of adjustment, and reliable performance.

Key parameters

• Power supply: 230 V, 50 Hz.

• Duration of opening at 90º: 40 sec.

• Power consumption: maximum 3 VA.

• Electrical protection according to standard: IP 40.

• Operating temperature: 0…+60 °C.

Design and features

• equipped with 3 cams for adjusting the opening angle;

• controlled in automatic mode;

• operates from a 220-volt electric motor;

• made taking into account the IP 40 electrical protection standard;

• provides precise damper position from 0 to 90 °;

• equipped with a mechanical position indicator, read from the outside;

• can be installed on the work surface in any orientation;

• is characterized by economical energy consumption;

• is not serviced during operation due to the use of continuous lubrication;

• is used to control the supply of gas or air to gas burner devices.

Full information on the characteristics of the model is reflected in the manufacturer's instructions. For more details, contact an ANKAS specialist. Before buying a servo drive Dungs DMA 40 P 230/02 3 L article 226240, we recommend that you check the parameters with the technical conditions of the burner device.
